Redefining Value Optics
Premium optics for a wide range of disciplines. Dependable, accurate, affordable.

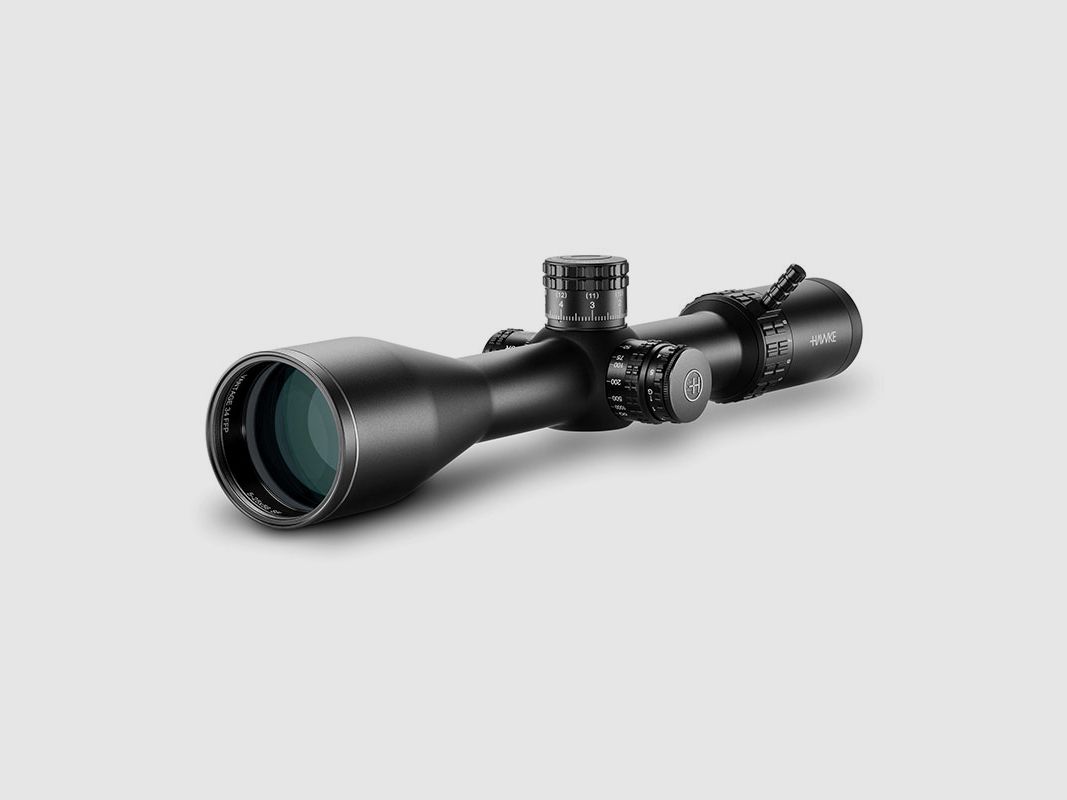

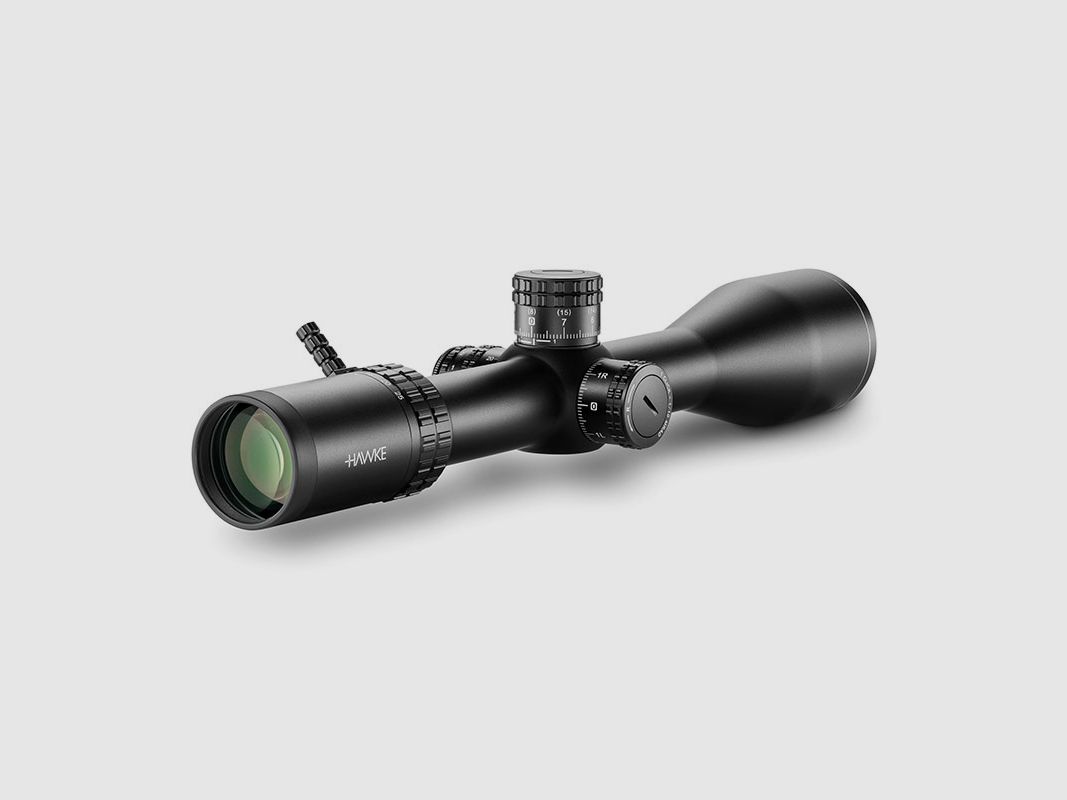

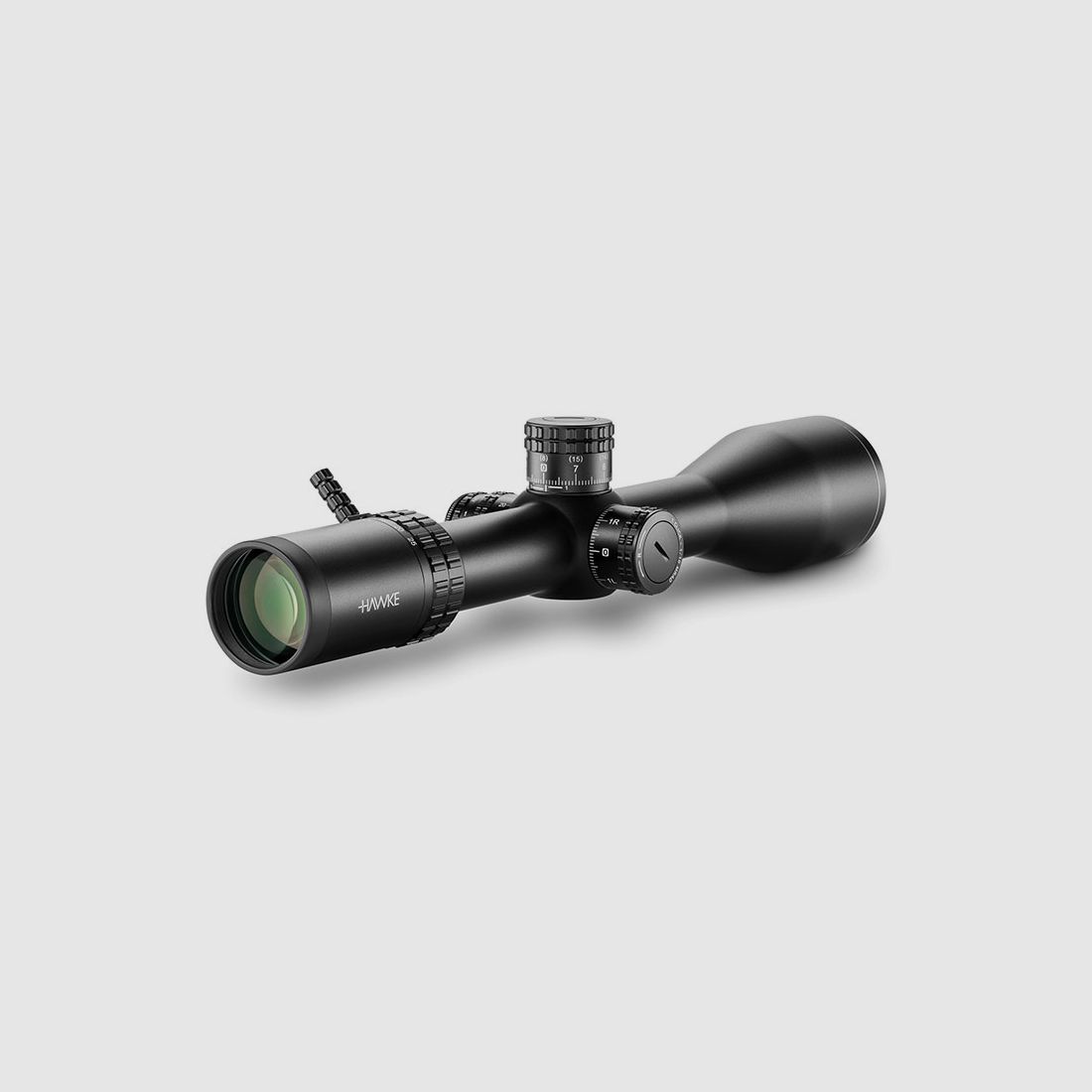

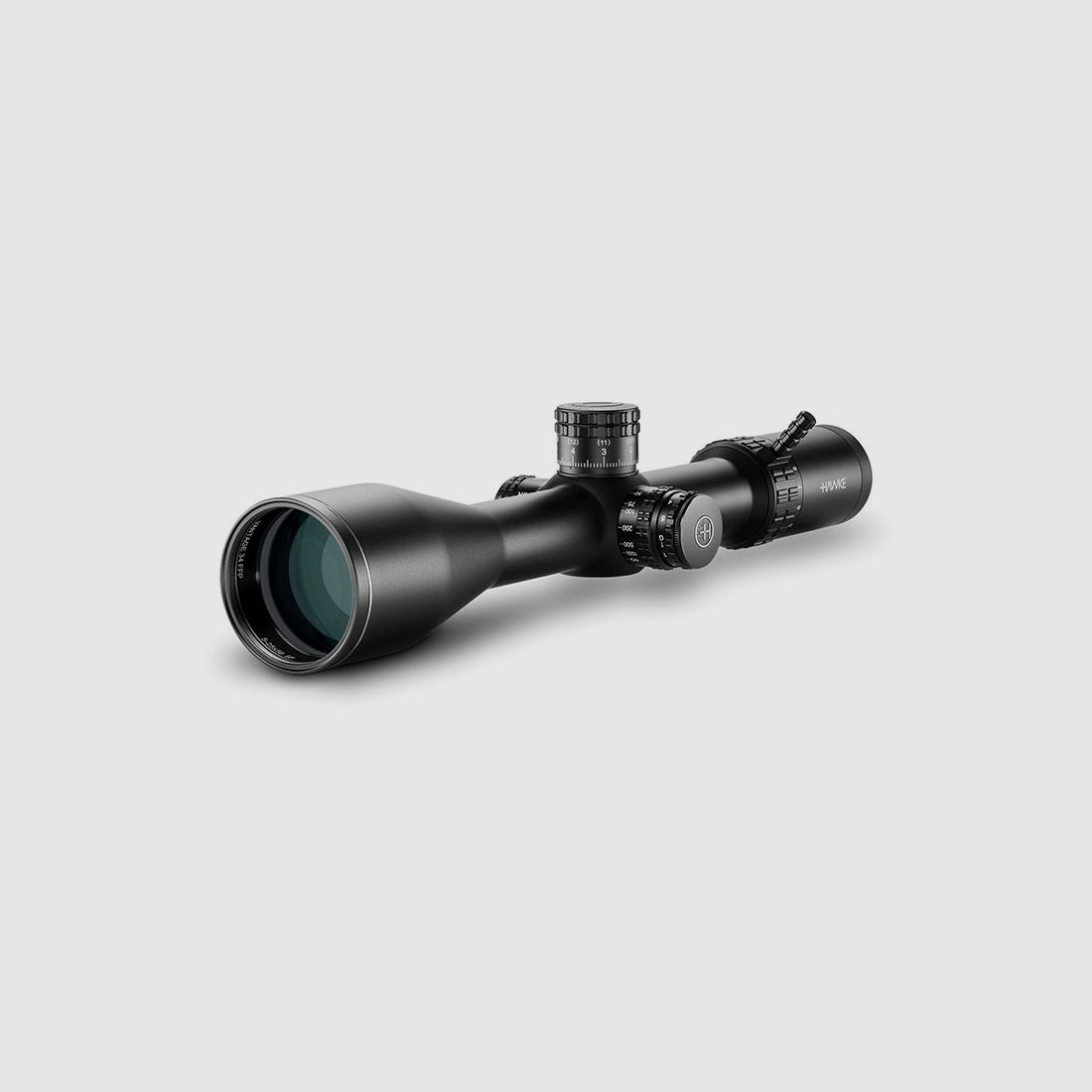

The Vantage HD 34 FFP range takes Hawke’s H2 optics into new territory for tactical and sport shooting. Fully multi-coated lenses deliver exceptional light transmission, an outstanding wide field of view, and a generous 10 cm eye relief.
FFP (First Focal Plane) optics with a Mil-Mil reticle and turrets make adjustments easy when making long-range corrections. Precision components and a 34 mm monotube chassis are designed for both sport shooters and recreational shooting enthusiasts.
Features red and green illumination with a stepped rheostat and Side Focus adjustment for parallax correction and focusing from 10 yards to infinity. The included removable XL zoom lever allows quick, effortless adjustments—ideal when speed is essential or when wearing gloves.
All models feature Zero-Stop elevation turrets and exposed, locking windage adjustment.
34mm Monotube Chassis
First Focal Plane (FFP) Optical System
Zero-Stop Elevation Turret & Exposed, Locking Windage
Illuminated Glass Reticle
11-layer fully multi-coated lenses
4-inch eye relief
Nitrogen purged. Shockproof. Waterproof. Fog proof.
Rated for all calibers.
Hawke Warranty.
34mm Tube
H2 Optical System
56mm Objective
FFP Mil Pro II Reticle (25x)
Illumination 5 intensity levels (Red & Green)
Illumination Control Stepped Rheostat
Side Focus Parallax Adjustment
Magnification 5–25x
Focal Plane FFP (First Focal Plane)
Field of View 24.6–4.9ft @100yds 8.2–1.6m @100m
Field of View (°) 4.7–0.9
Eye Relief 4in 102mm
Parallax/Focus (Error free from) 10yds–∞ 9m–∞
Exit Pupil 0.44–0.09″ 11.2–2.2mm
Click Value 1⁄ 10MRAD
Elevation Turret Clicks (max) 32 MRAD
Windage Turret Clicks (max) 32 MRAD
Eyepiece Type Fast Focus
Knurled Posi-Grip Selector with Removable Zoom Lever
Lens Coating Fully Multi-Coated Lenses – 11 Layers
Length 14.3in 364mm
Weight 32.8oz 930g
Turrets (Elevation) Zero Stop, Exposed, Resettable
Turrets (Windage) High, Locking, Adjustable, Resettable
(Show description in original language)
Redefining Value Optics
Premium optics for a wide range of disciplines. Dependable, accurate, affordable.
La gamma Vantage HD 34 FFP porta le ottiche H2 di Hawke in nuovi territori del tiro tattico e sportivo. Le lenti completamente multistrato garantiscono un’eccezionale trasmissione della luce, offrendo un campo visivo grandangolare straordinario e una generosa distanza oculare di 10 cm.
Le ottiche FFP (First Focal Plane) con reticolo Mil-Mil e torrette garantiscono una facile regolazione durante le correzioni a lunga distanza. Componenti di precisione e struttura monotubo da 34 mm progettate sia per i tiratori sportivi che per gli appassionati di tiro ricreativo.
Dotato di illuminazione rossa e verde con reostato a scatti e regolazione Side Focus per la correzione della parallasse e della messa a fuoco da 10 iarde all’infinito. La leva di regolazione dello zoom XL rimovibile in dotazione consente di effettuare regolazioni rapide e senza sforzo, ideali quando la velocità è essenziale o quando si indossano i guanti.
Tutti i modelli sono dotati di torrette di elevazione Zero-Stop e di regolazione della derivazione a vista con bloccaggio.
34mm Monotube Chassis
Reticolo sul Primo Piano Focale (FFP) Optical System
Zero-Stop Elevation Turret & Exposed, Locking Windage
Illuminated Glass Reticle
trattamento multistrato a 11 strati sulle lenti
4 Inch distanza focale di
Nitrogen purged. Shockproof. Waterproof. Fog proof.
All calibre rated.
Hawke Warranty.
A Tubo 34mm
Sistema Ottico System H2
Obiettivo 56mm
Reticolo FFP Mil Pro II (25x)
Illuminazione 5 livelli di intensità (Rosso & Verde)
Illuminazione Control Stepped Rheostat
Parallasse Side Messa a fuoco
Ingrandimento 5 – 25x
Piano Focale FFP (First Piano Focale)
Campo Visivo 24.6 – 4.9ft @100yds 8.2 – 1.6m @100m
Campo Visivo (°) 4.7 – 0.9
Distanza Focale 4in 102mm
Parallasse/Fuoco (Error free from)10yds – ∞ 9m – ∞
Pupilla d’uscita 0.44 – 0.09″ 11.2 – 2.2mm
Click Value 1⁄ 10MRAD
Elevation Turret Clicks (max) 32 MRAD
Windage Turret Clicks (max) 32 MRAD
Tipo di oculare Fuoco Rapida
Alimentazione Selector Zigrinato Posi-Grip a Leva dello Zoom Amovibile Lever
Trattamento Delle Lenti Multistrato Delle Lenti – 11 Strati
Lunghezza 14.3in 364mm
Peso 32.8oz 930g
Torrette (Elevation) Zero Stop, Esposto, Resettable
Torrette (Windage) Torrette alte, bloccabili, con regolazione, Resettable
