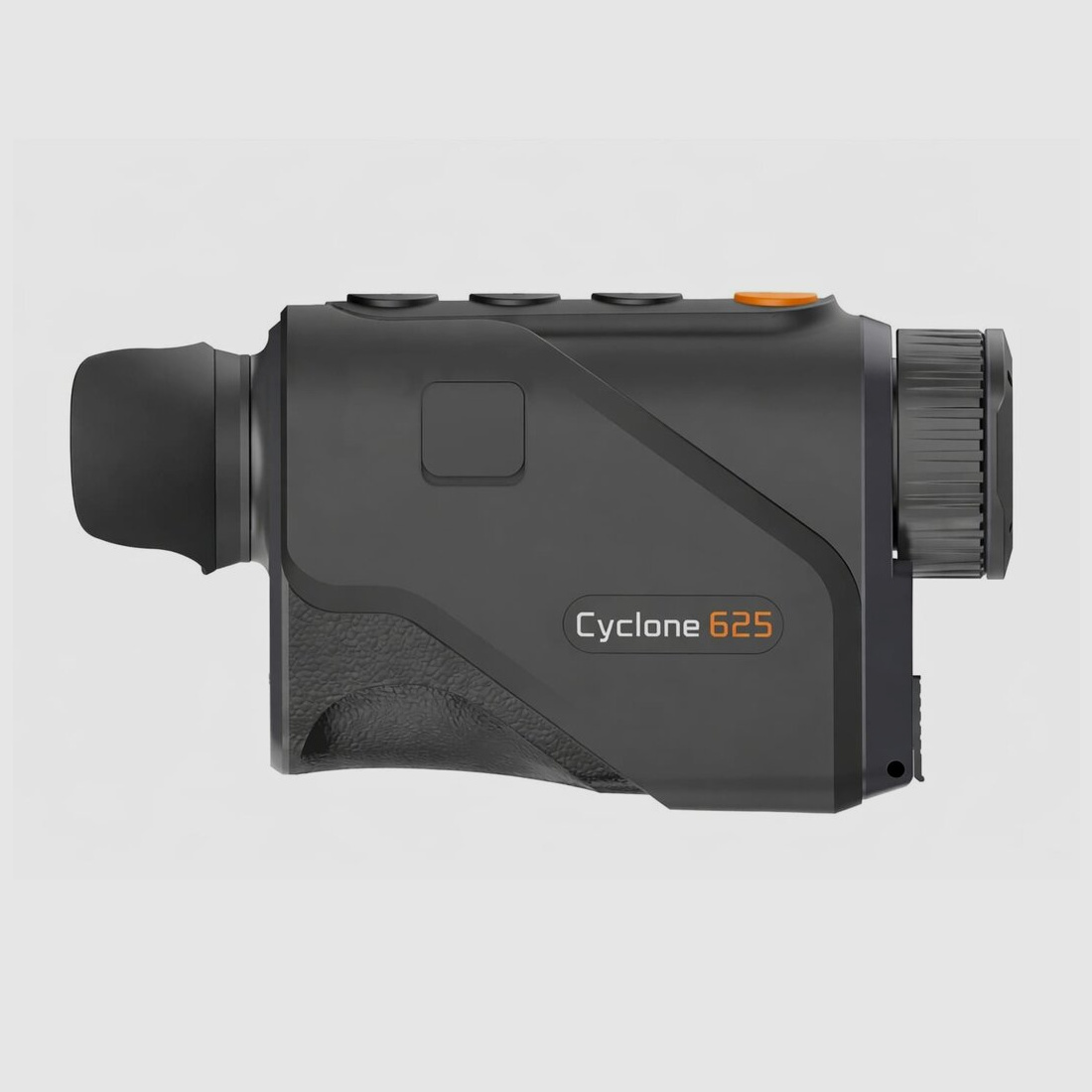

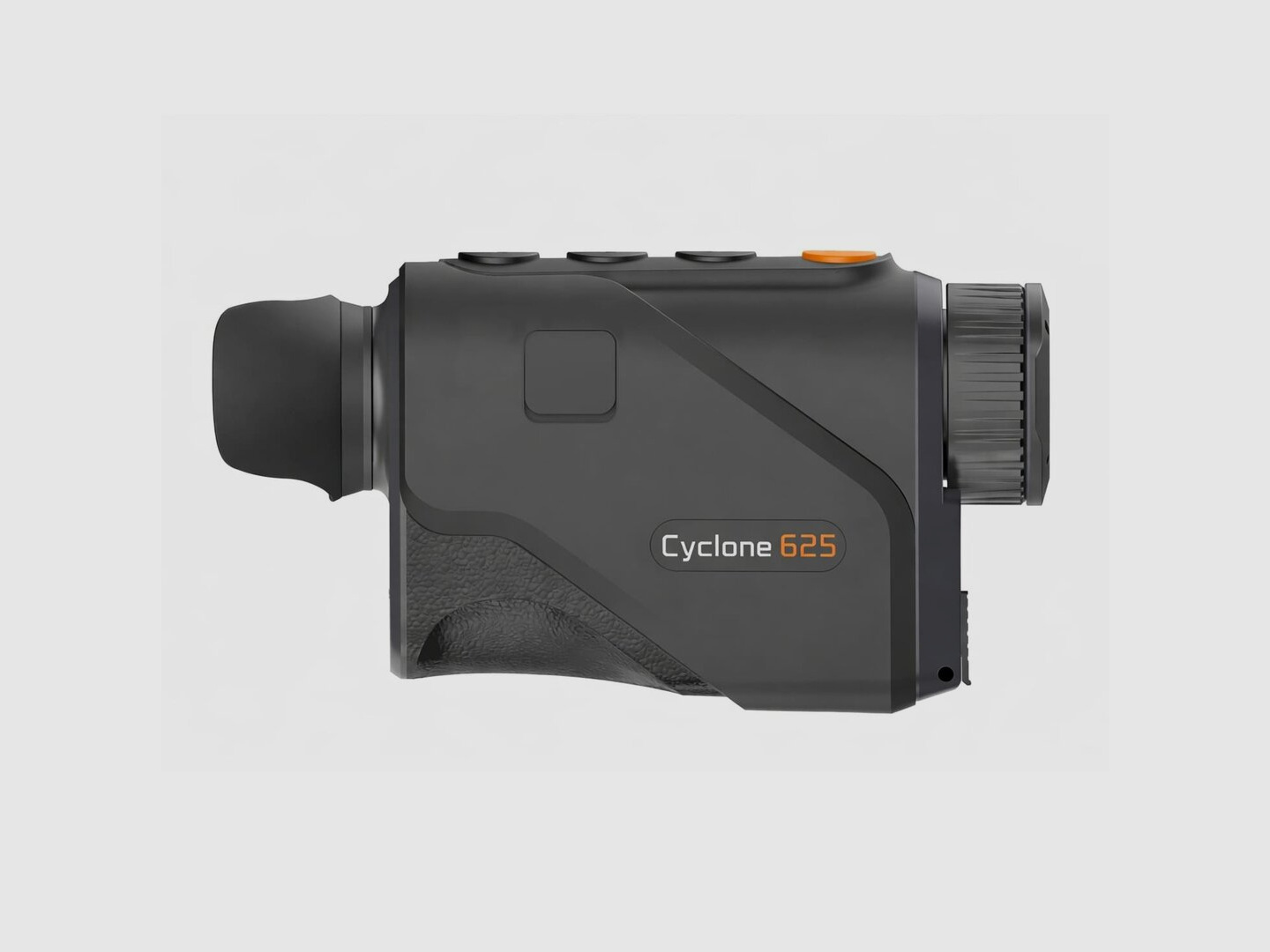

ThermTec Cyclone 625

Compact Thermal Imaging Device for Stalking

The new ThermTec Cyclone 625 is the latest thermal imaging handheld device in the Cyclone series and the ideal alternative to the proven Cyclone 325. Compact, lightweight, and powerful – this handheld device combines cutting-edge technology with a featherweight of only 260 g and a field of view width of 30.6 m (@100 m). Perfect for forest and field hunting, the Cyclone 625 offers both beginners and experienced hunters the highest precision in wildlife observation.

Advantages of the Cyclone 625 over the Cyclone 325

• Higher sensor resolution: 640x512 pixels (Cyclone 325: 384x288 pixels) for more detailed images.
• Highly sensitive NETD < 18 mK for sharper contrasts even in fog, rain, or high humidity. (Cyclone 325: < 20 mK)
• Larger field of view: 30.6 m at 100 m (Cyclone 325: approx. 18.4 m) for better overview while stalking.
• Longer battery life & interchangeable battery system: Up to 8 h per 18650 battery, a total of 16 h including spare battery (Cyclone 325: 5 h runtime).
• More color palettes & customizable quick menu for more efficient image processing in the field.
• Improved AI features: AI rangefinder, hot spot marking, and PIP mode for precise target analysis.

Technical Highlights

• Sensor & Lens: 12 µm VOx sensor, 25 mm F1.0 lens, Pixel pitch 12 µm
• Display: 0.39 inch AMOLED, 1024x768 pixels
• Weight: only 260 g – perfect for the bag
• Detection distance: Human 1300 m / Deer 1260 m
• Recognition distance: Human 430 m / Deer 390 m
• Digital zoom: 1x, 2x, 4x
• Color palettes: 6, including eye-friendly green mode
• Storage: 32 GB for photos & videos
• Protection class: IP67
• Operating temperature: -20 °C to +50 °C
• Connections & Extras: Hotspot function, Wi-Fi control, USB power supply, tripod thread

Battery & Operation

With the integrated interchangeable battery system, you can use standard 18650 batteries. Thanks to the second battery included in the package, you can achieve a total runtime of up to 16 hours, ideal for long stalking trips.

Operating Comfortt

The intuitive button layout makes the Cyclone 625 easy to operate. Extensive image and display settings (sharpness, brightness, contrast, anti-noise) in 10 levels, three scene modes, and individually adjustable color palettes ensure maximum adaptation to your hunting situation.

Scope of delivery

• ThermTec Cyclone 625 thermal imaging device
• Lens cover
• USB cable & charger
• 2x 18650 battery
• Objective cloth
• German user manual

Anyone looking for a compact, lightweight, and high-resolution thermal imaging device will be well-equipped with the ThermTec Cyclone 625. The significant improvements over the Cyclone 325 – higher sensor resolution, larger field of view, longer battery life, and modern AI features – make it the ideal choice for modern stalking.

Technical Data:

Microbolometer

• Resolution: 640 x 512
• Pixel Pitch: 12 μm
• NETD: < 18 m @ 300k
• Frame Rate: 50 Hz

Range

• Detection: 1,300 m human, 1,260 m deer
• Recognition: 430 m human, 390 m deer

Optics

• Objective Lens: 25 mm / F1.0
• Field of View: 17.5° x 14.0°
• Field of View @100 m: 30.6 m
• Optical Magnification: 1.4 x
• Digital Zoom: 1x, 2x, 4x
• Diopter: yes

Display

• Type: AMOLED
• Resolution: 1024 x 768

• Color Palettes: 6

Features

• Photo and Video Playback: Yes
• Internal Memory: 32 GB
• Audio Recording: Yes

• Picture-in-Picture (PIP): Yes
• AI Distance Measurement: Yes
• Heat Track (Hot Spot Marking): Yes
• Recording Function: Yes

Battery

• Internal Battery: Replaceable and rechargeable Li-ion battery (18650 x 1 in the device, 1 additional battery included)
• Battery Life: up to 8 hours per battery

Interfaces

• Type-C: Supports battery charging and data transfer
• Hotspot: Yes, with app remote control

Environment

• Operating Temperature: -20 °C to +50 °C
• Protection Class: IP67

Weight & Dimensions

• Weight: 260g
• Dimensions: 135x76x54

Scope of delivery:

• Cyclone 625
• Lens cover

• Operating manual in German
• Objective cloth
• USB cable

• Charger
• Battery 2x
