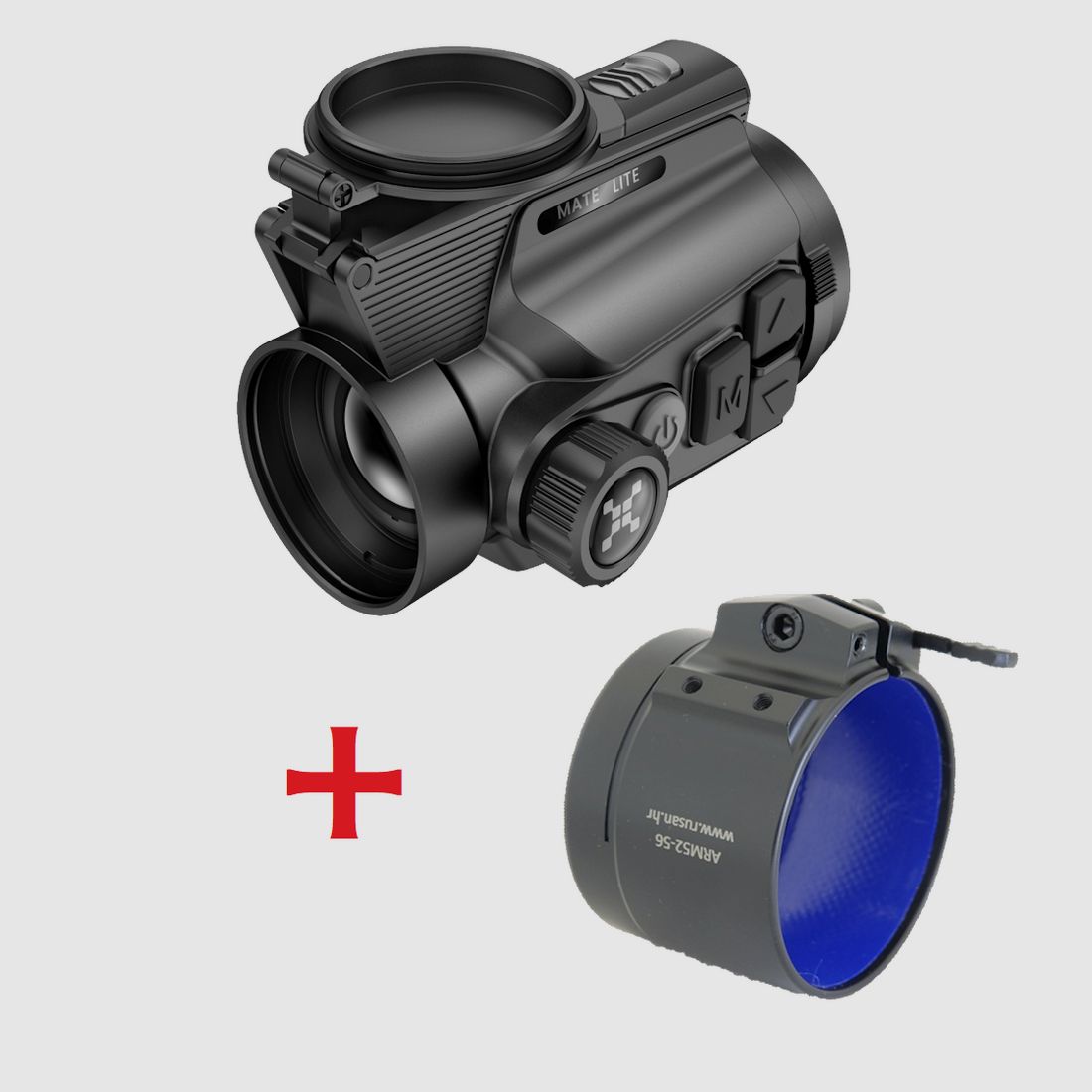

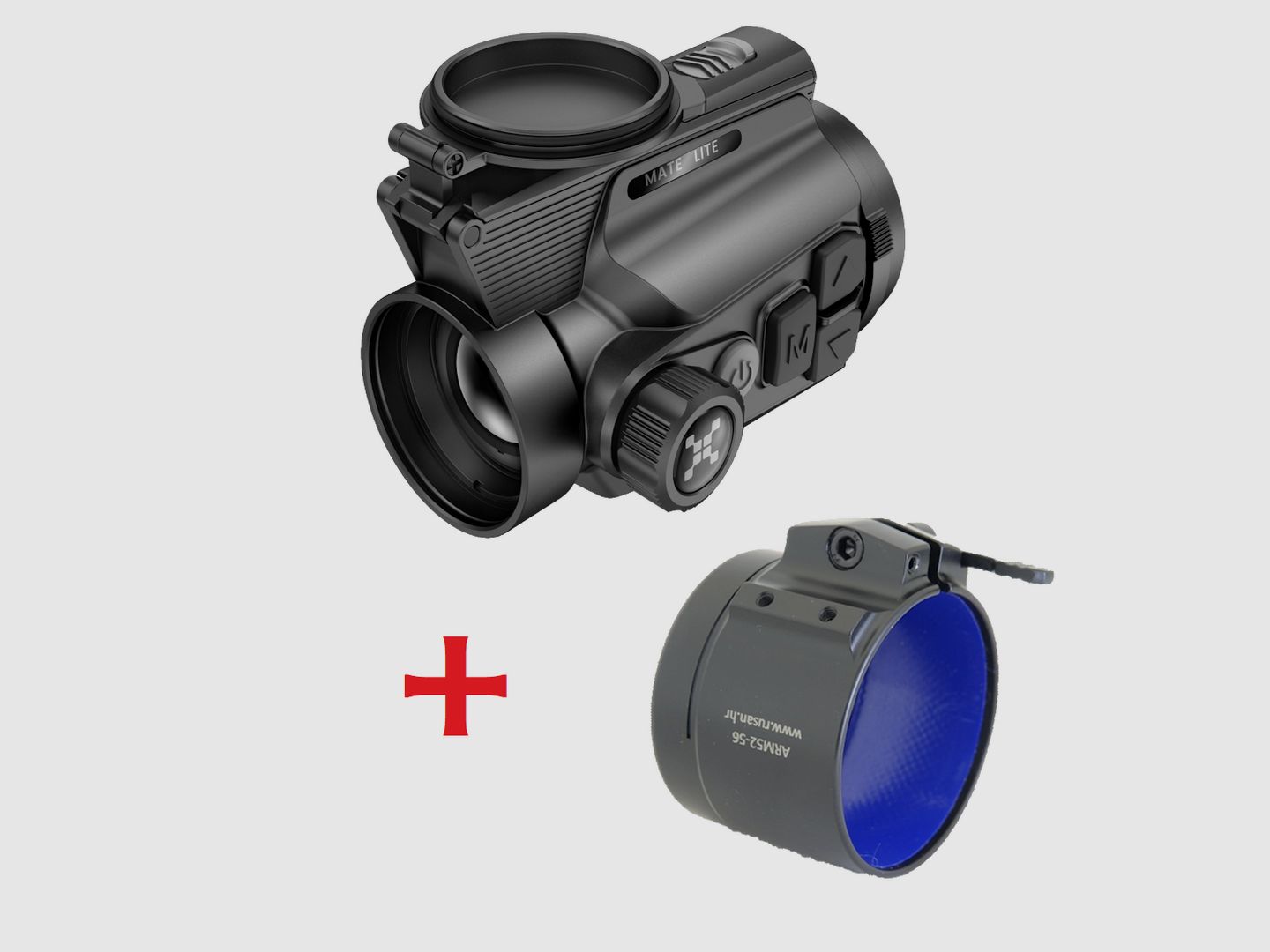

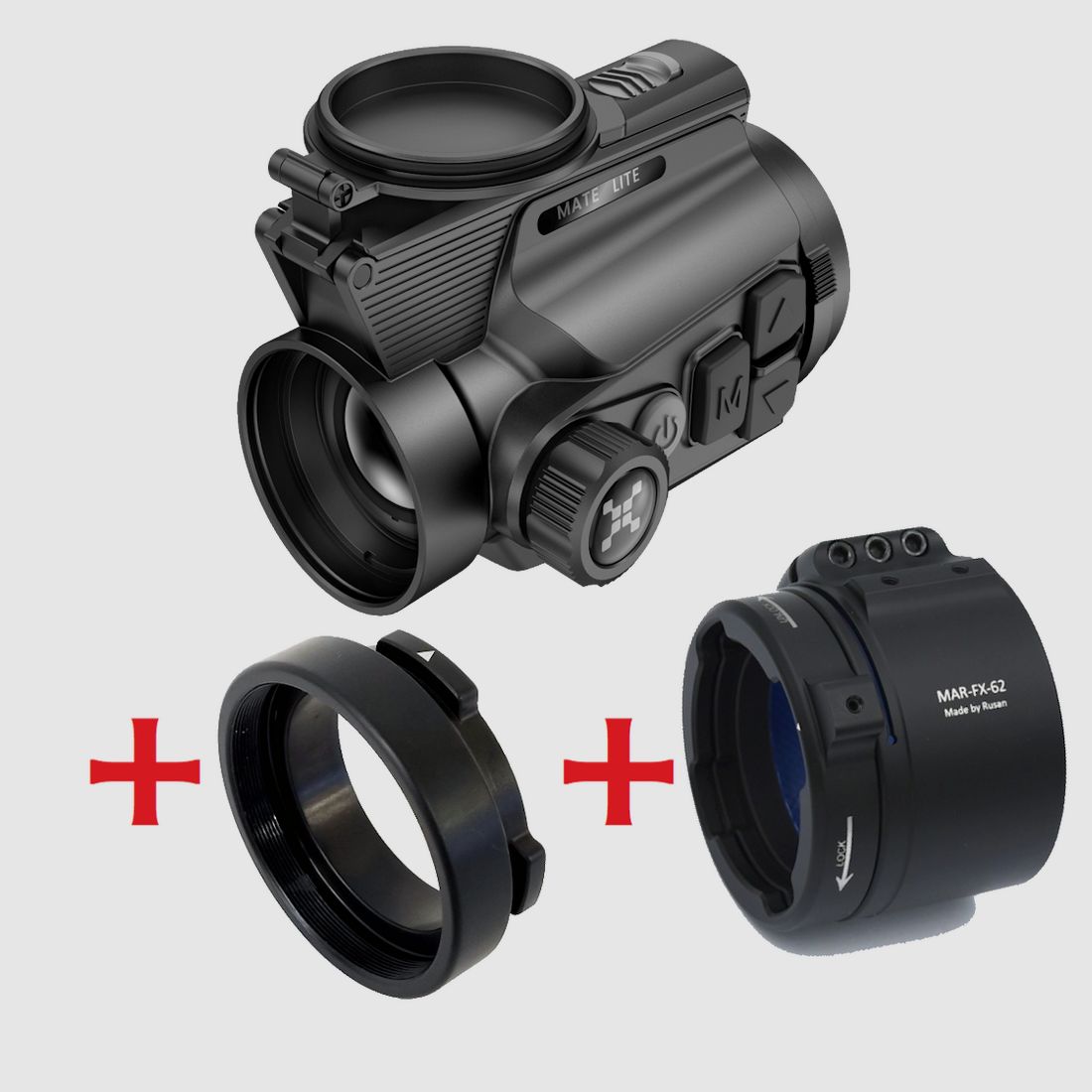

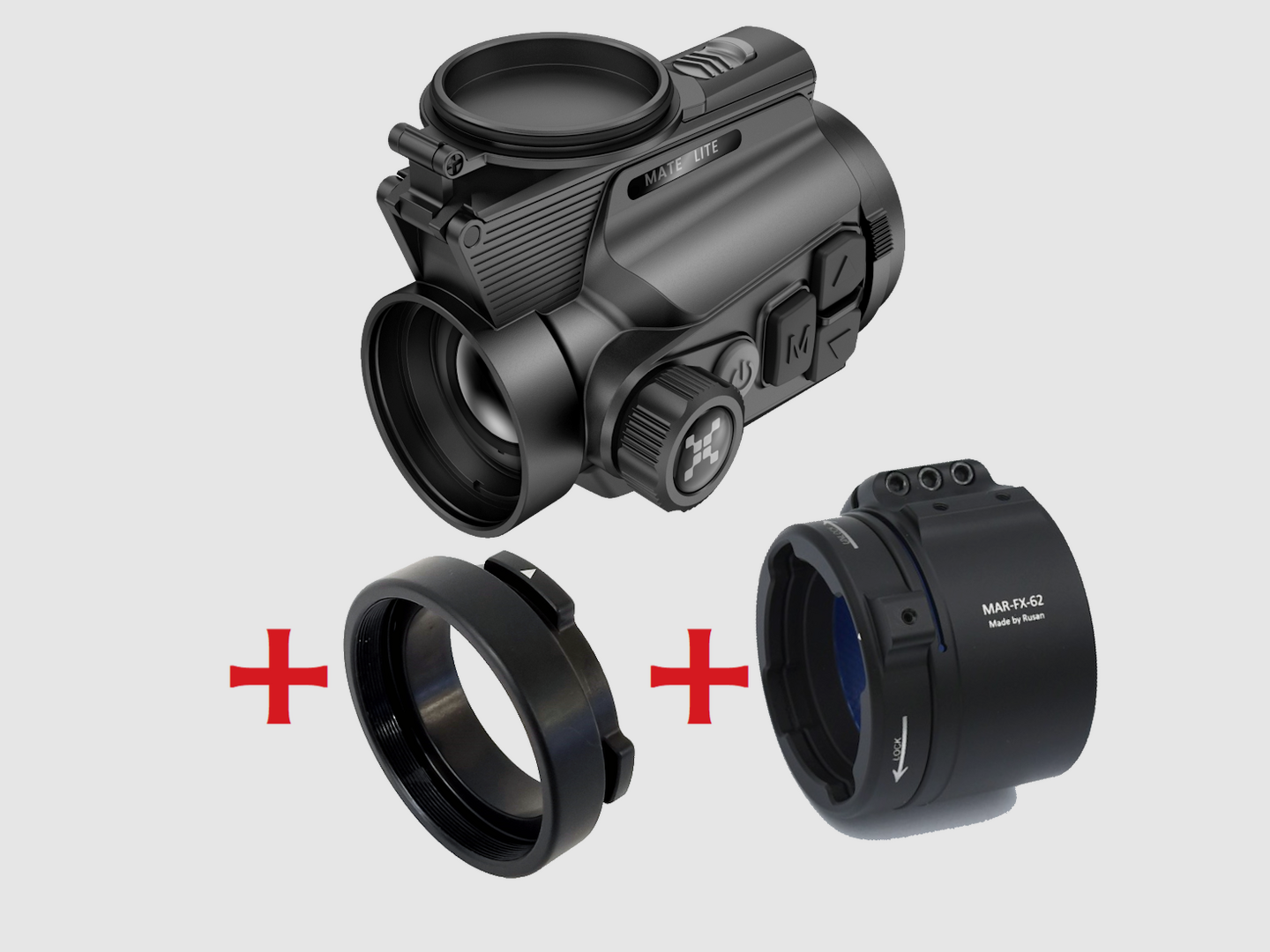

Nocpix Mate Lite Thermal Imaging Device in Premium Complete Set

Nocpix Mate Lite Thermal Imaging Attachment in Premium Complete Set

New on the market is the Nocpix Mate Lite. The device sets completely new standards. Innovative features leave no wishes unfulfilled.

MATE LITE Thermal Imaging Attachment compact, lightweight & powerful
The MATE LITE Series impresses as the ideal entry-level thermal imaging attachment for hunting and wildlife observation. Equipped with a 38 mm lens, a highly sensitive sensor, and lightweight, it offers a perfect combination of mobility and performance.
Thanks to the low NETD value, the device delivers clear, high-contrast images even in difficult weather and lighting conditions. The high frame rate ensures smooth real-time display, while the long battery life guarantees reliable operation for many hours.
Whether for night hunting, wildlife observation, or use in the field – the MATE LITE Thermal Imaging Attachment is a reliable companion for any hunting situation.

Product Highlights:

• 384x288 - resolution at 12 m thermal imaging sensor
• High sensitivity thermal module with NETD 15 mK
• Laser rangefinder - 1200m with picture-in-picture measurement
• Use of standard 18650 batteries for easy and silent replacement
• unique 60 Hz frame rate
• RAV function (recoil-activated video recording)
• integrated gallery function

• particularly robust thanks to internal lens focus
• significantly shorter and lighter than other products

Technical Data:

Thermal Module


Image Sensor

Max. Resolution 384 288

Frame Rate 60 Hz

Pixel Interval 12 m

Lens (Focal Length) 38 mm, F1.0

NETD 15

Magnification 1x

Field of View (H V), Degrees / m @100m 6.9 x 5.2/12.3 m x 9.2 m




Image Display


Display 1920 x 1080, AMOLED

Pupil Exit approx. 35 mm

Eye Relief approx. 20 mm




System


Video Recording Integrated video recording

Photo Capture Yes

Storage 64 GB

Recording via Recoil Activation Yes

Max. Recoil 7000 J

Local Album Yes




Power Supply


Battery Type Replaceable and rechargeable lithium-ion battery 18650

Battery Life 6h (22 C)

Type-C Power Supply 5V




General

Protection Class IP67

Dimensions 115 mm x 72 mm x 76 mm

Weight 399 g with battery

Operating Temperature -20 C to + 50 C

Scope of delivery:

• MATE LITE
• Accessories for remote control

• 2x battery pack
• Charger
• Lens cloth
• Description

• Bag
• 2x heating pads

• Adapter optional

Please remember that we need the housing outer diameter and not the lens diameter of the optics!




When mounting thermal imaging devices on riflescopes, please observe the respective legal situation of the countries!!!
