Function of the Component

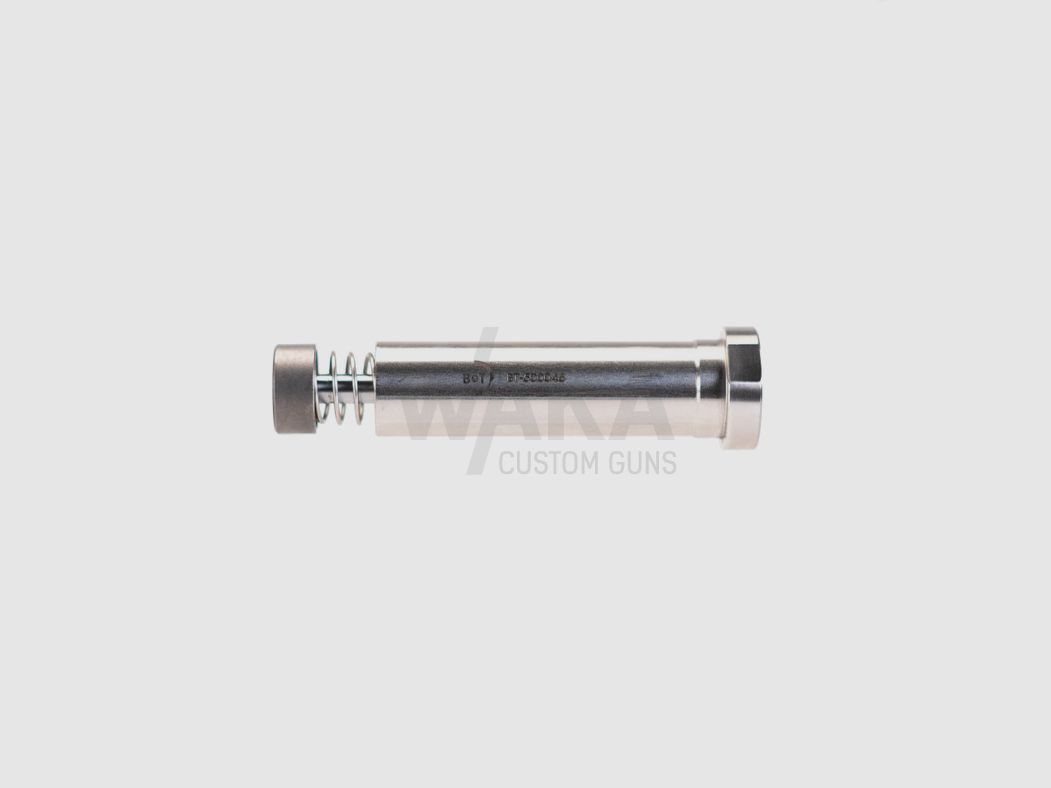

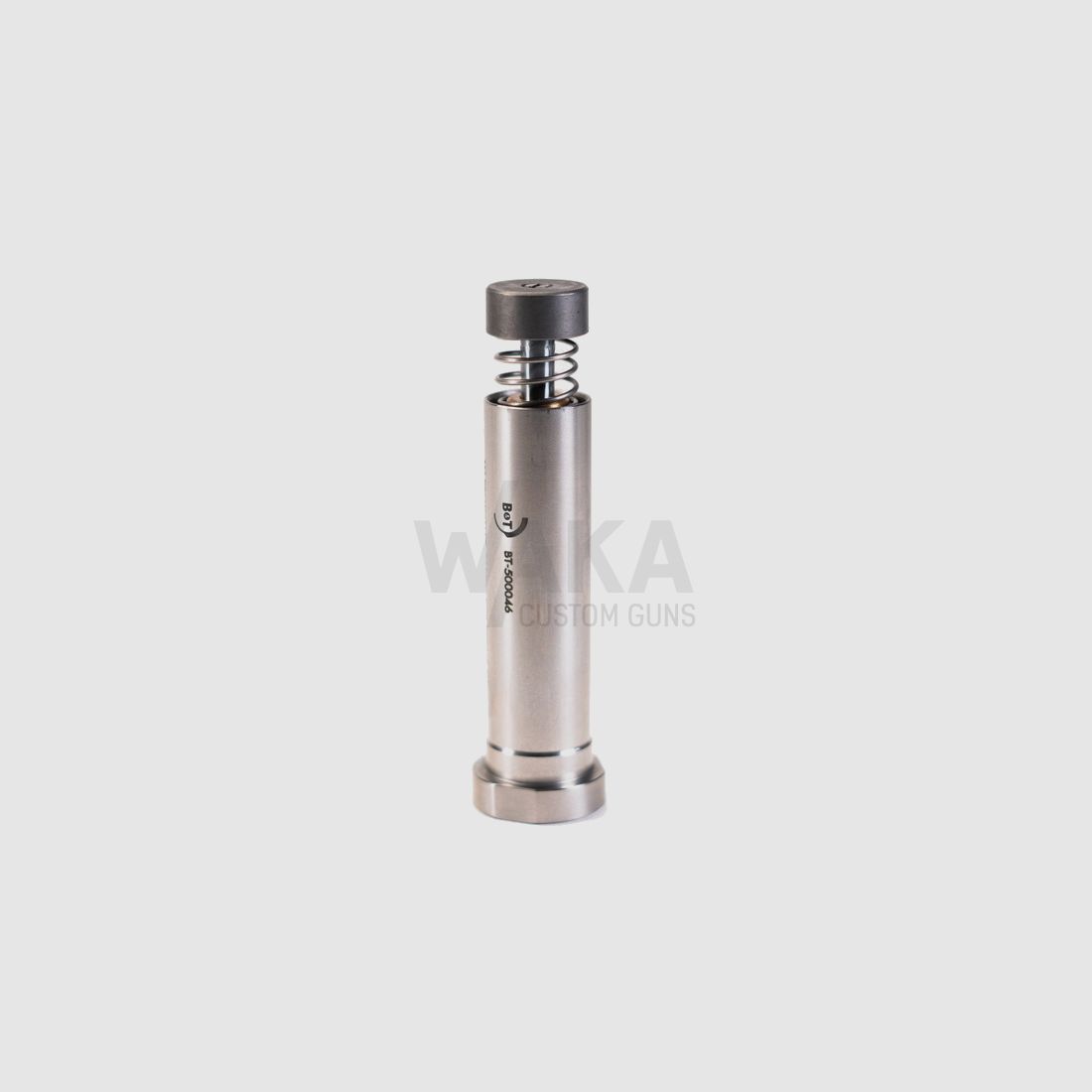

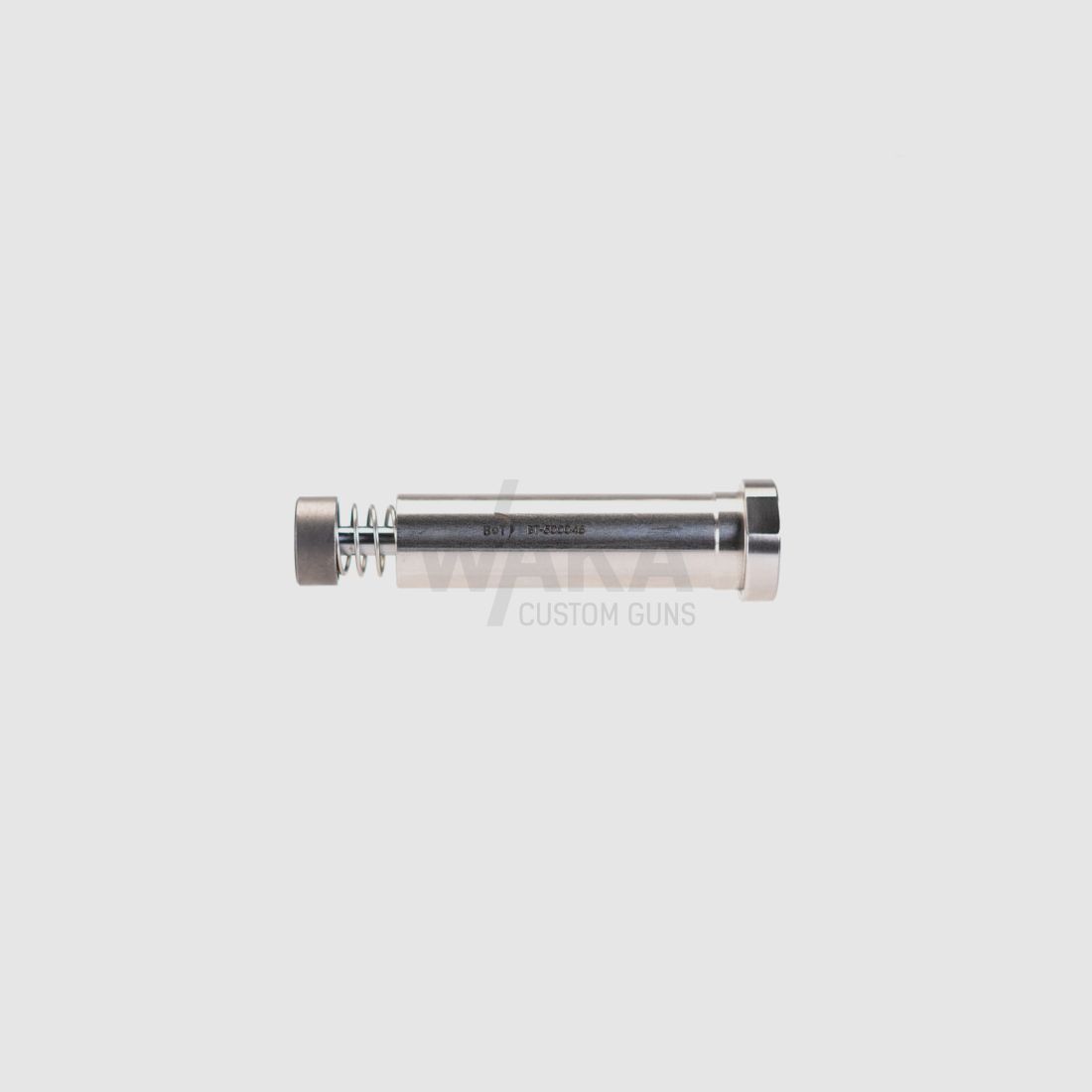

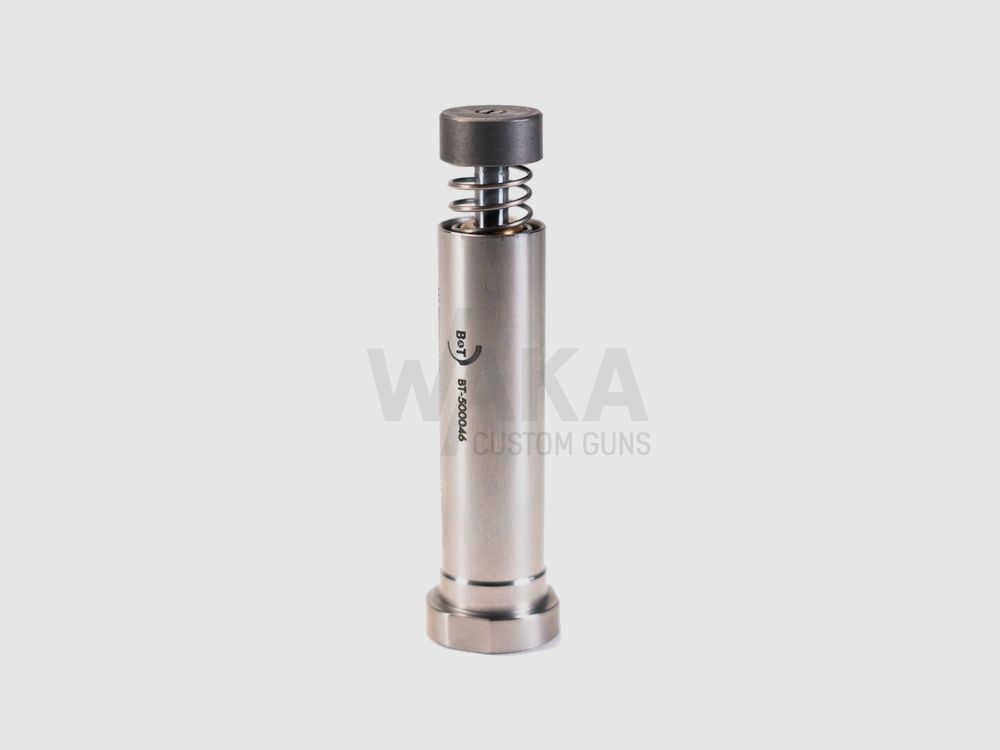

The B&T Hydraulic Buffer for AR9 and AR15 is based on the proven recoil damping technology from B&T's semi-automatic weapon platforms. The hydraulic design effectively absorbs recoil forces and dampens the impulse during the cycling process. This results in a noticeably softer shot release, shorter target acquisition, and reduced stress on the weapon and its components.
Compatibility
The hydraulic buffer is compatible with AR15 systems in caliber .223 Rem. as well as AR9 platforms in caliber 9x19 mm that are based on the AR standard. It fits into all standard carbine buffer tubes (Mil-Spec and Commercial-Spec) and can be used in weapons designed for the use of carbine-length buffers.
Assembly/Belonging
The component belongs to the recoil damping and closing system assembly (Buffer Assembly) and replaces the conventional mechanical standard buffer. It is installed in conjunction with the buffer spring in the stock of the weapon.
Material & Manufacturing
The B&T Hydraulic Buffer consists of a robust aluminum housing with precise CNC machining. The internal hydraulic unit is specifically designed for continuous operation under high loads and ensures constant, maintenance-free function over many thousands of shot cycles.
Replacement/Installation Notes
The replacement is done by simply removing the existing buffer and inserting the B&T Hydraulic Buffer into the buffer tube. No modifications to other components are necessary. For optimal performance, compatibility with the used buffer spring should be checked. A check of the closing function and, if necessary, fine-tuning (e.g., for particularly light or heavy bolt groups) is recommended.
Technical Data:
Weight: approx. 6 oz (170 g)
Design: Carbine Length
(Show description in original language)
Funktion des Bauteils Der B&T Hydraulic Buffer für AR9 und AR15 basiert auf der bewährten Rückstoßdämpfungstechnologie aus den halbautomatischen Waffenplattformen von B&T. Durch die hydraulische Konstruktion werden Rückstoßkräfte effektiv absorbiert und der Impuls beim Repetiervorgang gedämpft. Dies führt zu einer spürbar weicheren Schussabgabe, verkürzter Zielerfassung und einer geringeren Belastung der Waffe und ihrer Baugruppen. Kompatibilität Der hydraulische Buffer ist kompatibel mit AR15-Systemen im Kaliber .223 Rem. sowie AR9-Plattformen im Kaliber 9x19 mm, die auf dem AR-Standard basieren. Er passt in alle Standard Carbine Buffer Tubes (Mil-Spec und Commercial-Spec) und kann bei Waffen verwendet werden, die für den Einsatz von Carbine-Length Buffern ausgelegt sind. Baugruppe/Zugehörigkeit Das Bauteil gehört zur Rückstoßdämpfungs- und Schließsystembaugruppe (Buffer Assembly) und ersetzt den herkömmlichen mechanischen Standardpuffer. Es wird in Verbindung mit der Buffer-Feder im Schaft der Waffe verbaut. Material & Fertigung Der B&T Hydraulic Buffer besteht aus einem robusten Aluminiumgehäuse mit präziser CNC-Bearbeitung. Die interne Hydraulikeinheit ist speziell auf den Dauerbetrieb unter hohen Belastungen ausgelegt und gewährleistet eine konstante, wartungsfreie Funktion über viele tausend Schusszyklen. Austausch/Hinweise zur Montage Der Austausch erfolgt durch einfaches Entnehmen des bestehenden Buffers und Einsetzen des B&T Hydraulic Buffers in den Buffer Tube. Eine Änderung an weiteren Bauteilen ist nicht erforderlich. Für optimale Leistung sollte die Kompatibilität mit der verwendeten Buffer-Feder überprüft werden. Eine Kontrolle der Schließfunktion und gegebenenfalls eine Feinabstimmung (z. B. bei besonders leichten oder schweren Verschlussgruppen) wird empfohlen. Technische Daten: Gewicht: ca. 6 oz (170 g) Bauform: Carbine Length
