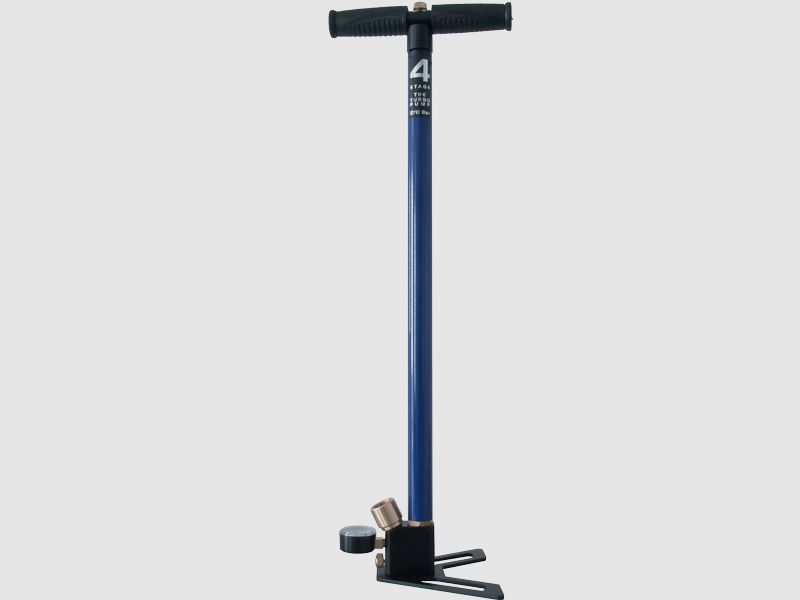

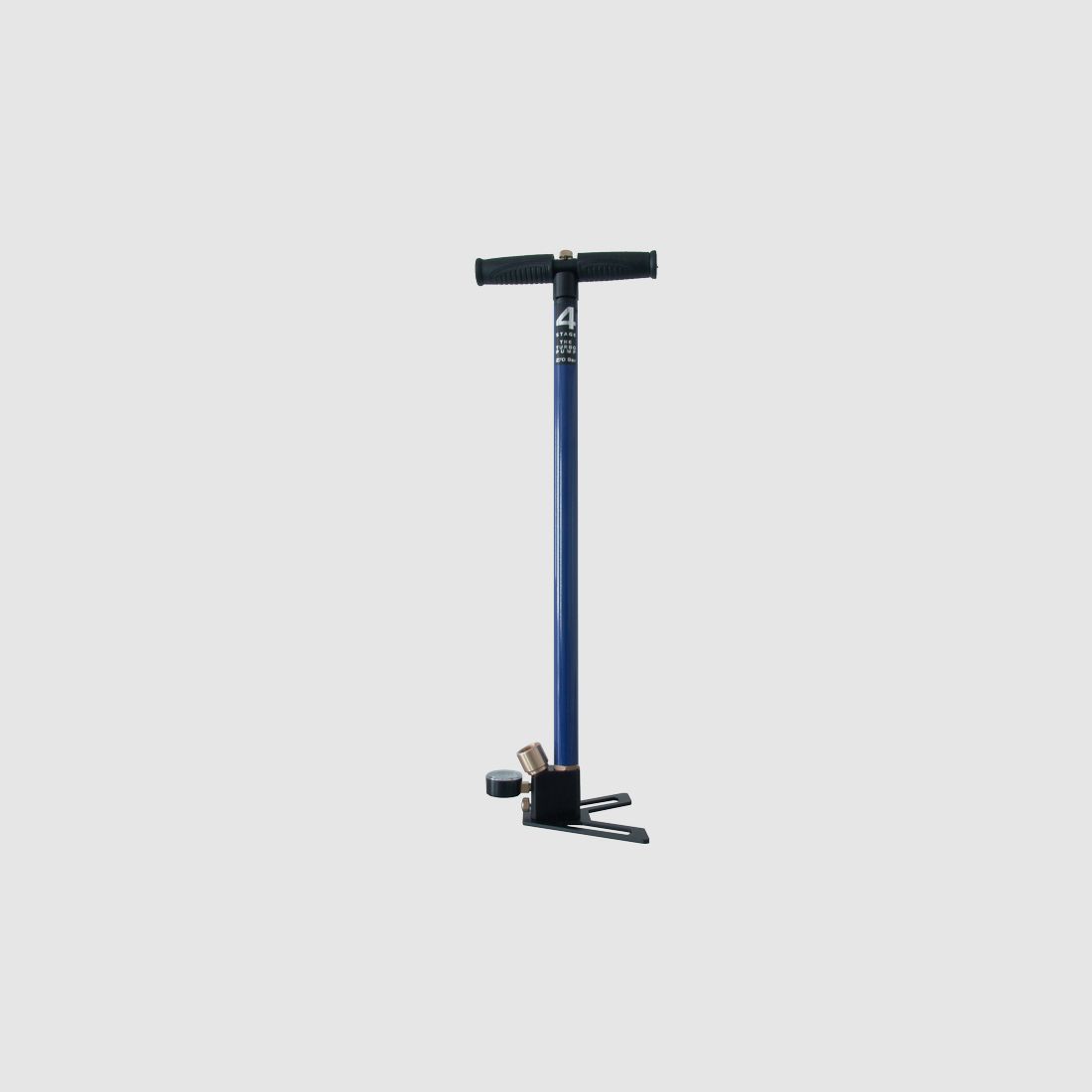

Compressed air pump 4 piston system for compressed air weapons 5/8" internal thread

Compressed Air Pump 5/8" Internal Thread 4 Piston System for Compressed Air Weapons

High-quality compressed air pump with multi-stage compression for many compressed air weapons with a maximum of 200 bar. The portable manual pump features a 5/8" internal thread and is suitable for many common compressed air weapons.

At the beginning of the filling process, the Turbo compressed air pump operates with a patented 4-piston system by Gehmann until approximately 150 bar is reached. Once 150 bar is reached, you can switch back to the proven 3-piston system using a knurled screw on the handle of the pump and fill the cartridge up to 200 bar. This switching significantly reduces the effort required. The pump also includes a moisture separator, a particle filter, and a manometer with a pressure gauge up to 250 bar.

Information for the Stroke

• Pumping capacity with 4-piston system: 300 cm³ per stroke


• Pumping capacity with 3-piston system: 210 cm³ per stroke

When purchasing any compressed air weapon, there is an intermediate filling piece/intermediate thread, which you simply screw into the pump (provided it is a 5/8" external thread) and securely attach the cartridge of your compressed air weapon over the intermediate thread.

Filling pressure: max. 200 bar
Length: 63.5 - 110 cm
Weight: 2,500g

Delivery is partially disassembled!
