en,
you value left- or right-handed operation and a closed collection system for spent primers.
Not the best fit if …
you’re primarily looking for maximum production speed rather than process control,
your case rim is outside 8.71–10.72 mm or 11.89–14.27 mm and you don’t plan to use a compatible add-on system,
you want to keep using standard lock rings without checking compatibility or can only mount the press on a flexible tabletop.
Buying checklist: die, case rim, and mounting
Die mount: The press is designed for standard 7/8″-14 reloading dies. Two Forster Cross Bolt Die Lock Rings are included; their geometry ensures the intended fit and lateral clearance in the T-slot.
S-jaws: The small ends accommodate case rims from .343–.422″, and the large ends .468–.562″. Measure the actual rim diameter rather than relying on a caliber list alone.
Outside the range: LS jaws or an adapter plate and third-party shell holders can only be used with a compatible combination and are not included.
Mounting: Forster specifies four 1/4″ holes. Mount the press on a rigid, torsion-resistant workbench; alternatively, the manual describes a stable mounting plate secured with C-clamps.
What the Co-Ax principle offers in practice
Floating die: The die slides into the T-slot and can align itself within the intended clearance.
Self-centering jaws: The S-jaws grip the case rim on both sides, allowing the case and die to align together.
Two guide rods: The press head runs on two parallel rods instead of a central ram, keeping the work area easily accessible.
Ambidextrous operation: The handle can be mounted for left- or right-handed use.
Primer management: Spent primers are routed out of the work area through a tube into a collection cup; small and large priming assemblies are included.
Limitations and common buying mistakes
The B5 does not replace dies, load data, or a caliber-specific suitability check.
A lock ring that is too thick or differently shaped can prevent the intended die changes and floating alignment.
Keep the primer tube clean. User reports mention occasional blockages with large spent primers, so check the collection path regularly.
Some users prefer to seat primers with a separate hand or bench tool. The integrated system is an option, not a requirement for every workflow.
The net weight is not consistently documented. Shipping weight and package dimensions are therefore deliberately not listed as product specifications.
Tips for users and instructors
Mount the press plumb and without flex, and fully check the handle travel and hand clearance.
Measure the case rim, choose the correct side of the S-jaws, and check the spring position of the jaws before the first operation.
Install the die with a compatible Cross-Bolt Lock Ring; adjust the detent pin only enough to hold the die while still allowing it to float.
Test the first operation dry, without a primer, powder, or bullet. Stop immediately if you encounter unusual resistance and identify the cause.
After each batch, check the jaws, guide rods, and primer channel; lightly oil moving and bare parts as directed by the manufacturer, and cover the press.
Comparison: B5 or progressive press?
Co-Ax B5: a good choice for controlled single operations, quick die changes, and a self-centering case holder. A progressive press is a better choice when high output and multiple linked stations are the main goal. The B5 doesn’t win on speed, but on visibility, accessibility, and a reproducible
erable single-stage process.
Suitable store categories and workshop add-ons
Reloading accessories: free tools, measuring and organizing accessories
Cleaning & workshop for shooting sports
Shooting sports & range
Fix It Sticks 16-Bit Set with T-Handle for general workshop tasks
Technical specifications

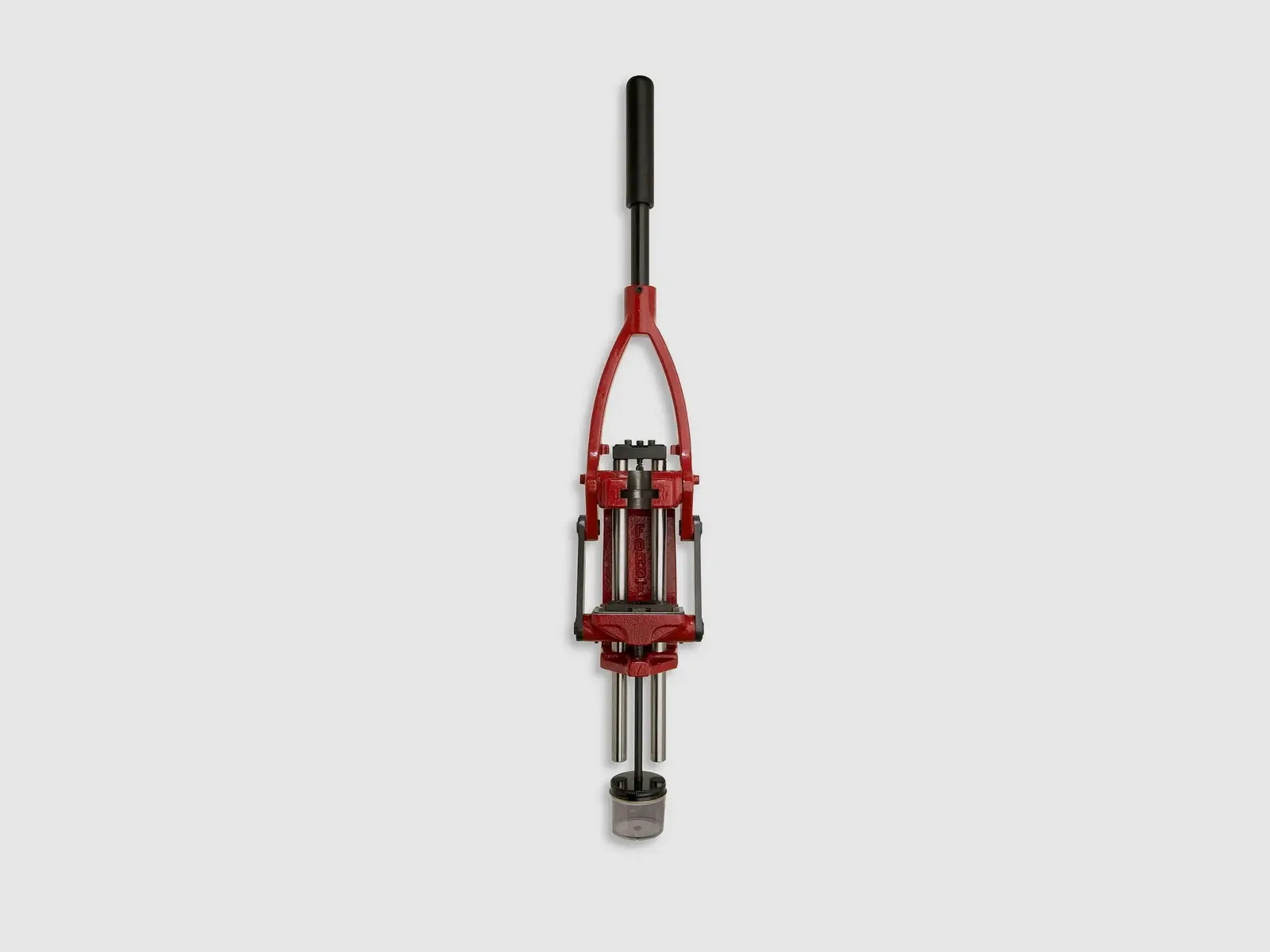

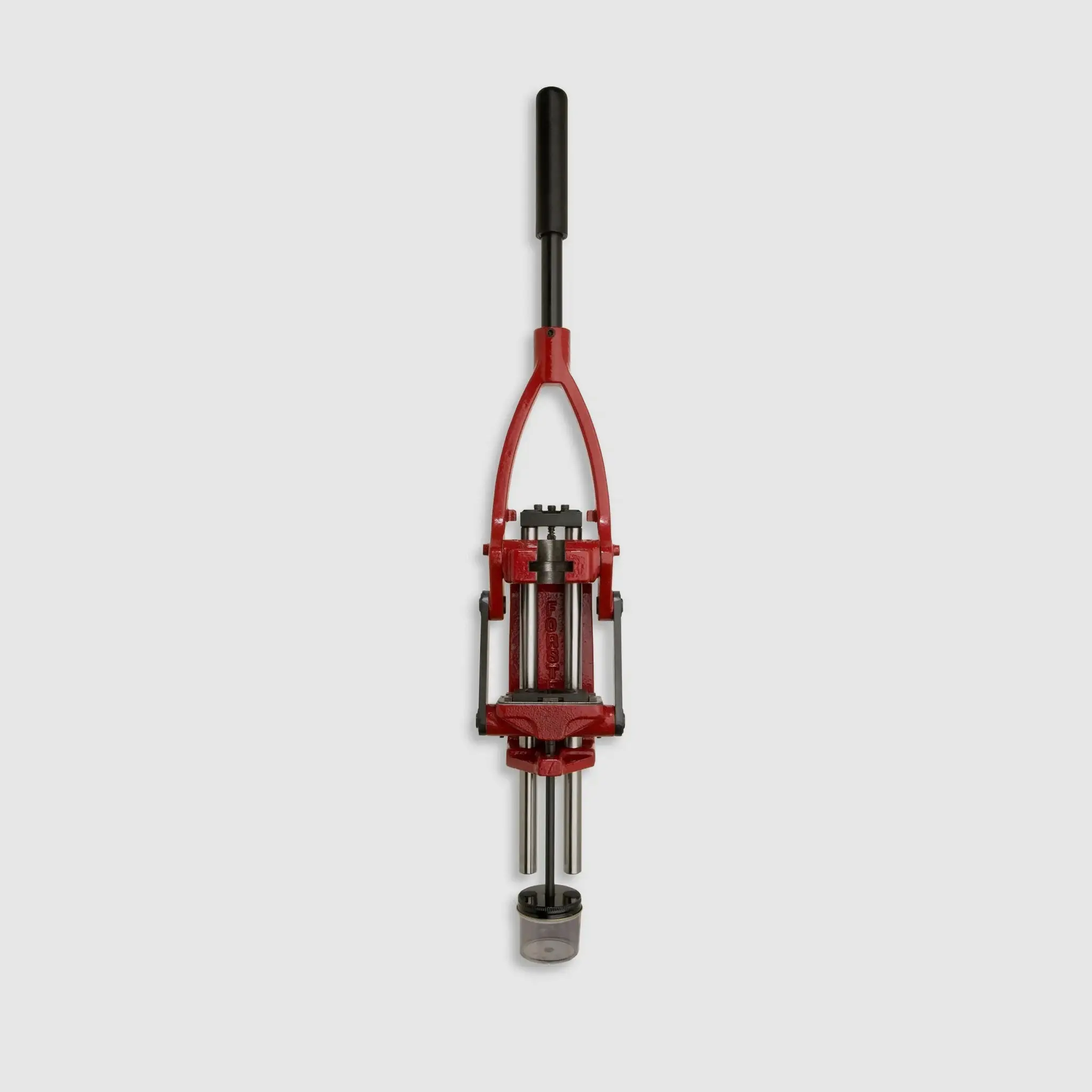

Model: Co-Ax Reloading Press with S Jaws, Model B5
Product type: single-stage reloading press
Die mount: 7/8″-14
S jaws, small ends: .343–.422″ or 8.71–10.72 mm case rim diameter
S jaws, large ends: .468–.562″ or 11.89–14.27 mm case rim diameter
Mounting: four 1/4″ holes; rigid workbench or sturdy mounting plate
Priming: small and large priming units included
Collection system: tube and cup for spent primers
Operation: handle can be mounted on the left or right
Color/finish: red press frame with black and bare functional parts
Origin: USA
Product weight: not reliably published; shipping data is not used as net weight
Confirmed contents
assembled FORSTER Co-Ax B5 press with S jaws
handle tube and grip
primer collection tube and cup
small and large priming units
two aluminum Cross Bolt Die Lock Rings
1/8″, 5/32″ and 7/64″ hex keys
small parts pack and loose mounting components as specified in the manufacturer's instructions
Not confirmed or not included: reloading dies, LS jaws, adapter plate, standard shellholder, workbench fasteners, powder, primers, cases, bullets or ammunition.
FAQ
Which dies fit the Co-Ax B5? It's designed for standard reloading dies with 7/8″-14 threads. For a proper fit and the desired floating alignment, use compatible Forster Cross Bolt Die Lock Rings; two are included.
Do I need a shellholder for each caliber? Within the published case rim diameter ranges, the S jaws work without a traditional caliber-specific standard shellholder. Outside these ranges, LS jaws or an adapter solution may be needed; check compatibility with the specific cartridge.
What case rim sizes do the S jaws cover? The small ends cover .343–.422″ or 8.71–10.72 mm, and the large ends cover .468–.562″ or 11.89–14.27 mm. The actual rim diameter is what matters.
Can left- and right-handed users operate the press? Yes. According to the manufacturer, the handle can be mounted for left- or right-handed operation. Check clearance and a secure grip position at your own workstation.
Is a priming system included? Yes. Small and large priming units are confirmed. If you prefer to prime separately, you can still use a separate hand or bench tool for that step.
Is the Co-Ax B5 faster than a progressive press? No, not in terms of maximum output. The B5 is a single-stage press that prioritizes visibility, quick die changes and controlled single-stage processes.
How do I mount and maintain the press safely? Forster specifies four 1/4″ mounting holes. Mount it on a rigid surface, wear safety glasses during operation, keep your hands away from pinch points, and lightly oil moving or bare parts as directed.
Black-Raptor summary
The Co-Ax B5 is a good choice if a precise workflow and controlled die changes matter more than maximum production. Measure the case rim, plan for compatible Cross Bolt Lock Rings, and give the press a truly rigid base—then the Co-Ax design can show what it does best.
