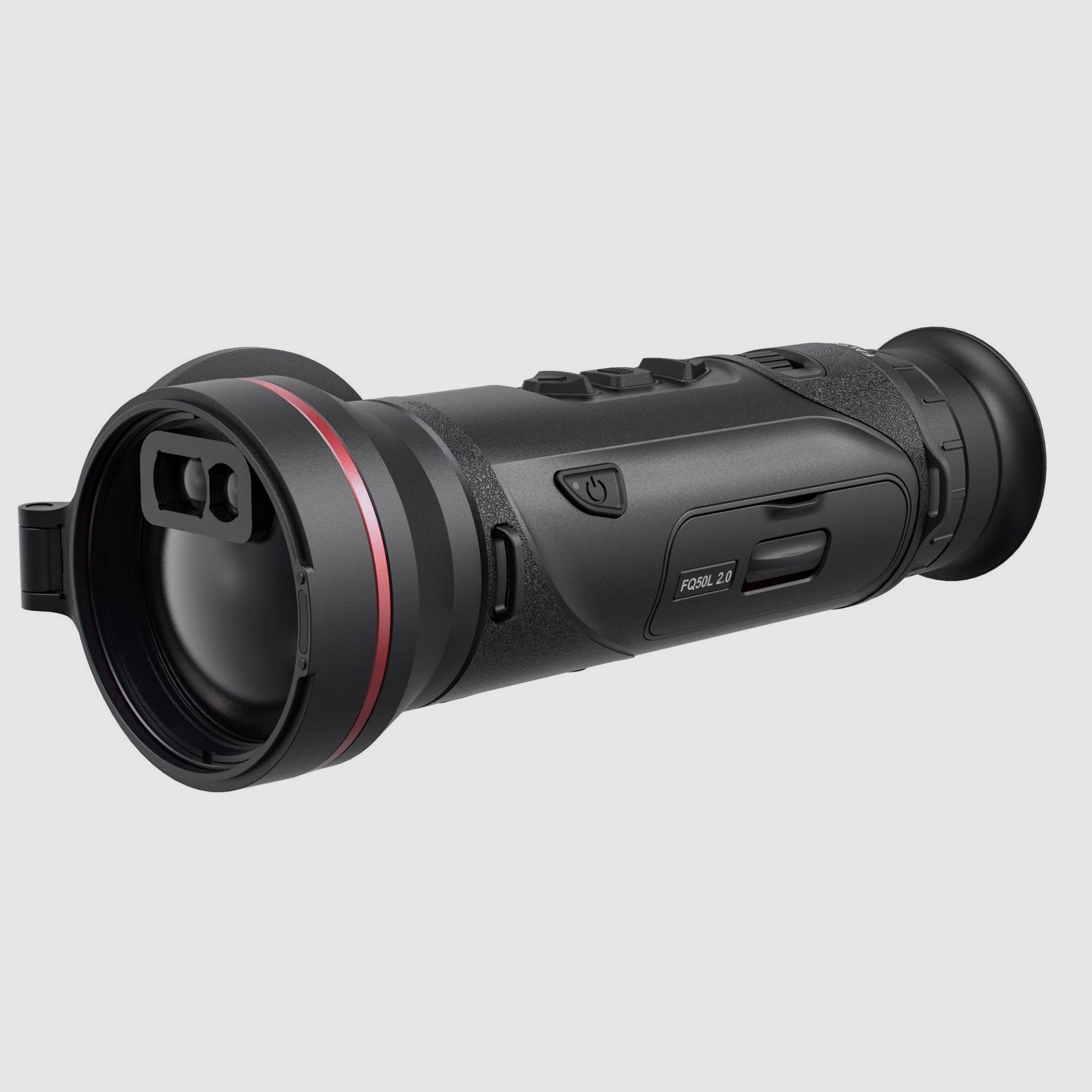

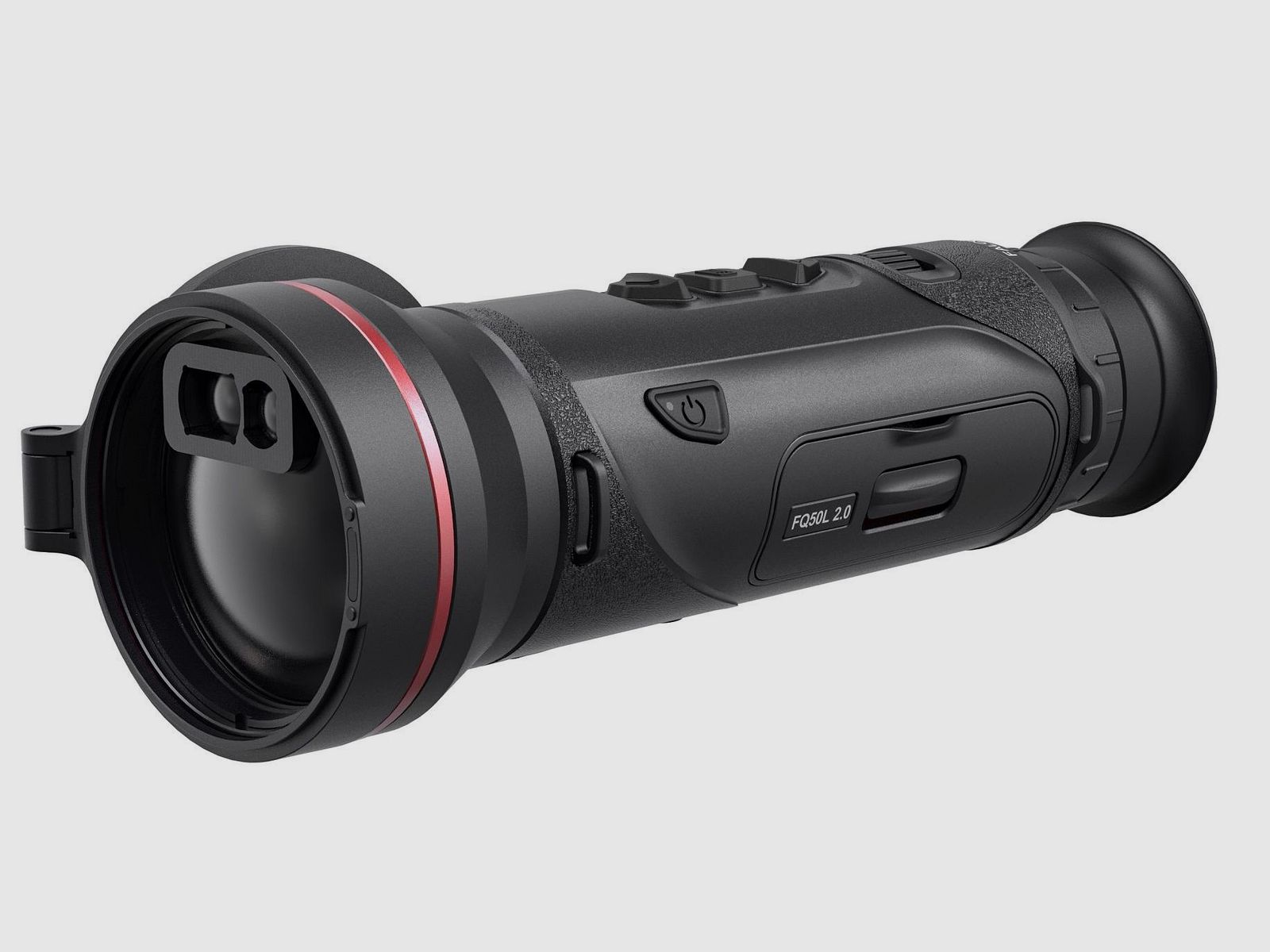

Falcon FQ50L 2.0 Thermal Imaging Camera Ultra Sharp Image Quality & Detail Recognition
Ultra-sharp Image Impressive Detail Recognition
The Falcon FQ50L 2.0 features a high-resolution 12 µm high-end detector that makes minimal temperature differences visible in crystal-clear and high-contrast images, even in challenging weather conditions. In combination with Image Pro 2.0, the image optimization software developed by HIKMICRO, the camera delivers exceptional depth and detail sharpness. This allows for clear recognition of the smallest features of animals, blades of grass, twigs, and leaves.
Extremely high thermal sensitivity (NETD < 15 mK)
The high thermal sensitivity allows for the detailed detection of even minimal temperature differences between objects and background. Perfect for outdoor observation and wildlife thermal imaging.
High-Resolution Thermal Sensor (up to 640 x 512 @ 12 µm)
The 12 µm high-end thermal sensor offers excellent temperature resolution, delivering sharp, high-contrast thermal images ideal for precise thermal imaging applications.
Super large f/0.9 aperture 19% higher sensitivity
The f/0.9 aperture captures up to 19% more infrared radiation compared to f/1.0. This results in brighter and more detailed images, especially in poor visibility conditions or twilight.
Image Pro 2.0 Optimized Image Processing
The algorithm developed by HIKMICRO Image Pro 2.0 ensures maximum digital image optimization, better target object representation, and detailed background information.
Ergonomic Design and Easy Operation
- Cylindrical, ergonomic design for comfortable handling
- Robust magnesium housing with lens coating for durable use
- Intuitive buttons and menu navigation for quick settings
Large Range & Digital Zoom
The camera offers a detection range of up to 2600 m and a field of view of 8.8° × 7°. The powerful digital zoom allows for magnifications up to 8x without noticeable loss of quality.
Technical Data
Thermal Module
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Resolution: 640 x 512
- Frame Rate: 50 Hz
- Pixel Pitch: 12 µm
- Response Waveband: 814 µm
- NETD: <15 mK (@25°C), F#=1.0
- Focal Length: 50 mm
- Detection Range: 2,600 m
- Field of View: 8.8° × 7° / 15.4m x 12.2m (at 100m)
- Aperture: F0.9
- Magnification: 2.7x to 21.6x (8x)
- Minimum Focus Distance: 5 m
Image & Monitor
- Monitor: 0.49 inch OLED, 1920 × 1080
- Frame rate: 50Hz
- Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Digital Zoom: 1 ×, 2 ×, 4 ×, 8x
- Diopters: -5D to +3D
- Contrast & Brightness Adjustment: Yes
- Zoom Pro & Image Pro 2.0
Smart Features
- Hot Track, Hotspot, Picture in Picture
System Functions
- Storage: 64 GB integrated
- Video recording & snapshot integrated
- Wi-Fi & standby mode
Battery & Power Supply
- Removable Li-Ion battery type 21700
- Operating time: 6.5 h (Wi-Fi off)
- Battery capacity indicator
- Power: 5V, 1.75W
General Data
- Operating temperature/humidity: -30 °C to 55 °C, =90%
- Protection class: IP67
- Dimensions: 213.4 mm × 69.6 mm × 82.9 mm
- Weight: 583 g with battery
Laser Distance Meter
- Safety class: 1
- Wavelength: 905 nm
- Max. measurement range: 1000 m
- Measurement accuracy: ±1 m
- Minimum measurement distance: 10 m
Scope of Delivery
- Falcon FQ50L 2.0
- Instructions
- Dust cloth
- USB cable
- Battery 2x
- Charger
- Neck strap
(Show description in original language)
Falcon FQ50L 2.0 Wärmebildkamera Ultrascharfe Bildqualität & Detailerkennbarkeit
Ultrascharfes Bild Beeindruckende Detailerkennbarkeit
Die Falcon FQ50L 2.0 verfügt über einen hochauflösenden 12 µm High-End-Detector, der selbst bei schwierigen Wetterbedingungen minimale Temperaturunterschiede in glasklaren und kontrastreichen Bildern sichtbar macht. In Kombination mit Image Pro 2.0, der von HIKMICRO entwickelten Bildoptimierungssoftware, liefert die Kamera außergewöhnliche Tiefen- und Detailschärfe. So lassen sich kleinste Merkmale von Tieren, Grashalme, Zweige und Blätter klar erkennen.
Extrem hohe thermische Sensitivität (NETD < 15 mK)
Die hohe thermische Empfindlichkeit erlaubt die detailgenaue Erkennung auch minimaler Temperaturunterschiede zwischen Objekten und Hintergrund. Perfekt für Outdoor-Beobachtung und Wildlife Thermal Imaging.
Hochauflösender Wärmesensor (bis zu 640 x 512 @ 12 µm)
Der 12 µm High-End Wärmesensor bietet eine exzellente Temperaturauflösung, die gestochen scharfe, kontrastreiche Wärmebilder liefert ideal für präzise Thermal Imaging Anwendungen.
Supergroße f/0,9-Blende 19 % höhere Sensitivität
Die f/0,9-Blende erfasst bis zu 19 % mehr Infrarotstrahlung im Vergleich zu f/1,0. Dadurch werden Bilder heller und detailreicher, insbesondere bei schlechten Sichtbedingungen oder Dämmerung.
Image Pro 2.0 Optimierte Bildverarbeitung
Der von HIKMICRO entwickelte Algorithmus Image Pro 2.0 sorgt für maximale digitale Bildoptimierung, bessere Zielobjektdarstellung und detaillierte Hintergrundinformationen.
Ergonomisches Design und einfache Bedienung
- Zylindrisches, ergonomisches Design für komfortable Handhabung
- Robustes Magnesiumgehäuse mit Linsenbeschichtung für langlebige Nutzung
- Intuitive Tasten und Menüführung für schnelle Einstellungen
Große Reichweite & Digitalzoom
Die Kamera bietet eine Erfassungsreichweite von bis zu 2600 m und ein Sichtfeld von 8,8° × 7°. Der leistungsstarke Digitalzoom erlaubt Vergrößerungen bis 8x ohne merklichen Qualitätsverlust.
Technische Daten
Thermal Module
- Bildsensor: VOx Uncooled Focal Plane Arrays
- Auflösung: 640 x 512
- Bildfrequenz: 50 Hz
- Pixelintervall: 12 µm
- Response Waveband: 814 µm
- NETD: <15 mK (@25°C), F#=1,0
- Brennweite: 50 mm
- Erkennungsreichweite: 2.600 m
- Sichtfeld: 8,8° × 7° / 15,4m x 12,2m (auf 100m)
- Blende: F0.9
- Vergrößerung: 2,7x bis 21,6x (8fach)
- Minimale Fokusdistanz: 5 m
Bild & Monitor
- Monitor: 0.49 inch OLED, 1920 × 1080
- Bildfrequenz: 50Hz
- Paletten: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Digitales Zoom: 1 ×, 2 ×, 4 ×, 8x
- Dioptrien: -5D bis +3D
- Kontrast- & Helligkeitseinstellung: Ja
- Zoom Pro & Image Pro 2.0
Smart Funktionen
- Hot Track, Hotspot, Bild in Bild
Systemfunktionen
- Speicher: 64 GB integriert
- Video-Aufnahme & Schnappschuss integriert
- Wi-Fi & Standby-Modus
Batterie & Energieversorgung
- Herausnehmbarer Li-Ion Akku Typ 21700
- Betriebszeit: 6,5 h (Wi-Fi aus)
- Batteriekapazitätsanzeige
- Power: 5V, 1.75W
Allgemeine Daten
- Arbeitstemperatur/Luftfeuchtigkeit: -30 °C bis 55 °C, =90%
- Schutzklasse: IP67
- Maße: 213,4 mm × 69,6 mm × 82,9 mm
- Gewicht: 583 g mit Batterie
Laser-Entfernungsmesser
- Sicherheitsklasse: 1
- Wellenlänge: 905 nm
- Max. Messbereich: 1000 m
- Messgenauigkeit: ±1 m
- Minimale Messdistanz: 10 m
Lieferumfang
- Falcon FQ50L 2.0
- Anleitung
- Staubtuch
- USB-Kabel
- Akku 2x
- Ladegerät
- Nackengurt
