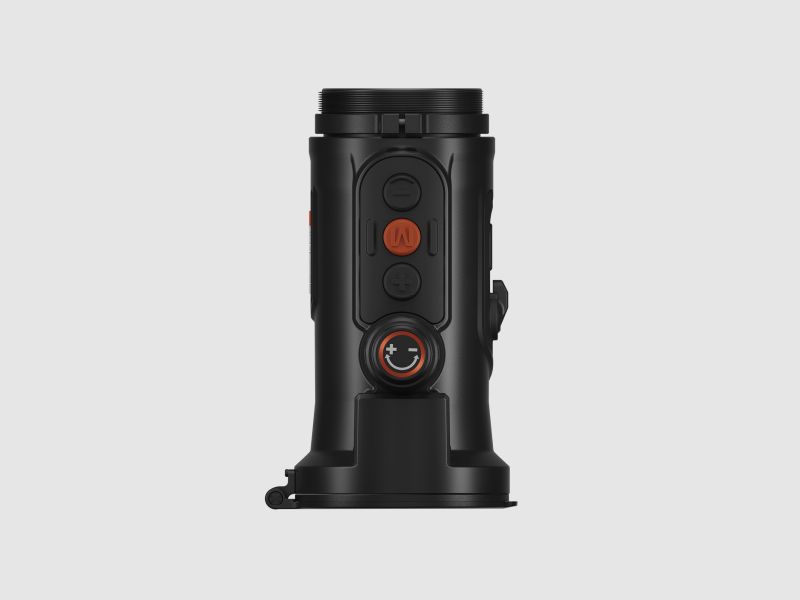

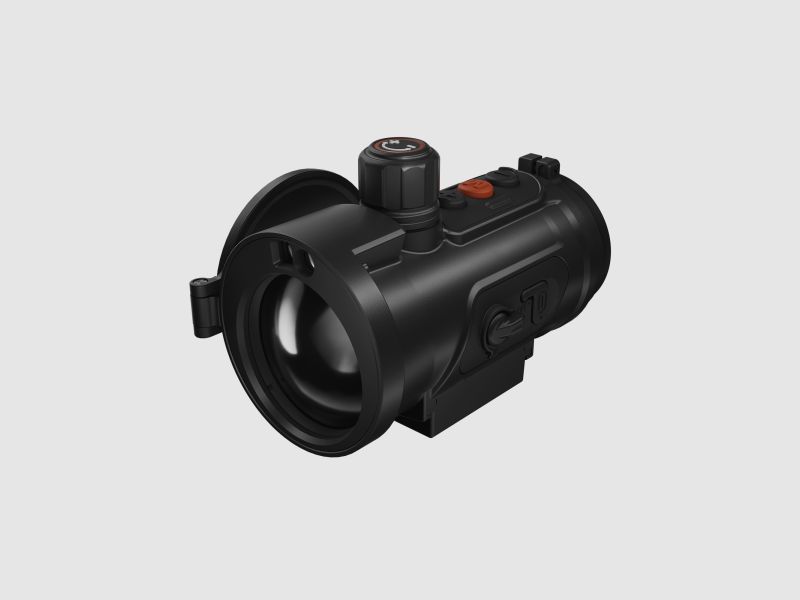

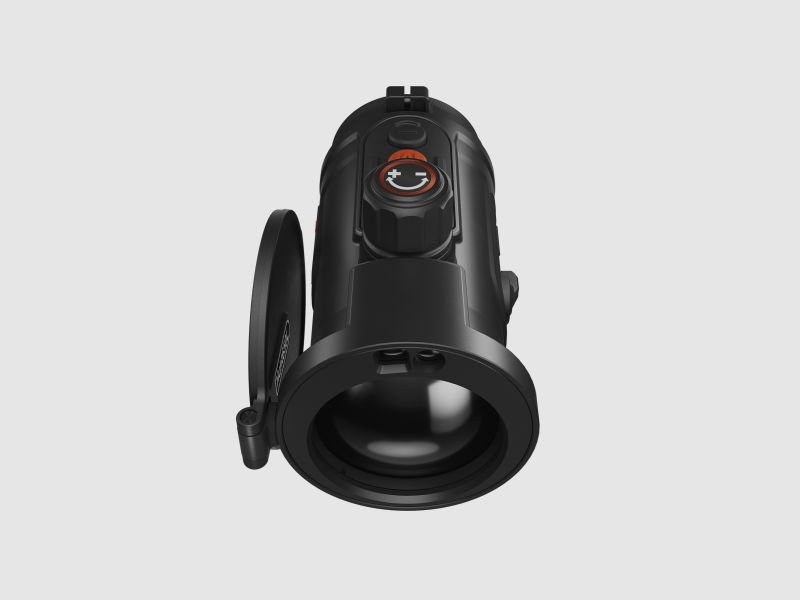

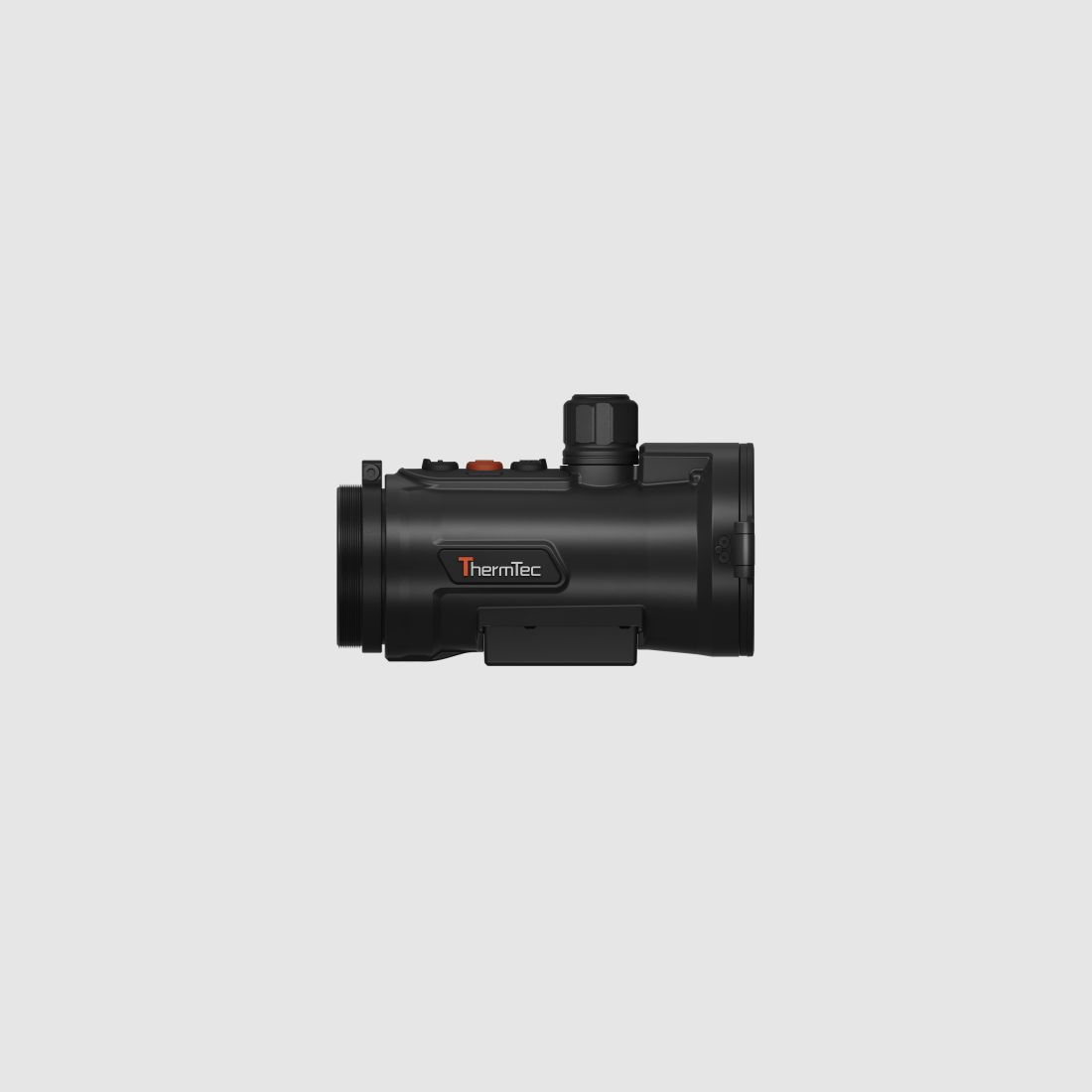

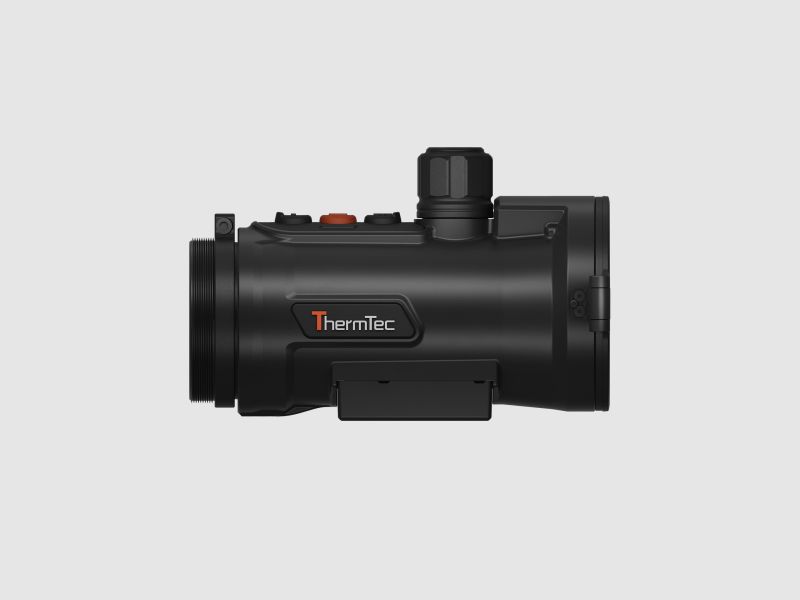

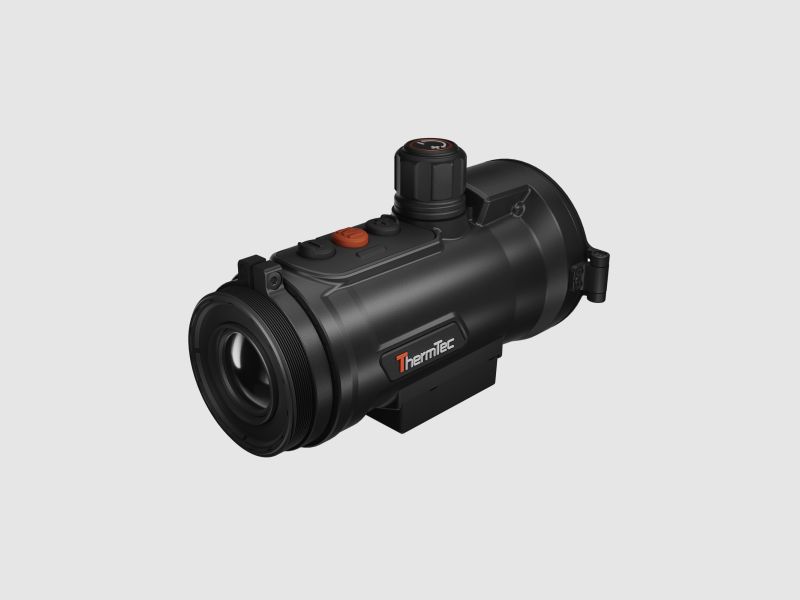

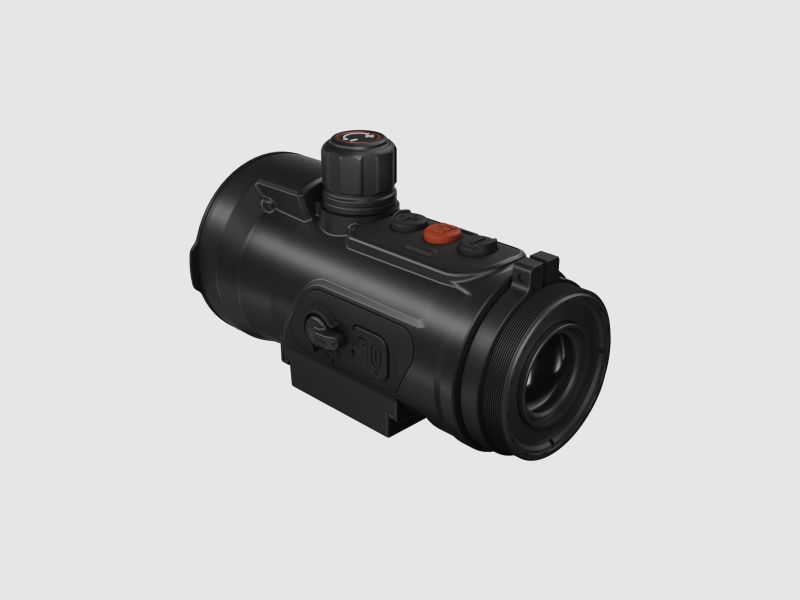

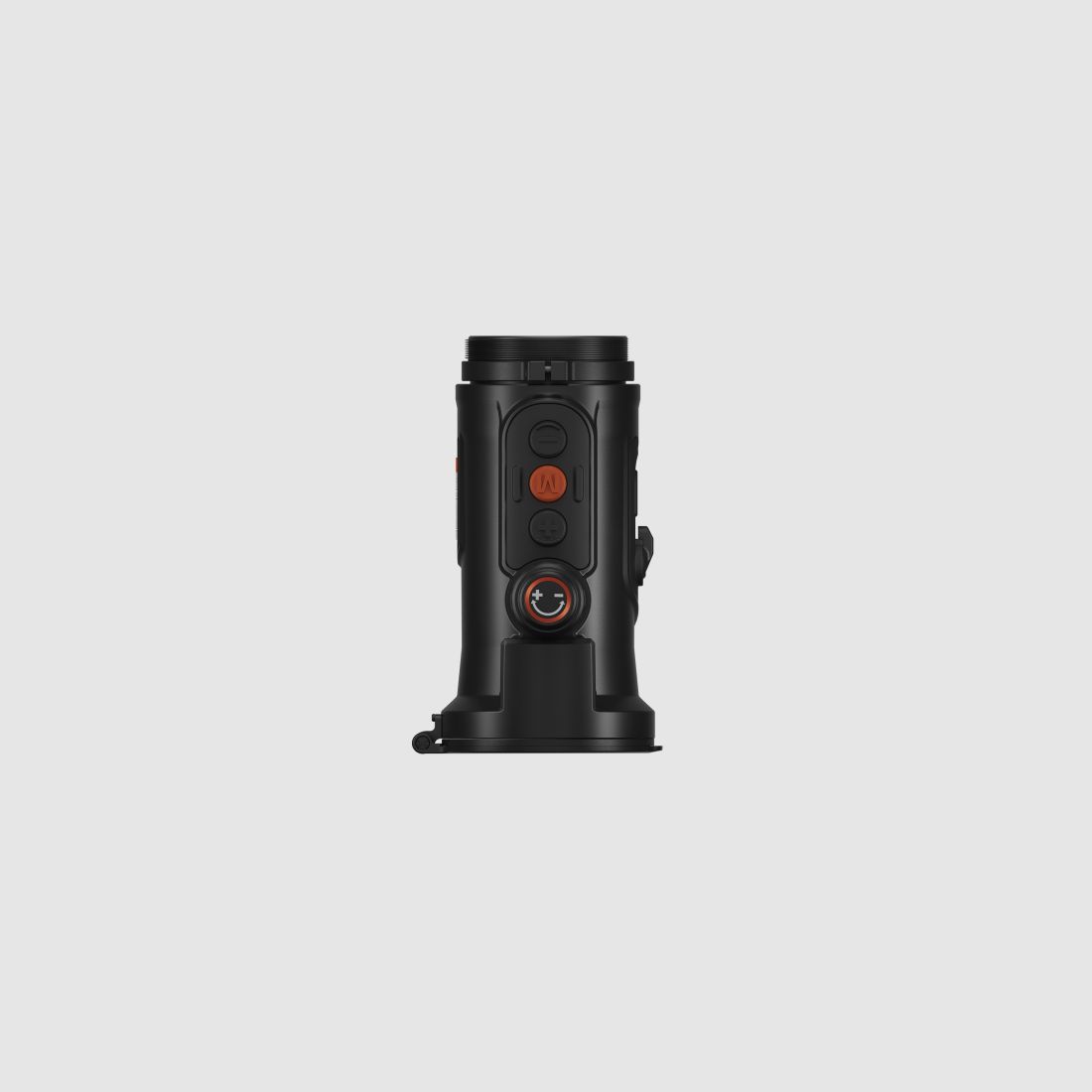

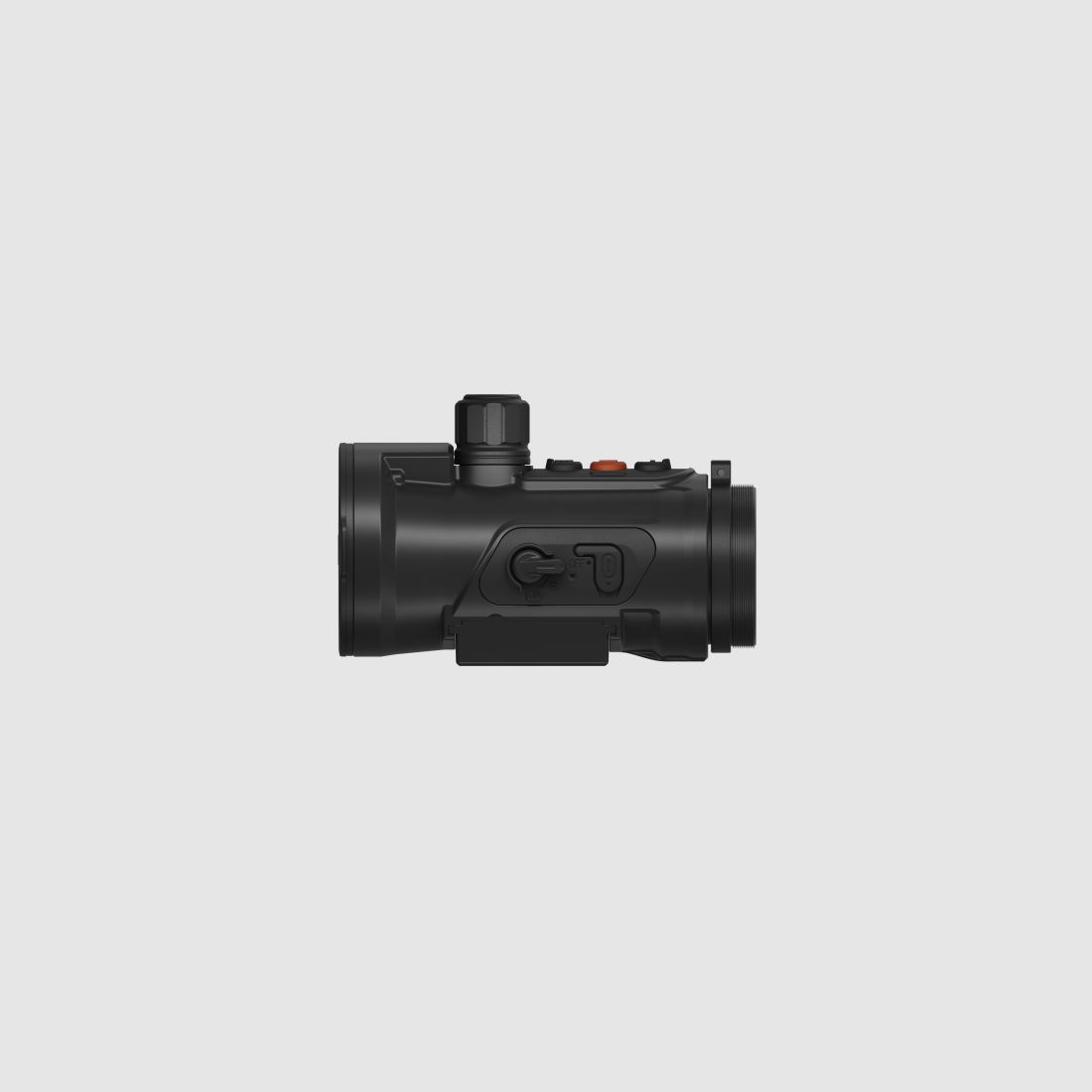

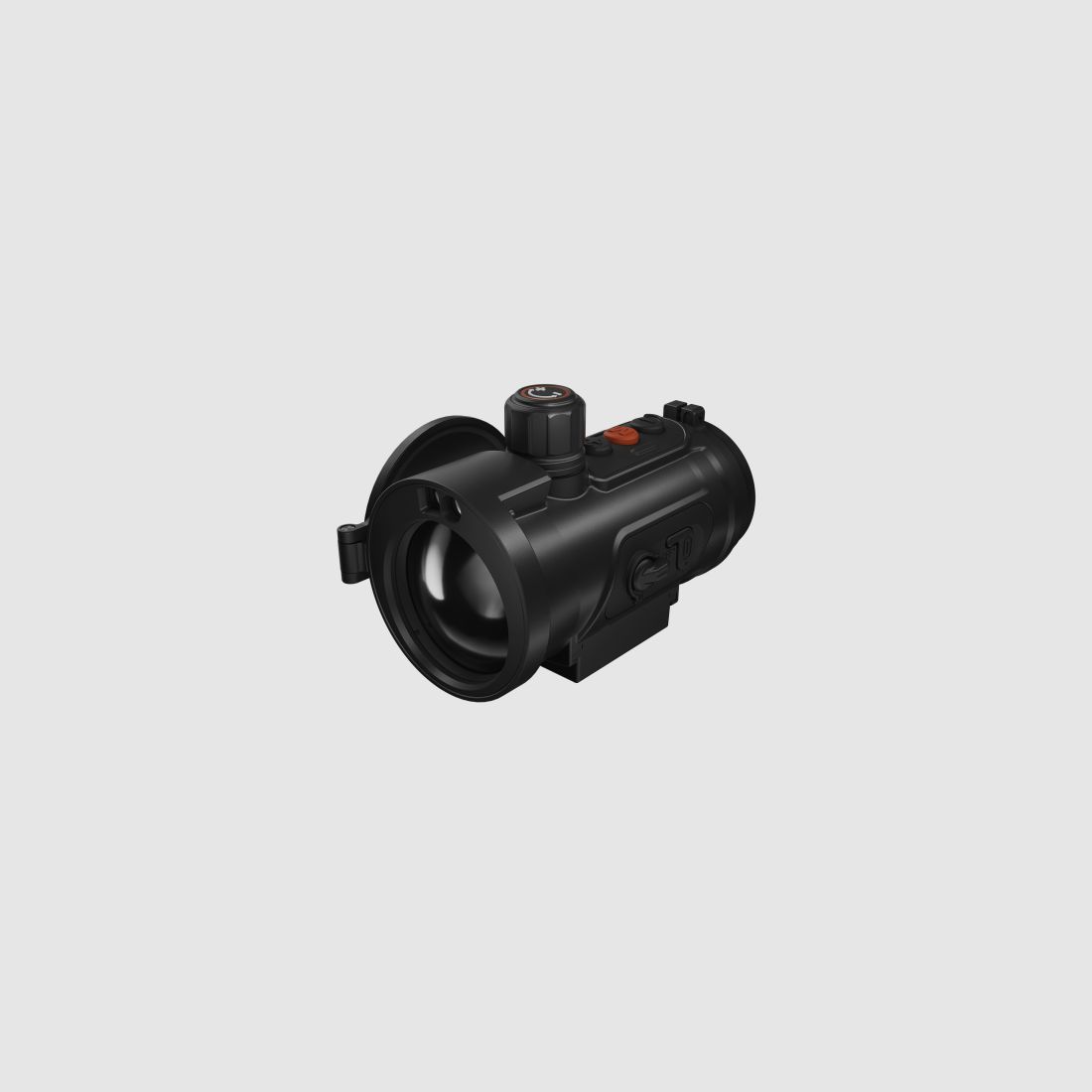

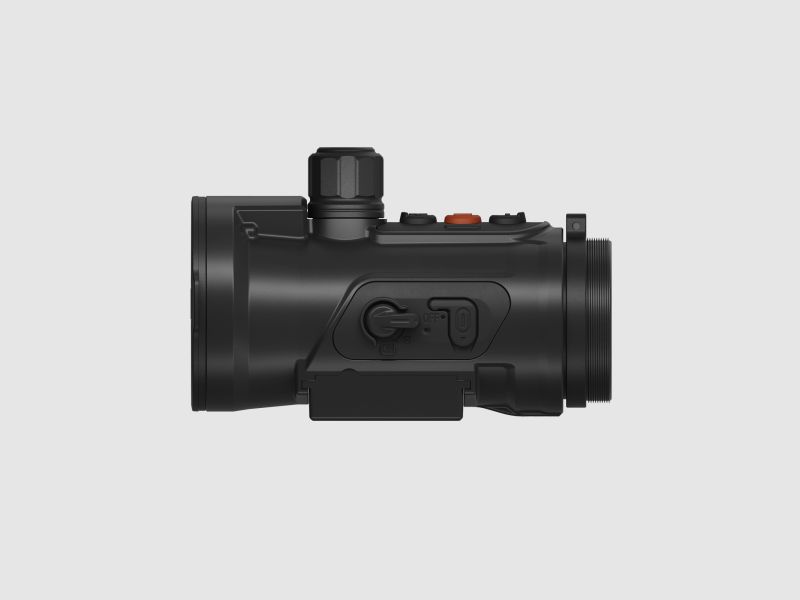

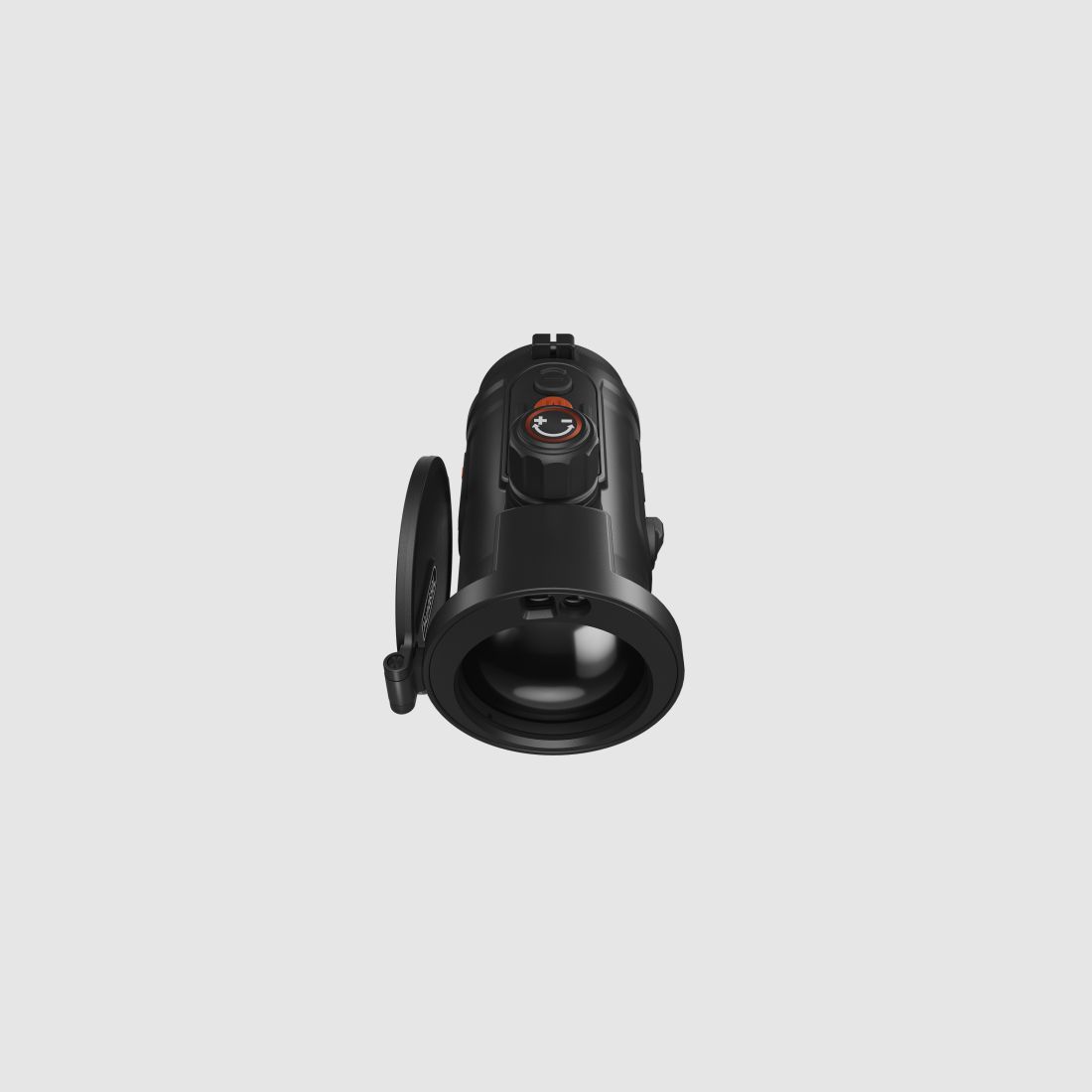

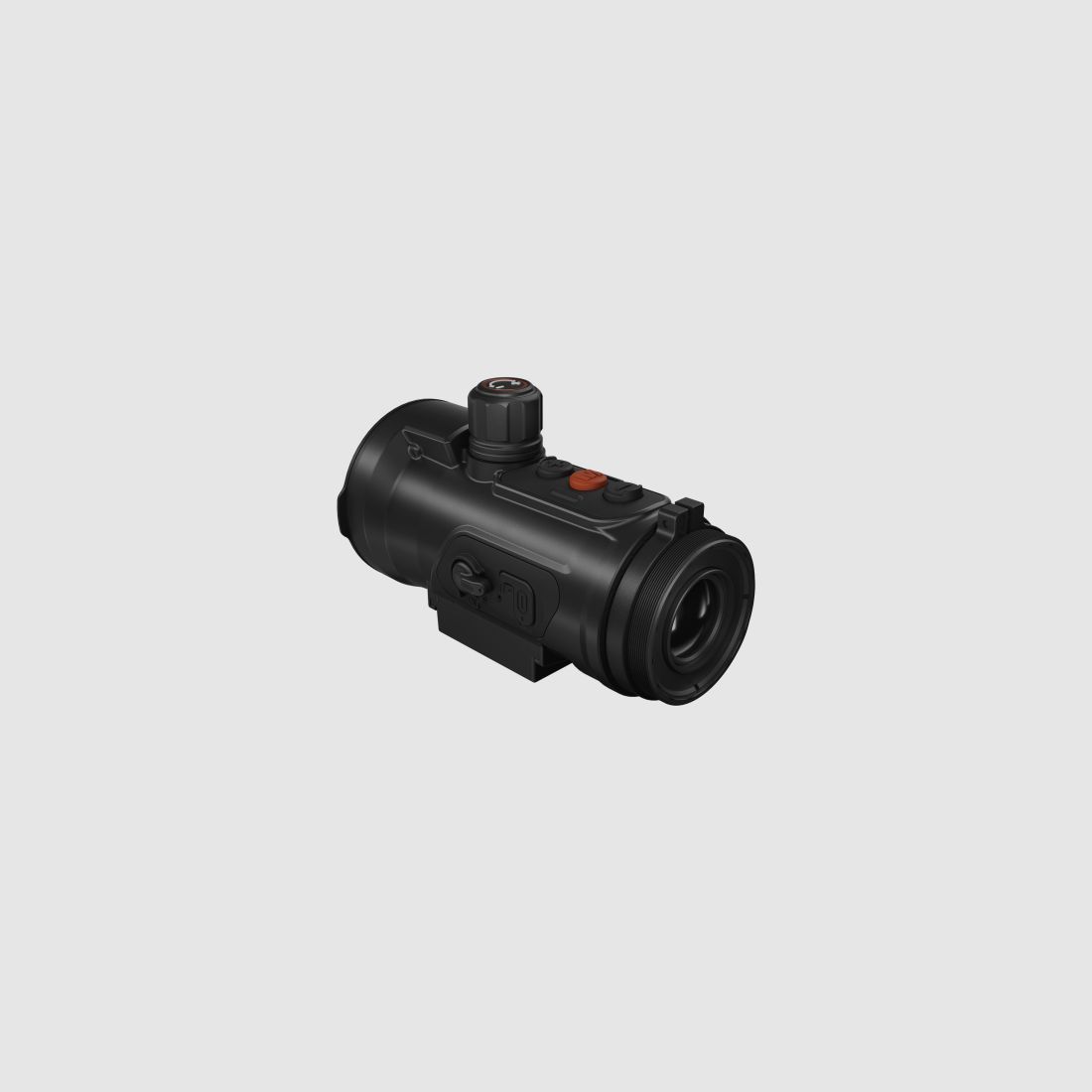

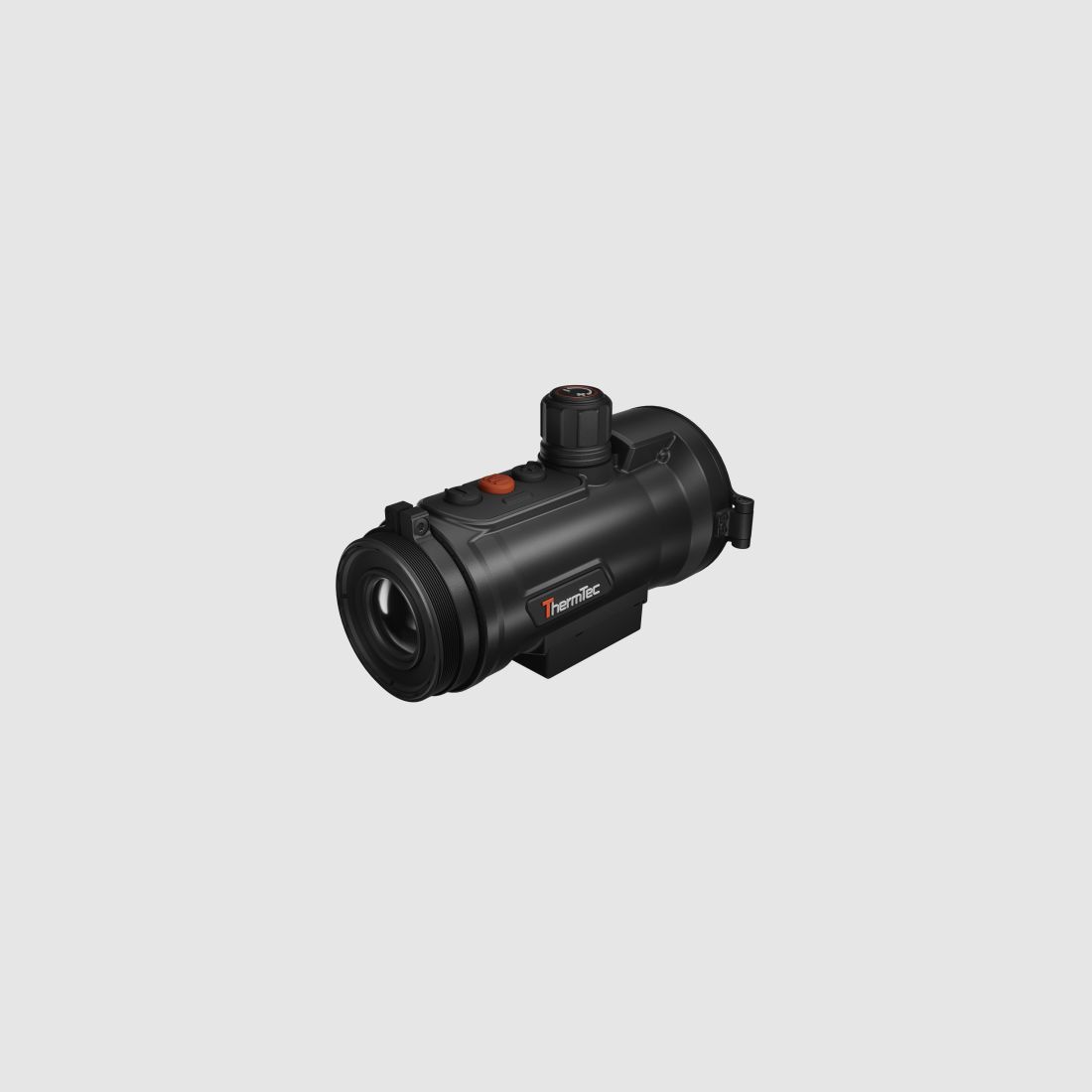

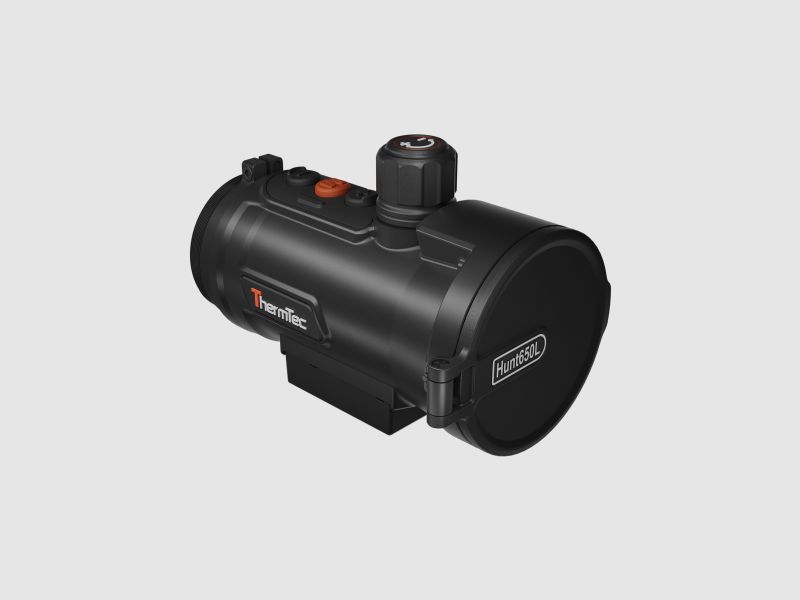

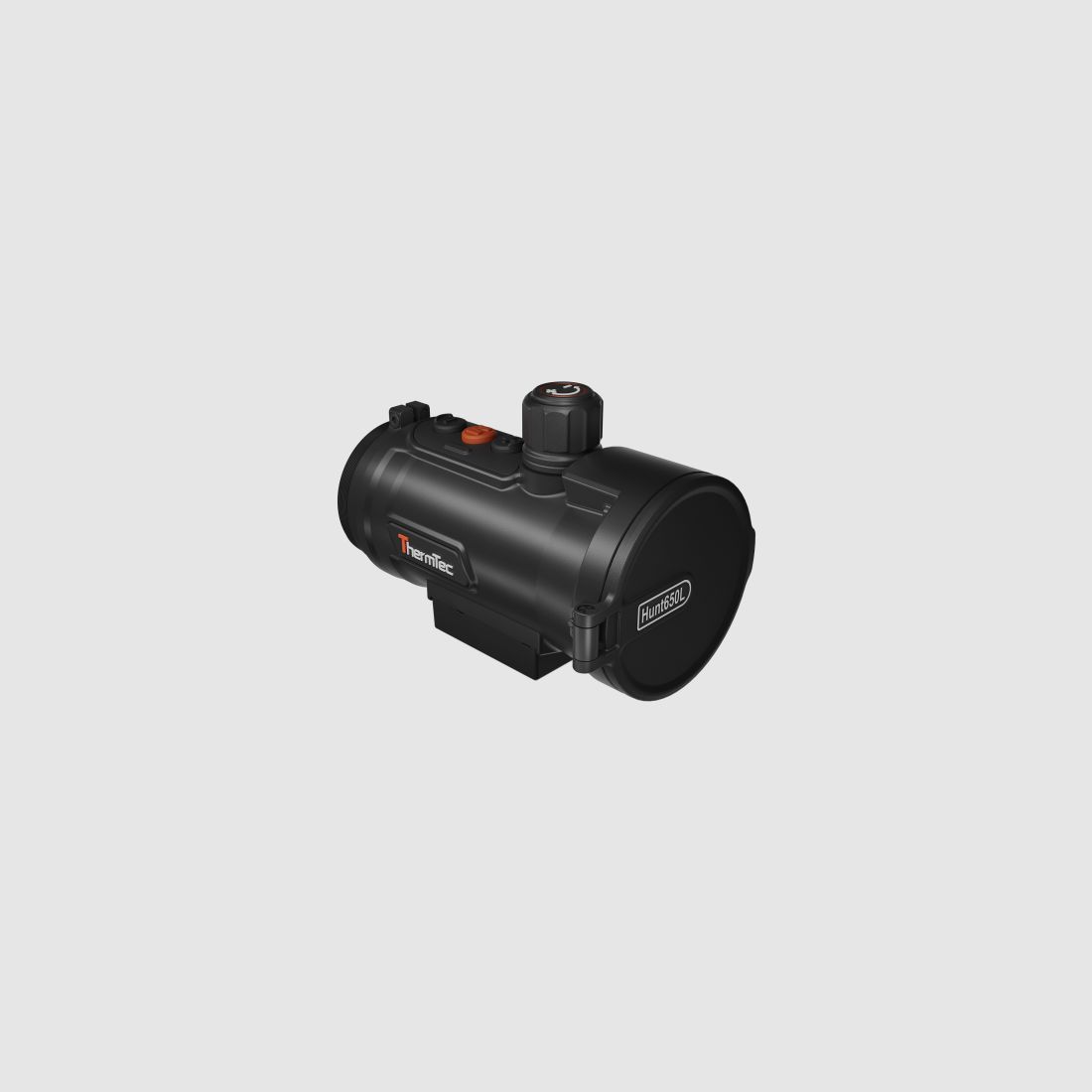

The ThermTec Hunt 650L is a thermal imaging device with a 2-in-1 approach: it can be used as a clip-on device on compatible day scopes and can also be used as a handheld monocular when needed. The combination of a 50 mm F1.0 lens, 640×512 sensor with NETD ≤ 15 mK (manufacturer’s specification), and integrated laser rangefinder up to 1,000 m (manufacturer’s specification) clearly targets users who don’t want to compromise on distance work and target identification.
Key Features
Integrated laser rangefinder up to 1,000 m (manufacturer’s specification)
Sensor: 640 × 512 VOx, pixel pitch 12 µm (manufacturer’s specification)
System performance: NETD ≤ 15 mK (manufacturer’s specification)
Lens: 50 mm with F1.0 (manufacturer’s specification)
Display: OLED 1920 × 1080, pixel pitch 4.5 µm (manufacturer’s specification)
Detection range: up to 2,600 m (manufacturer’s specification)
Point of impact correction: 1.1 cm at 100 m (manufacturer’s specification)
2-in-1: clip-on device & handheld monocular (manufacturer’s specification)
Swappable battery system: approx. 5 h runtime at 25 °C (manufacturer’s specification)
AI calibration for image stabilization (manufacturer’s specification)
Memory: 64 GB internal, photo/video (manufacturer’s specification)
Protection class: IP67 (manufacturer’s specification)
Magnesium housing, weight approx. 463 g (manufacturer’s specification)
Our assessment – from instructor & user perspective
The strength of the Hunt 650L is the clean combo of “see + measure”: thermal imaging provides information, the LRF provides facts. Especially at night, distance in thermal imaging often appears “falsely close” – a measurement value significantly reduces misjudgments. Added to that is the 50 mm lens: narrower field of view but more detail at distance. Anyone who spends a lot of time in the field or on forest trails will notice this immediately.
Practical benefit: The point of impact correction of 1.1 cm at 100 m is a very fine gradation. Converted, that’s 11 mm at 100 m, 5.5 mm at 50 m, and 22 mm at 200 m. This helps when you want to precisely adjust a setup (adapter, mounting position, optic change). Typical mistakes are too high digital zoom (the image becomes coarser) and too little focus work. Thermal imaging rewards careful operation: adjust focus, choose display brightness and palette accordingly – then the image appears noticeably “calmer.”
The device can be oversized if you only observe short distances and don’t really use the LRF or 50 mm lens. It makes sense if you want a compact clip-on that can also be used as a handheld device – without an extra monocular in your backpack.
Features & Operation
Operating modes: On / Off / Standby (manufacturer’s specification)
Digital zoom: 1×, 2×, 3×, 4× (manufacturer’s specification)
Recommended day optic magnification: 1× to 16× (manufacturer’s specification)
Connectivity: Wi-Fi and Bluetooth (including remote control) (manufacturer’s specification)
Pre-zeroing / assistance functions: available (manufacturer’s specification)
Ballistic calculation: available (manufacturer’s specification)
Adapter mount: M52 × 0.75 (manufacturer’s specification)
Technical Data
Model: ThermTec Hunt 650L
Sensor: 640 × 512 (VOx), 12 µm, spectral range 8–14 µm (manufacturer’s specification)
NETD: ≤ 15 mK (manufacturer’s specification)
Frame rate: 50 Hz (manufacturer’s specification)
Lens: 50 mm, F1.0 (manufacturer’s specification)
Detection range: up to 2,600 m (manufacturer’s specification)
Point of impact correction: 1.1 cm at 100 m (manufacturer’s specification)
Field of view: approx. 8.8° × 7.0° (manufacturer’s specification)
Field of view (100 m): approx. 15.4 × 12.3 m (manufacturer’s specification)
Display: OLED 1920 × 1080, 0.39", pixel pitch 4.5 µm (manufacturer’s specification)
LRF: up to 1,000 m (manufacturer’s specification)
Shock resistance: up to 6,000 J (manufacturer’s specification)
Memory: 64 GB internal (manufacturer’s specification)
Wi-Fi: yes; Bluetooth: yes (manufacturer’s specification)
Battery: swappable, runtime approx. 5 h at 25 °C (manufacturer’s specification)
USB-C: data transfer & charging (manufacturer’s specification)
Housing: magnesium alloy (manufacturer
erangabe)
Adapter mount: M52 × 0.75 (manufacturer specification)
Protection class: IP67; operating temperature −20 °C to +50 °C (manufacturer specification)
Weight: approx. 463 g; dimensions: approx. 137 × 82 × 86 mm (manufacturer specification)
Scope of delivery
1× ThermTec Hunt 650L thermal imaging clip-on device
1× battery
1× USB-C charging cable
1× Bluetooth remote control
1× mounting accessories (locknut/adapter parts)
1× pouch
1× cleaning cloth
1× German user manual
Note: Ranges, NETD, runtimes and recoil resistance are manufacturer specifications and vary depending on weather, humidity, temperature contrast, settings and mounting/orientation. The use of thermal imaging clip-on devices may be regulated differently depending on regional regulations – please check the applicable rules before use.
FAQ
How far does the laser rangefinder measure?
According to the manufacturer, up to 1,000 m. In practice, measurability depends on target reflection, weather and surroundings, among other factors.
Can the device also be used as a monocular?
Yes. The 2-in-1 concept allows use as a handheld monocular if you want to observe independently of the mounting (manufacturer specification).
What is the benefit of the fine point-of-impact adjustment?
1.1 cm at 100 m corresponds to 11 mm. That is 5.5 mm at 50 m and 22 mm at 200 m. This allows very fine adjustments (manufacturer specification).
How large is the field of view?
Manufacturer specification: approx. 15.4 × 12.3 m at 100 m or approx. 8.8° × 7.0°. For fields/trails this is detail-oriented, in dense forest a wider field of view can be more comfortable.
How long does the battery last?
Manufacturer specification: up to approx. 5 hours at 25 °C. Temperature, display brightness, LRF and radio use significantly affect runtime.
(Show description in original language)
ThermTec Hunt 650 Pro LRF – Wärmebild-Vorsatzgerät Das ThermTec Hunt 650 Pro LRF ist ein Wärmebild-Vorsatzgerät mit integriertem Laser-Entfernungsmesser. Es unterstützt die Beobachtung bei Dunkelheit, Dämmerung und eingeschränkter Sicht im Revier sowie bei Outdoor-Anwendungen. Eigenschaften
Wärmebild-Vorsatzgerät für mobile Beobachtung
Integrierter Laser-Entfernungsmesser
Geeignet für Dunkelheit, Dämmerung und schlechte Sicht
Für Revier, Naturbeobachtung und Outdoor
Kompakte Bauform für Transport und Montage
Lieferumfang
1× ThermTec Hunt 650 Pro LRF
Zubehör gemäß Herstellerumfang
