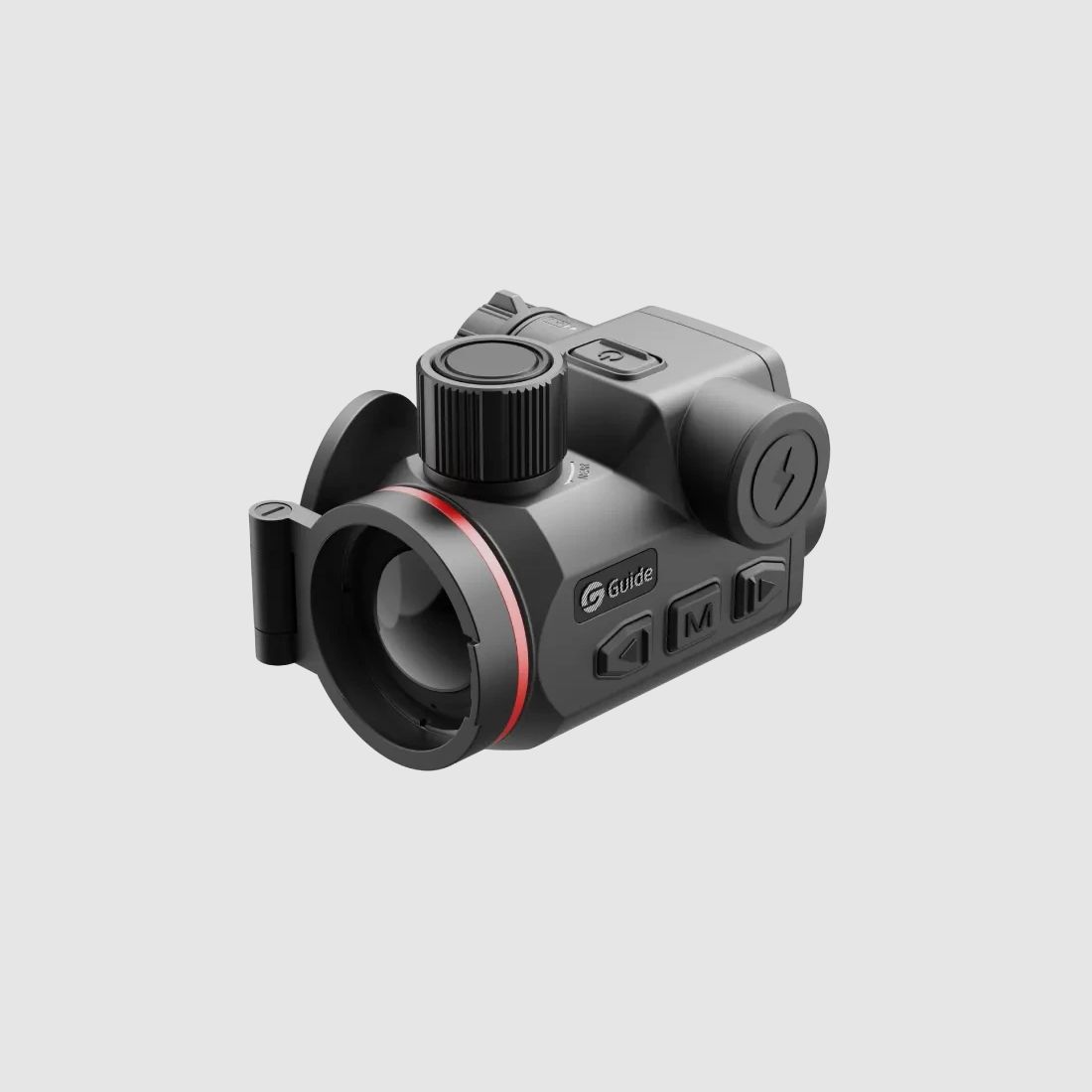

Guide Orion O 635 CS
Details
- Original language
- German
- Category
- Condition
- New
- Location
- 🇩🇪 96103 Hallstadt, Germany
- Availability
- In stock
Freshness
- Source
- Steigerwald-Hunting
- Last updated
- about 20 hours ago
Description
| Model | Guide Orion O635CS |
| Core Technology | Complete ApexVision-S1 system architecture (ApexCore-S1 detector, Nexus-1.0 platform, Hyper-Light-2.0 algorithm) |
| Sensor Type | Uncooled VOx infrared detector, 8 to 14μm |
| Resolution / Pixel Pitch | 640 × 512 @ 12 μm |
| Thermal Sensitivity (NETD) | ≤ 15 mK |
| Frame Rate | 50 Hz |
| Objective Lens | 35 mm, F0.9 |
| Field of View (H × V) | 12.5° × 9.4° |
| Field of View at 100m | 22 m |
| Magnification | 1x |
| Max. Magnification of Optics | Up to 10x |
| Detection Range | 1800 m / 1950 yd |
| Display Type | 0.49” AMOLED, 1920 × 1080 pixels |
| Color Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Eyepiece | Exit pupil distance 20mm |
| Memory Profiles | 5 correction profiles can be stored |
| Battery Type | Single, replaceable 18500 battery |
| Operating Time | 7 hours |
| Shock Resistance | 6000 J |
| Protection Class | IP67 |
| Weight (Housing) | 285 g / 10.05 oz |
| Dimensions | 99 × 73 × 68 mm |
| Modell | Guide Orion O635CS |
| Kerntechnologie | Vollständige ApexVision-S1-Systemarchitektur (ApexCore-S1-Detektor, Nexus-1.0-Plattform, Hyper-Light-2.0-Algorithmus) |
| Sensor-Typ | Ungekühlter VOx-Infrarotdetektor, 8 bis 14μm |
| Auflösung / Pixelpitch | 640 × 512 @ 12 μm |
| Thermische Empfindlichkeit (NETD) | ≤ 15 mK |
| Bildfrequenz | 50 Hz |
| Objektivlinse | 35 mm, F0.9 |
| Sichtfeld (H × V) | 12.5° × 9.4° |
| Sichtfeld auf 100m | 22 m |
| Vergrößerung | 1x |
| Max. Vergrößerung der Optik | Bis zu 10fach |
| Erfassungsbereich | 1800 m / 1950 yd |
| Display-Typ | 0.49” AMOLED, 1920 × 1080 Pixel |
| Farbpaletten | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Okular | Austrittspupillenabstand 20mm |
| Speicherprofile | 5 Korrekturprofile speicherbar |
| Akkutyp | Einzelne, austauschbare 18500-Batterie |
| Betriebszeit | 7 Stunden |
| Schockfestigkeit | 6000 J |
| Schutzklasse | IP67 |
| Gewicht (Gehäuse) | 285 g / 10.05 oz |
| Abmessungen | 99 × 73 × 68 mm |
