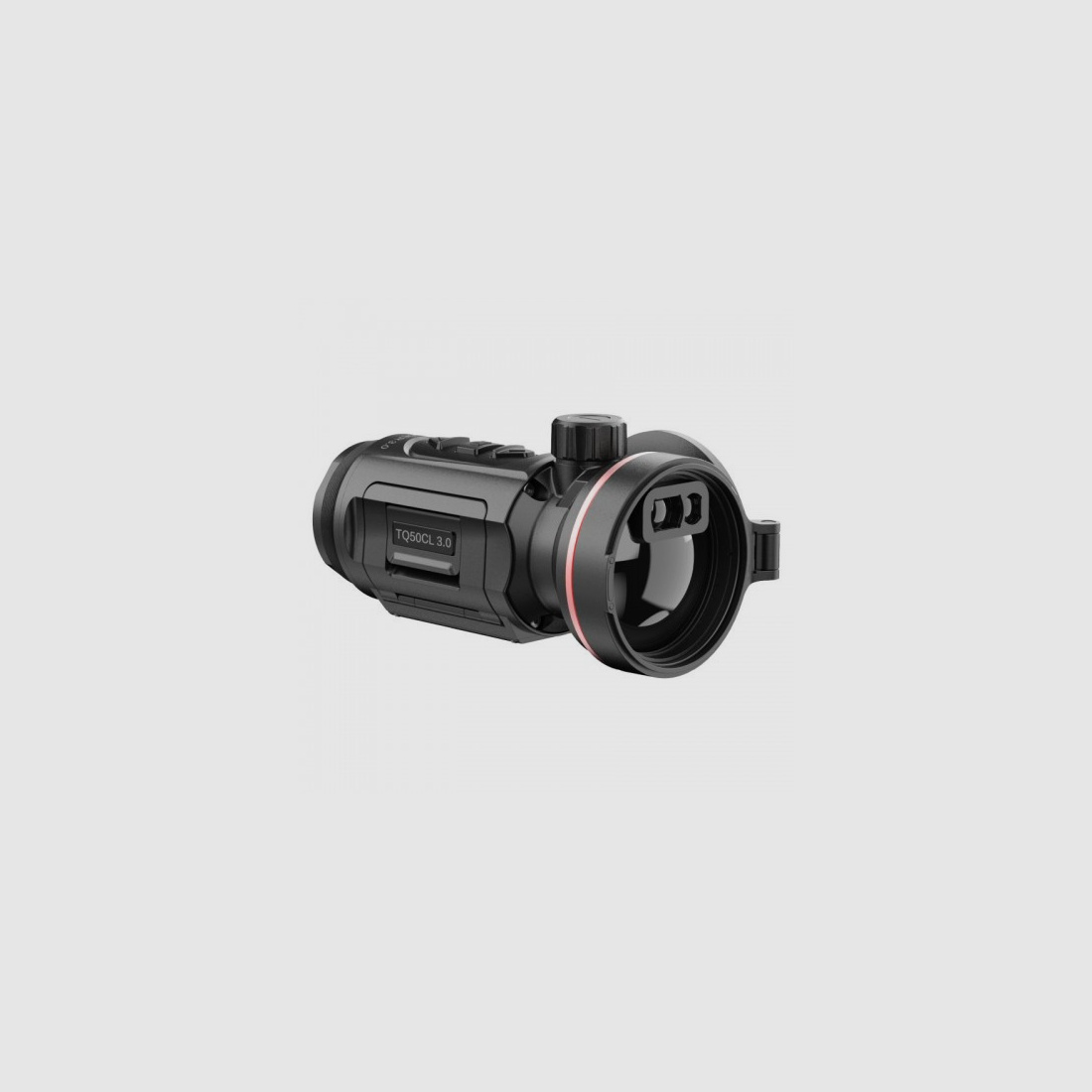

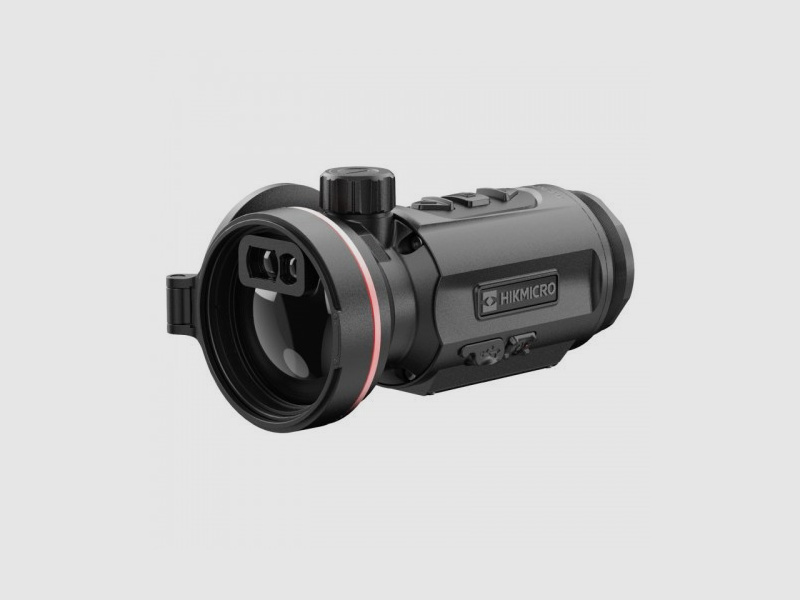

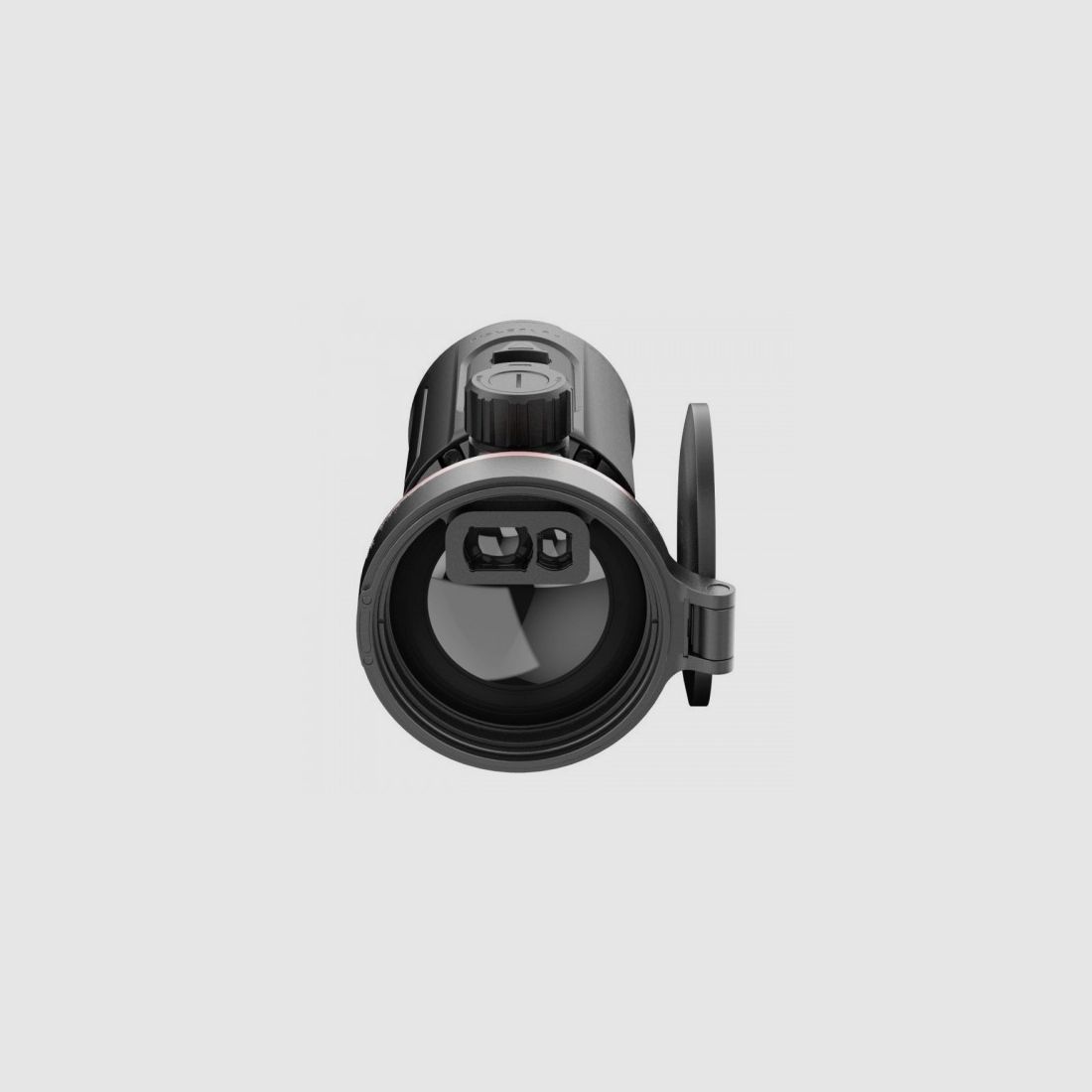

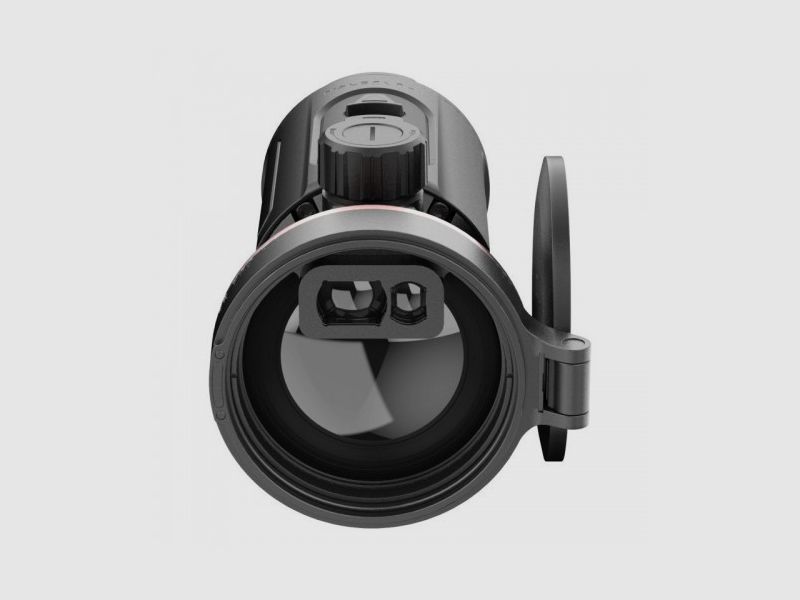

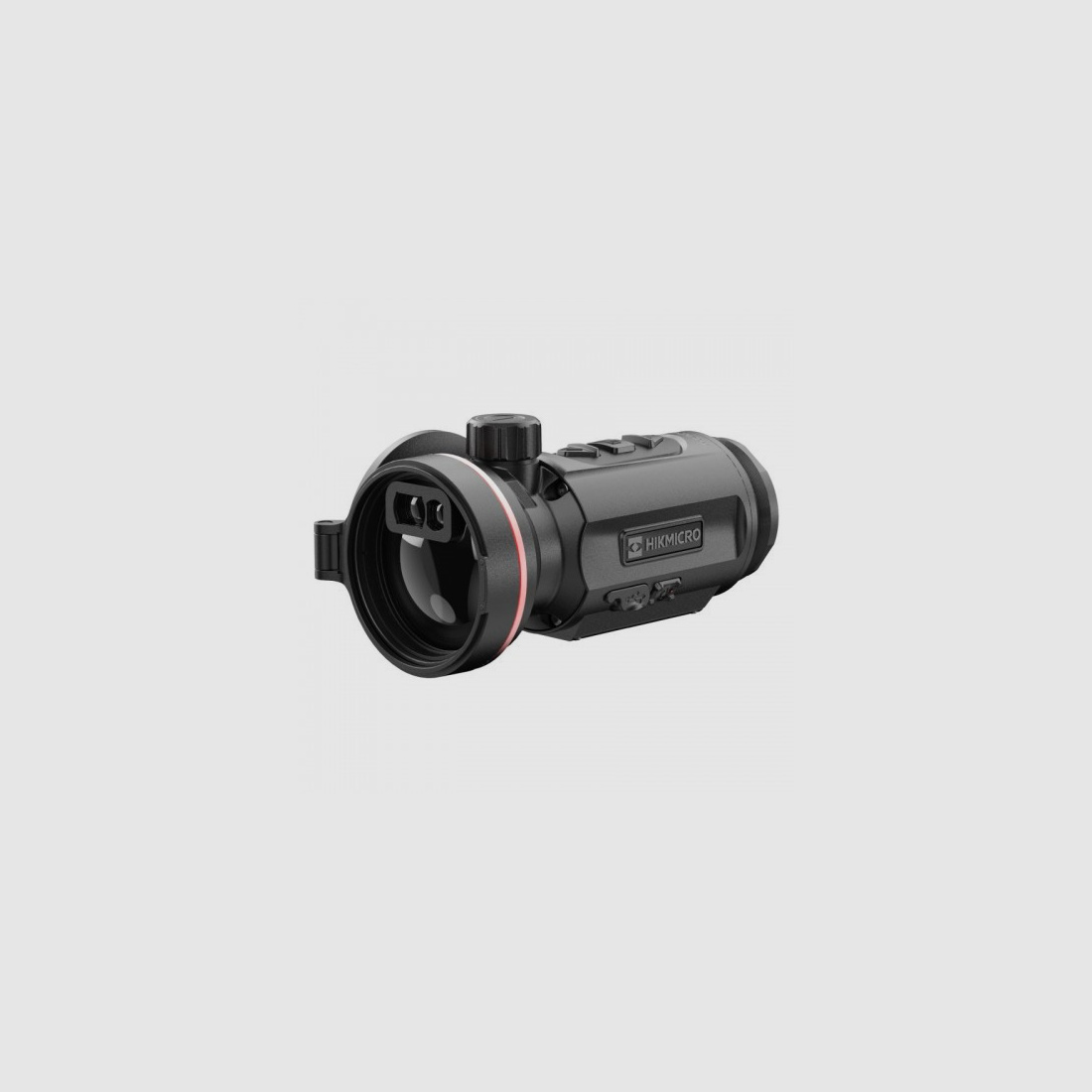

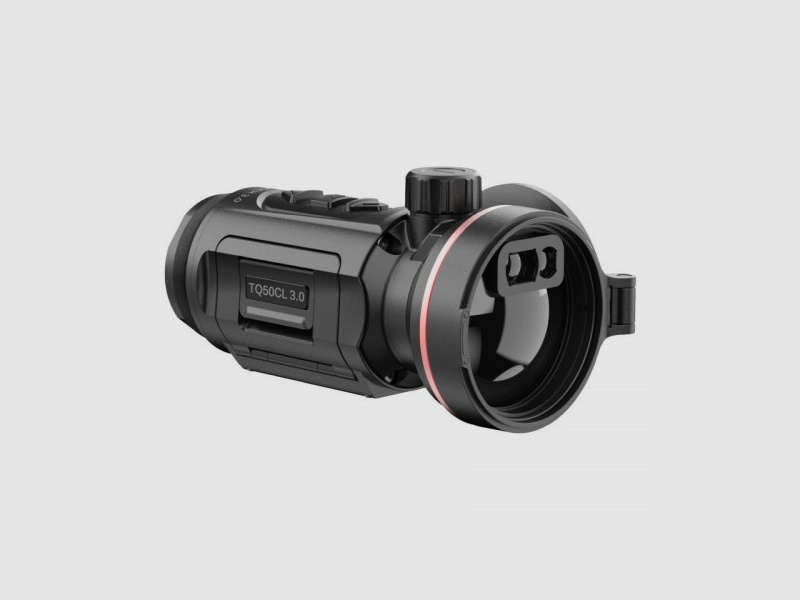

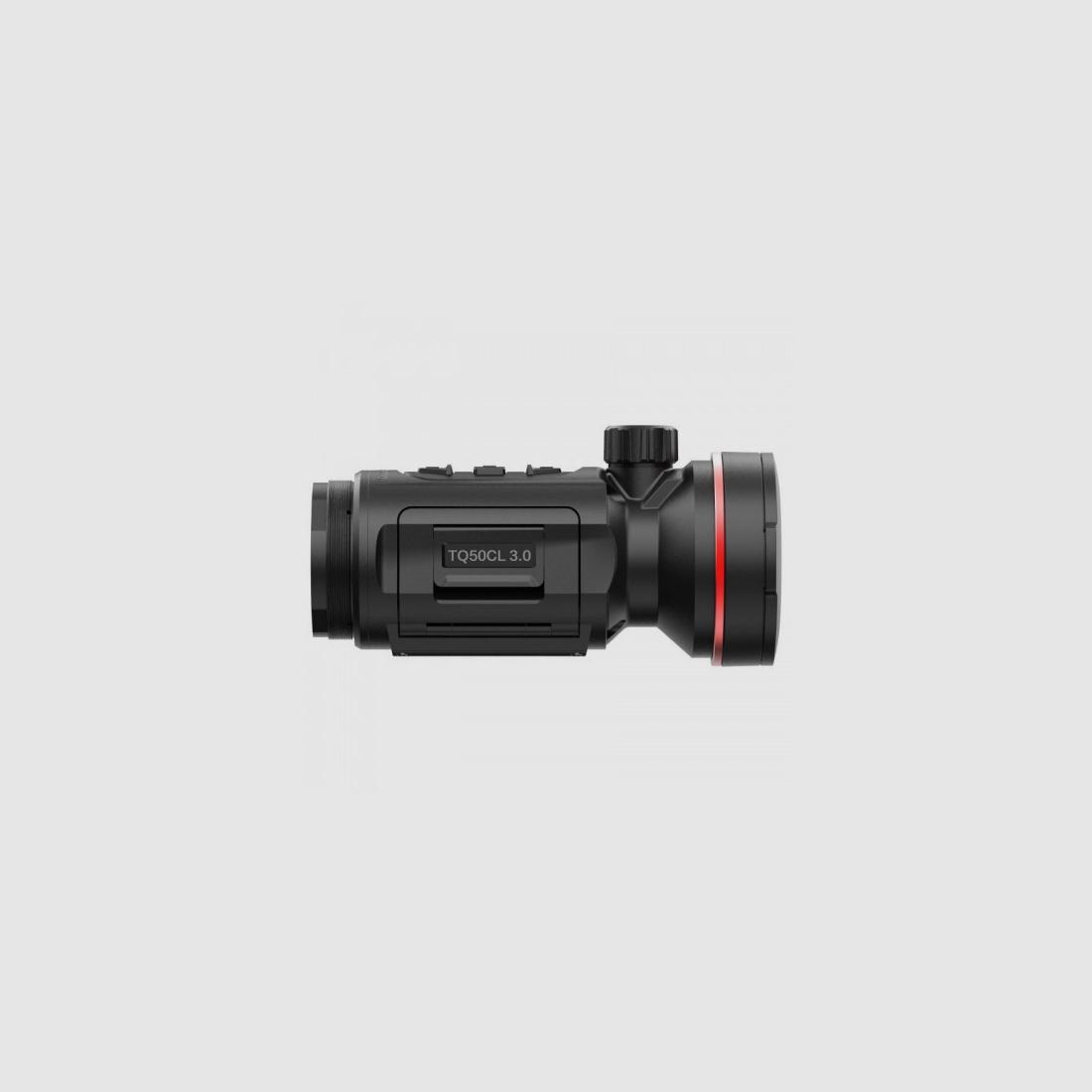

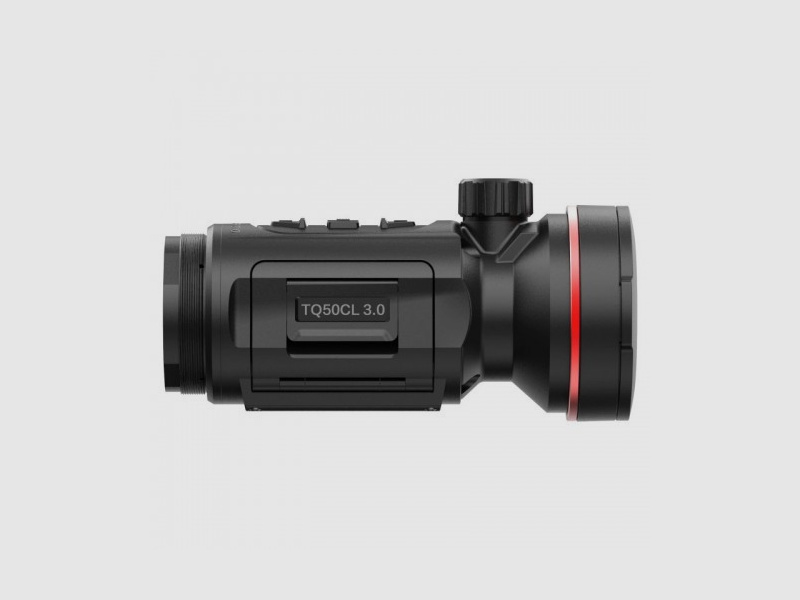

The HIKMICRO Thunder TQ50CL 3.0 Thermal Clip-On sets new standards in the world of thermal imaging technology. Equipped with a highly sensitive thermal detector with a resolution of 640 × 512 and a thermal sensitivity of NETD < 15 mK, the TQ50CL 3.0 allows for the capture of the finest details in all weather and lighting conditions. The powerful 50 mm F1.0 lens offers a detection range of up to 2600 meters, while the large 1920 × 1080 OLED display provides impressive visual clarity.
A particular strength of the TQ50CL 3.0 is the integrated laser rangefinder, which accurately measures distances up to 1000 meters and even performs ballistic calculations. This makes it an indispensable tool for professionals who rely on accuracy.
Main features:
- Thermal detector: 640 × 512 resolution at 12 μm for outstanding image quality
- Sensitivity: NETD < 15 mK (@25°C, F# = 1.0) for highest detail fidelity
- Lens: 50 mm, F1.0 lens with a detection range of up to 2600 m
- Display: 1920 × 1080 resolution, 0.49 inch OLED for razor-sharp images
- Laser rangefinder: Integrated with a range of up to 1000 m and ballistic calculation
- Technology: HIKMICRO Shutterless Image System (HSIS) for seamless image presentation
- Battery life: Rechargeable and replaceable Li-Ion battery with up to 5 hours of operating time
- Shock resistance: High shock resistance up to 1000 g/0.4 ms
Thermal module:
- Image sensor: Uncooled focal plane arrays
- Maximum resolution: 640 × 512
- Frame rate: 50 Hz
- Pixel pitch: 12 μm
- Response wavelength: 8 μm to 14 μm
- Focus mode: Focus knob
- Minimum focus distance: 10 m
- Magnification: 2.8x – 22.4x (4x)
- Field of view: 8.8° × 7.0° / 15.4 m × 12.3 m @ 100 m
- Recommended magnification: 1-15x
Image display:
- Display: 1920 × 1080, 0.49 inch OLED
- Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit pupil: 25 mm
Eye relief: 20 mm Brightness adjustment: Yes Contrast adjustment: Cold, Warm HSIS: HIKMICRO Shutterless Image System Image Pro 2.0: Yes
Laser rangefinder:
- Laser class: Class 1
- Wavelength: 905 nm
- Maximum measuring range: 1000 m
- Measurement accuracy: <300 m, ±1 m; >300 m, ±2 m
- Minimum measuring range: 10 m
(Show description in original language)
Das HIKMICRO Thunder TQ50CL 3.0 Thermal Clip-On setzt neue Maßstäbe in der Welt der Wärmebildtechnik. Ausgestattet mit einem hochsensiblen Wärmebilddetektor mit einer Auflösung von 640 × 512 und einer thermischen Empfindlichkeit von NETD < 15 mK, ermöglicht das TQ50CL 3.0 die Erfassung feinster Details bei allen Wetter- und Lichtbedingungen. Die leistungsstarke 50 mm F1.0 Linse bietet eine Erkennungsreichweite von bis zu 2600 Metern, während das große 1920 × 1080 OLED-Display eine beeindruckende visuelle Klarheit liefert.
Eine besondere Stärke des TQ50CL 3.0 ist der integrierte Laser-Entfernungsmesser, der Entfernungen bis zu 1000 Metern präzise misst und sogar ballistische Berechnungen durchführt. Dies macht ihn zu einem unverzichtbaren Werkzeug für Profis, die auf Genauigkeit angewiesen sind.
Hauptmerkmale:
- Thermaldetektor: 640 × 512 Auflösung bei 12 μm für überragende Bildqualität
- Empfindlichkeit: NETD < 15 mK (@25°C, F# = 1.0) für höchste Detailtreue
- Objektiv: 50 mm, F1.0 Linse mit einer Erkennungsreichweite von bis zu 2600 m
- Display: 1920 × 1080 Auflösung, 0,49 Zoll OLED für gestochen scharfe Bilder
- Laser-Entfernungsmesser: Integriert mit einer Reichweite von bis zu 1000 m und ballistischer Berechnung
- Technologie: HIKMICRO Shutterless Image System (HSIS) für nahtlose Bilddarstellung
- Akkulaufzeit: Wiederaufladbarer und austauschbarer Li-Ion Akku mit bis zu 5 Stunden Betriebszeit
- Stoßfestigkeit: Hohe Stoßfestigkeit bis zu 1000 g/0.4 ms
Thermalmodul:
- Bildsensor: Ungekühlte Fokalebene Arrays
- Maximale Auflösung: 640 × 512
- Bildrate: 50 Hz
- Pixelabstand: 12 μm
- Ansprechwellenlänge: 8 μm bis 14 μm
- Fokusmodus: Fokussierknopf
- Minimale Fokussierdistanz: 10 m
- Vergrößerung: 2.8x – 22.4x (4-fach)
- Sichtfeld: 8.8° × 7.0° / 15.4 m × 12.3 m @ 100 m
- Empfohlene Vergrößerung: 1-15x
Bildanzeige:
- Display: 1920 × 1080, 0.49 Zoll OLED
- Paletten: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Austrittspupille: 25 mm
- Augenabstand: 20 mm
- Helligkeitseinstellung: Ja
- Tonwertanpassung: Kalt, Warm
- HSIS: HIKMICRO Shutterless Image System
- Image Pro 2.0: Ja
Laser-Entfernungsmesser:
- Laserklasse: Klasse 1
- Wellenlänge: 905 nm
- Maximale Messreichweite: 1000 m
- Messgenauigkeit: <300 m, ±1 m; >300 m, ±2 m
- Minimale Messreichweite: 10 m
