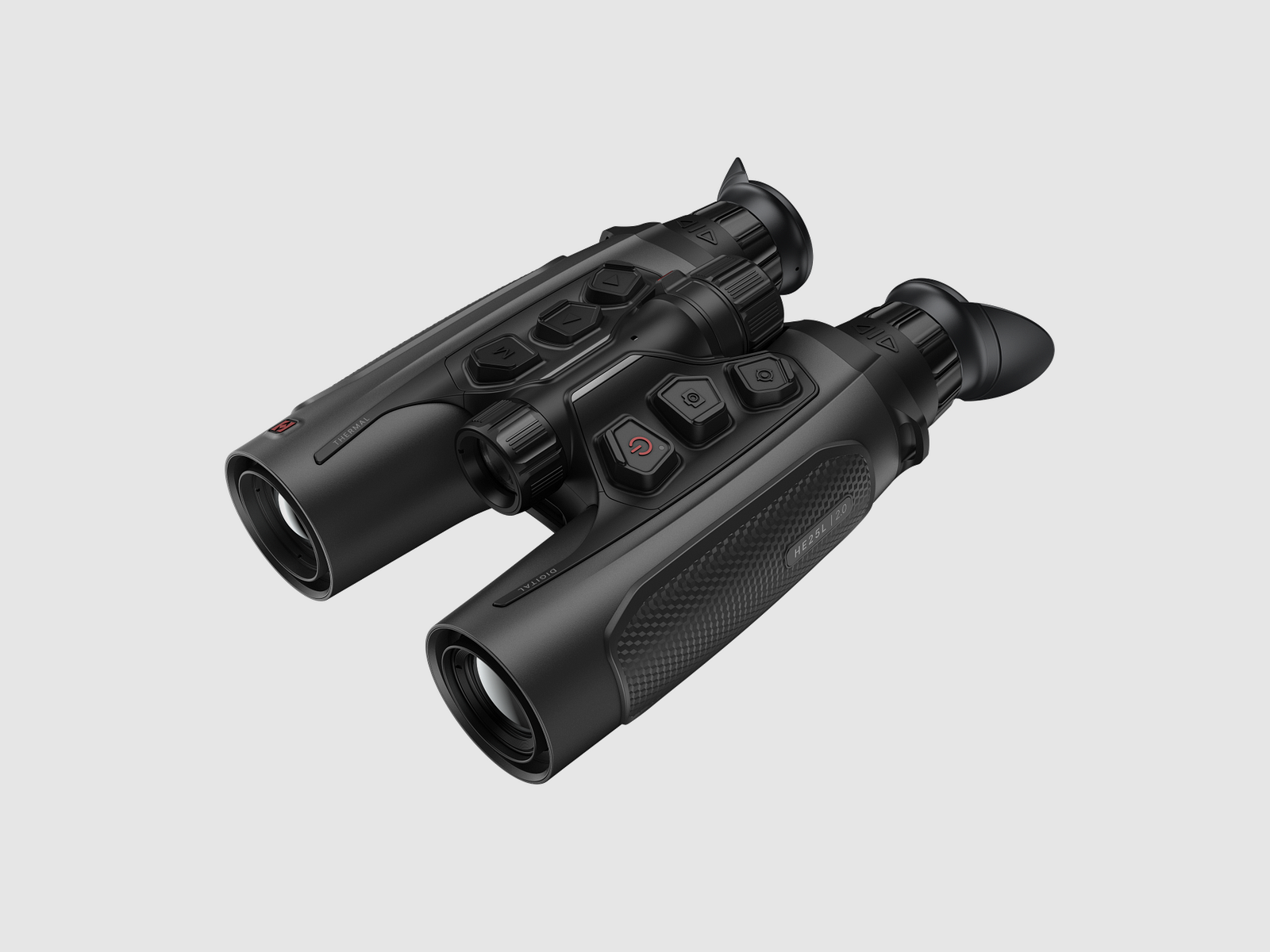

HikMicro Habrok 4K HE25L 2.0 5.5-22x60 Binocular

Habrok 4K 2.0 Binocular All-in-One High-Tech for Hunting & Nature Observation

The Habrok 4K 2.0 Binocular sets new standards in modern observation technology. As a true all-in-one device, it combines thermal imaging camera, digital day and night vision, infrared illuminator, and an integrated laser rangefinder in an ergonomic binocular housing. The intuitive operation is deliberately oriented towards a classic binocular, ideal for hunters and discerning nature observers who expect the highest precision with maximum ease of use.

Thanks to state-of-the-art sensors, razor-sharp image representation, and intelligent additional functions, the Habrok 4K 2.0 offers a reliable solution for various observation situations—by day, at dusk, and in complete darkness.

Intuitive operation & ergonomic design

The newly developed central drive focus ensures particularly fast and precise focusing even at varying distances. The balanced binocular design guarantees stable handling and relaxed observation over longer periods of time.

The quick switch mode allows for a seamless transition between thermal imaging, daytime vision, and night vision, without having to set the device down. In combination with image stabilization and continuous zoom, the target remains clearly in view at all times.

Most advanced sensor technology for maximum detail recognition

The integrated thermal imaging technology with shutterless technology delivers a smooth, high-contrast image without disruptive image interruptions. For night vision, interchangeable IR illuminators with 850 nm and 940 nm are available, flexibly adjustable to the area, situation, and desired visibility.

NEW: Ballistic Calculation System for Precise Hit Correction

A true highlight of the Habrok 4K 2.0 is the new ballistic calculation system. In conjunction with the integrated laser rangefinder and the storable ammunition data, the system calculates the correct point of aim in real-time. The measured distance is processed directly and displayed as a visual correction for maximum precision and safety in hunting situations.

Technical Highlights at a Glance

• All-in-One Binocular: Thermal imaging, day & night vision, IR illuminator & laser rangefinder
• New ergonomic central focus wheel for quick focusing
• Quick-Switch between thermal imaging and day/night vision channel
• Image stabilization & continuous digital zoom
• Replaceable IR illuminator: 850 nm & 940 nm (both included)
• Shutterless thermal imaging technology for uninterrupted display
• NEW: Ballistic calculation system with point of aim display
• Intuitive operation like a classic binocular

The Habrok 4K 2.0 Binocular is the perfect choice for hunters seeking state-of-the-art observation technology, precision, and ease of use in a single device. Powerful, ergonomic, and future-proof – a true premium binocular for demanding fieldwork.

Technical Data Habrok 4K 2.0 (HE25L 2.0)

Thermal Imaging Module

• Image Sensor: VOx Uncooled Focal Plane Array
• Max. Resolution: 256 192 Pixels
• Frame Rate: 50 Hz
• Pixel Pitch: 12 µm
• Spectral Range: 8 µm 14 µm
• NETD: < 18 mK (@25 °C, F#=1.0)
• Lens (Focal Length): 25 mm, F1.0
• Focus: Rear Focusing Wheel
• Detection Range: up to 1,200 m
• Minimum Focus Distance: 3 m

Magnification (Thermal Image):

• 4.3x 17.2x (4-fold)
• Digital Zoom: 2x / 3x / 4x / 5x, continuous zoom

Field of View (H V):

• 7.0 5.3
• 12.2 m 9.3 m @ 100 m

Optical Module (Day & Night)

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 2160 (4K)
• Focal Length: 60 mm, F2.2
• Min. Working Distance: 8 m
• Focus: Rear Focus Wheel

Magnification (Optical):

• 5.5x 22.0x (4x)
• Digital Zoom: 2x / 3x / 4x / 5x

Field of View (H V):

• 7.3 4.1
• 12.8 m 7.2 m @ 100 m

IR Lighting

• Smart IR: Yes
• Wavelength:
  • 940 nm (Standard)
  • 850 nm (interchangeable)
• Visibility at Night: up to 400 m
• Interchangeable IR Illuminator: Yes

Display & Image Representation

• Display: 0.49 inch OLED
• Resolution: 1920 1080
• Color Palettes (Thermal Image): Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Color Modes (Optical): Day, Night, Auto, Green, Yellow
• Pupil Exit: 8 mm
• Eye Relief: 15 mm
• Diopter Adjustment: -5 D to +3 D
• Brightness Adjustment: Yes
• Hue: Cold / Warm
• Contrast: Adjustable

Image Processing & Stabilization

• Electronic Image Stabilization: For thermal imaging and digital channel, active from 2x zoom
• Zoom Pro: Yes
• HSIS (HIKMICRO Shutterless Image System): Yes

Functions & System

• Video recording: Yes
• Photo recording: Yes
• Audio recording: Yes
• Standby mode: Yes
• Storage: Internal eMMC, 64 GB
• Picture-in-Picture (PIP): Yes
• Hotspot: Yes
• Hot Track: Yes
• Digital compass: Yes
• GPS: Yes
• Local album: Yes

Laser Distance Meter

• Laser Class: Class 1
• Wavelength: 905 nm
• Max. Measurement Range: 1,000 m
• Min. Measurement Distance: 10 m
• Measurement Accuracy: 1 m

Power Supply

• Battery Type: Replaceable & rechargeable Li-Ion battery
• Operating Time: 6.5 hours (at 25 C, with hotspot & LRF active)
• Charging Port: USB-C
• Input: 5V DC, 2 A
• External Power Supply: Supported
• Direct Charging: Yes

General Data

• Protection Class: IP67
• Dimensions: 143.1 74.8 223.3 mm
• Operating Temperature: -30 C to +55 C
• Weight: 895 g (without batteries)
• Pupil Distance: 60 74 mm
• Tripod Thread: 1/4"-20 UNC

Scope of delivery:

• HikMicro Habrok 4K HE25L 2.0 5.5-22x60 Binocular
• 2 Infrared emitters (1x 850nm + 1x 940 nm)
• Carrying strap
• USB-C cable
• Tripod adapter
• Batteries 4x
• Battery charger
• Lens cleaning cloth
• Operating manual
