Overview

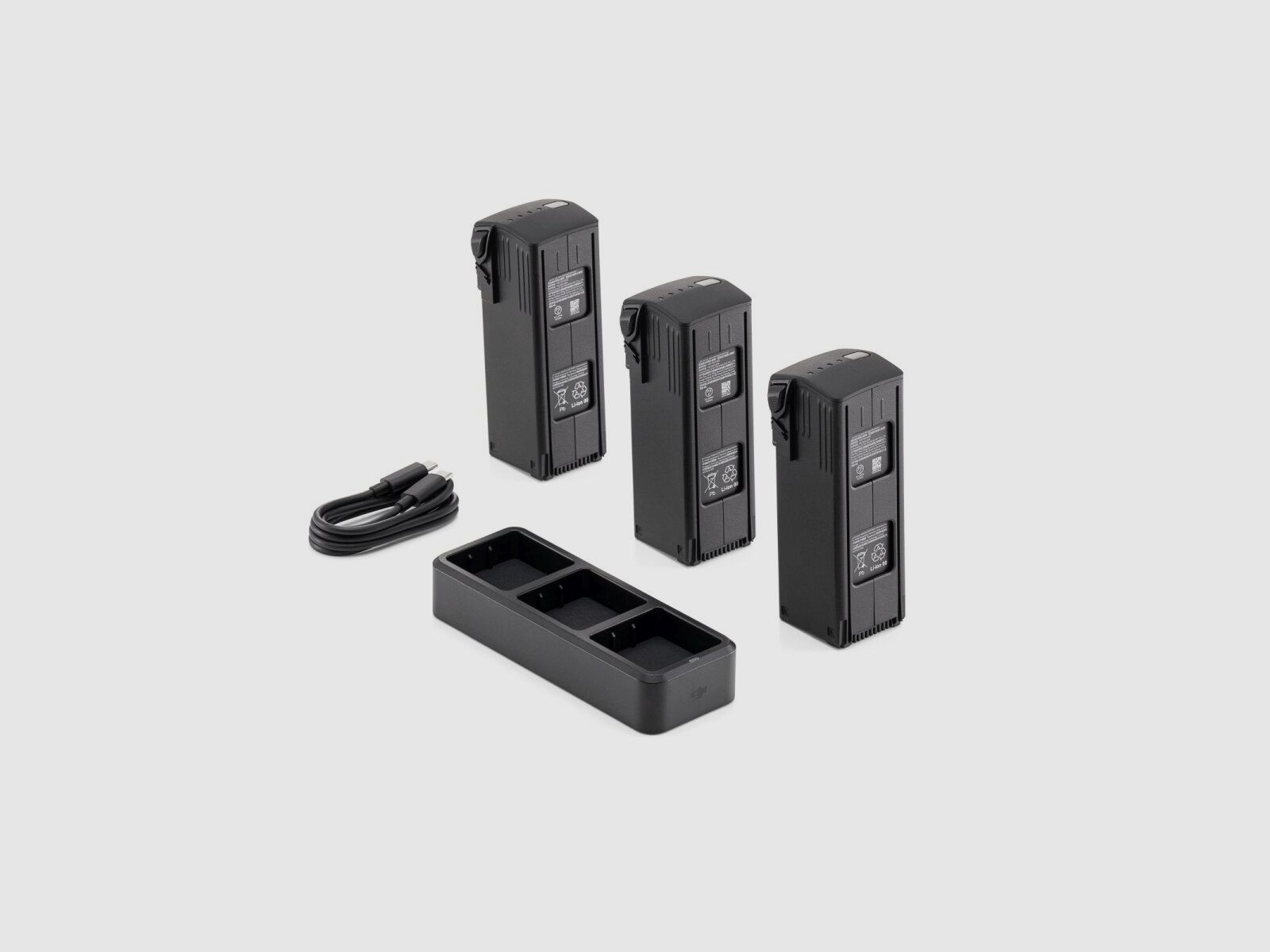

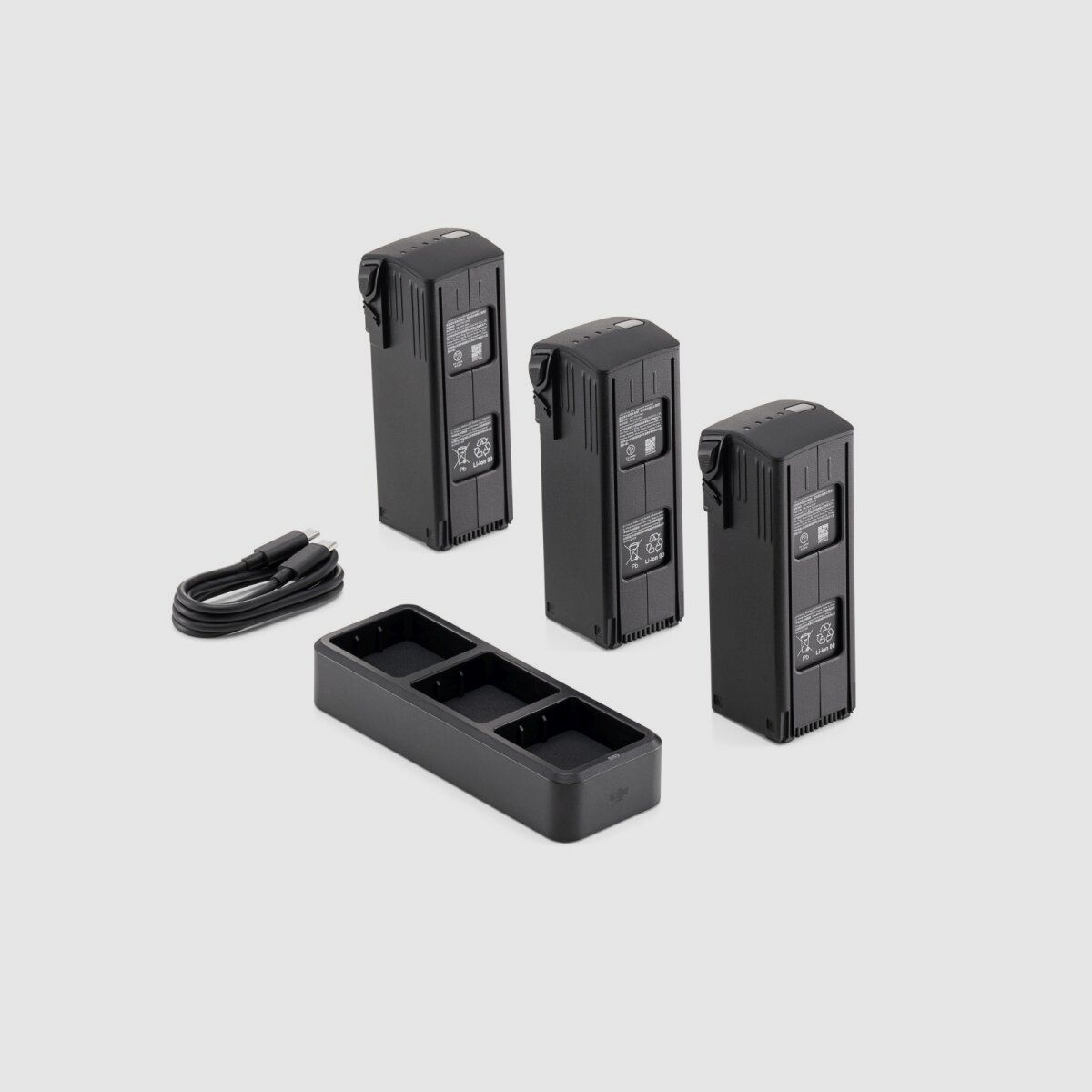

The DJI Mavic 3 Enterprise Battery Set includes three Intelligent Flight Batteries and a DJI Mavic 3 Battery Charging Station (100W) to meet the demands of long-term operations.

Technical Specifications of the DJI Mavic 3 Enterprise Battery Set:

Intelligent Flight Battery:

• Model: BWX260-5000-15.4


• Storage Capacity: 5,000 mAh


• Weight: 335.5 g


• Battery Type: LiPo 4S


• Charging Temperature: 5 °C to 40 °C

DJI Mavic 3 Battery Charging Station (100W):

• Model: CHX265-100


• Dimensions: 150 × 55 × 28 mm (L×W×H)


• Weight: 116 g


• Operating Temperature: 5 °C to 40 °C


• Input: 5 to 20 V, max. 5 A


• Compatible Power Supply: DJI USB-C Power Supply (100W)


• Charging Time: Approx. 1 hour and 10 minutes (single battery)*

* Tested with a DJI USB-C Power Supply (100W).

Compatibility

DJI Mavic 3 Enterprise Aircraft

Tips

1. It is recommended to use the DJI USB-C Power Supply (100W) to charge the DJI Mavic 3 Battery Charging Station (100W).


2. The battery charging station is only compatible with the BWX260-5000-15.4 Intelligent Flight Batteries. DO NOT attempt to use the charging station with other battery models.


3. Use the battery charging station only on a flat and stable surface. Ensure that the device is properly insulated to avoid fire hazards.


4. DO NOT touch the metal clamps on the battery charging station.


5. Clean visible dirt with a clean and dry cloth.
