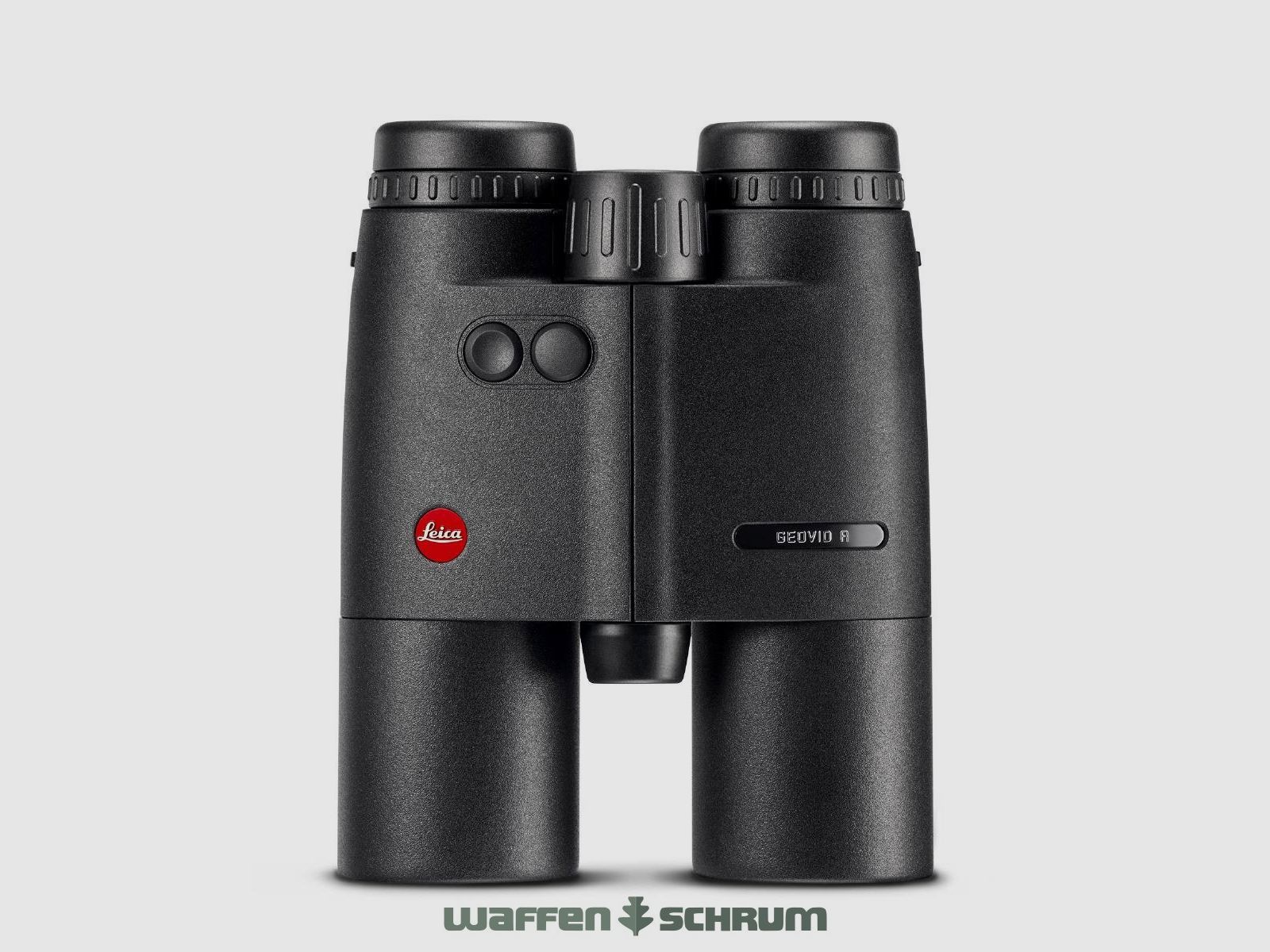

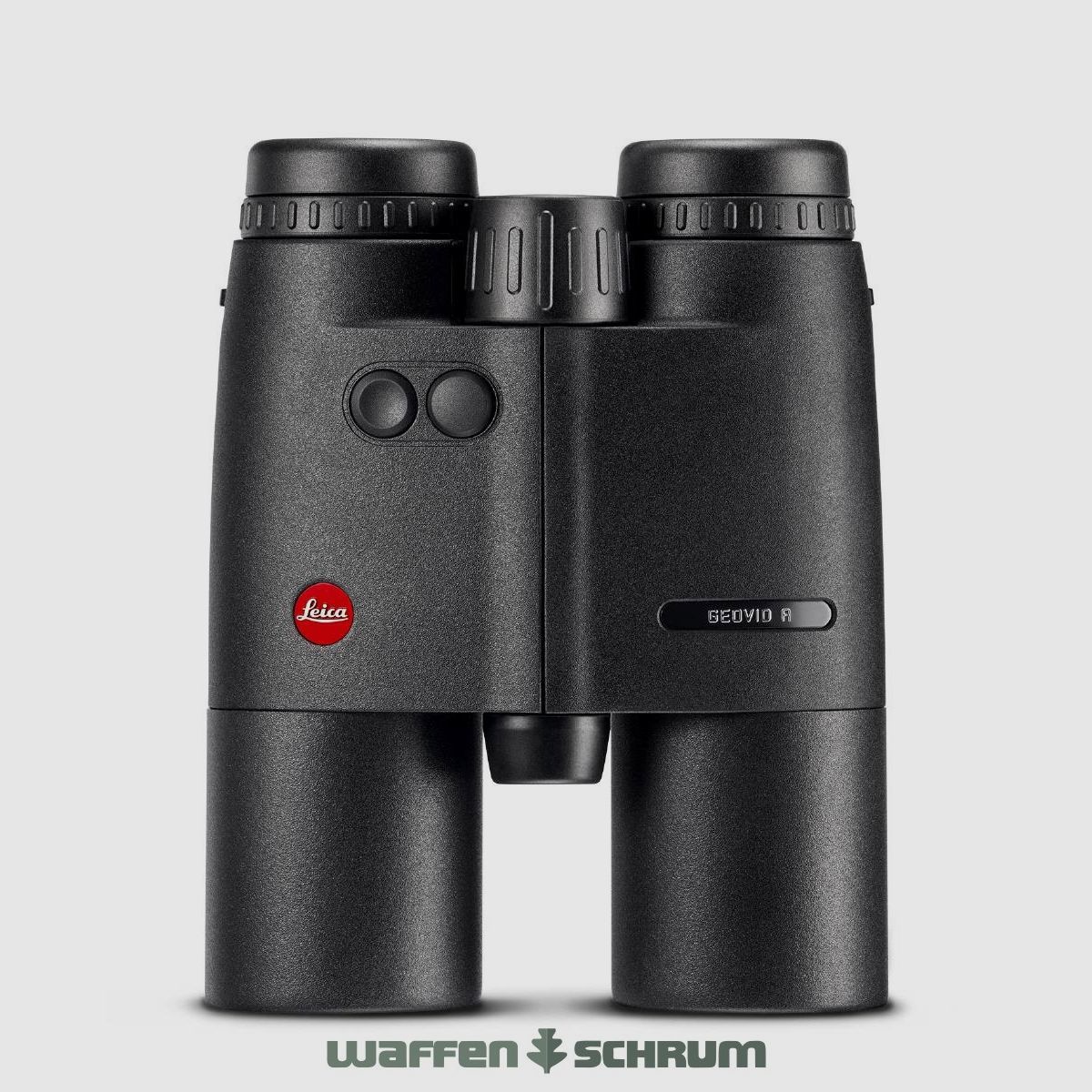

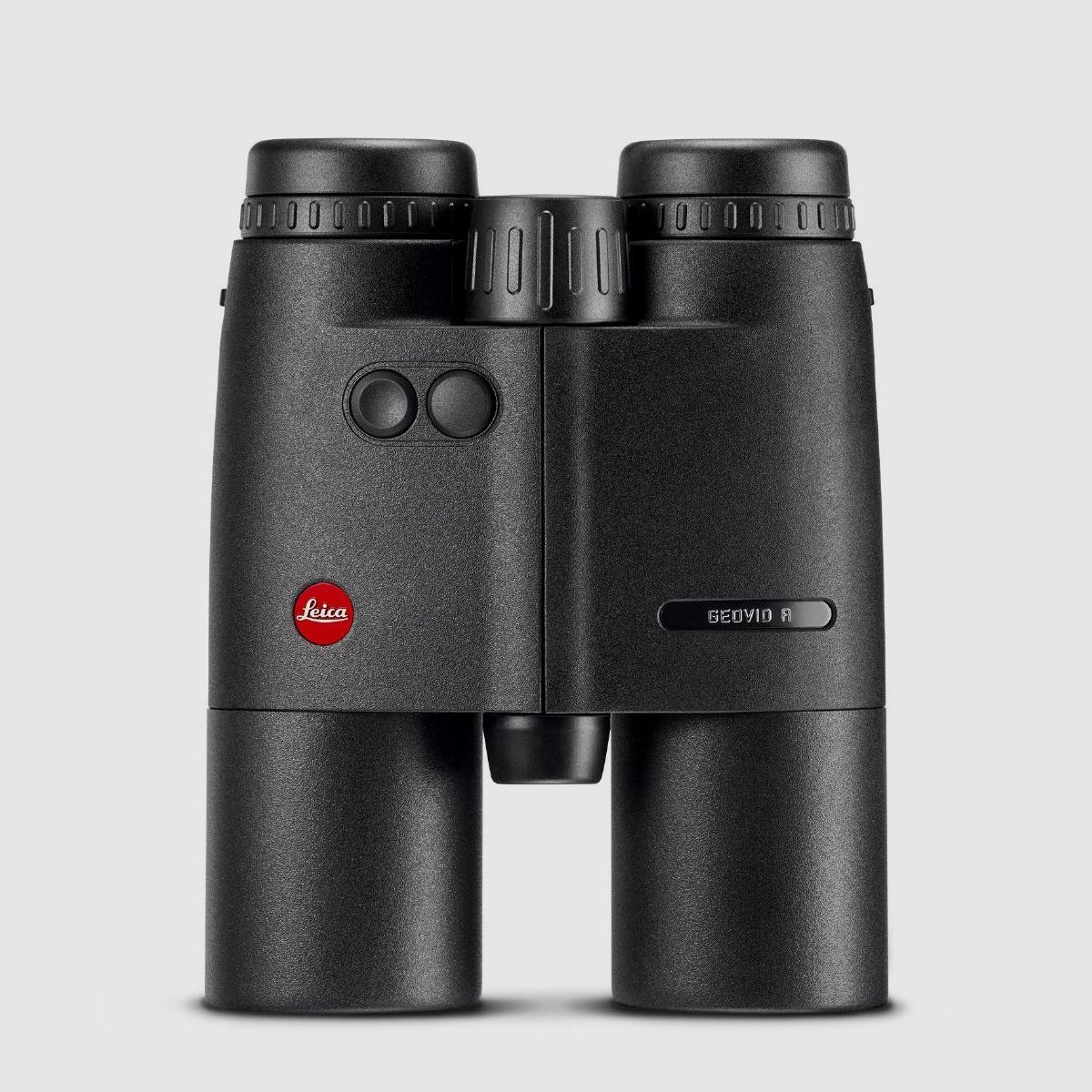

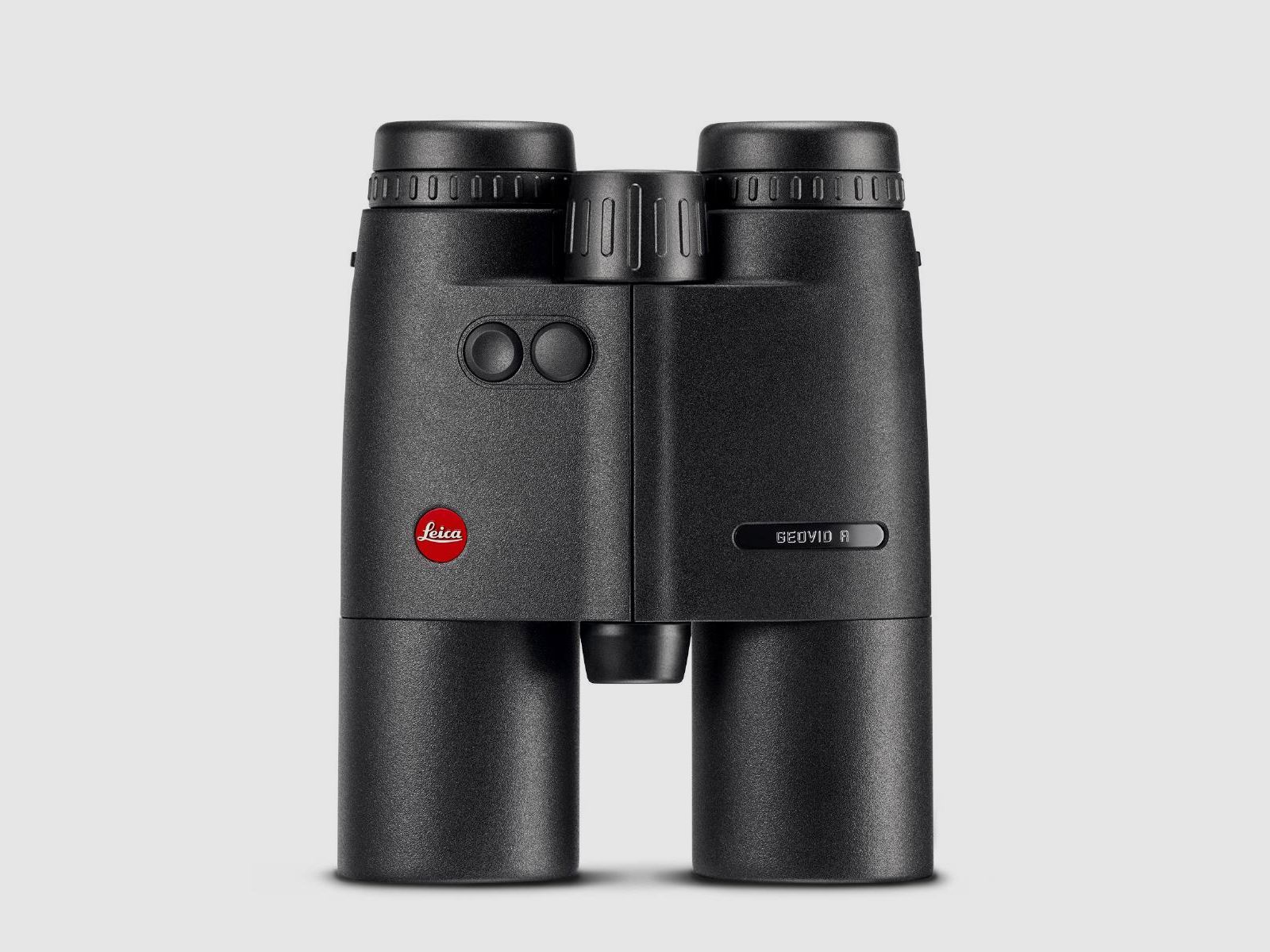

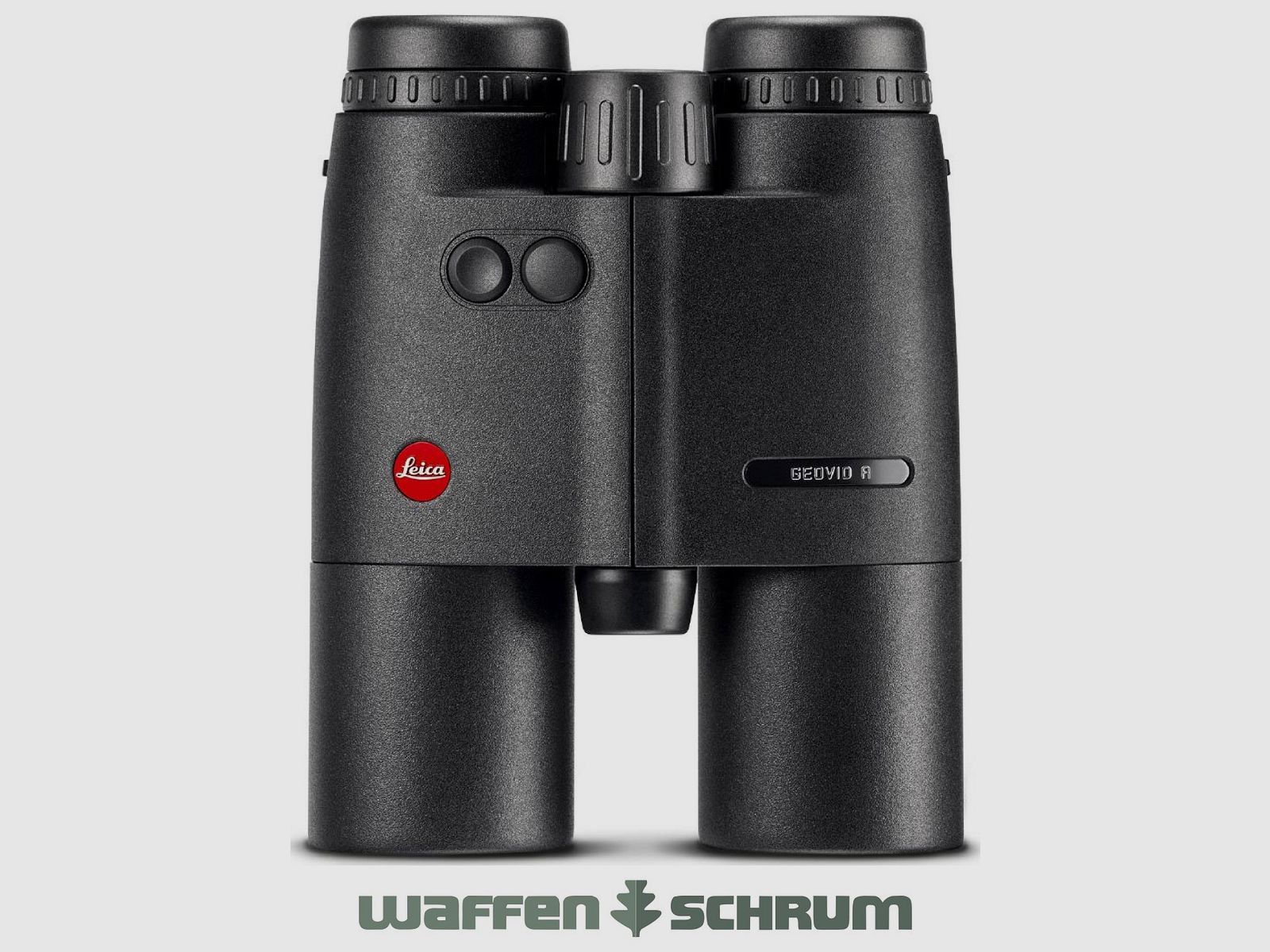

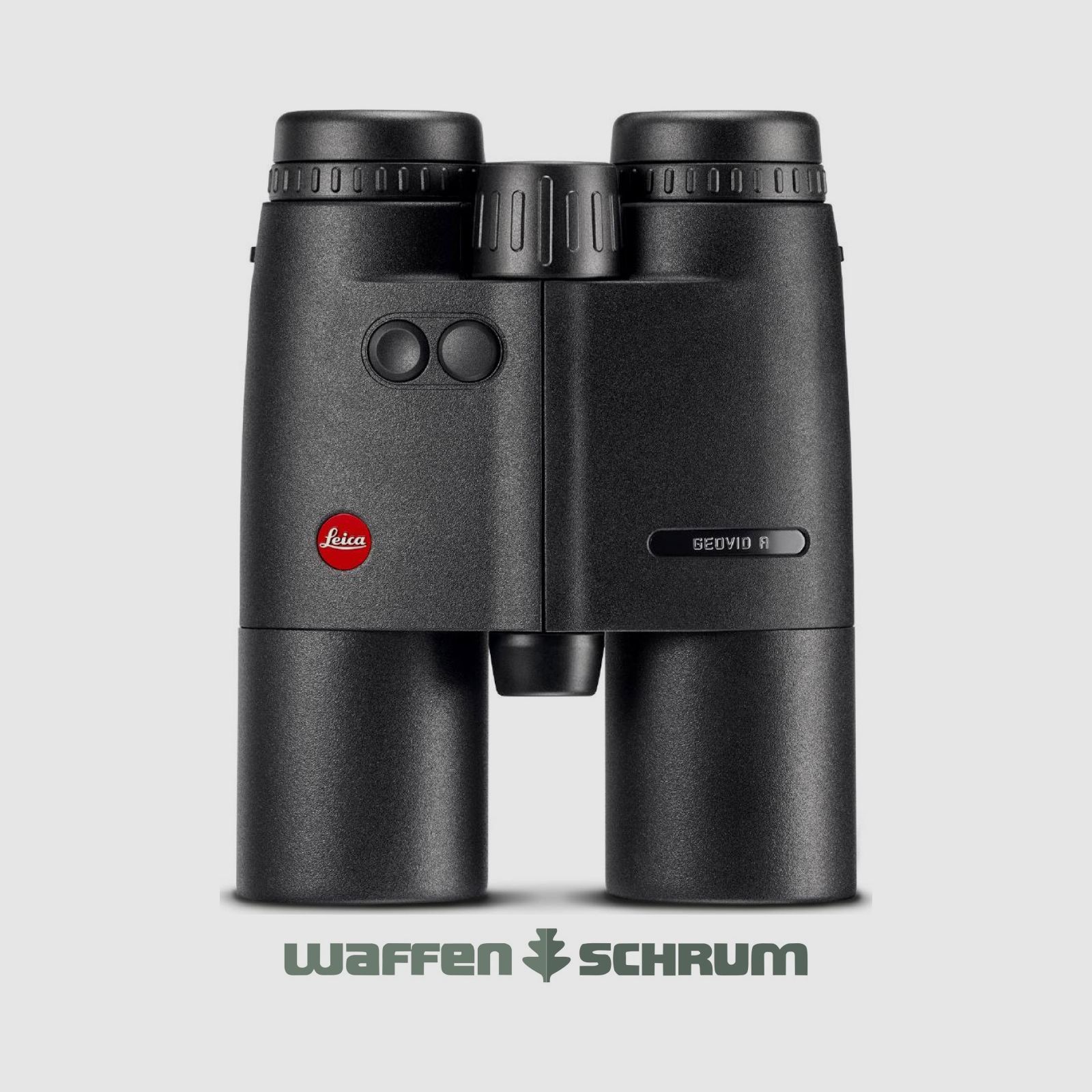

The new Leica Geovid R 8x42 is a high-performance binocular with an integrated high-precision rangefinder.
The binoculars have been completely revised and are technically state-of-the-art. The new Geovid R model features an excellent precision rangefinder, thanks to an improved measuring range of up to 1,800 m. The ballistic function EHR, which outputs the horizontal distance for angled shots up to 1,100 m, further increases safety for a fair shot.
With the Geovid R, Leica focuses on the essentials: powerful premium optics, a precise rangefinder, and the highest optomechanical reliability with simple, intuitive operation. Thus, the Leica Geovid R 8x42 is the best possible combination of powerful optics in a binocular and a precise rangefinder with an outstanding field of view.
Scope of delivery
- Leica Geovid R 8x42
- Carrying strap
- Eyepiece cover
- Objective cover
- Ready-to-use case
- Optics cleaning cloth
- Quick guide
- Test certificate
- Lithium round cell 3 V (Type CR2)
Technical data
- Type: Binoculars with rangefinder
- Magnification: 8x
- Objective diameter: 42 mm
- Exit pupil: 5.25 mm
- Dawn number: 18.3
- Field of view: 125 m at 1,000 m, for eyeglass wearers 120 m
- Exit pupil position: 15.5 mm
- Objective viewing angle: 7.2°
- Close range: approx. 5.6 m
- Adjustable eye distance: 56-74 mm
- Diopter compensation ±4 dpt
- Distance measurement range 10-1,800 m
- Equivalent horizontal distance (EHR): 10 to approx. 1,100 m
- Measurement accuracy ± 1 m up to 350 m, ± 2 m up to 700 m, ± 0.5 % over 700 m
- Max. measurement time approx. 0.3 s
- Measurement functions: Scan mode, single measurement
- Switching between meters/yards
- Display: LED with 4 digits, ambient light-controlled brightness adjustment
- Eyeglass wearer eyepiece
- Twist-up eyecup, removable, with 4 click stops
- Prism system: modified Uppendahl system
- Coating HDC® multi-coating
- Internal focusing via central drive
- Laser: eye-safe, invisible laser according to EN and FDA Class 1
- Battery 1 x 3 V / Lithium round cell CR2
- Battery life: approx. 2,000 measurements at 20 °C
- Waterproof up to 5 m water depth
- Housing: Aluminum, nitrogen-filled
- Dimensions (WxHxD): 125x173x70 mm
- Weight without battery: approx. 960 g
(Show description in original language)
Das neue Leica Geovid R 8x42 ist ein Hochleistungsfernglas mit integriertem hochpräzisen Entfernungsmesser.
Das Fernglas wurde komplett überarbeitet und ist technisch auf dem neuesten Stand. Das neue Geovid R Modell verfügt, dank verbesserter Messreichweite von bis zu 1.800 m, über einen hervorragend präzisen Entfernungsmesser. Die Ballistikfunktion EHR, welche die ebenengleiche Entfernung bei Winkelschüssen für Distanzen von bis zu 1.100 m ausgibt, erhöht zusätzlich die Sicherheit für den waidgerechten Schuss.
Bei dem Geovid R konzentriert sich Leica auf das Wesentliche: eine leistungsstarke Premium-Optik, einen präzisen Entfernungsmesser und höchste optomechanische Zuverlässigkeit bei einfacher, intuitiver Bedienung. Damit ist das Leica Geovid R 8x42 die bestmögliche Kombination aus leistungsstarker Optik in einem Fernglas und präzisem Entfernungsmesser mit einem herausragenden Sehfeld.
Lieferumfang
- Leica Geovid R 8x42
- Tragriemen
- Okularschutzdeckel
- Objektivschutzdeckel
- Bereitschaftstasche
- Optik-Reinigungstuch
- Kurzanleitung
- Prüfzertifikat
- Lithium-Rundzelle 3 V (Typ CR2)
Technische Daten
- Typ: Fernglas mit Entfernungsmesser
- Vergrößerung: 8x
- Objektivdurchmesser: 42 mm
- Austrittspupille: 5,25 mm
- Dämmerungszahl: 18,3
- Sehfeld: 125 m auf 1.000 m, für Brillenträger 120 m
- Austrittspupillenlage: 15,5 mm
- Objektiver Sehwinkel: 7,2°
- Nahbereich: ca. 5,6 m
- einstellbarer Augenabstand: 56-74 mm
- Dioptrienausgleich ±4 dpt
- Distanzmessung Reichweite 10-1.800 m
- äquivalente horizontale Entfernung (EHR): 10 bis ca. 1.100 m
- Messgenauigkeit ± 1 m bis 350 m, ± 2 m bis 700 m, ± 0,5 % über 700 m
- max. Messzeit ca. 0,3 s
- Messfunktionen: Scan-Modus, Einzelmessung
- Umschaltung Meter/Yard
- Anzeige: LED mit 4 Ziffern, umgebungslichtgesteuerte Helligkeitsregulierung
- Brillenträgerokular
- Augenmuschel mit Drehschiebehülse, demontierbar, mit 4 Raststufen
- Prismensystem: modifiziertes Uppendahl-System
- Vergütung HDC® Mehrschichtvergütung
- Innenfokussierung über Mitteltrieb
- Laser: augensicherer, unsichtbarer Laser nach EN und FDA Klasse 1
- Batterie 1 x 3 V / Lithium-Rundzelle CR2
- Batterielebensdauer: ca. 2.000 Messungen bei 20 °C
- druckwasserdicht bis 5 m Wassertiefe
- Gehäuse: Aluminum, stickstoffgefüllt
- Abmessungen (BxHxT): 125x173x70 mm
- Gewicht ohne Batterie: ca. 960 g
