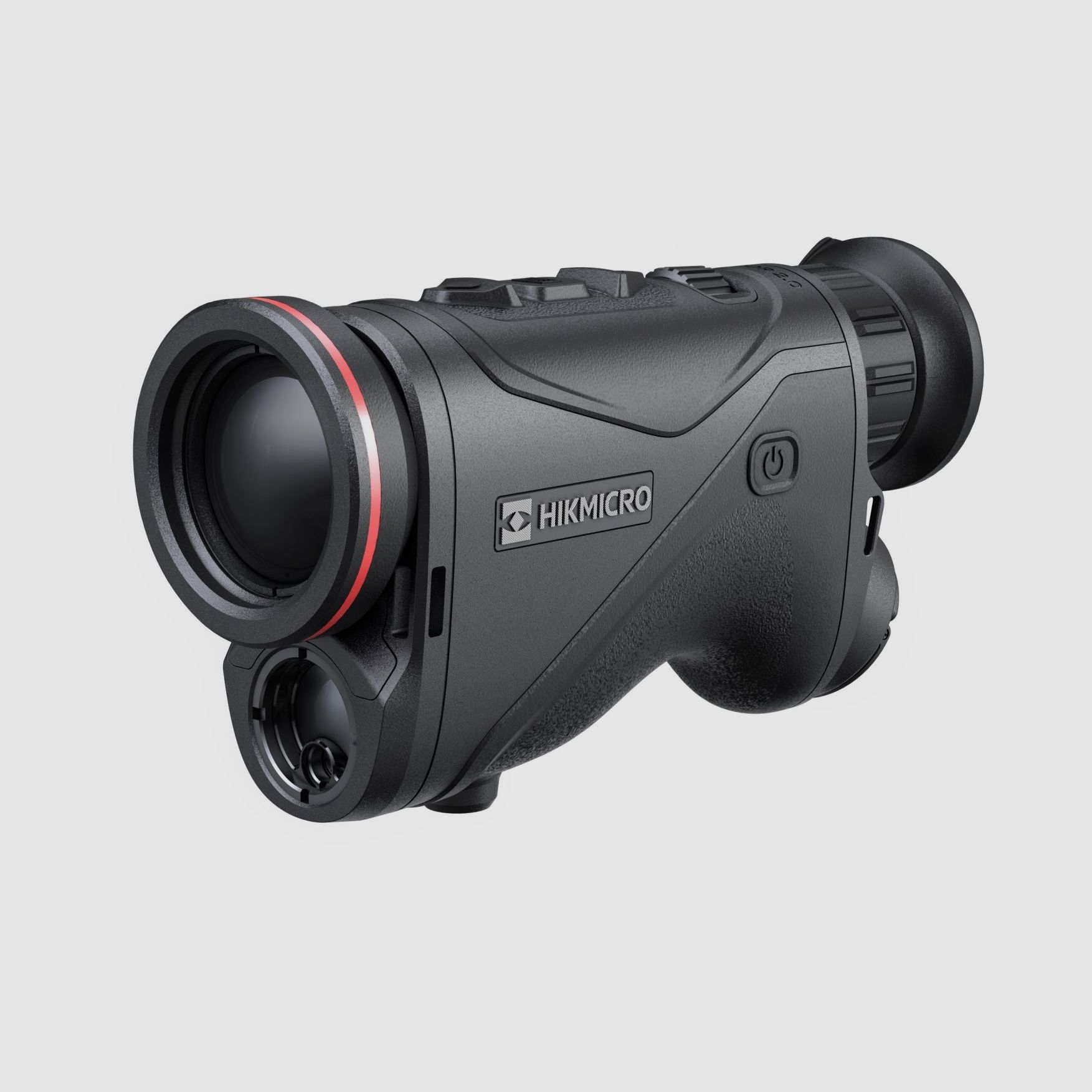

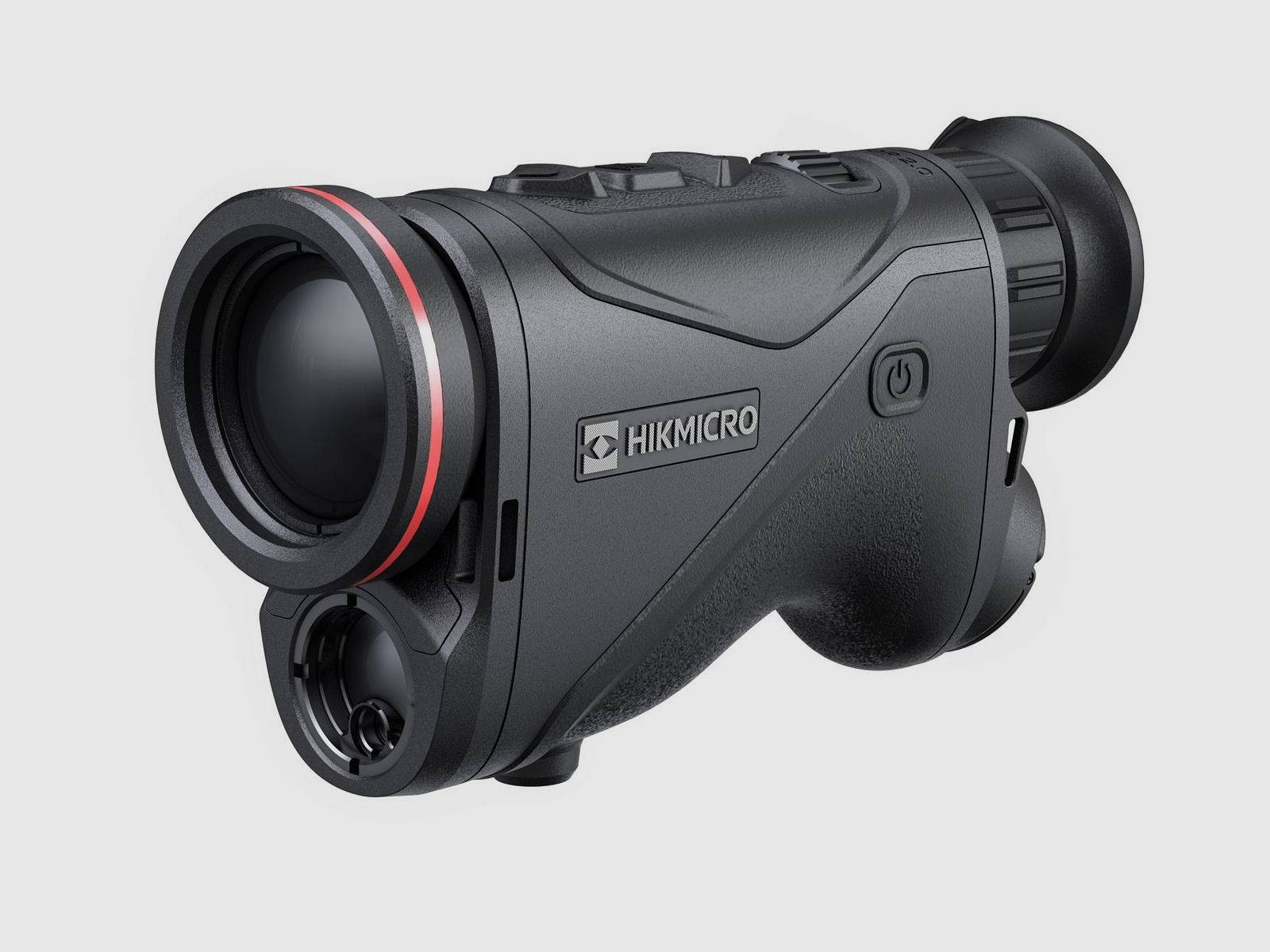

HIKMICRO Condor CQ35L 2.0 High-Resolution Thermal Imaging Camera for Hunting and Outdoor
Information down to the smallest detail
The continuation of the Condor series offers premium thermal imaging cameras for hunting and wildlife observation. The in-house 12-micron sensor achieves a thermal sensitivity of =15 millikelvin (NETD), allowing even the smallest details such as bristles or sexual characteristics of wildlife to be reliably detected. The Zoom Pro function enables razor-sharp images with reduced image noise, even with digital zoom.
Integrated Laser Rangefinder & Ergonomic Design
The integrated Laser Rangefinder (LRF) measures distances up to 1,000 m with ±1 m accuracy. This assists hunters in safely estimating distances and overall scene assessment. The compact design, weighing only 458 g, ensures comfortable handling and mobility in outdoor use.
Thermal Module High-Resolution Sensor for Thermal Images
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Resolution: 640 x 512 pixels
- Frame Rate: 50 Hz
- Pixel Pitch: 12 µm
- NETD: = 15 mK (@25°C), F#=1.0
- Focal Length: 35 mm
- Detection Range: 1,800 m
- Field of View: 12.5° × 10° / 21.9 m × 17.5 m at 100 m
- Aperture: F1.0
- Magnification: 1.9x to 15.2x (8x)
- Minimum Focus Distance: 5 m, focus ring for precise adjustment
Screen & Image Pro Features
- Monitor: 0.49 inch OLED, 1920 × 1080
- Diopters: -5 to +3
- Palettes: Black Hot, White Hot, Red Hot, Fusion
- Flat Field Correction: automatic, manual, external
- Image Pro & Zoom Pro for razor-sharp thermal images
Smart Features & System
- Hot Track & Hotspot Detection
- Picture-in-Picture Display
- Standby Mode, Brightness and Contrast Adjustment
- Integrated Rangefinder
- Storage: 64 GB integrated
- Video and Audio Recording, Snapshot
- Supported App: Hikmicro Sight
Battery & General
- Battery type: removable Li-Ion battery type 21700
- Operating time: 6.5 h (Wi-Fi off)
- Battery capacity display
- Power Supply: USB Type-C
- IP67 protection class, operating temperature: -30 °C to 55 °C
- Dimensions: 179.2 × 87.7 × 64.5 mm
- Weight: 458 g, eye distance 15 mm
Laser Rangefinder (LRF)
- Maximum measurement range: 1,000 m
- Laser safety class: 1
- Wavelength: 905 nm
- Measurement accuracy: ±1 m
- Minimum measurement distance: 10 m
Scope of Delivery
- Condor CQ35L 2.0 thermal imaging camera
- Protective case
- Instructions
- Dust cloth
- USB cable
- 2 batteries
- Charger
