Molicel INR18650-M35A, 3500mAh 10A lithium-ion battery, 3.6V - 3.7V

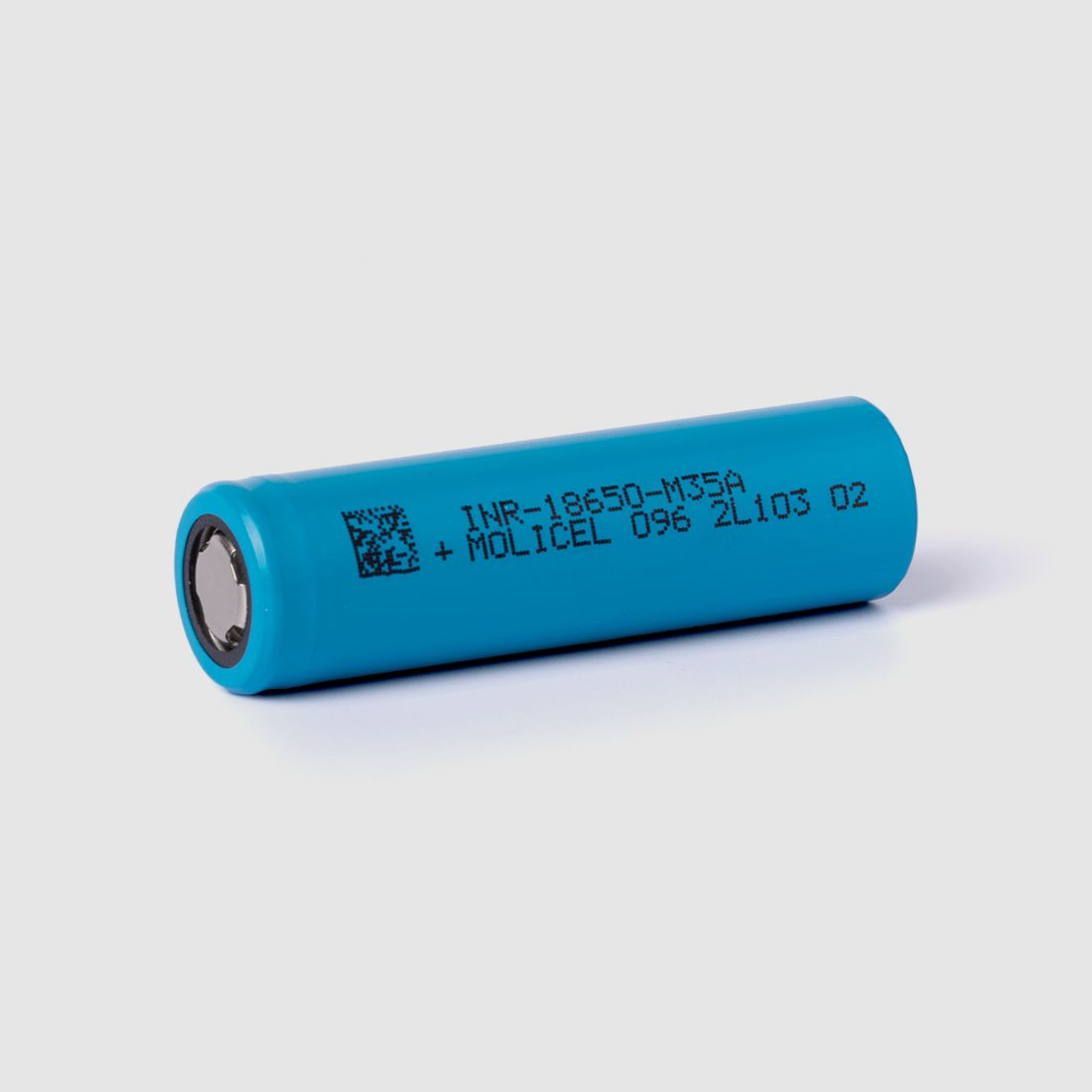

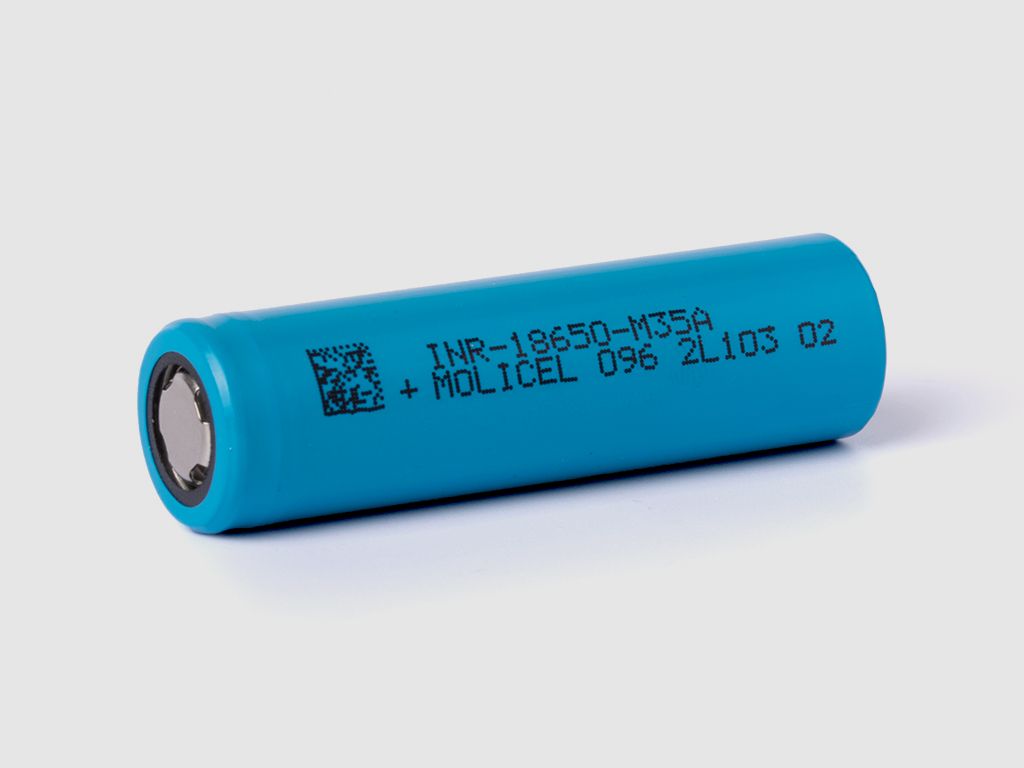

Molicel INR18650-M35A

Decent capacity and excellent voltage stability during discharge make the Molicel M35A a very good battery for many mobile applications. The good voltage stability under higher loads brings many advantages, especially in electric drive systems such as e-bikes, scooters, hoverboards, etc.

With the INR18650-M35A, Molicel demonstrates its expertise and superiority.

Molicel was one of the pioneers of the lithium-ion industry. Molicel batteries are used everywhere extreme conditions and high reliability are required, with customers including NASA, DASA, Dyson, Boeing, and others. Molicel products are sold only through authorized dealers.

Technical Data for the Molicel INR18650-M35A

Capacity 3500mAh 12.5 Wh

Minimum Capacity 3350mAh 11.9 Wh

Nominal Voltage 3.6V - 3.7V

Charge Termination Voltage 4.2V 0.05

Discharge Termination Voltage 2.5V

max. Discharge Current (constant) 10A (10000mA)

max. Charge Current 1.7A (1700mA)

Protection Electronics PCB/BMS none

Positive Terminal flat (Flat Top)

Diameter 18.45 mm 0.15 mm

Height 65.0 mm 0.2 mm

Weight 47g 1 g

Charging Method CC-CV

Comparisons, discharge curves, and test runs:

"This is a decent consistency and both cells meet the minimum and typical capacity values of Molicel."

Data sheets for the Molicel INR18650-M35A:

(Data sheet)

(62133) (International Organization for Standardization)

(UN38.3)

(Safety certification company)

(Safety data sheet)

Safety Instructions:

Lithium cells may only be operated with protective electronics! Please note that lithium cells may only be used by authorized personnel. Improper handling or short circuits can lead to fire development or explosion.

Additional Features:

Lithium-ion batteries are thermally stable and are not subject to the memory effect. They operate on the basis of lithium and are characterized by a high energy density.

Scope of delivery:

1x Molicel INR18650-M35A - 3500mAh, lithium-ion battery
