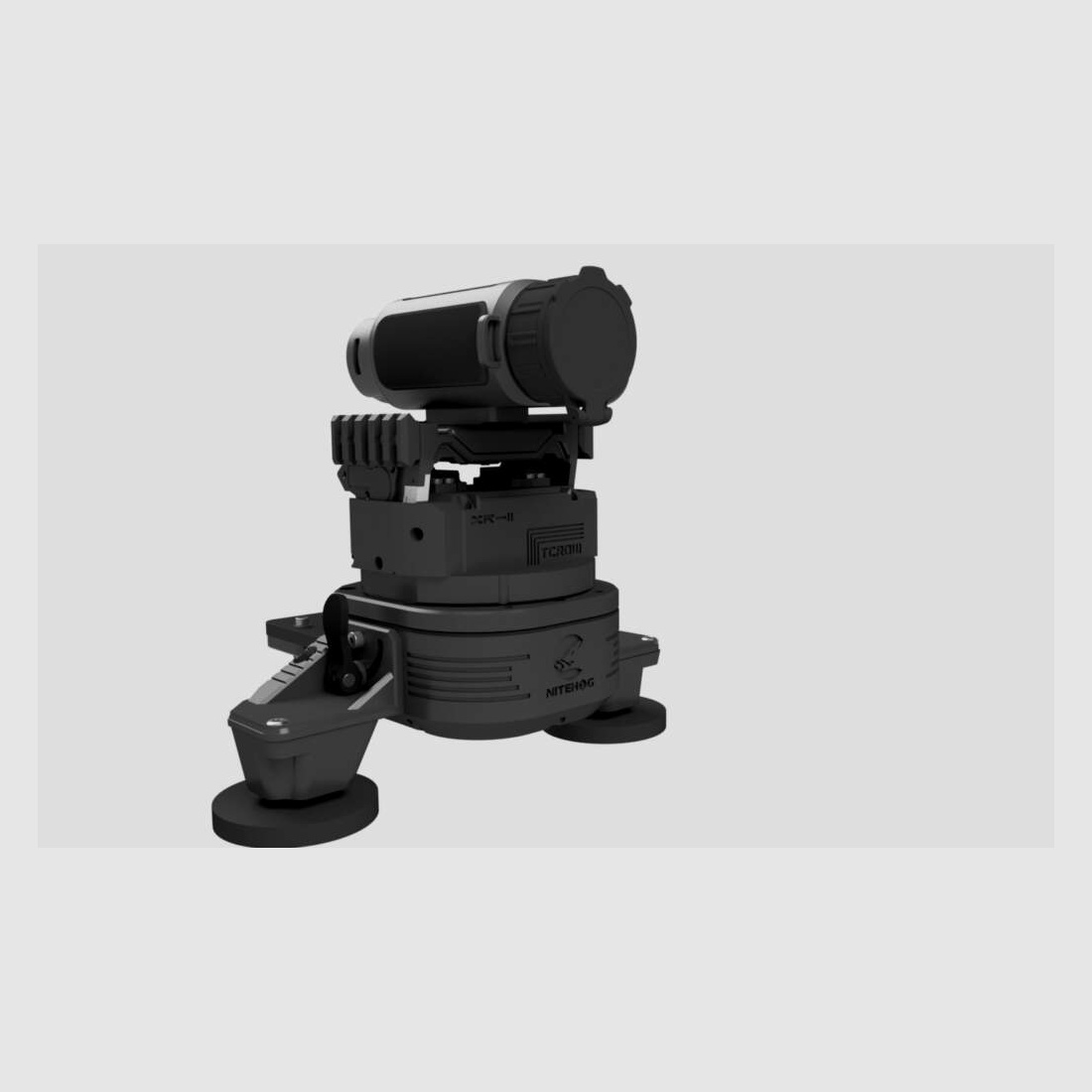

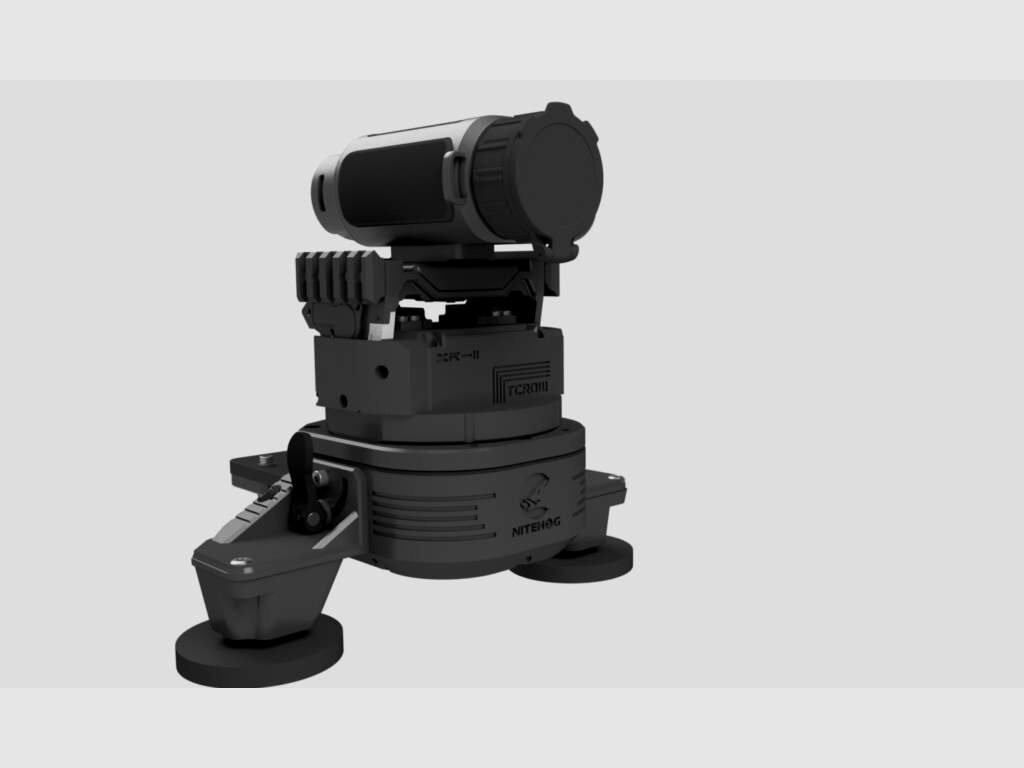

The
compact and feature-oriented design, as well as the 2-axis control
system via app and remote control, makes the GECKO 35 pan-tilt system an
indispensable part of any standard equipment for hunters, boaters and
the security industry.
Thanks
to sensor-controlled and stabilized 360 degree rotation and 55 degree
tilt range the system allows accurate detection of any movement within
the radius of its own location.
Gecko
35 Pro has 12μm thermal imaging detector with a 640 x 512 sensor
resolution, a 35 mm focal length, a built-in digital compass and a
motion sensor or replaceable battery pack, a diopter adjustment, and
ergonomic controls. The device is supplied with a quickly removable
18650 Li-ion battery pack, which enables the device to be used for up to
6h.
For
a better visual experience, Gecko 35 Pro supports cold and warm image
hues. With the cold hue setting the device performance is for a clearer
imaging quality with rich details and highlight targets. The warm hue
setting generates softer imaging to avoid eye fatigue brought by long
time usage.
The function enables you to view a magnified digital zoom image in a separate ‘window’ simultaneously with the main image.
Gecko
35 Pro thermal imager is equipped with a function for video recording
and photographing an observed image onto the 32GB built-in memory card.
Together with the system application it allows you to have an enhanced
surveillance experience.
The
system is equipped with Bluetooth joystick (mini remote control) that
fits comfortably in the hand and can be charged via USB. This allows the
user to be controlled via the remote control or app.
We have our app available for iOS and Android Users.
How to use the app?
1. Switch on the Wi-Fi function of the device Gecko 35 Pro.
2. With your Android device find the Wi-Fi network of the device named
Gecko 35 Pro_XXXXX-XXXXXX, where the "X" are letters and numbers.
3. Connect with the Gecko device. The initial password is: 12345678
4. With ViewFinder from the App, you can live stream the scenes from your Gecko 35 Pro to your Android device.
35 mm focal length with high quality germanium lens
Dimension, mm 160x90x50, Weight ≤400
Gecko 35 Pro has up to 6 hours of battery life
pictogram menu for quick operation
of long-range of detection
built-in laser rangefinder for distances reading
32GB built-in storage space
to wirelessly stream on your phone or tablet
Gecko 35 Pro offers a variety of image modes for different environments, situations and personal preferences.
White Hot is a versatile choice for observing urban areas and
shifting landscapes that displays warmer objects in white and cooler
objects in black.
Black Hot displays warmer objects in black and cooler ones in
white, which makes it a preferred mode among hunters and law
enforcement.
Red Hot is a recommended mode for prolonged observation. The
red-black image minimizes blue light emissions from the display and
reduces eyes strain from extended usage.
Increases contrast for better highlighting of the warm objects.
Suitable for observing animals in bushes and birds, where we have
vegetation, making it difficult to detect and locate objects.
Suitable palette for recognition & identification of the
objects in large open areas, helping to highlight warm objects that are
colored in warm colors against the cold colors of the environment
background.
Even areas with different temperatures of an object are colored in
different color shades, which increase the chances for recognition
& identification.
Gecko
35 Pro is the perfect addition to your equipment set for your outdoor
hobbies as it will give you an upgraded sense of your surroundings by
allowing you to navigate in the toughest atmospheric conditions.
Gecko
35 Pro is the perfect tool for the observing the migration and
calculating the population of animals in extended areas. It can even
ensure the security of livestock in farms during harvesting periods.
Gecko 35 Pro is an incredible asset for observing and securing large building sites and extended living areas.
Gecko 35 Pro helps to determine the exact distance to the spotted object.
Gecko
35 Pro is the perfect addition to your equipment set for your outdoor
hobbies as it will give you an upgraded sense of your surroundings by
allowing you to navigate in the toughest atmospheric conditions.
Gecko
35 Pro is the perfect tool for the observing the migration and
calculating the population of animals in extended areas. It can even
ensure the security of livestock in farms during harvesting periods.
Gecko 35 Pro is an incredible asset for observing and securing large building sites and extended living areas.
Gecko 35 Pro helps to determine the exact distance to the spotted object.
Gecko
35 Pro is the perfect addition to your equipment set for your outdoor
hobbies as it will give you an upgraded sense of your surroundings by
allowing you to navigate in the toughest atmospheric conditions.
| Technical specification | Nitehog Gecko 35 Pro |
|---|---|
| Micro bolometer | uncooled |
| Resolution, pixels | 640×512 |
| Pixel size, um | 12 |
| Sensor NETD, mK | ≤35 |
| Frame refresh rate, Hz | 50 |
| Optical Specifications | |
| Objective Lens | F35/1.0 |
| Field of view, m/100m | 22.08 |
| Optical magnification, x | 3.4-13.6 |
| Digital zoom, x | 1/1.5/2/2.5/3/3.5/4 |
| Minimum focusing distance, m | 1 |
| Focusing range of eyepiece (dioptre) | -5D~+5D |
| Detection Range, m (Target size:1.7m×0.5m, P(n)=99%) | 1818 |
| Display | |
| Type | OLED |
| Resolution, pixels | 1024×768 |
| Operational Specifications | |
| Battery type | Li-ion battery pack |
| Max. battery life (t=25℃) ★, h | ≈6 |
| Laser rangefinder range, m | 800±1 |
| Amount of built-in memory, GB | 32 |
| APP compatibility | Support |
| Dimension, mm | 160x90x50 |
| Weight, g | ≤400 |
| IP code | IP67 |
| Operation temperature，°C | -20+50 |
