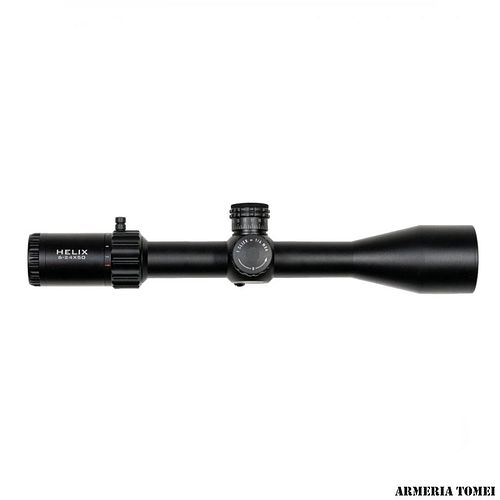

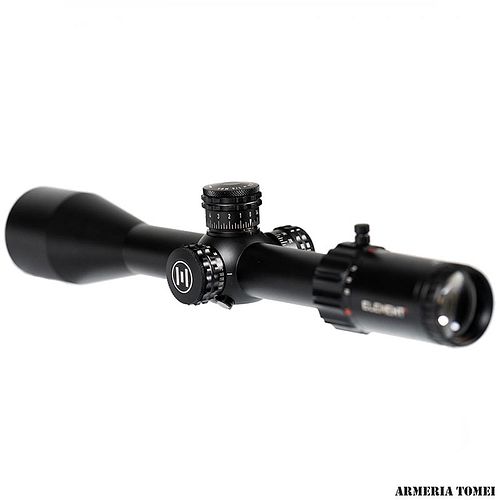

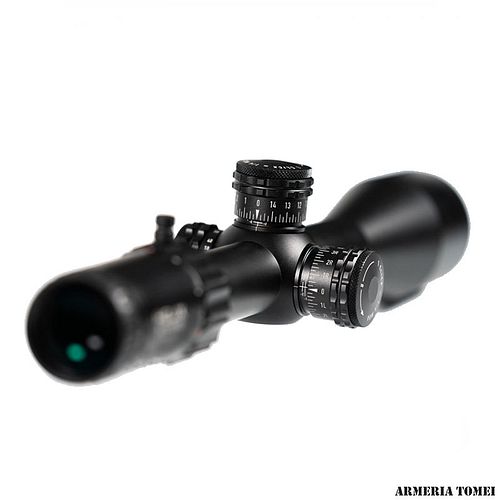

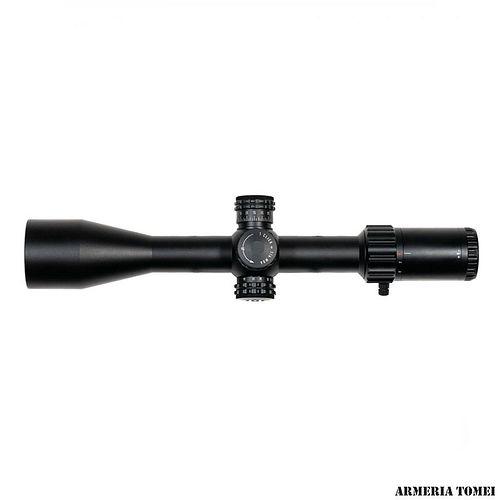

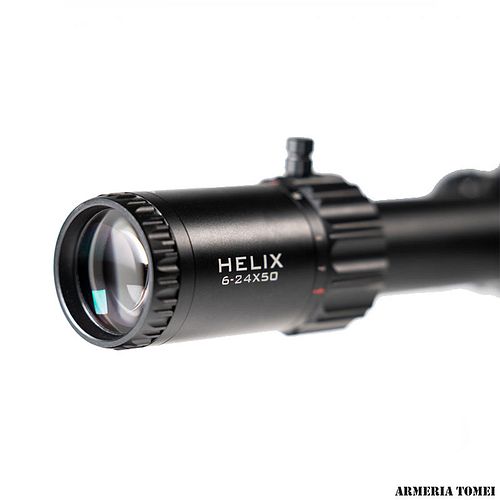

OPTIC – ELEMENT OPTICS – HELIX 6-24×50 EHR-1C MOA RETICLE 24x

Are you looking for a rifle scope that punches above its weight? Something that holds up against products twice its price? We designed the HELIX in a way that puts the important stuff first: clear glass, smart reticles, innovative features, and a turret system above others in the same price range.

Our turret system has been upgraded from the standard sport optic to feature stainless steel internals for wear resistance during regular adjustment, which modern shooting disciplines demand.

Tool-free turrets and the zero-stop mechanism give you high-end functionality without overspending, and the 24x reticle calibration lets you effectively use the reticle at 12x and 6x if you want (with a bit of basic math, of course!). We introduced quality controls to give you maximum peace of mind when shooting at 1000 yards, and if something goes wrong, our lifetime warranty has you covered!

FEATURES:

30 mm main tube body

Compact and lightweight design

Second focal plane reticle – usable at 6x, 12x, and 24x

Aircraft-grade aluminium

Side parallax: 10yds-Infinity

Fully multi-coated lenses

Tool-resettable turrets with 6 MRAD / 15 MOA per turn

Hard mechanical zero-stop

Removable magnification throw lever

Waterproof, fog-proof, shockproof, and nitrogen purged

Sunshade, lens cloth, and rubber lens covers included

SPECIFICATIONS:

CLICK VALUE 1/4 MOA (15 MOA / REV) 1/10 MRAD (6 MRAD / REV)

ELEVATION ADJUSTMENT RANGE 65 MOA 18.9 MRAD

WINDAGE ADJUSTMENT RANGE 65 MOA 18.9 MRAD

MINIMUM PARALLAX 10 YDS 10 METERS

LENGTH 14.3 inches 363 mm

WEIGHT 26oz 737gr

ZOOM MAGNIFICATION RANGE 6-24x

TUBE DIAMETER 30 mm

OBJECTIVE DIAMETER 50mm

EYE RELIEF 9-2mm

EYE RELIEF DISTANCE 3.94-3.54 inches

FIELD OF VIEW @ 100yds: 19.1-4.2 feet
