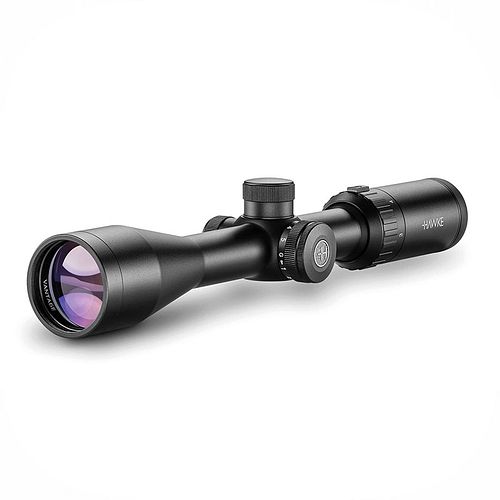

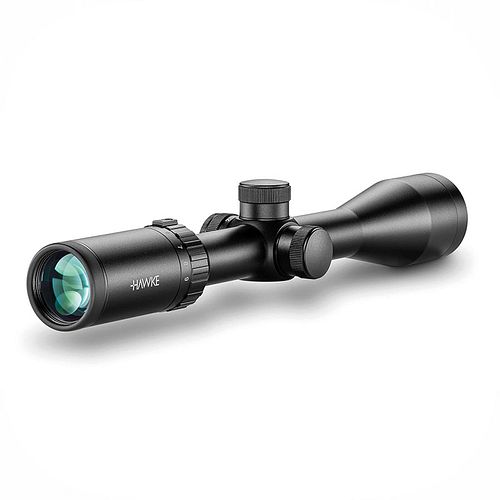

OPTIC – HAWKE – VANTAGE IR 3-9×40 | RIMFIRE .22 LR HV (9x)

A wide range of scopes for all calibers and disciplines.

TuttoVantageThe scopes come with our H2 optics in various configurations.

The IR models feature precision-etched reticles on the lens, with multi-level illumination in both red and green.

Low Profile Turrets with Caps

1-inch single tube frame

Light

11-layer multi-coating on lenses

Grip ring for zoom

Fast Focus Eyepiece

Nitrogen filled. Shockproof. Waterproof. Fog proof.

Suitable for all calibers

HawkeWarranty.

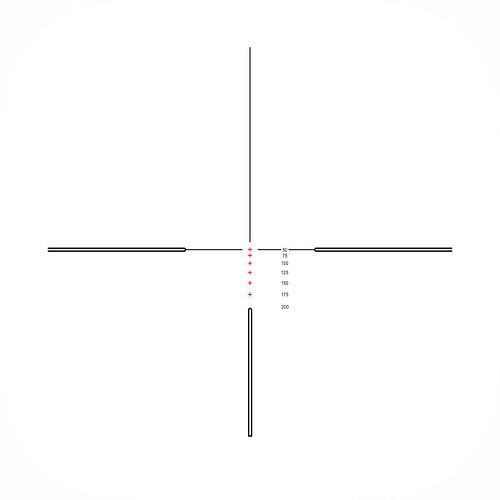

Caliber .22 LR HV with 9x reticle

Exclusive registered Hawke reticle designCalculated aiming points for the specific caliber. Easy zeroing and exceptional long-range accuracy with illuminated aiming points for all lighting conditions. Distances etched in the reticle field of view, designed for use at maximum magnification.

Designed for .22 LR High Velocity (HV) caliber. Zeroed at 9x magnification at 50 yards with all aiming points pre-calculated. 1260 fps (384 m/s).

The scope can also be used for zeroing at 50 meters with aiming points corrected in metric units when magnification is set to 7.8x.

1-inch Tube

Optical system H2 system

Objective 40 mm

Caliber .22 LR HV rimfire (9x)

Light 5 intensity levels (Red and Green)

Illumination control Stepped rheostat

Parallax Fixed

Magnification 3 – 9x

Reticle SFP (Second Focal Plane)

Field of view 39 – 12.7 ft at 100 yards

13 – 4.2 m at 100 m Field of view (°)

7.4 – 2.4 Focal length

3.5 inches 90 mm

Parallax/Focus (no error) 75 yards 69 meters

Exit pupil 0.52 – 0.17″ 13.3 – 4.4 mm

Click value 1⁄4 MOA

Elevation adjustment sensitivity 100 MOA

Windage adjustment sensitivity 100 MOA

Eyepiece type Fast Focus

Selector PRE Knurled Posi-Grip

Lens coating Multi-layer lens – 11 layers

Length 12.4 inches 315 mm

Weight 15.2 oz 430 g

Turret (Elevation) Cap. Low profile. Resettable

Turrets (Windage) Cap. Low profile. Resettable
