THERMAL MONOCULAR – GUIDE – TD633L Vision Enhancement Imager

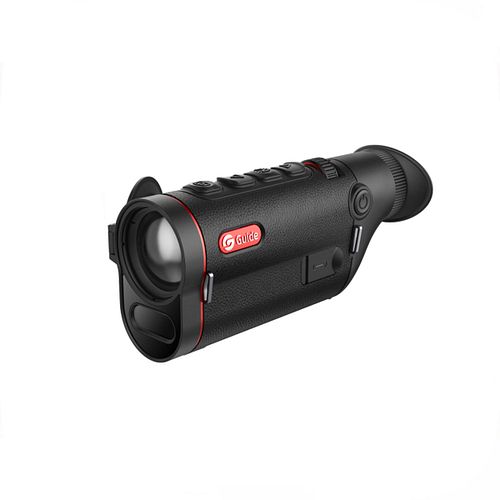

TD633L

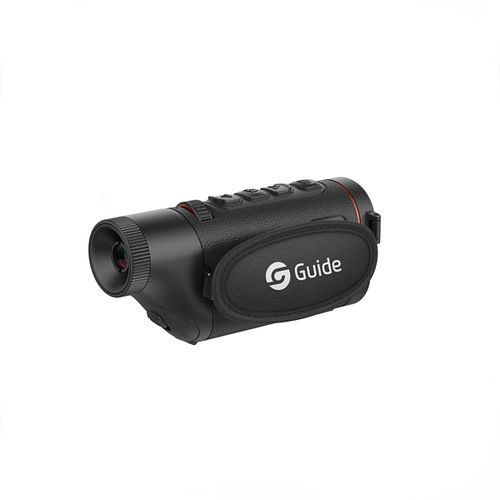

Handheld Thermal Imaging Monocular

The TD Gen3 LRF series handheld thermal monocular innovatively integrates a laser rangefinder while maintaining a compact design. The focus wheel allows comfortable one-handed use, while the symmetrical ergonomic design enables flexible handling with both hands. With an exceptional 12-hour battery life and IP67 certification, it’s well equipped to tackle various outdoor challenges. Equipped with Wi-Fi connectivity, it enhances the efficiency and enjoyment of your explorations.

640×512@12μm, 20mK Detector

10 hours Battery

1200m/1300yd Laser rangefinder

IP67 Encapsulation

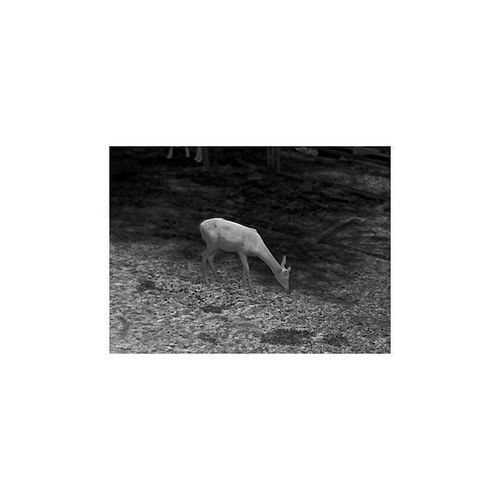

High-sensitivity detector, NETD up to 20 mK

The TD Gen3 LRF series features a 12 μm infrared detector with 640×512 and 400×300 resolutions and offers a 35 mm lens, delivering incredibly sharp images even in complete darkness.

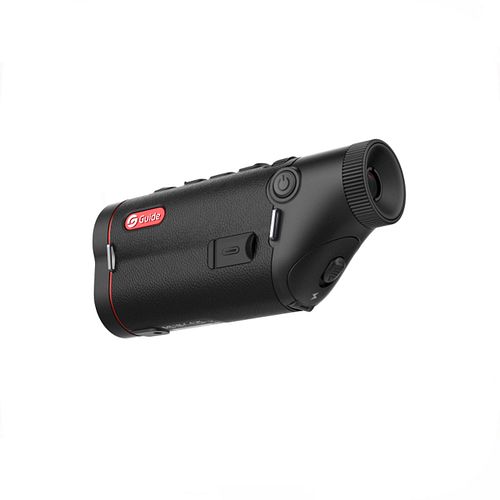

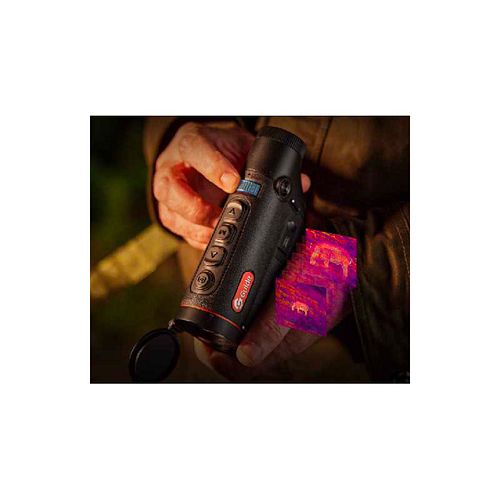

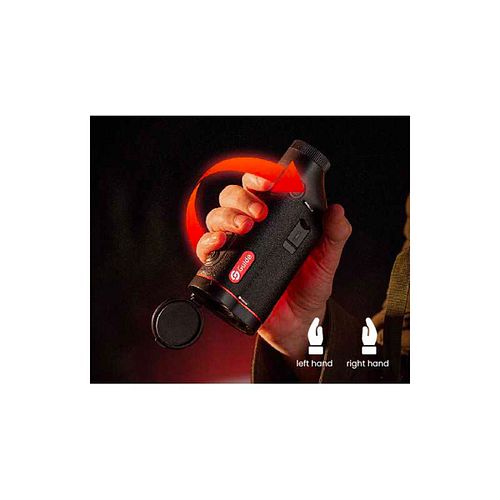

Ambidextrous design, one-handed operation

The symmetrical housing design allows easy use with either the left or right hand. The button layout is ergonomic and adapts to user habits, enabling one-handed operation.

Precise focus, fingertip scrolling

The mini focus wheel design offers a unique fast and precise adjustment experience, allowing users to adjust focus with a simple finger scroll.

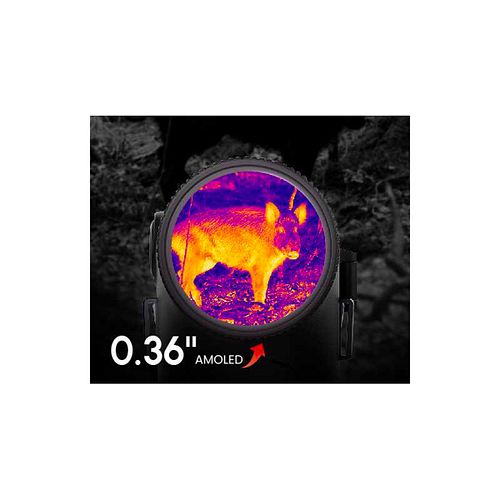

Enhanced images, enlarged AMOLED display

Building on the previous generation, the TD Gen3 LRF series features a 0.36″ AMOLED display with a resolution of 1280×960, offering more vivid details and a more comfortable viewing experience.

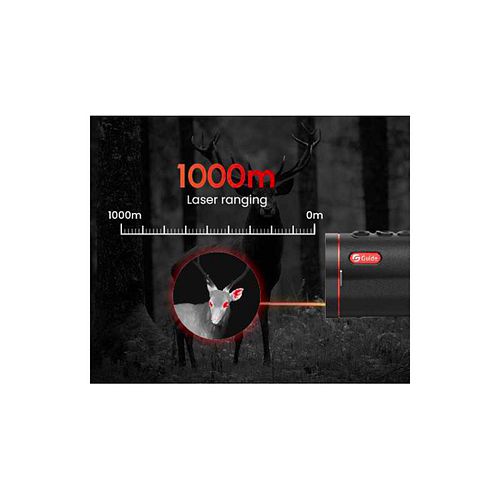

Integrated LRF, precise target distance

The integrated laser rangefinder module is perfectly embedded in the device design, enhancing portability and practicality, with a maximum range of 1000 meters for precise target location.

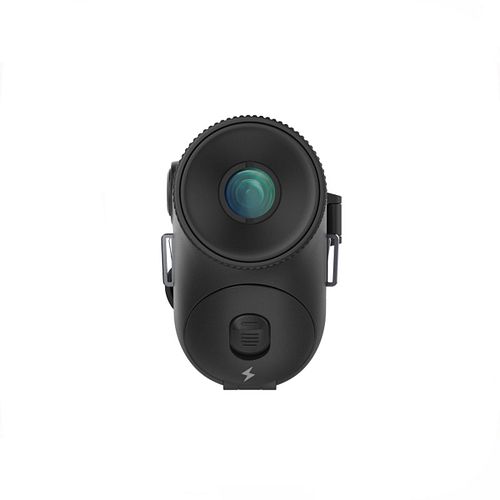

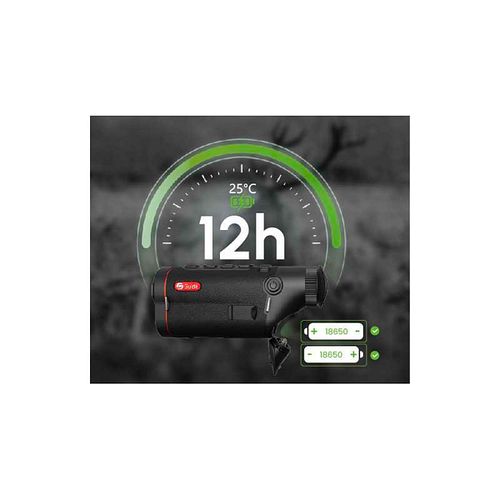

Extended battery life, uninterrupted power

During observation, exploration, and field stalking, the TD Gen3 LRF series offers an impressive 12-hour runtime. The replaceable 18650 battery supports installation in the dark without needing to distinguish between positive and negative terminals.

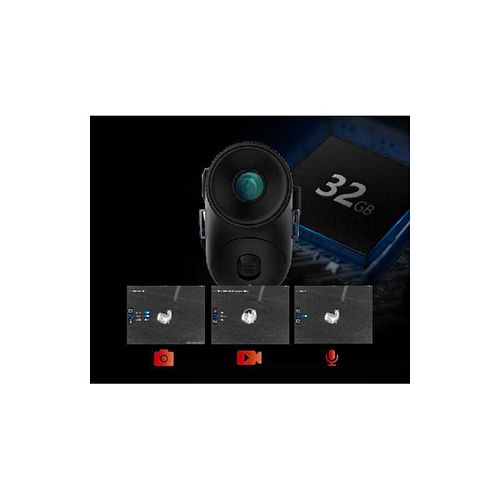

Smart recording, expanded built-in storage

The enhanced smart recording function allows video recording with audio. The built-in memory up to 32 GB lets users store over 100,000 images without worrying about running out of space.

Model TD633L

Sensor

Type Uncooled VOx infrared detector, 8 to 14 μm

Resolution 640×512@12μm

NETD 20 mK

Frame rate 50 Hz

Lens

Objective lens 35 mm, F1.0

Field of view 12.5°×9.4°

Field of view m@100m 22×17

Magnification 1.8x~14.4x

Detection range 1800 m/1950 yards

Focus Manual

Display

Display type 0.36” AMOLED screen 1280×960

Color palette White hot, Black hot, Red hot, Green hot, Iron red, Blue hot, Sepia

Eyepiece Eye relief: 20 mm; Diopters: -6 to +6; Zoom: 13.8x

Hardware

Laser rangefinder 1000 m/1090 yards

WIFI 2.4G, 5G

Interface USB-C

Others Microphone, Bluetooth

System

Recording function Photo/Video (audio recording included)

Memory capacity 32 GB

Power

Battery type Single replaceable 18650 battery

Operating time 10 hours

Environmental

Operating temperature -20°C to 50°C / -4°F to +122°F

Encapsulation IP67

Physical

Weight (g/oz) 376/13.26

Dimensions (mm/in) 159×54×74/6.26×2.13×2.91

Standard Device, dust cloth, wrist strap, eye mask, charger, 18650 battery × 1, 5V 2A adapter (US or UK or Australia or Europe), USB-A to USB-C cable, quick guide, warranty card

Optional Bluetooth remote control, 18650 battery
