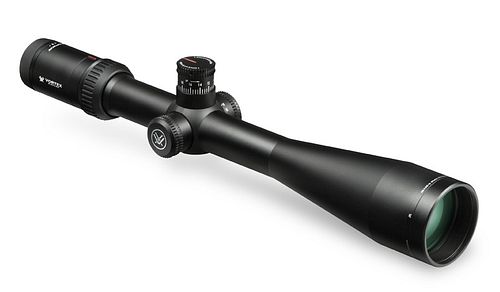

Vortex Viper HSLR 6-24×50 FFP XLR (MOA) (VHS-4315-LR)

Want to extend your effective shooting range at distances where bullet drop and wind drift become critical? Take a look at the Viper HS LR riflescope. The LR stands for long range — and we mean it. This riflescope features an exposed target-style elevation turret built for dialing elevation at extended ranges. The capped windage turret maintains the scope’s sleek lines and prevent it from hanging up on clothing, rifle cases or pack scabbards.

Viper HS LR riflescopes feature an advanced optical system highlighted with a 4x zoom range for magnification versatility. A forgiving eye box with increased eye relief gets shooters on target quickly and easily. Built on an ultra-strong 30mm one-piece machined aluminum tube for increased windage and elevation travel and optimal adjustment.

Magnification
6-24 x

Objective Lens Diameter
50 mm

Eye Relief
4.0 inches

Field of View
17.8-5.1 feet/100 yards

Tube Size
30 mm

Turret Style
Tactical Elevation

Capped windage

CRS Zero Stop

Adjustment Graduation
1/2 MOA click elevation

1/4 MOA click windage

Travel per Rotation
24 MOA elevation

12 MOA windage

Max Elevation Adjustment
65 MOA

Max Windage Adjustment
42 MOA

Parallax Setting
50 yards to Infinity

Length
15.5 inches

Weight
22.4 ounces

Product Manual (PDF)
Download

Product Manual 2 (PDF)
Download

Viper HS LR 6-24×50 Dimensions

Lengths

L1
L2
L3
L4
L5
L6

15.5
2.5
2.2
6.0
5.8
3.6

Heights

H1
H2

2.26
1.63

Dimensions measured in inches.
