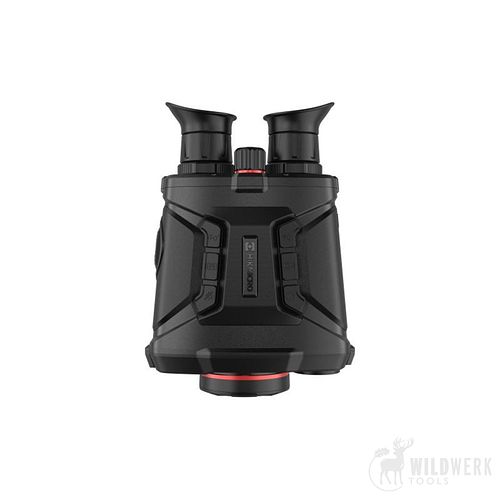

Hikmicro Binocular Raptor RQ50L

Hikmicro Binocular Raptor RQ50L - Fusion Handheld Device

The Hikmicro Binocular Raptor RQ50L sets new standards in observation technology by combining a thermal imaging camera, a digital day and night camera, a laser rangefinder, and an integrated infrared illuminator in one device. This all-in-one solution enables versatile observation options over short and long distances, by day or night, and even in poor weather conditions.

Main Features:

1. Highly Sensitive Thermal Imaging Camera:

Extremely high thermal sensitivity (NETD < 20mK)


High Definition thermal sensor (up to 640x512 @12μm)


Super large aperture f/0.9 lens for 19% improvement


Image Pro - enhanced proprietary image processing algorithm


Large detection range up to 2600m


Powerful magnification optical 3.4x, up to 5.7x / digital up to 16x

2. HD Day & Night Camera:

High-resolution sensor (2560x1440)


Support for low light conditions (0.001Lux)


Built-in IR illuminator for visibility in complete darkness


Unique defog mode for clear images on foggy days

3. Laser Rangefinder:

Integrated laser rangefinder with a range of up to 1000m


Accuracy of ±1m for precise target distance measurement

Convenient Intelligent Features:

Automatic display on/off


GPS & DMC for accurate location information


Smart IR for automatic adjustment to different observation conditions


Local album for convenient photo and video viewing

Groundbreaking and Practical Design:

Awarded the Red Dot Award


Adjustable eye relief (60mm to 70mm) and diopter range (-5D to +3D)


Intuitive button layout for easy operation

Technical Data:

Thermal Module:

Image sensor: VOx Uncooled Focal Plane Arrays


Resolution: 640 x 512


Frame rate: 25Hz


Pixel pitch: 12µm


NETD: less than 20 mK (@25°C), F#=1.0


Focal length: 50 mm


Detection range: 2,600 m


Field of view: 8.8° × 7.0° / 15.4m x 12.2m (H × V)

Aperture: F0.9


Magnification: 3.4


Minimum Focus Distance: 5 m


Focus Mode: Manual

Optical Modules:

Image Sensor: 1.88" Progressive Scan CMOS


Maximum Resolution: 2560 x 1440


Focal Length: 31 mm


Aperture: F1.2


Image Enhancement: Yes


Minimum Illumination: 0.001 lux (F1.0, AGC On)


Intelligent IR: Yes


IR Wavelength: 850 nm


Night Vision Range: 350 m

Image:

Monitor: 0.39 inch, OLED, 1024 × 768


Diopters: -5 to +3


Palettes: Black Hot, White Hot, Red Hot, Fusion, Optical, Image Fusion


FFC (Flat Field Correction): Automatic, manual, external correction


Digital Zoom: 1 ×, 2 ×, 4 ×, 8x


Image Pro: Yes


Optical Modes: Day, Night, Automatic, Defog

Smart Features:

Hot Track: Yes


Hotspot: Yes


Picture in Picture: Yes


Standby Mode: Yes


GPS: Yes


Digital Magnetic Compass: Yes


Proximity Sensor: Yes

System Functions:

Memory: Built-in Memory Module (64 GB)


Video Recording: Integrated Video Recording, MP4, 1600 x 1200


Audio Recording: Yes



Snapshot: Integrated Image Capture
