Docter Footprint · 4 MOA · Side Loading

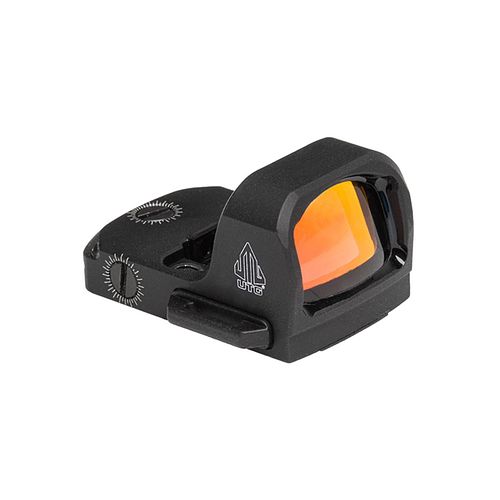

UTG OP3 Micro SLS: compact 4-MOA red dot with side battery change
The OP3 Micro SLS combines a red 4-MOA dot with Docter footprint, automatic sensor brightness, and manual operation. The practical difference lies in the side battery compartment: if access is free in the setup, the CR1632 can be changed without removing the sight from the mount.
The most important purchase check is the interface. Docter and RMR are not the same. Plate, screws, base, height, and side clearance must match before ordering.

Our honest assessment

The OP3 Micro SLS is interesting for compact setups where easy operation and maintenance-friendly battery access are more important than a closed housing. The 4-MOA dot is clearly visible and designed for quick target acquisition; it does not replace a magnifying optic for precise distance work.
The SLS functions are only a real advantage if the mount does not block the side battery access. Those who need RMR, prefer a closed dot, or require a different height should not improvise with adapter chains.

Fits well if … … your setup uses a Docter footprint and you want a compact
… you’re looking for a red 4-MOA-dot.
… you prioritize battery changes without disassembly and have enough space on the side.
… automatic sensor brightness and additional manual control fit your use.

Rather not suitable if …
… your plate or mount is designed for RMR or another footprint.
… a closed housing is a priority for dirt or weather protection.
… you need magnification or a finer reticle for more precise distance work.

Compatibility and Avoiding Wrong Purchases

Docter Footprint
The footprint determines the mechanical fit. A visually similar plate is no guarantee; hole pattern, support, and screws must be designed for Docter.

Side Battery Access
Before final tightening, check if the adapter plate, mount edge, or neighboring part blocks the battery cover. Otherwise, the main advantage of the SLS version is lost.

Height
The included low-profile Picatinny base is one mounting option. On optics-ready plates, the actual height depends on the specific system.

4 MOA
The dot is designed for good visibility and quick acquisition. For very small targets at longer distances, a smaller dot or magnification may be more useful.

Practical Effect of Features

Auto + Manual
The sensor control can adjust brightness automatically; manual mode allows deliberate intervention. It’s crucial to test both modes in real lighting conditions.

8 Brightness Levels
More levels help set the dot neither too dark nor unnecessarily overexposed. Too high brightness makes the dot appear larger and less sharp.

1-MOA Click Value
The adjustment is coarse enough for a compact reflex sight and should be carefully checked and documented after each mounting.

6061-T6 / IPX7
Aluminum housing and IPX7 rating support rugged use. The open window is less sealed by design than a closed-emitter dot.

Limits, Disadvantages, and Typical Wrong Purchases

Docter is not RMR. The most common wrong purchase comes from equating different micro-dot footprints. An additional adapter can change height and ergonomics and is not automatically the best solution.
Side loading is not an end in itself: if battery access is blocked when installed, little of the comfort advantage remains. The open design is compact but protects the emitter less by design than a closed system.

Safe Mounting and Checks

Before mounting, fully unload the system and establish a safe working area. Check the matching plate, screw length, and support surface. Tighten screws only according to the system’s specifications and don’t guess unclear torque values.
After mounting, check the dot pattern, firm fit, and adjustment range. Recheck screw connections after initial use cycles. Suspend use if glass, housing, or mounting is damaged.

Technical Data with Practical Interpretation

Model / SKU
OP-RDM20CTS. The designation distinguishes this SLS Docter version from similarly named OP3 variants.

Footprint
Docter. Match with the specific plate or mount before ordering; do not equate with RMR.

Reticle
Red 4-MOA single dot at 1×. Clearly visible for quick target acquisition, without magnification.

Brightness
Automatic via sensor plus manual control, 8 levels. Check in real ambient light.

Battery
CR1632, side accessible. Specified runtime: 15,000+ hours at medium brightness.

Adjustment
1 MOA per click. Check actual point of impact after mounting and battery change.

Material / Protection
6061-T6 aluminum, anodized, IPX7 according to available product data.

Weight / Dimensions
Approx. 34 g with battery; approx. 48.3 × 29.0 mm. The
supports a compact design but does not replace a height clearance check.

Scope of delivery

UTG OP3 Micro SLS Docter-Footprint, CR1632 battery, protective cover, cleaning cloth, manual, and detachable low-profile Picatinny base.
The exact compatibility of the base and the required screws with your system must be checked before installation.

FAQ
Is this the RMR version? No. This model uses the Docter footprint. RMR and Docter are not mechanically equivalent.
What does the side-loading battery compartment do? If there is enough space on the side, the CR1632 can be replaced without removing the sight from the mount.
Can the brightness be adjusted automatically? Yes. The available product data mention sensor automatic and additionally manual control with 8 brightness levels.
How big is the dot? The red dot is specified at 4 MOA. This supports good visibility and quick acquisition but is not a substitute for magnification.
Is a Picatinny base included? Yes, a detachable low-profile Picatinny base is listed in the included scope of delivery.

Black Raptor · Footprint before feature list
The OP3 Micro SLS is a good choice if the Docter footprint, 4-MOA dot, and side battery access fit your setup exactly.
If you need RMR, Closed Emitter, or magnification, you should choose the appropriate product class directly instead of trying to save the wrong interface with adapters.
