Nocpix Mate H38R LRF Attachment

.br-product-v3{--br-ink:#17201c;--br-muted:#56605b;--br-line:#d9dfdc;--br-soft:#f5f7f5;--br-deep:#10271d;--br-gold:#f2d58e;color:var(--br-ink);font:16px/1.62 Arial,Helvetica,sans-serif;max-width:100%;overflow:hidden}.br-product-v3 *{box-sizing:border-box}.br-hero-v3,.br-final{background:var(--br-deep);color:#fff;padding:22px;border-radius:14px;margin:0 0 18px}.br-hero-v3 strong{font-size:1.25rem}.br-section-title{font-size:1.08rem;font-weight:800;margin:24px 0 10px;color:var(--br-deep)}.br-grid,.br-specs{display:grid;grid-template-columns:repeat(2,minmax(0,1fr));gap:12px}.br-box,.br-card{background:var(--br-soft);border:1px solid var(--br-line);border-radius:12px;padding:15px}.br-good{border-left:5px solid #2f7d32}.br-no{border-left:5px solid #a13a3a}.br-warn{border-left:5px solid #a66a00;background:#fff8e8}.br-product-v3 ul{margin:8px 0 0;padding-left:20px}.br-product-v3 details{background:var(--br-soft);border:1px solid var(--br-line);border-radius:10px;padding:11px 13px;margin:8px 0}.br-product-v3 summary{font-weight:700;cursor:pointer}@media(max-width:700px){.br-grid,.br-specs{grid-template-columns:1fr}.br-product-v3{overflow-wrap:anywhere}}

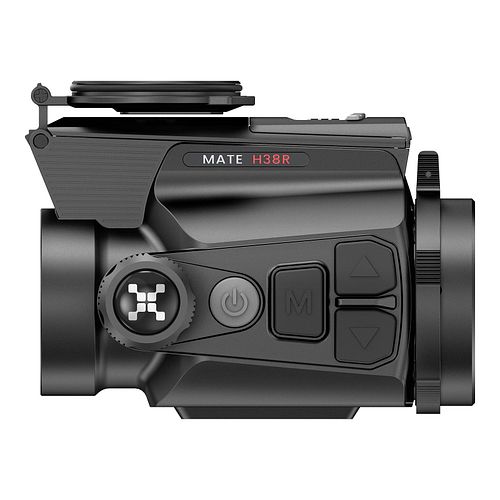

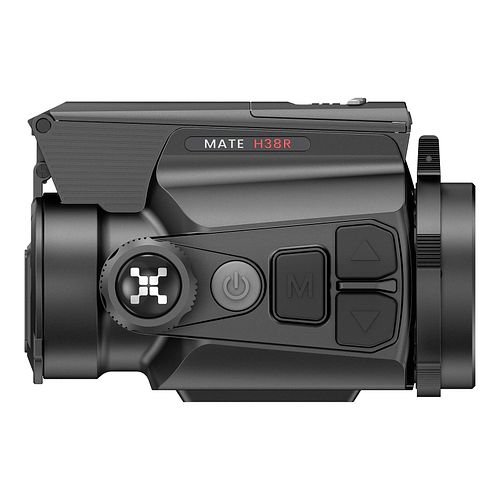

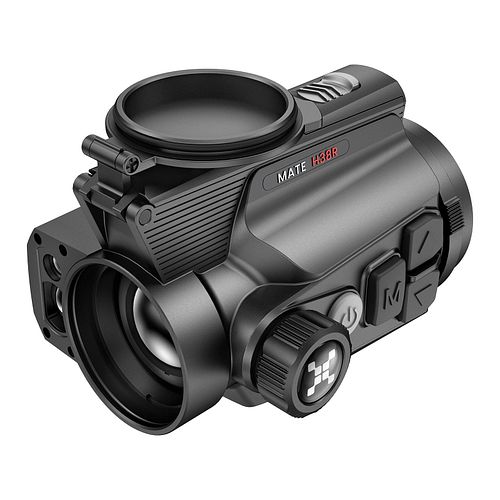

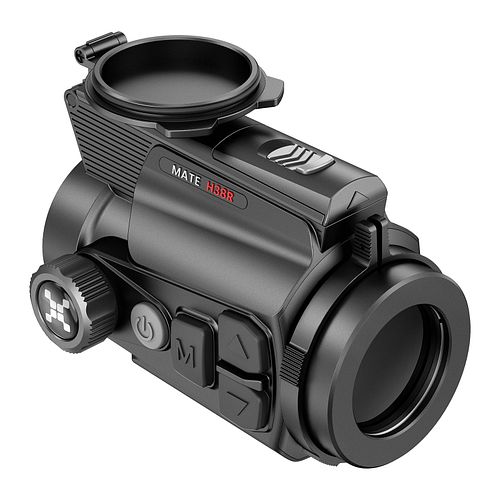

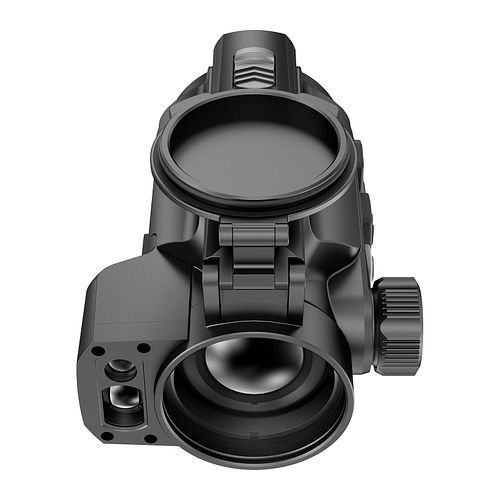

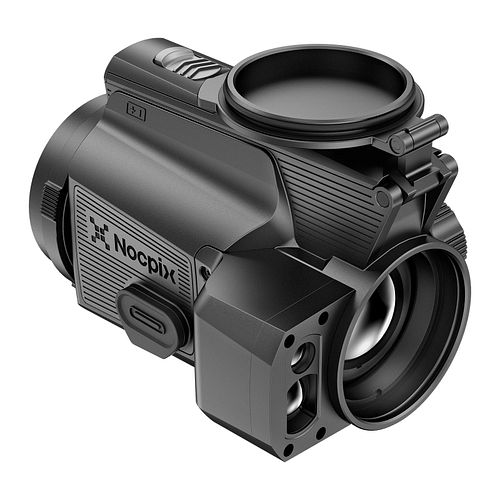

Nocpix Mate H38R LRF 640×512 thermal imaging clip-on with 38 mm F1.0 optics and integrated 1200 m LRF – a balanced clip-on for mixed forest/field hunting grounds.
Buying Guide


Fits well if …
you’re looking for a true clip-on for a compatible daytime scope
640 sensor reserve is more important than maximum compactness
38 mm focal length and approx. 20.5 m field of view at 100 m suit your hunting grounds
you want to use the integrated LRF meaningfully



Less suitable if …
you primarily want a handheld monocular
maximum range reserve is more important than field of view
your adapter or scope does not align cleanly with the optical axis



Features & Benefits


640×512 / 12 µm More detail reserve than 384 systems, making it useful in front of a daytime optic.

38 mm F1.0 All-round focal length between overview and distance performance.

NETD ≤15 mK / 60 Hz Fine temperature differentiation and smooth display during panning.

LRF up to 1200 m distance measurement directly in the device instead of a separate rangefinder.

Compatibility & Avoiding Bad Buys
With clip-ons, it’s not just about the device: adapter, objective outer diameter, height, optical axis, and the usable magnification of the daytime scope must all fit together. After mounting and regularly in use, check the point of impact. A thermal imaging clip-on does not replace safe identification or checking legal compliance.
Technical Data with Practical Interpretation


Sensor: 640×512 / 12 µm → high detail reserve in front of the daytime optic.

Objective: 38 mm F1.0 → balanced mix of field of view and range.

Field of view: approx. 20.5 × 15.4 m / 100 m → comfortable overview for mixed hunting grounds.

LRF: up to 1200 m → distance control in the same system.

Frame rate: 60 Hz → smoother image during movement.

Display: 1920×1200 px according to available product data → sufficient reserve for the clip-on image.

Scope of Delivery
1× Nocpix Mate H38R LRF, battery system, charging cable, carrying case, and manual according to available product data. Mounting adapter for the individual scope only if explicitly included in the chosen set.
FAQ
Is the Mate H38R a handheld device? Its core role is a thermal imaging clip-on in front of a compatible daytime optic. Why 38 mm instead of 50 mm? 38 mm offers more overview and is therefore usually more versatile; 50 mm prioritizes distance more. Do I have to check the point of impact? Yes. Every clip-on mounting should be checked after installation and regularly during use. Is the LRF sufficient for safe identification? No. Distance information supports classification but does not replace optical confirmation and responsible identification.
Black-Raptor Classification: One of the most balanced Mate clip-ons for mixed hunting grounds. Buying decision factors are 6
40 sensor, 38 mm optic and LRF – but only if your adapter/scope setup fits technically clean.
