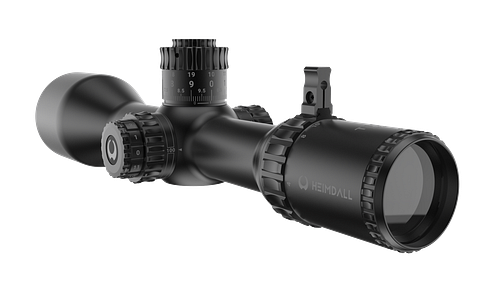

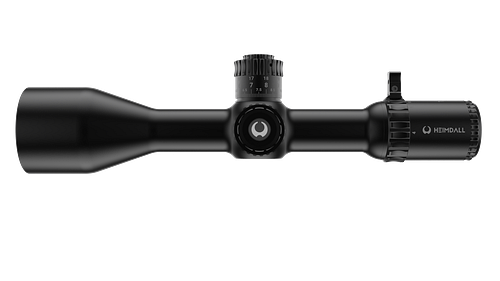

Heimdall T10Xi 4-40x60 | Long Range Precision Riflescope

EVERY CLICK MATTERS.
Engineered for Precision. Built for Performance.
The Heimdall T10Xi 4-40x60 was designed for long-range shooters, PRS competitions, authorities, and professional users who demand uncompromising precision.
40x magnification, large light transmission, precise MRAD click adjustment, and a robust 34mm main tube make the T10Xi a scope built for maximum performance at long distances.

At a glance

✓ 4–40x magnification

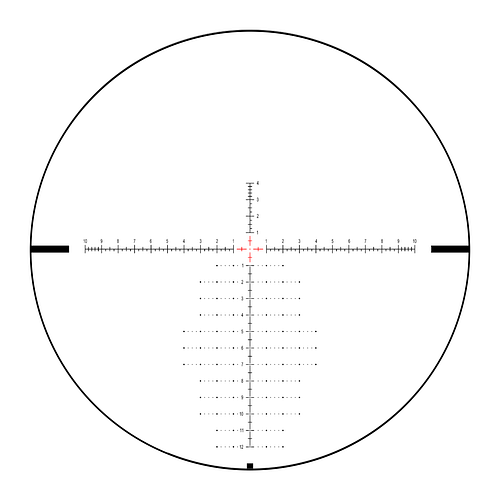

✓ Mil-Dot / MRAD reticle in the 1st focal plane (FFP)
✓ Precise 0.1 MRAD click adjustment
✓ Lockable tactical turrets
✓ 34mm main tube
✓ Parallax from 10 m to ∞
✓ Waterproof to IP67
✓ 30-year Heimdall warranty


Why the T10Xi?
Long range doesn’t start at 1,000 meters. Long range starts with the first click.
The mechanics of the T10Xi were developed to provide reproducible adjustments, a precise tactile feel, and maximum repeatability. Because at long distances, every adjustment counts. Every Click Matters.

Optical performance
The large 60mm objective delivers a high-contrast, bright, and detailed image. The high magnification allows confident target identification even at extreme distances.
The FFP reticle remains proportional to the target across the entire magnification range and allows reproducible MRAD corrections.

Mechanical performance
Precision is not just made by glass. It’s made by mechanics.
The lockable tactical turrets, precise 0.1 MRAD click, and massive 34mm main tube form the basis for reproducible hits. Shot after shot. Click after click.

Designed for

PRS
Long Range
ELR
Benchrest
Sport shooters
Authorities
Professional users


Statement from Heimdall
With the T10Xi, we didn’t want to develop just another long-range scope. We wanted to create a scope series uncompromisingly focused on precision. Together with sport shooters, long-range shooters, and professional users, we defined the features modern precision optics must meet today. The result is a series that combines optical performance, mechanical repeatability, and intuitive operation. Because in the end, it’s not just the shot that counts. Every Click Matters.

Why Heimdall?
Heimdall precision optics are created based on the demands of modern sport shooters and professional users. Our goal is to develop optics that combine optical peak performance with robust mechanics and reproducible precision.

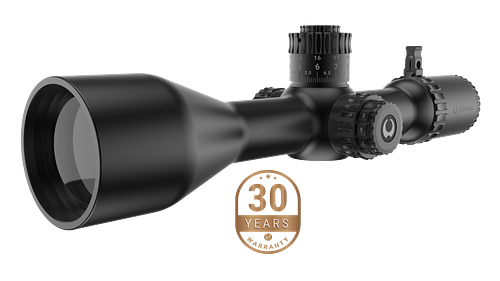

30-year warranty
Precision is not a short-term promise. That’s why every Heimdall scope comes with a 30-year warranty.

Heimdall Precision Tip
At long distances, it’s not millimeters but repeatability that counts. Document your MRAD corrections and set the parallax precisely for each distance. This keeps your ballistics reproducible.

Technical data



Model
Heimdall T10Xi 1-10x28


Item number / SKU
109014


EAN
4039063052325


Magnification
4x to 40x


Reticle
Mil-Dot / MRAD, red illuminated


Reticle position
1st focal plane / FFP


Battery
CR2032


Turret adjustment
0.1 MRAD at 100 m


Windage adjustment range
245 cm


Elevation adjustment range
245 cm


Rotation direction
CW


Turrets
Tactical, lockable


Main tube diameter
34 mm


Objective diameter
60 mm


Eye relief
100 mm


Exit pupil
6.5 to 1.5 mm


Field of view at 100 m
10 to 1 m


Diopter adjustment
−3 to +2.5


Parallax adjustment
10 m to infinity


Illumination control
Rotary knob, 12 levels


Length
351 mm


Weight
1140 g


Operating temperature
−40 °C to +60 °C


Nitrogen filling
Yes


Waterproof rating
IP67


Warranty
30 years






Scope of delivery

Heimdall T10Xi
4-40x60
Sunshade
Flip-Up Cover
CR2032 Battery
Tool
Cleaning Cloth


Suitable Accessories
Recommended: 34mm Precision Mounts from EAW Montagen
