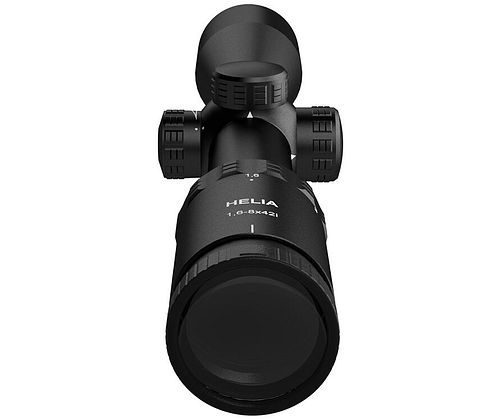

Kahles ZF HELIA 1.6-8x42i

Kahles Helia 1.6-8x42i – Lightweight, compact all-round optic for active stalking and driven hunts

more information and availability at: Click

Product description

The Kahles HELIA series impresses with a consistent and uncompromising focus on what really matters in the tough hunting everyday: functionality, absolute reliability, intuitive handling, and timeless aesthetics. Each model was developed as the perfect tool for its specific hunting application. The Helia 1.6-8x42i shines as an extremely versatile all-rounder that bridges different types of hunting. With its wide field of view and extra bright illuminated reticle, this lightweight and agile optic in a compact design is the ideal choice for active stalking and dynamic driven hunts. Another big advantage: thanks to the high optical quality and thoughtful construction, this model is also perfectly suited as a night hunting optic in combination with modern night vision aids and clip-on devices for use at night.
Wide field of view and powerful optical system with edge sharpness

The advanced lens system of the Helia 1.6-8x42i offers an impressive, wide field of view of up to 25.3 meters at 100 meters at minimum magnification. Together with the flexible up to 8x maximum magnification, you always keep full overview in every hunting situation – in dense undergrowth as well as in more open areas. The powerful optical system delivers a high-contrast, color-true image with exceptional edge sharpness, which significantly supports quick and fatigue-free target acquisition. The compact design ensures excellent handling and maintains the perfect balance of your hunting rifle.
Extra bright day/night illuminated reticle with intelligent automatic light

The precise illuminated reticle (4-Dot) is located in the second image plane and does not enlarge when changing the zoom level. This keeps the fine illuminated dot absolutely constant even at maximum zoom and only minimally covers the target at longer distances. The extra bright dot is perfectly visible even in intense daylight and can be dimmed continuously for night use. Maximum energy efficiency is ensured by the integrated intelligent automatic shut-off (automatic-light): tilt sensors automatically detect whether the rifle is in the shooting position. When setting down or shouldering the weapon, the reticle switches off silently and reactivates immediately when picked up again. The all-round scope is available either with the classic ring mount (30 mm) or with the form-fitting Swarovski rail (SR). Traditional Austrian manufacturing expertise also guarantees a long-term 10-year manufacturer warranty.
Available model variants

Version
Mount type
Reticle / Plane




Helia 1.6-8x42i
Classic ring mount (30 mm)
4-Dot / 2nd image plane


Helia 1.6-8x42i SR
Swarovski rail (SR)
4-Dot / 2nd image plane


Technical data at a glance

Specification
Details




Magnification
1.6 - 8x


Objective diameter
42 mm


Exit pupil
9.6 - 5.1 mm


Field of view at 100 m
25.3 - 5.1 m


Eye relief / Diopter adjustment
95 mm / +2 to -3.5 dpt


Twilight factor (DIN 58388)
5.2 - 18.3

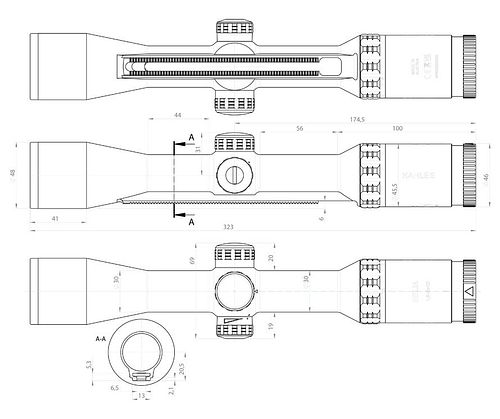

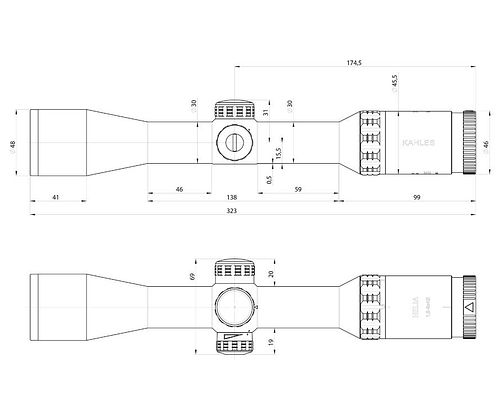

Main tube diameter / Length
30 mm / 323 mm


Click value per adjustment
10 mm


Adjustment range (height / windage)
1.5 / 1.5 m at 100 m


Weight (ring / SR rail)
approx. 540g


Warranty
10 years (2 years on electronics)


Manufacturer part no.
10679, 10680


EAN



Manufacturer
Kahles (Austria)
