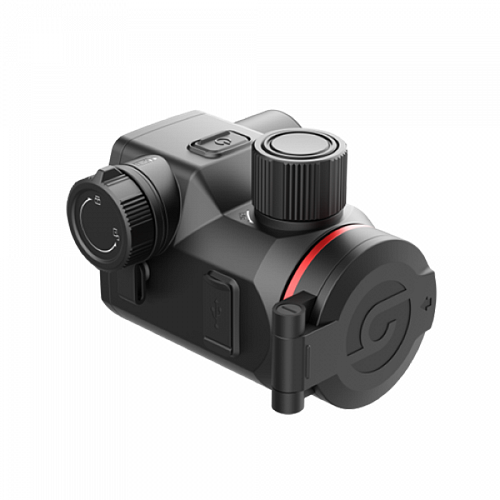

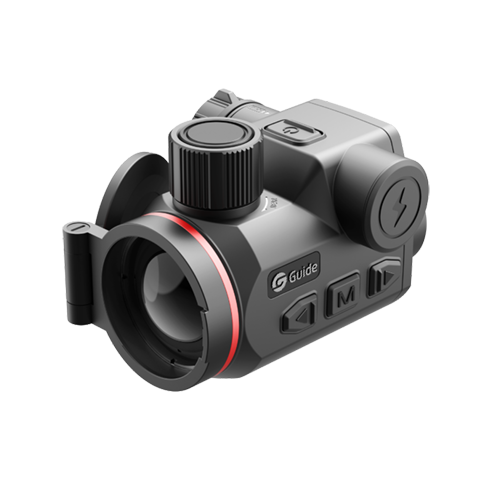

Guide Orion 635CS Clip-On thermal imaging device / attachment

Die Orion C series is a compact thermal imaging device for professional use, combining lightweight design with reliable performance. Powered by the next generation of the APEXVISION infrared imaging system, it delivers clear and stable thermal images for secure target identification. With a balanced, streamlined design and robust build quality, the Orion C series is well suited for extended use in demanding environments.


Ultra-light & compact – every gram counts
ApexVision technology – ultra clarity
3-second quick start
AI-powered algorithm – more image clarity at every level
Extremely low power consumption
Smooth operation – even with gloves
Comfortable viewing for extended observation



Core technology



equipped with full ApexVision S1 system

Detector ApexCore S1 + Nexus 1.0 platform + Hyper-Light 2.0 algorithm






Type



Uncooled VOx infrared detector, 8 to 14μm






Resolution


640x512@12μm




NETD



15mK






Frame rate



50Hz






Objective lens



35mm, F0.9






Field of view


12.5°×9.4°




FOV m@100m


22x17




Zoom



1x






Detection range



1800m/1950yd






Focus



Manual






Display


0.49'' AMOLED 1920×1080




Color palettes



White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia






Eye relief



20mm






Interface



USB-C (power supply)






Battery type



Replaceable battery type 18500






Runtime



7 hours






Operating temperature



-20°C to 50°C / -4°F to +122°F






Recoil resistant



up to 6000J






Waterproof



IP67






Weight



285 g






Size



99×73×68 mm






Accessories



Device, carrying case, accessory pouch, lint-free cloth, charger, 18500 battery ×2, USB-A to USB-C cable, quick guide, warranty card






Adapter thread



M33.5 (37151-xx or 37158-01)
