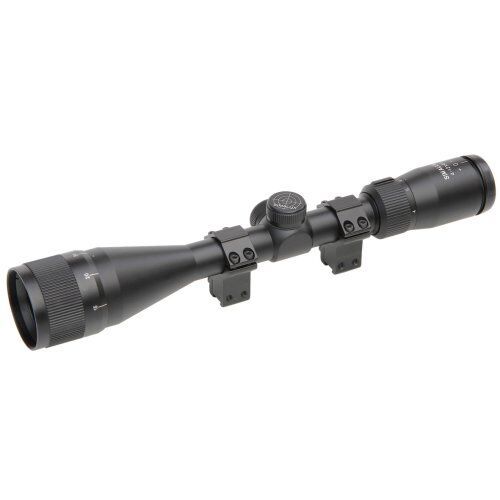

Simalux KK-50 4-12x44 AO with yellow filter

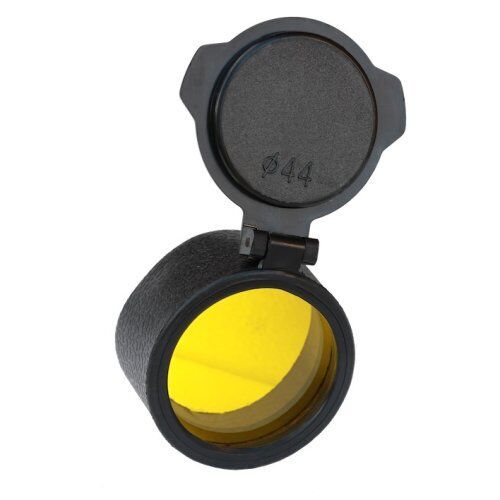

Magnification: 4-12x44 Reticle: KK-50 (ring reticle for DSB discipline) all glass surfaces are multi-coated shockproof, moisture- and dust-resistant large field of view high-quality and precise construction Reticle in the 2nd focal plane (objective plane) eyepiece quick adjustment hard anodized surface click adjustment: 1 click = 1⁄8 MOA = 1.85 mm at 50 m, 3.7 mm at 100 m 11 mm mounting ring included main tube ø: 25.4 mm length: 350 mm weight: 510 g the filter material consists of optically ground glass   At 8x magnification, the inner ø of the ring is 133 mm. The reticle is built in the 2nd focal plane, so changing the magnification (from 7x to 9x) arbitrarily changes the distance between the reticle ring and the target. Only the magnification from 7x to 9x can be used. (See fig. 4 / reticle)
