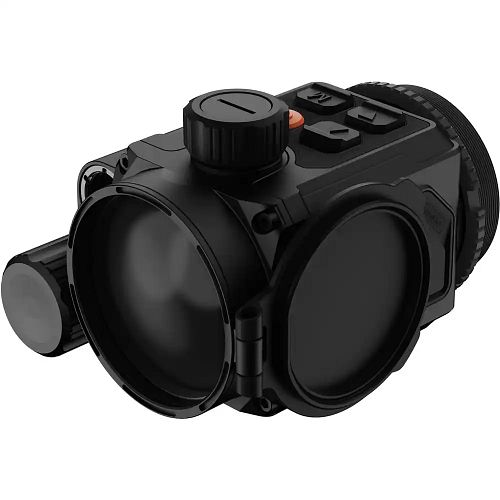

Rix Nano N6

Rix Nano N6 Length < 10 cm Weight only 453 g integrated laser rangefinder up to 1,500 m with ballistic calculator RAV (recoil-activated video function) NETD ≤15 mK Thermal imaging attachment RIX Nano N6 – Precision and flexibility for hunting use Compact design for maximum precision The thermal imaging attachment RIX Nano N6 impresses with its compact design, measuring less than 10 cm in length and weighing only 435 g. These features minimize additional bulk and the front-heavy nature of the weapon, which is particularly advantageous during long sits or stalking. The low weight and ergonomic shape allow for consistently high precision and optimal comfort in everyday hunting. High-performance thermal imaging technology Equipped with a detector with a resolution of 640x512@12 µm pixels and a NETD ≤15 mK, the RIX Nano N6 delivers detailed and high-contrast thermal images. The 50 mm lens ensures high range and target accuracy. The integrated laser rangefinder with a range of 1500 m supports precise distance measurement, which is crucial when assessing game and placing shots. Additionally, the ballistic calculator integrated into the software provides information on how many cm (0.1 MIL) a necessary correction for bullet drop needs to be made. Flexible application possibilities in the field The RIX Nano N6 can be used both as an attachment on riflescopes and as a monocular or handheld device. The adaptive UI scaling and quick-change eyepiece (not included) allow for comfortable switching between different modes of use. Notably, the easy mounting on a riflescope is highlighted, as no re-zeroing is required. Once the riflescope is zeroed, the Nano can be mounted directly, ensuring immediate readiness for use with absolutely consistent point of impact. The included remote control can be attached to an easily accessible location with Velcro, for example, on the weapon. This makes the RIX Nano N6 easier to operate in the shooting position than devices without a remote control. Long operating times thanks to replaceable battery The system is powered by a user-replaceable 18650 battery. This power source allows for longer hunting sessions and ensures reliable operation even during extended sits. The RIX Nano N6 offers an optimal solution for hunting use due to its compact design, powerful thermal imaging technology, and flexible application possibilities. It guarantees high precision, quick readiness for use, and comfort, making it ideal for demanding hunting situations. Further product details: 2-in-1 design allows use as an attachment and as a handheld monocular Absolutely recoil-free Number of color palettes: 7 Number of weather modes: 2 Internal image/video storage capacity: 64 GB Number of programmable weapon profiles: 5 With replaceable 18650 battery Video and image recording The advanced video functions of the RIX NANO N6 thermal imaging attachment enable detailed recording of hunting moments. With an image and video resolution of 1408x1080 pixels, sharp recordings are possible, which are saved in the common mp4 format for videos and jpg format for photos. A generous internal storage of 64 GB provides ample space for countless hours of high-quality recordings. With the RIX NANO N6, the equipment is optimal for capturing every moment in outstanding quality and managing the recordings flexibly. The RIX NANO N6 offers maximum flexibility in video recording: 1. Recoil-activated recording function Videos are easily recorded via
the recoil-activated recording function is saved. It records 10 seconds before the shot. The recording automatically stops 19 seconds after the shot (recoil). Of course, the recording can also be started manually via the menu control or a direct button press. Navigation is done using the control buttons of the NANO to the camera icon in the menu. A short press of the button starts or stops the video recording. To capture single photos, the button is held down longer.

2. Comfortable control and transmission via app For even more convenient operation, the NANO is connected to a smartphone via WLAN. This way, the live image can be followed directly on the smartphone, and recordings can be triggered easily. For this purpose, the specially developed app from RIX Optics is used.

Retrieval of videos – as desired The transfer of recordings is incredibly simple:

Via cable: The device is connected to a computer using the included USB-C cable. The NANO is recognized as an external drive, allowing the mp4 files to be easily dragged to the PC.

Wirelessly via app: Alternatively, the created videos can also be transferred directly and wirelessly to the smartphone via the app.

To the RIX APP The associated app from RIX Optics, often referred to as the RIX+ app or in extended versions as the RIX Tactical App, significantly enhances the functionality of the NANO (N6) thermal imaging attachment. The app allows for comfortable wireless control and live view directly on the smartphone.

In detail, the app offers the following features:

Live image transmission: Through a WLAN connection, the live image of the NANO (N6) can be displayed directly on the smartphone, enabling convenient observation and target acquisition.

Remote control of recordings: Videos and photos can be triggered and stopped directly via the app, simplifying remote operation.

Wireless data transmission: Created videos and photos can be wirelessly transferred from the device to the smartphone for quick saving or sharing.

Device updates: The app can also be used to update the firmware of the NANO (N6), thus always benefiting from the latest features and improvements.

In addition, extended versions of the RIX Optics apps, such as the RIX Tactical App, offer additional features that go beyond simple video control. These include the creation of unlimited shooting profiles for various weapons, connection with anemometers to capture atmospheric conditions, and performing real-time ballistic calculations as well as access to historical ballistic data. These extended features provide comprehensive support for tactical equipment and optimize precision in demanding situations.

To the ballistic calculator The ballistic calculator is a feature integrated into the RIX Tactical App that enables precise ballistic calculations in real-time, significantly improving hit accuracy. This feature is advantageous as it supports optimized shot planning and reduces the need for additional devices.

The operation of the ballistic calculator includes the following steps:

Data entry via the app: Various parameters can be entered through the RIX Tactical App. These include bullet data such as ballistic coefficient (BC) and bullet weight, as well as rifle data such as muzzle velocity, the distance from the bore axis to the scope center (Line of Sight Height), and the zeroing distance.

Environmental conditions: Environmental conditions such as temperature, air pressure, and relative humidity can also be manually entered or captured via connected anemometers for supported devices.

Shooting profiles: The app allows for the creation and management of an unlimited number of shooting profiles for various weapons and ammunition.
nstypen. Real-time calculation: Based on this data, the calculator performs real-time ballistic calculations to predict the projectile's trajectory and determine the necessary correction values. Data transfer to the device: The calculated ballistic data and selected zeroing profiles can then be sent directly via Wi-Fi to compatible RIX Optics devices such as the NANO N6 or other thermal imaging scopes and monoculars. This allows the use of the correction values directly in the device's reticle. The RIX NANO N6 offers, especially in combination with the app, the ability to utilize these integrated ballistic calculations to ensure target accuracy over various distances. The integrated laser rangefinder, which incorporates distance measurement into the ballistic calculation, thus provides an even more precise correction. To the rangefinder The laser rangefinder offers various operating modes, including single measurement, where the distance is determined at the push of a button. This significantly improves safety and precision when using the RIX NANO N6. Precise distance measurement: The integrated laser rangefinder can measure distances to the target of up to 1,500 meters. This is particularly important for an accurate assessment of distance, especially at greater distances and in poor visibility conditions, as often encountered during night hunting. Integration into the image: The measured distance can be displayed directly in the device's field of view, allowing for quick and intuitive capture. Laser technology: The measurement is carried out using a laser directed at the target. The time it takes for the light to travel to the target and back is measured, and from this, the exact distance is calculated. These lasers are infrared and not visible to the human or animal eye. Support for ballistic calculation: The precise distance data from the rangefinder is an essential basis for using the ballistic calculator. By combining both functions, the point of impact can be determined more accurately, and shooting precision can be significantly increased. For any questions regarding firearms, optics, and ammunition, please feel free to contact Mr. Mocek or Mr. Hollstein. For our offers, we provide attractive financing options through our partner Cronbank. Flexible rates and terms according to your wishes. Feel free to stop by, we will discreetly advise you on financing matters.
