Recknagel ERA tilt mount one-piece for Picatinny with internal rail attachment

The einteilige Recknagel ERA Aufkippmontage is an extremely stable, one-piece block mount for the highest precision in hunting and sporting use. It connects scopes with a 45° Zeiss inner rail absolutely recoil-proof with firearms that feature a Picatinny profile. Thanks to the compact bolt spacing of 90 mm, it is the ideal choice for short system housings.

Features

Perfect integration: Specifically designed for all modern scopes with a 45° Zeiss inner rail.
Flat sight line: A minimal height of only 8.0 mm ensures optimal head positioning in the shooting stance.
Maximum recoil resistance: Integrated cross screws act as a recoil stop in the grooves of the Picatinny rail.
Secure locking: The fixation is done traditionally and permanently via robust triangular nuts.
Premium material: Made from high-strength, black hard-anodized aluminum; functional parts made from heat-treated steel.

Technical data

Mounting type: One-piece tilt mount

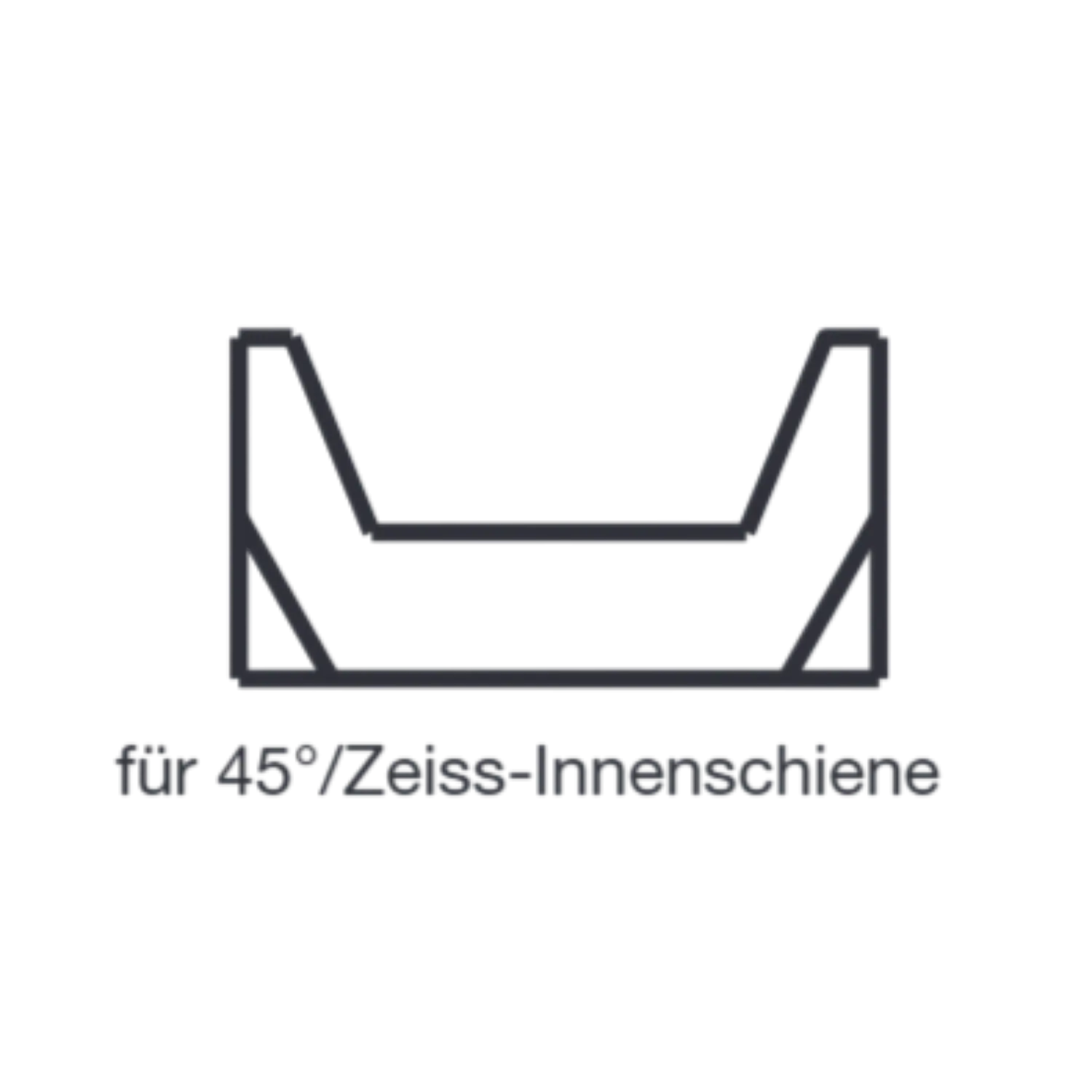

Ring Ø / Rail: For 45° / Zeiss inner rail
Mounting: Picatinny profile
Bolt spacing: 90 mm
Height: 8 mm
Total length: 110 mm
Closure: Triangular nut incl. special key
Compatibility: Ideal for bolt-action rifles like the Merkel Helix as well as shorter Picatinny bases

Scope of delivery

1x Recknagel ERA tilt mount one-piece for Picatinny with inner rail attachment
1x special key
1x hex key
