Guide sensmart TD635S

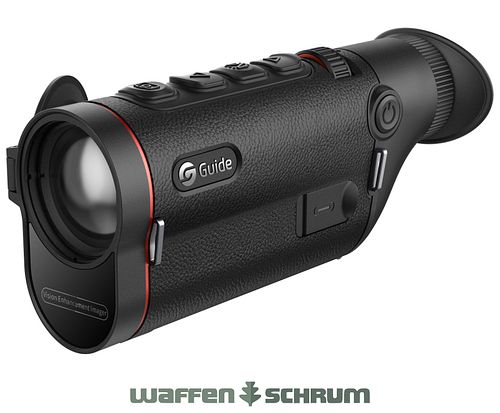

The thermal imaging device TD635S from Guide Sensmart is the model for those who value a large field of view among the 640×512-px sensor models.With a weight of only 362 g and a length of just 159 mm, the Guide Sensmart thermal imaging monocular TD635S is lightweight and compact. This version with a 35-mm lens is for those who want to keep an overview and place importance on a large field of view.

The Sensor
The large, powerful 12-µm sensor has a resolution of 640×512 px and an NEDT value of 15 mK, providing excellent thermal differentiation capability. Its detection range is 1,800 m. The 35-mm lens delivers an impressive field of view of 22x17 m at 100 m.

The Display
The 0.49-inch AMOLED color display with a resolution of 1,440×1,080 px allows for comfortable viewing of images. The menu control is logically structured and intuitively designed. Depending on personal preferences and observation situations, 7 color palettes can be selected: Hot White, Hot Black, Hot Red, Hot Green, Hot Blue, Iron Red, and Sepia. Observations can be documented as photos or videos with sound on the integrated 64-GB memory.

The Device
The controls of the TD635S are located on the top, allowing it to be operated easily with either hand, making one-handed operation straightforward. The mini focus wheel allows for quick and precise fine-tuning. The replaceable and rechargeable 18650 battery has a runtime of up to 10 hours. The housing is protected according to IP67 standards. Data transfer and updates are done via Wi-Fi and the Guide app or through the USB interface with a PC.

Scope of Delivery

Device
Bag2 x 18650 BatteryUSB A-to-C Cable5V/2A Power SupplyEyeshadeHand StrapNeck StrapCleaning ClothQuick Start GuideWarranty Card

Technical Specifications

Sensor: uncooled VOx infrared detector, 8 to 14 μm, 640×512@15μmNETD: 15 mKFrame Rate: 50 HzLens: 35 mm, F1.0Field of View: 22×17 m at 100 m / 12.5×9.4°Magnification: 2.03-16.24xDetection Range: 1,800 mDisplay: 0.49“ inchAMOLED 1,440×1,080 pxColor Palettes: Hot White, Hot Black, Hot Red, Hot Green, Hot Blue, Iron Red, and Sepia
Eyepiece: Eye Relief: 20 mm; Diopters: ±6 dpt; Zoom: 13.8xWi-Fi: 2.4G, 5GInterfaces: USB-C (supports charging), BluetoothRecording Function: Photo, Video (including sound)Storage Capacity: 64 GBBattery: 18650 battery, replaceableOperating Time: 10 hOperating Temperature: -20 °C to 50 °CProtection: IP67Size: 159x54x74 mmWeight: 362 g
