Guide sensmart TD435S

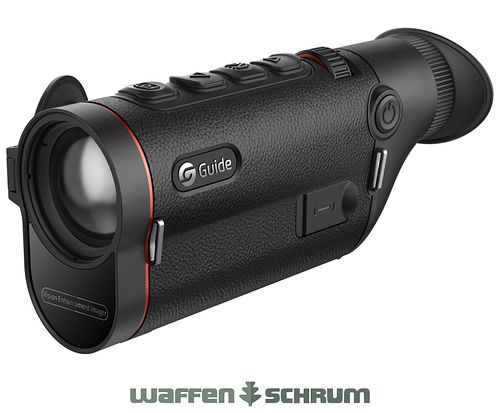

The thermal imaging monocular TD435S from Guide Sensmart is compact, handy, user-friendly, and very powerful.The TD435S thermal imaging monocular from Guide Sensmart is extremely compact at 355 g and a length of 159 mm, making it easy to carry in its robust housing during any hunt.

The Sensor
The powerful 12-µm sensor has a resolution of 400x300 px and an NEDT value of 15 mK. This provides excellent thermal differentiation capability. Its detection range is 1,800 m, and with the 35-mm lens, it offers a field of view of 14x10 m at 100 m.

The Display
The 0.49-inch AMOLED color display with a resolution of 1,440×1,080 px allows for comfortable viewing of images. The menu control is logically structured and intuitively designed. Depending on personal preferences and situations, you can choose from 7 color palettes: Hot White, Hot Black, Hot Red, Hot Green, Hot Blue, Iron Red, and Sepia. Observations can be documented as photos or videos with sound on the integrated 64-GB memory.

The Device
The controls of the TD435S are located on the top, allowing it to be operated with either the right or left hand. The mini focus wheel allows for quick and precise fine-tuning. The replaceable and rechargeable 18650 battery has a runtime of up to 10 hours. The housing is protected according to IP67 standards. Data transfer and updates are done via Wi-Fi and the Guide app or through the USB interface with a PC.

Scope of Delivery

DeviceBag
2 x 18650 batteryUSB A-to-C cable5V/2A power supplyEyeshadeHand strapNeck strapCleaning clothQuick guideWarranty card

Technical Data

Sensor: uncooled VOx infrared detector, 8 to 14 μm, 400×300@12μmNETD: 15 mKFrame rate: 50 HzLens: 35 mm, F1.0Field of view: 14×10 m at 100 m / 7.9×5.9°Magnification: 3.26-13.04xDetection range: 1,800 mDisplay: 0.49" AMOLED 1,440×1,080 pxColor palettes: white hot, black hot, red hot, green hot, iron red, blue hot, sepiaWi-Fi: 2.4G, 5GInterfaces: USB-C (supports charging), BluetoothRecording function: photo, video (including sound)Storage capacity: 64 GBBattery: 18650 battery, replaceableOperating time: 10 hOperating temperature: -20 °C to 50 °CProtection: IP67Size: 159x54x74 mmWeight: 355 g
