Hikmicro Thunder TQ50C 3.0

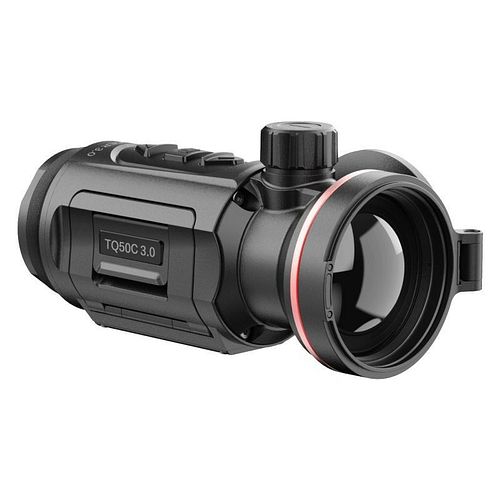

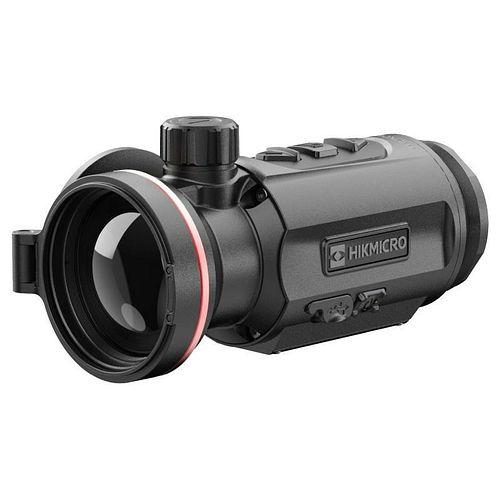

Thunder TQ50C 3.0 – Thermal Clip-On Device

The HIKMICRO Thunder TQ50C 3.0 Thermal Clip-On has been designed for maximum precision and detail recognition. Thanks to the high-resolution 640 × 512 thermal sensor, a thermal sensitivity of NETD <15 mK, and the powerful 50 mm F1.0 lens, the device enables reliable observations at long distances of up to 2600 m. The HSIS technology ensures uninterrupted image display without calibration interruptions.
Technical Highlights

• 640 × 512 thermal sensor with 12 μm pixel pitch
• NETD <15 mK for high detail recognition
• 50 mm F1.0 lens
• Detection range up to 2600 m
• HSIS (HIKMICRO Shutterless Imaging System)
• OLED display with 1920 × 1080 resolution
• Replaceable Li-Ion battery with up to 6 hours of runtime
• Recoil resistance up to 1000 g / 0.4 ms
• 64 GB internal storage
Thermal Imaging Module

• Sensor: Uncooled focal plane arrays
• Resolution: 640 × 512
• Frame rate: 50 Hz
• Spectral range: 8–14 μm
• Focus: Focus knob
• Minimum focus distance: 10 m
• Magnification: 2.8× – 22.4×
• Recommended magnification: 1–15×
• Field of view: 8.8° × 7.0°
Display & Image Representation

• OLED display (0.49 inches) with 1920 × 1080 resolution
• Color palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Brightness adjustment: Yes
• Hue adjustment: Cold / Warm
• Image Pro 2.0: Yes
• HSIS: Yes
Functions

• Video recording
• Photo capture
• Virtual reticle
• Standby mode
• Hotspot function
• Hot Track
• Audio recording
• Recoil-activated video recording
• Image calibration
• 5 zeroing profiles
Power Supply

• Replaceable Li-Ion battery
• Runtime: up to 6 hours
• USB-C / Type-C connection
• External power supply possible
General Data

• Protection class: IP67
• Weight: 500 g
• Dimensions: 149.4 × 76 × 74.6 mm
• Operating temperature: -30 °C to +55 °C
• Housing material: Magnesium alloy
Scope of Delivery

• Li-Ion battery (included in the device)
• USB-C cable
• 2× O-rings
• User manual
