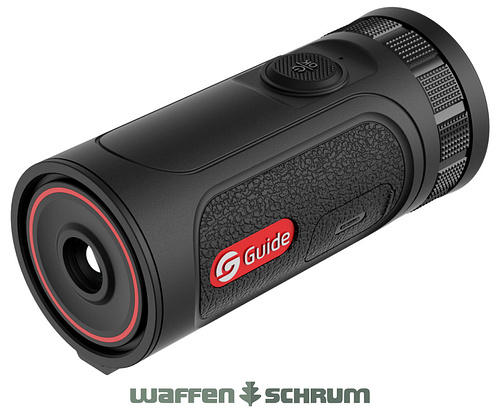

Guide sensmart TE211M Monitor

The TE211M from Guide Sensmart is an ultra-compact and powerful thermal imaging monocular that fits in any pocket.Weighing only 205 g and measuring just 111 mm in length, the TE211M thermal imaging monocular from Guide Sensmart fits in any pocket and allows for comfortable observation in any situation – all at an affordable price.

The Sensor
The powerful sensor has a resolution of 256x192@12 µm and an NEDT value of 30 mK. Its thermal differentiation capability is good, and its detection range is 500 m. With the 10.mm lens, you get a field of view of 23x23 m at 100 m.

The Display
The 1.43-inch AMOLED color display allows for comfortable viewing of images without having to press the eye against an eyepiece, which is particularly advantageous during prolonged observation. The menu navigation on the touchscreen is logical and quick. Depending on personal preferences and situations, you can choose from 7 color palettes: Hot White, Hot Black, Hot Red, Hot Green, Hot Blue, Iron Red, and Sepia. Observations can be documented as photos or videos with sound on the integrated 16-GB memory.

The Device
The TE211M monocular is intuitively operated with just one button and a ring. The integrated battery has a runtime of 6 hours and a fast charging function, allowing for one hour of continuous operation after just 10 minutes of charging at 20 W. The housing is protected according to IP67 standards. Data transfer and updates occur via Wi-Fi over a distance of up to 26.5 m.

Scope of Delivery

DeviceLens capHand strapUSB-A to USB-C cableQuick guideSafety instructionsWarranty card

Technical Data

Type: Thermal imaging monocularSensor: uncooled VOx infrared detector, 8 to 14 μm, 256×192@12μmNETD: 30 mKFrame rate: 50 HzLens: 10 mm, F1.0Field of view: 23×23 m at 100 m / 13.1×13.1°Magnification: 0.4-1.6xDetection range: 500 mFocus-free
Display: Touchscreen, 1.43 inch AMOLED 466×466 pxColor palettes: Hot White, Hot Black, Hot Red, Hot Green, Hot Blue, Iron Red, and SepiaWi-Fi: 2.4G, 5GInterfaces: USB-C (supports charging), BluetoothRecording function: Photo, Video (including sound)Storage capacity: 16 GBIntegrated batteryOperating time: 6 h (supports 20 W fast charging)Operating temperature: -20 °C to 50 °CProtection: IP67Size: 49×49×111 mmWeight: 205 g
