LABRADAR LabRadar LX

Available from stock with us.

The LabRadar LX is a compact Doppler radar designed for use at the shooting range and is suitable for nearly all projectile types. With a frequency of 60GHz, it can also be used in shooting lanes without causing interference, and unlike light barriers or acoustic measuring devices, it is completely insensitive to external sources of disturbance. Doppler radars also have the advantage that they do not need to be positioned in front of or below the muzzle; precise measurement is also possible when the device is placed next to the weapon, behind the muzzle. With real-time data output and transmission, the device offers the ambitious shooter and reloader a simple and precise way to measure speed. Various average values and, of course, min/max values are provided during series measurements, and an integrated calculator is installed to indicate "Power Factor" and projectile energy if needed. The transmission via Bluetooth to the mobile app occurs in real-time while the series is running and takes place WITHOUT data being transferred to foreign servers.

Suitable for all projectile types from diabolo to shotgun slug, the LX captures every cross-section and measures every speed from crossbow bolts to long-range projectiles - the measurement range is approximately 20 to 1,500m/s! The LabRadar LX comes in a sturdy metal housing with a bright and clearly readable LCD display. It is completely manufactured in Canada and is delivered with a foldable tripod for setting up on the shooting table. The internal battery is generously sized, and the special feature is: the device can be used while charging. Even if the battery is empty, you only need to connect the device to a power bank, and further measurement series in real-time are possible. And a measurement accuracy of +/- 0.1% meets the strictest requirements.

Product details:

LabRadar LX

Doppler radar

Speed measurement of projectiles

Measurement range: approx. 20-1,500m/s

60 GHz frequency

suitable for all conditions, including narrow shooting lanes

Real-time measurement
Output of individual values, average values, standard deviations, min/max, etc.

Output of "Power Factor" and projectile energy possible

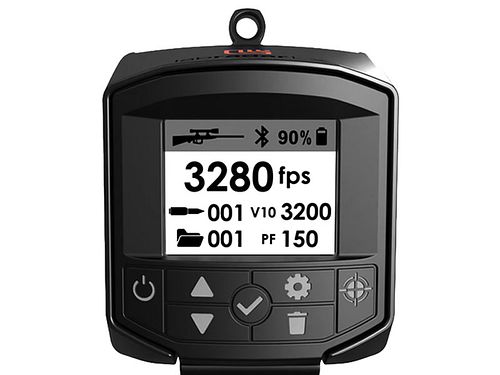

Bright LCD display
Transmission to app via Bluetooth

Data transmission in real-time during the series
Data security, nothing is uploaded to foreign servers

Integrated battery

Rechargeable via USB, also via power bank
Measurement possible while charging, even with a completely empty battery

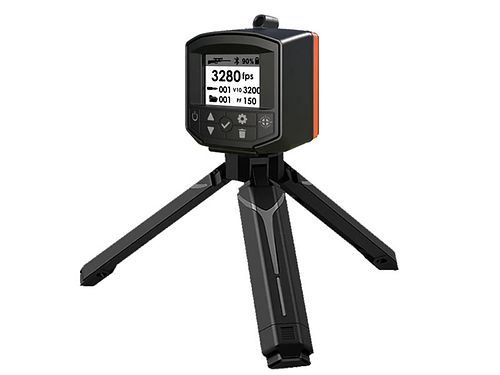

Small tripod for table mounting included

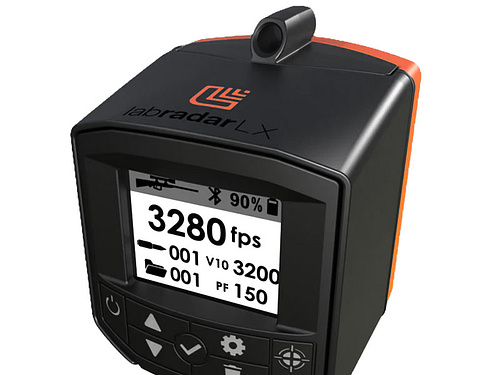

Metal housing
Dimensions: approx. 6.4x7x7cm
Made in Canada

LabRadar is a brand of the Canadian company Infinition Inc from Trois-Rivières in Quebec. One of the industry leaders in Doppler radar technology, the products have been used worldwide by authorities and military since 1996. Complete solutions of hardware and software, manufactured in Canada for various fields, have been the bread and butter of the company for decades - the LabRadar brand with its namesake portable Doppler radar was created as a cost-effective alternative for the end user. The new LabRadar LX is further miniaturized and simplified and is aimed at the average shooter, while the larger LabRadar is suitable for semi-professional use.
