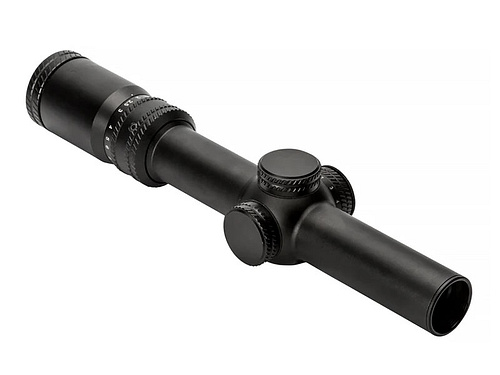

SIGHTMARK Citadel 1-10x24 CR1

The smallest offspring of the Citadel series from the Texas optics manufacturer Sightmark impresses with its 10x zoom and an unmatched field of view in this price range.

With a field of view of 36.76 m (1x) - 3.6 m (10x) at 100 m, the scope can compete with significantly more expensive scopes or even optics with lower zoom despite its impressive zoom. The generous eye relief of 9.4-7.9 cm allows for mounting on a variety of firearms and magnum rifles - the scope is recoil-resistant up to .50 BMG. Weighing 497 g, with a length of 28.6 cm and an ocular diameter of 40 mm, it is also relatively compact and does not burden the weapon or the mount - especially in conjunction with a night vision or thermal imaging device.

The 1 to 10 power scope with a 30 mm main tube is available in 2 etched reticles:

The CR1 reticle is a tactical reticle for dynamic shooting, which also performs well in driven hunts due to its hold points. This reticle features a 1 MoA (approx. 2.9 cm/100 m) aiming point within an open target circle at the bottom, commonly referred to as a "horseshoe," with a diameter of 9.65 MoA (approx. 28 cm/100 m). The lateral holdover marks are spaced 10 MoA (approx. 29 cm/100 m) from the center and are 10 MoA wide with a 5 MoA (approx. 14.5 cm/100 m) subdivision. The holdover marks for bullet drop are set for .223 Rem with 55 gr FMJ ammunition but are also suitable for .308 Win 144 gr FMJ and can, of course, be used with other loadings. They are designed for 600 yards (approx. 548 m). In this reticle, the aiming point, target circle, and holdover marks for bullet drop are illuminated (see product image).

The HDR reticle corresponds to the well-known 4A reticle with an illuminated point. The aiming point has a diameter of 0.8 MoA (approx. 2.3 cm/100 m) and is suitable for the shooting range or the hunter who prefers a clean reticle without frills. In this reticle, only the aiming point is illuminated.

Both reticles can be illuminated in red at 11 levels, providing a wide range of applications from night vision devices to bright summer days at the range.

Adjustment is made horizontally and vertically in 1/2 MoA (approx. 1.4 cm/100 m) with an adjustment range of 100 MoA (approx. 290 cm/100 m) each. The scope is, of course, nitrogen-filled, dustproof, and waterproof according to IP67, and features coated lenses.

Highlights:

- 10x zoom
- large field of view
- generous eye relief
- CR1 illuminated reticle - ideally tuned to the ballistic performance of AR15
- HDR illuminated reticle - corresponding to reticle 4A, the proven classic for hunting or the range
- Diopter adjustment -2/+2
- Waterproof (IPX7), shockproof & fog-free (nitrogen filling)
- 30 mm main tube
- CR2032 battery
- Shock-resistant housing made from a single piece of Dural

Delivery WITHOUT mount (please order separately)

Technical Data:

- Magnification: 1-10x
- Objective diameter: 24 mm
- Eye relief in mm: 94-79
- Field of view at 100 m in m: 36.76 - 3.6
- Reticle: CR1 or HDR
- Illuminated point: 1 MoA or 0.8 MoA
- Brightness levels (dimmable): 11
- Reticle plane: 2nd image plane (ocular plane)
- Elevation turret height: with protective cap
- Windage turret side: with protective cap
- Reticle adjustment / click: 1/2 MoA
- Max. reticle adjustment height: 100 MoA
- Max. reticle adjustment side: 100 MoA
- Parallax adjustment in m: 100 (fixed)
- Main tube diameter in mm: 30
- Objective diameter outside in mm: 30
- Ocular diameter outside in mm: 40
- Total length in mm: 286
- Weight in g: 497
- Battery: yes

Sightmark was founded in 2007 and has been in 2011 in
Mansfield, Texas has completed its new headquarters. The brand develops optics for the end user for a variety of applications. The goal is to provide customers with reliable, practical optics without breaking the bank. From riflescopes to red dot sights to night vision and thermal imaging devices and scopes, the company offers a wide portfolio.

Attention: This product contains very small and/or button batteries.

Improper handling of batteries can lead to serious injuries or even death within just 2 hours, especially in young children (e.g., chemical burns and possible perforation of the trachea). If you suspect a battery has been swallowed, please seek medical attention immediately. Keep batteries out of reach of children and dispose of empty or defective batteries promptly in accordance with local disposal regulations. General usage note: Always insert batteries correctly (+/-), risk of injury from fire, explosions, or leaks, do not disassemble, charge, crush, expose to fire or high temperatures.

Note: Battery and Electrical Law (§ 18 BattG i.V.m. § 10 Abs. 1 ElektroG)
