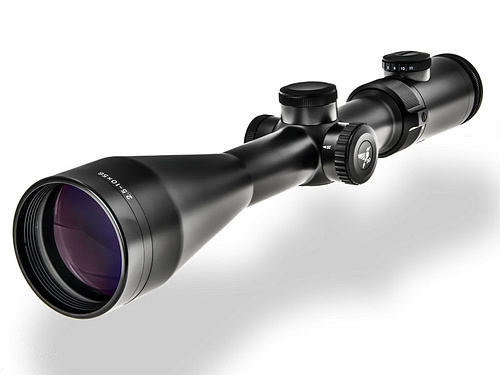

DDoptics ZF Nachtfalke V4 ll 2.5-10x56 reticle 4 + fiber optic dot

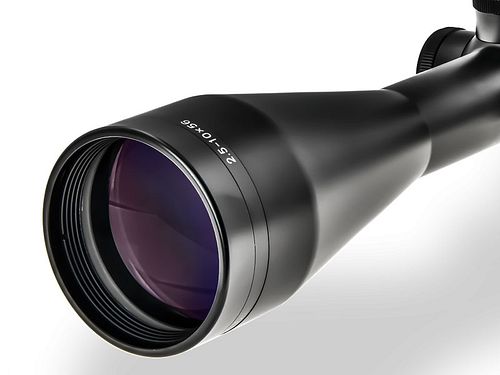

With a 56 mm objective diameter, the scope from DDoptics Nachtfalke 2.5-10x56 Gen II is particularly light-sensitive and thus ideal for twilight hunting. The fully coated optics offer a continuous 4x zoom from 2.5 to 10 times magnification.

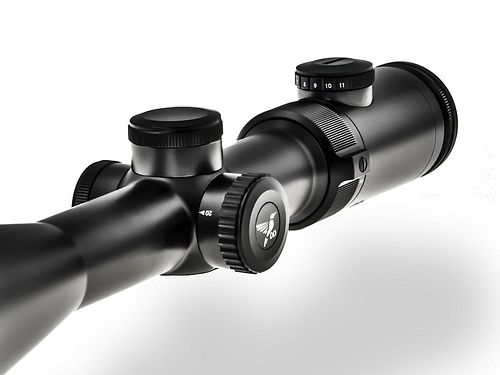

In contrast to the much more expensive comparison model of the 3rd generation, the construction of the reticle adjustment turrets is made of plastic (instead of metal) and is equipped with ¼ MOA soft-click adjustment (instead of MRAD). The reticle adjustment turrets are zeroable without a zero stop. The same features include, for example, the continuous parallax adjustment from 20 m or the high-quality fiber optic illuminated dot – IFiber is also available as an optional order. So, if you want an absolutely high-quality optic with somewhat simpler equipment, the scope is just right.

DDoptics Generation II
The Generation 2 scopes from DDoptics offer a range of great features that are otherwise reserved for much more expensive optics. The lenses are fully coated and provide an amazing maximum light transmission of up to 94.7%. The parallax adjustment from 20 m is continuously adjustable. The optics are tested for shock resistance with 375 H&H Magnum and offer high precision with return accuracy.

Illuminated dot with IFiber – automatic position control
What is definitely worth it is the extra cost for the IFiber illuminated dot. The illuminated dot automatically turns on and off using an integrated position and motion sensor. With a simple rotation, you can continuously adjust the intensity while maintaining sharpness of the fiber optic illuminated dot. Below level 4 is ideal for use with night vision devices. High-tech at an affordable price – almost a must-have for a small surcharge.

Execution:

- Reticle 4 + fiber optic illuminated dot
- Reticle 4 + fiber optic illuminated dot + IFiber (see above)

Highlights:

- 10x magnification
- very good twilight performance (56 mm objective)
- less edge area in the view
- plastic adjustment turrets (soft click)
- optics with fully coated lenses (light transmission of max. 94.7%)
- zero stop without a zero stop
- night vision device compatible, dimmable fiber optic illuminated dot (LPII)
- continuously adjustable parallax adjustment

Delivery WITHOUT mounting (please order separately)

Including the following accessories:

- 1 pair of matching flip caps included
- 1 x battery CR2032

User manual, also available as a download

Technical data:

- Magnification: 2.5-10x
- Objective diameter: 56 mm
- Exit pupil diameter (mm): 22.4 - 5.6 mm
- Twilight number: 11.8 - 23.7
- Field of view at 100 m: 12.6 - 3.4 m
- Eye relief in mm: 102 - 103
- Diopter adjustment (dtp): ±3.0

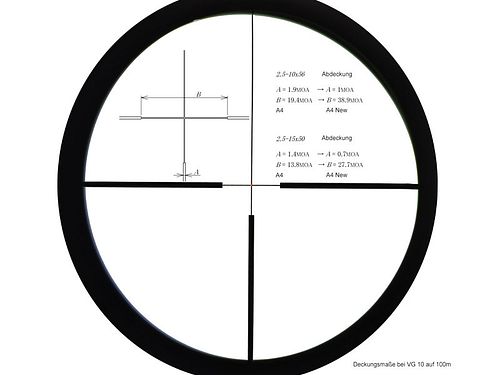

- Reticle: Reticle 4
- Illuminated dot: fiber optic, LPII
- Reticle plane: 2nd image plane (ocular plane)
- Reticle adjustment / click: 1/4 MOA
- Max. reticle adjustment: 88.74 MOA
- Parallax adjustment in m: 20 - 500 - ∞
- Main tube diameter in mm: 30
- Objective diameter outside in mm: 65
- Ocular diameter outside in mm: 43
- Total length: 349 mm
- Weight in g: 670
- Battery: CR2032

DDoptics – the new star in the target optics sky

The brand DDoptics, based in the Chemnitz Schönherrenfabrik, is a relatively young family business with 15 years of experience that has quickly made a good name for itself as an emerging star in the optics scene in recent years. The success is no coincidence, as the innovative optical systems and scopes of the brand are manufactured in the same factory as much more expensive brands, providing the basis for outstanding quality. In contrast, DDoptics does not have to carry around a huge administrative and sales apparatus, which positively affects the prices.
t. If you are looking for qualitatively superior sight systems at an unbeatable price, you are in the best hands with DDoptics.
