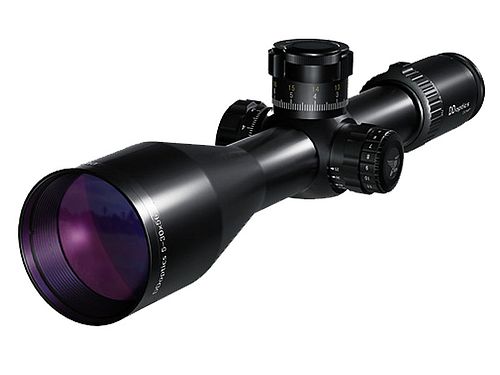

DDoptics ZF Nachtfalke V6 5-30x56 DDMP tacA + fiber optic dot

The DDoptics Zielfernrohr Nachtfalke V6 4-30x56 DDMP offers hunters and sport shooters a particularly flexible range of applications at medium distances or in the long-range area. Thanks to the extremely large adjustment range of nearly 30 MRAD, distances of over 2000 m can also be well realized. From 1000 m shooting distance, the reticle adjustment must be set to the edge area, and magnification of more than 20 is no longer possible here.

The scope becomes a true recommendation for purchase with normal sporting use in the medium distance range of 100 to 1000 m. Because here the reticle adjustment is in the middle range, and the maximum magnification of 40x can be fully utilized. The outstanding optics show what it can do: absolute precision, repeatable – a scope that is fun to use and offers outstanding performance values at a top price.

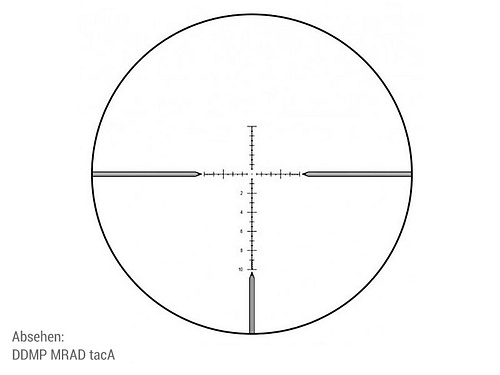

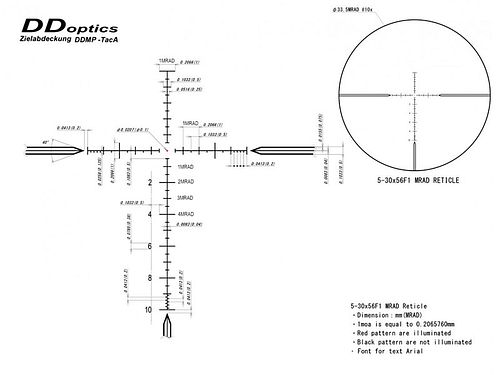

The reticle is located in the 1st image plane, which means that the reticle size changes with the zoom. The distance from one full line to the next full line always corresponds exactly to 1 MRAD = 10cm at 100m. The intermediate lines correspond to 0.5 MRAD = 5cm at 100 m. The arrow-shaped bars have been deliberately kept transparent so that nothing remains hidden behind the reticle.

DDoptics Generation III
With the newly developed optics of the 3rd generation, DDoptics adds another layer of features: In addition to the use of coated CT glasses, which have improved light transmission properties, the eye relief can be better centered on all scopes. Instead of plastic, the adjustment turrets are made of metal. Waterproof and with hard tactical click adjustment, the zerostop (zero setting) can also be adjusted. Depending on the model, the features may vary slightly.

Illumination point with IFiber / iPoint – automatic position control
What is definitely worth it is the extra cost for the IFiber illumination point. The illumination point automatically switches on and off using an integrated position and motion sensor. With a simple rotary movement, you can continuously adjust the intensity while maintaining sharpness of the fiber optic illumination point. Below level 4 is ideal for use with night vision devices. High-tech at an affordable price – almost a must-have for a small additional cost.

Execution:

- tacA + fiber optic illumination point (manual illumination point)
- tacA + fiber optic illumination point + iPoint (see above, automatic illumination point)

Highlights:

- 30x magnification
- 6x zoom
- ideal medium distance scope for 100 to 1000 m
- reticle in 1st image plane - ideal with tacA reticle (full line to full line = 1 MRAD -> 10cm at 100m)
- robust 34 tube
- 25 m close range parallax adjustment (continuously adjustable)
- less edge area in the field of view

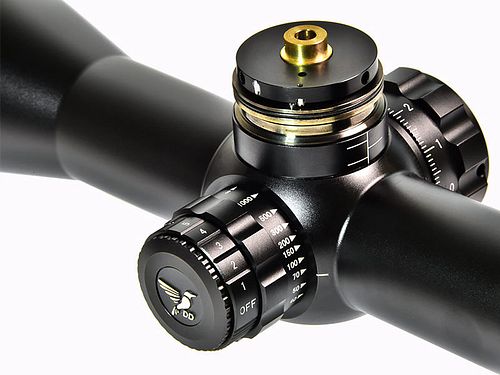

- metal turrets for reticle adjustment (no plastic)
- optics with high-quality CT glass (Clear Transmission, particularly low dispersion)
- double scaling (Doubleturn)
- zerostop for ASV (zero stop)
- hard tactical 0.1 MRAD click adjustment (1cm/click)
- maximum adjustment range of nearly 30 MRAD
- night vision device compatible, dimmable fiber optic illumination point (LPII)

Delivery WITHOUT mounting (please order separately)

Including the following accessories:

- 1 pair of matching flip caps included
- 1 x battery CR2032

Operating instructions, also available as a download

Technical data:

- Magnification: 5-30x
- Objective diameter: 56 mm
- Exit pupil diameter (mm): 8.8 - 1.9 mm
- Twilight number: -
- Field of view at 100 m: 7.04 - 1.05 m
- Eye relief in mm: 85 - 97
- Diopter adjustment (dtp): ±3.0
- Reticle: tacA
- Illumination point: fiber optic, LPII
- Reticle plane: 1st image plane (objective plane)
- Reticle adjustment / click: 0.1 MRAD (1cm / 100m)
- Max. reticle adjustment: 30 MRAD
arallaxeausgleich in m:
25 - 1000 - ∞


Mittelrohrdurchmesser in mm:
34


Objektiv-Durchmesser außen in mm:
65


Okular-Durchmesser außen in mm:
44


Gesamtlänge:
368 mm


Gewicht in g:
1068


Batterie:
CR2032

DDoptics – the new star in the target optics sky

The brand DDoptics, based in the Chemnitz Schönherrenfabrik, is a relatively young family business with 15 years of experience that has quickly made a good name for itself as a rising star in the optics scene in recent years. The success is not coincidental, as the innovative optical systems and riflescopes of the brand are manufactured in the same factory as much more expensive brands, providing the basis for outstanding quality. In contrast, DDoptics does not have to carry a huge administrative and sales apparatus, which positively affects the prices. Those looking for qualitatively superior target systems at unbeatable prices will find themselves well placed with DDoptics.
