EOTECH XPS2-2

Available from stock with us.

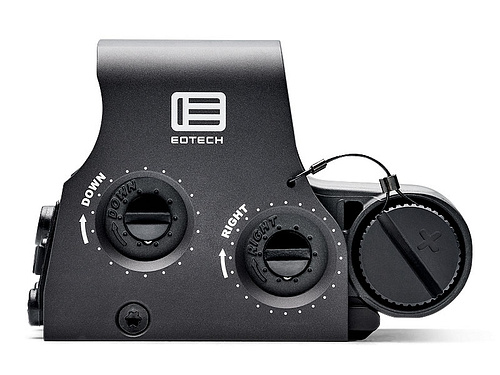

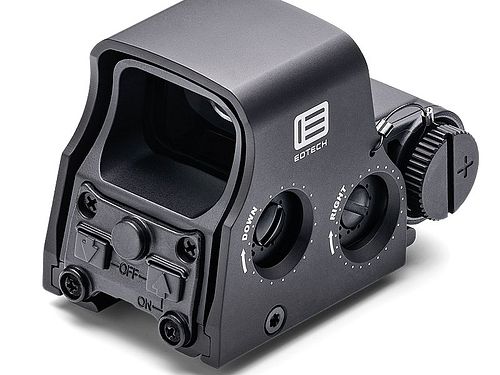

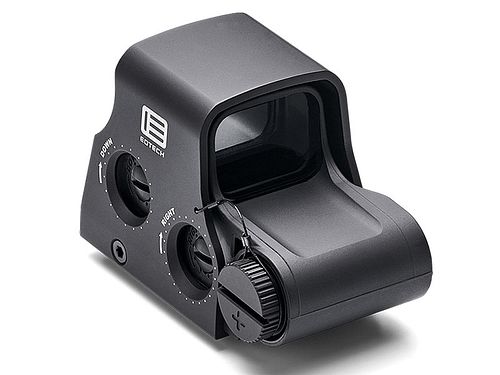

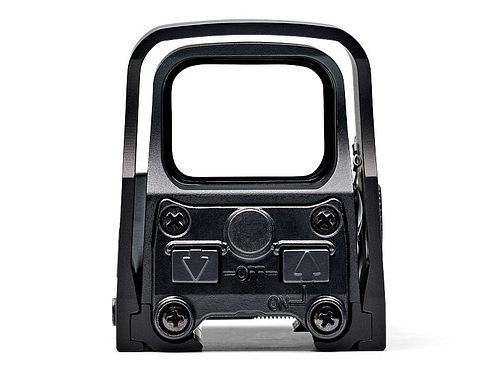

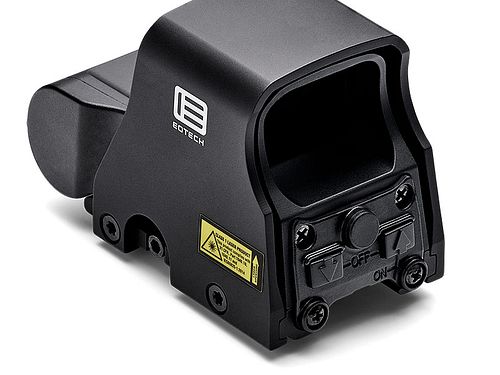

The XPS 2-2 from EOTECH (the little brother of the slightly more expensive model EXPS 2-2) is also among the best holographic sights currently available in terms of quality. In terms of workmanship, quality, and performance, this high-end reflex sight is truly worth its price. The nearly indestructible housing is additionally protected by a protective hood made of hard-anodized, matte black aluminum. The battery compartment is accessible from the side, and the controls are located on the back, facing the shooter. The compact design of the system also takes up very little space on your Picatinny rail, ~67 mm is more than sufficient here.

But it's not just the workmanship that is top-notch at EOTECH - the holographic reticle, consisting of hundreds of small dots, ensures high sharpness and low glare. The 2-point reticle is specifically calibrated with hold points for the caliber .223. In addition to the 1 MOA center point, there is another 1 MOA point below as a hold point for ~460m. The 68 MOA large circle primarily serves for quick target acquisition during hunting or dynamic disciplines (30 cm at 50m). This ballistic reticle was developed for 5.56 NATO/.223 cal with 62 g M855 FMJ at approximately 2,680 fps with a 14.5-inch barrel. When using different ammunition or barrel lengths, the reticle points may vary slightly.

Differences to the EXPS model: Brightness control at the back of the device (on EXPS it is on the side, making it easier to operate in position), On EXPS: Quick mounting system - XPS with Torx screw for fixation. The height of the optical axis is approximately 38mm for the 55x and XPS models, and about 45mm for the EXPS models.

In short - simply brilliant and definitely worth the money!

What are the differences between the variants?

XPS - the base

- no quick release
- controls are located at the back (towards the shooter)
- height of the optical axis approx. 38mm

EXPS - the tactical

- quick release
- controls are located on the side (left)
- height of the optical axis approx. 45mm

2 - the civilian

- no night vision mode

3 - the operator

- night vision mode

What are the different reticles?

-0

- the standard reticle
- 1 MOA point with 65 MOA circle

-1

- 1 MOA point, ONLY the point

-2

- 1 MOA point with 65 MOA circle
- another 1 MOA point below the first, for 500yds (at 50/200yds zero)

-4

- 1 MOA point with 65 MOA circle
- three additional 1 MOA points below the first, for 400, 500 & 600yds (at 50/200yds zero)

This results in, for example:

XPS2-0

- without quick mount
- rear controls
- without night vision mode
- circle-dot reticle

EXPS3-4

- quick mount
- side controls
- with night vision mode
- circle-dot reticle with 3 additional hold points

The night vision mode adjusts the illuminated reticle down so that there is no glare from night vision devices (NVG-compatible).

Reticle:

Highlights:

- 1x magnification
- Parallax-free
- Illuminated reticle: ballistic hold points for caliber .223 (up to 500m)

- 2 MOA red dots (center ~45-180m + 1 hold point ~460m)
- 68 MOA ring (30cm / 100m)

- Unique illuminated ring structure made of many small dots, resulting in low dispersion
- 20 brightness levels for very fine adjustment in daylight
- Programmable shutdown (automatic)
- Not compatible with night vision devices
- Includes Picatinny / Weaver mount
- Waterproof up to 3m diving depth
- Fog-free due to hermetic sealing of the housing
- Protective hood made of hard-anodized, matte black aluminum
- Shock-resistant housing made from a block of aircraft aluminum
- Remaining energy warning

Scope of delivery:

EOTech XPS2-2™
Quick start guide

The manual in German can be found I

Note on products from EOTECH:

The packaging of the products will be opened upon arrival in Germany to verify the serial numbers with the manufacturer's specifications, meaning that any "seal stickers" may no longer be intact. The battery is already installed from the factory. Due to these procedures, it may be possible that mounting traces are visible. This is completely normal. This is NOT B-goods!

Technical data:

Magnification: 1x
Eye relief in mm: unlimited
Reticle: 2 x 1 MOA dots + 68 MOA ring
Illuminated reticle: yes (red)
Brightness levels: 20x
Reticle adjustment / click: 0.5 MOA (100 m)
Max. reticle adjustment height: ± 40 MOA
Max. reticle adjustment side: ± 40 MOA
Temperature range: -40°C to +60°C
Size in mm: 95 x 61 x 61 mm (l x w x h)
Weight in g: 250 g
Battery: yes, CR123

EOTECH produces professional optics that are trusted by leading professionals worldwide. Unmatched speed, accuracy, and reliability are cornerstones of this legendary brand. Since 1996, EOTECH Holographic Weapon Sights (HWS) have been designed, developed, and manufactured in the USA. In 2016, EOTECH expanded its optics series with the introduction of the Vudu line of premium magnified optics, designed for the most demanding users. The rigorous standards require a continuous focus on product quality, not quantity, to ensure that the highest specifications are not only met but exceeded. When there is no room for error, compromises are not an option. Exactly the right league, where EOTECH feels at home.
