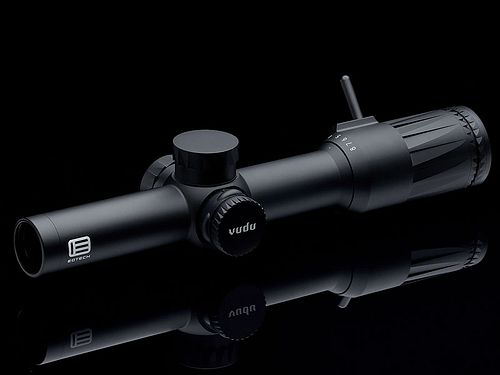

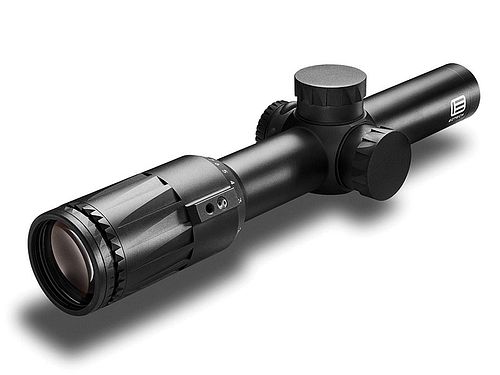

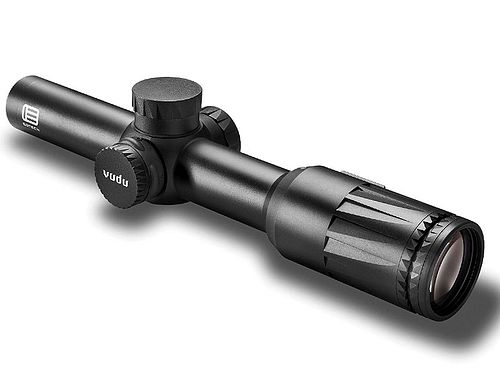

EOTECH Vudu 1-8x24 SFP HC3 (MOA)

Anyone looking for a universal, high-quality riflescope for short to medium distances or specifically for 3-Gun will be well served with the EOTECH Vudu 1-8x24 HC 3 BDC. This high-end sighting optic features an extremely stable 30mm aircraft aluminum housing and a one-piece eyepiece with a removable lever for quick, smooth magnification changes. The elevation adjustment turret and the windage adjustment turret are protected by a cap and allow for a secure zeroing.

The HC3 BDC reticle was specifically designed for 3-Gun competitions and enables quick, precise shots at varying distances through its 4 holdover marks and fine reticle. Due to its construction in the second focal plane (SFP), the reticle remains the same size for the shooter at any magnification level. At 8x magnification, the reticle shows its strengths, with the holdover points designed for this magnification, providing 0.5 MOA (approximately 1.4cm/100m) holdover points with marks at 2, 5, 8.5 & 12.5 MOA (1 MOA = 29mm/100m).

The EOTECH Vudu 1-8x24 offers uncompromising quality and truly meaningful features along with a brilliant reticle - all designed for competitive shooting.

Product details:

8x magnification
XC™ glass - high density and low dispersion
Anti-reflective coating for efficient light transmission and unmatched clarity
Material: high-quality one-piece aircraft aluminum body.
Very high shock resistance & single eyepiece construction
Laser-etched adjustment indicators and push-button illumination control
HC3 BDC illuminated reticle, glass-etched with MOA holdover points in the second focal plane
10 brightness levels
Nitrogen-filled: waterproof, fog-resistant

The manual in German can be found here.

Note on products from EOTECH:

The packaging of the products is opened upon arrival in Germany to verify the serial numbers with the manufacturer's details, meaning that any "seal stickers" may no longer be intact. The battery is already installed from the factory. Due to these procedures, it may be possible that mounting traces are visible. This is completely normal. This is NOT B-grade merchandise!

Technical specifications: Vudu 1-8x24

Magnification:
1-6x


Objective diameter:
24 mm


Eye relief in mm:
88 - 104


Field of view at 100 m in m:
32.2 / 4


Reticle:
HC3 (MOA)


Illuminated reticle:
yes


Brightness levels (dimmable):
10


Reticle plane:
2nd focal plane SFP (eyepiece plane)


Reticle adjustment / click:
0.25 MOA (approximately 7mm/100m)


Adjustment range per revolution:
20 MOA (approximately 58cm/100m)


Max. reticle adjustment height:
100 MOA (approximately 2.9m/100m)


Max. reticle adjustment side:
80 MOA (approximately 2.3m/100m)


Tube diameter in mm:
30


Total length in mm:
278


Weight in g:
approximately 590


Battery:
CR2032

EOTECH produces professional optics that are trusted by leading professionals worldwide. Unmatched speed, accuracy, and reliability are cornerstones of this legendary brand. Since 1996, EOTECH Holographic Weapon Sights (HWS) have been designed, developed, and manufactured in the USA. In 2016, EOTECH expanded its optics line with the introduction of the Vudu line of premium magnified optics designed for the most demanding users. The rigorous standards require a continuous focus on product quality, not quantity, to ensure that the highest specifications are not only met but exceeded. When there is no room for error, compromises are not an option. This is exactly the right league where EOTECH feels at home.
