EOTECH Vudu 3-9x32 SFP Ultra Short HC1 Reticle (with EFLX + Mounting Ring Complete Package)

Available from stock with us. Pay attention to the respective delivery time indication.

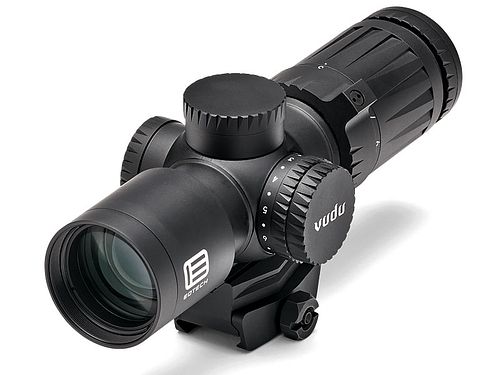

The EoTech VUDU 3-9x32 SFP is an ultra-compact riflescope with variable magnification. Weighing only 454g including mount and measuring just 17.3cm in length, it is even lighter than some prism sights and only slightly longer - but features variable magnification. Despite its compact design, the scope is of course shockproof, waterproof, and nitrogen-filled. The integrated mount keeps the weight low and can be replaced with any mounts with a mini-ACOG footprint if needed. With an optical axis of 39.7mm (~ 1/3 co-witness) above the Picatinny rail, the Vudu 3-9x32 SFP is tailored for AR platforms and comparable weapon systems. The entire system, including the reticle, is designed for dynamic shooting situations while also placing high importance on precise single shots.

The HC1 reticle in the Second Focal Plane is simple and functional, clearly designed for its intended purpose. The fine aiming point covers only about 3.5cm (1.2MOA) at 100m at 9x magnification (10.4cm at 3x magnification), the hold marks have a distance of 5.8cm (2 MOA) and are approximately 7.3cm (2.5 MOA) and 14.5cm (5 MOA) long - at 100m at 9x magnification. The inner crosshair and part of the vertical hold marks are illuminated, with generous illumination allowing for a battery life of about 300h and featuring a total of 10 brightness levels.

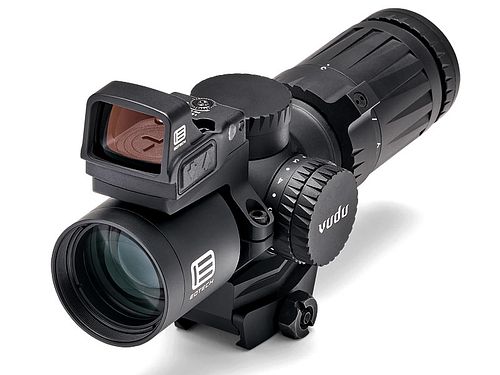

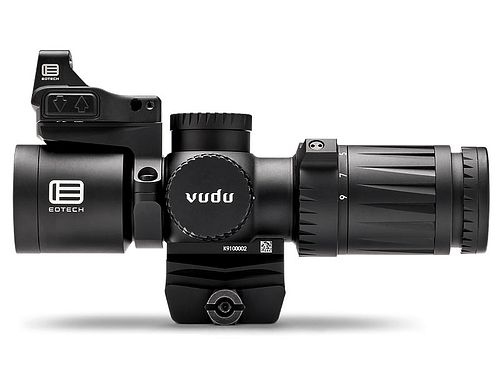

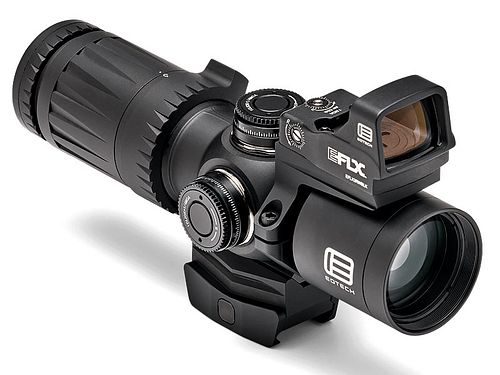

The Vudu 3-9x32 is available as a variant including an EoTech EFLX with a 3 MOA dot, which can be mounted on the scope using a ring mount - at 12 o'clock or at a 45° angle, depending on preference and intended use.

Tip:
The Vudu 3-9x32 is ideally suited for firearms where optics mounting was initially an afterthought - in addition to use on AK models (see below), it can be mounted on the roller-delayed weapons from HK (G3, HK33, MP5, and clones), as the scope does NOT conflict with the charging handle when mounted correctly. The low weight is also advantageous for weapons like the Springfield M1A1, as mounts on this weapon are notoriously sensitive. The simple mini ACOG footprint offers various mounting options, so you are not solely reliant on the Picatinny mount designed for AR systems.

For the new Eotech Vudu 3-9x42, there is even an AK47 side mount from Midwest (image for reference only):

Product details:

EoTech Vudu 3-9x32 SFP

Second Focal Plane / Zweite Bildebene

ultra-compact universal scope for medium distances
Variant including Eotech EFLX 3MOA with mount
Adjustment: 0.25 MOA (approx. 7mm/100m)
Adjustment range

horizontal: 60 MOA (approx. 174cm/100m)
vertical: 90 MOA (approx. 261cm/100m)

Reticle: HC1

illuminated
10 brightness levels
approx. 300h illumination duration with CR2032

including Picatinny mount
Height of optical axis: 39.7mm
Eye relief

64-81mm (3x)
59-79mm (9x)

Field of view

11.6m (3x)
3.9m (9x)

Length: 17.3cm
Weight: 454g

including mount

The manual in German can be found here

Note on products from EOTECH:

The packaging of the products is opened upon arrival in Germany to verify the serial numbers with the manufacturer's details, meaning that any "seal stickers" may no longer be intact. The battery is already installed from the factory. Due to these procedures, it is possible that mounting traces are visible. This is completely normal. This is NOT B-grade merchandise!

EOTECH produces professional optics that are trusted by leading professionals worldwide. Unmatched speed, accuracy, and reliability are cornerstones of this legendary brand. Since 1996, EOTECH Holographic Weapon Sights (
HWS) designed, developed, and manufactured in the USA. In 2016, EOTECH expanded its optics line with the introduction of the Vudu line of premium magnified optics, designed for the most demanding users. The exacting standards require a continuous focus on product quality, not quantity, to ensure that the highest specifications are not only met but exceeded. When there is no room for error, compromises are not an option. Exactly the right league, where EOTECH feels at home.
