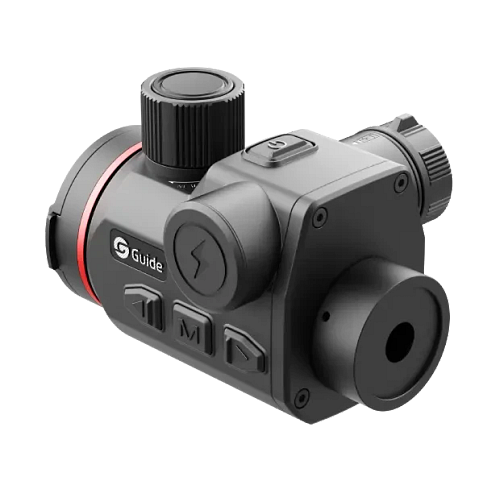

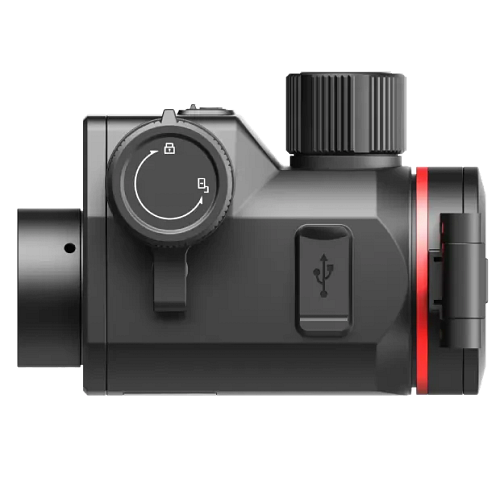

Guide Orion O 435 CS

The Guide Orion 435CS is designed as a compact thermal imaging attachment for professional use and serves for precise wildlife observation and target identification in complete darkness or difficult visibility conditions. By integrating the state-of-the-art APEXVISION infrared imaging system, this model enables reliable detection of thermal signatures at long distances.

Model


Guide Orion O435CS




Core Technology


Complete ApexVision-S1 system architecture (ApexCore-S1 detector, Nexus-1.0 platform, Hyper-Light-2.0 algorithm)




Sensor Type


Uncooled VOx infrared detector, 8 to 14μm




Resolution / Pixel Pitch


400 × 300 @ 12 μm




Thermal Sensitivity (NETD)


≤ 15 mK




Frame Rate


50 Hz




Objective Lens


35 mm, F0.9




Field of View (H × V)


7.9° × 5.9°




Field of View at 100m


13 m




Magnification


1x




Max. Magnification of Optics


Up to 10x




Detection Range


1800 m / 1950 yd




Display Type


0.49” AMOLED, 1024 × 768 pixels




Color Palettes


White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia




Eyepiece


Exit pupil distance 20mm




Memory Profiles


5 correction profiles storable




Battery Type


Single, replaceable 18500 battery




Operating Time


8 hours




Shock Resistance


6000 J




Protection Class


IP67




Weight (Housing)


285 g / 10.05 oz

Dimensions 99 × 73 × 68 mm
