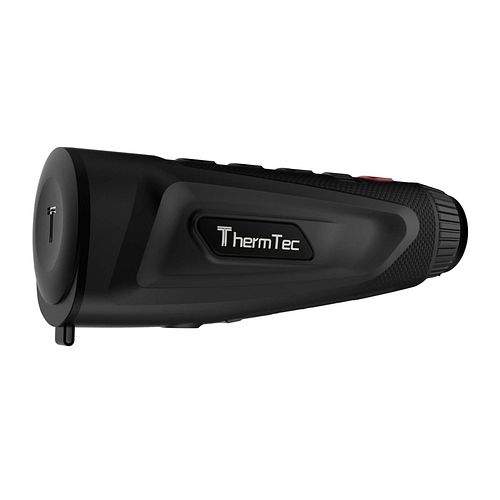

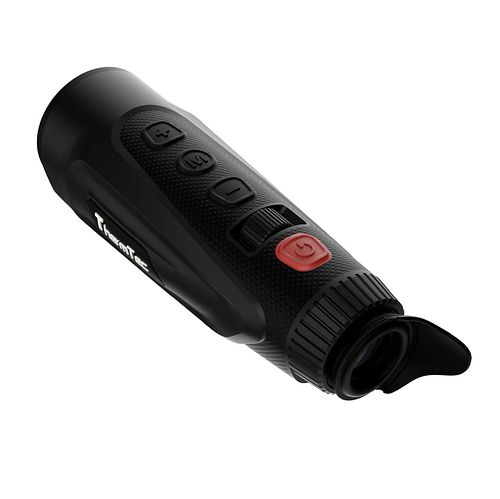

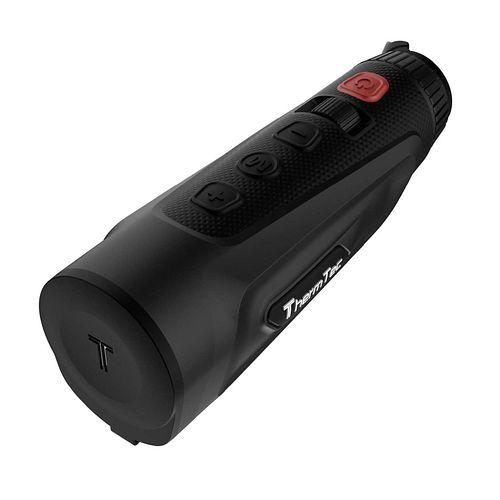

Thermtec Cyclops 335L

The new Cyclops 335L 3.0 is the next generation of the popular Cyclops Pro series. The complete design has been revised and refined, all taking into account customer wishes and suggestions. It features the latest sensor technology with a system performance (NETD) of ≤ 18 mK and a newly tuned image algorithm, resulting in a very sharp and high-contrast image. The laser rangefinder (LRF) is now mounted on the lens without negatively affecting it. Additionally, the monocular has a new, large 0.5-inch AMOLED display, providing even more detail recognition. Focusing is done using an innovative principle with the focus wheel placed at the top, which can be adjusted very precisely and sensitively with one finger. Furthermore, the new Cyclops 335L 3.0 features a battery replacement system that operates with the popular 18650 battery. Thanks to the second battery included in the package, a operating time of up to 14 h is generated. The hotspot connection allows the user to control and display in the app (via Wi-Fi connection of the thermal imaging device with a smartphone or tablet). This way, you have the option to share the live image or images/videos recorded through the device with other users or friends in real-time.

Manufacturer ThermTec Cyclops 335L 3.0 Pro Objective lens Ø (mm) 35 Lens system F0.8 Frame rate (Hz) 50 Pixel size (µm) 12 NETD value @300k (system performance) < 18 mK Battery life (power-saving mode) 7 hours Resolution of the microbolometer (pixels) 384x288 Sensor type (sun-proof) VOx Field of view horizontal/vertical (°) 7.5x5.6
Field of view at 100 m  13.2 m AMOLED Display resolution (pixels) 1600 x 1200 Optical magnification  4.3x Digital magnification (zoom) 1x - 4x continuously variable Diopter adjustment for glasses wearers Yes Color palettes  6 Detection distance / Recognition (Human) 1800 m / 827 m Detection distance / Recognition (Deer) 1750 m / 860 m Wi-Fi connection (2-way Wi-Fi) Yes Hotspot connection Yes Laser rangefinder Yes Marker laser  No Object alarm (via APP) Yes Hotspot marking function Yes PIP (Picture in Picture) Yes Recording function Yes Playback function  Yes
Manual focus Yes Internal memory (GB) 64 Protection class  IP67 Tripod thread 1/4" Yes Weight (g) 470 Dimensions LxWxH (mm) 181x62x63 Operating temperature -20° C / + 50 ° C Battery type Li Ion Supply voltage (V) 3.7 External power supply USB (V)  5
