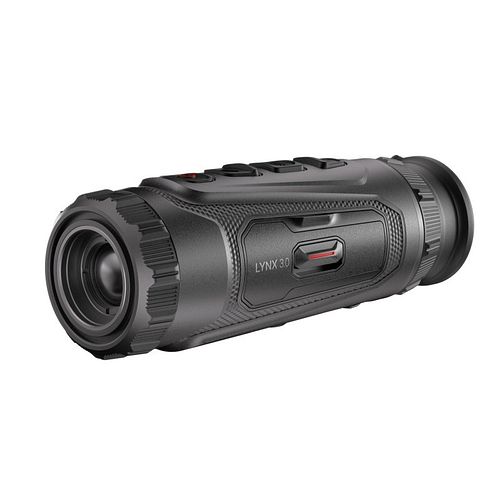

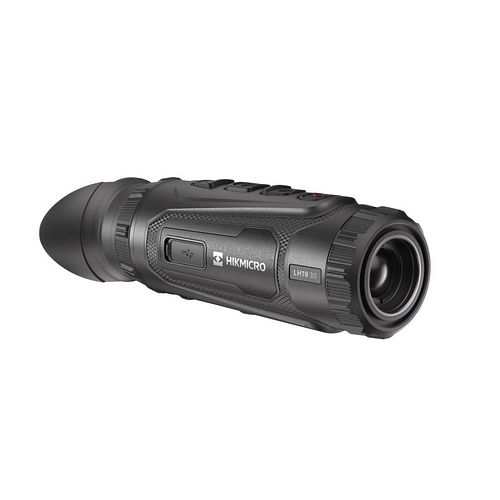

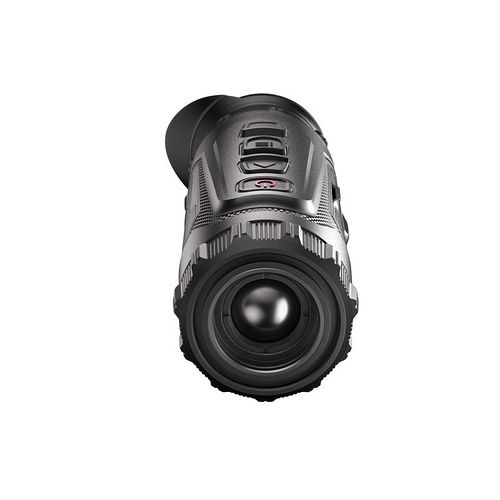

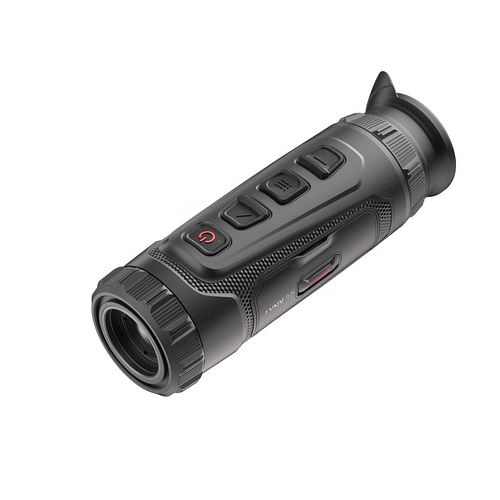

Hikmicro Lynx LH 19 3.0

HIKMICRO Monocular Lynx LH19 3.0 – Compact Thermal Imaging Monocular with 384 Sensor

The HIKMICRO Lynx LH19 3.0 is a versatile thermal imaging monocular for demanding applications. With its 384 × 288 pixel VOx thermal imaging sensor, a 19 mm F1.0 lens, and a base magnification of 1.9×, it provides a wide field of view of 13.8° (24.2 m at 100 m) and a detection range of up to 900 m.

The combination of HIKMICRO Shutterless Image System (HSIS) for silent calibration, AI-supported image optimizations such as Image Pro 3.0 and Zoom Pro, as well as the large 0.49″ AMOLED display with 1920 × 1080 pixels ensures sharp, high-contrast images.

With its lightweight design of only 331 g, IP67 protection class, and a battery life of up to 5 hours, the LH19 3.0 is the ideal companion for hunters, nature observers, and professional users who value mobility, range, and image quality.

Main Features:

• 384 × 288 @ 12 μm VOx thermal imaging sensor for precise details
• NETD < 15 mK for outstanding image quality even in difficult weather conditions
• 19 mm F1.0 lens with up to 900 m detection range
• 1.9× base magnification, wide field of view of 13.8°
• 0.49″ AMOLED display with 1920 × 1080 pixels
• HIKMICRO Shutterless Image System (HSIS) for silent calibration
• Image Pro 3.0 & Zoom Pro for optimized image sharpness
• Internal 64 GB storage for photo and video recordings
• Up to 5 hours of runtime with replaceable 18650 battery
• Compact, robust housing, IP67 certified

Technical Specifications:

Thermal Imaging Module:
• Sensor: VOx Uncooled Focal Plane Arrays
• Resolution: 384 × 288 pixels
• Frame Rate: 50 Hz
• Pixel Pitch: 12 μm
• Spectral Range: 8 – 14 μm
• NETD: < 15 mK (@ 25 °C, F#=1.0)
• Lens: 19 mm, F1.0, focus via focus ring
• Minimum Focus Distance: 3 m
• Magnification: 1.9× – 15.2× (8× digital)
• Field of View: 13.8° × 8.4° (24.2 × 14.7 m @ 100 m)
• Detection Range: 900 m

Display & Functions:
• Display: 0.49″ AMOLED, 1920 × 1080 pixels
• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red & Green Monochrome
• Image Optimization: Image Pro 3.0, Zoom Pro, HSIS
• Functions: PIP, Hot Track, Distance Measurement, Video & Audio Recording, Snapshot
• Storage: Internal 64 GB EMMC storage
• Connectivity: 2.4 / 5 GHz WiFi hotspot

Battery & Runtime:
• Battery: Replaceable 18650 Li-Ion battery
• Operating Time: ≥ 5 h (at 25 °C, WiFi on) / ≥ 4.5 h (at −20 °C, WiFi on)
• Charging: Type-C connection (5 V DC, 2 A), supports external power supply

Housing & Protection:
• Protection Class: IP67 (dust and waterproof)
• Operating Temperature: −30 °C to +45 °C
• Dimensions: 158.4 × 53.6 × 49.5 mm (≈ 15.8 × 5.36 × 4.95 cm)
• Weight: 331 g (with battery)
