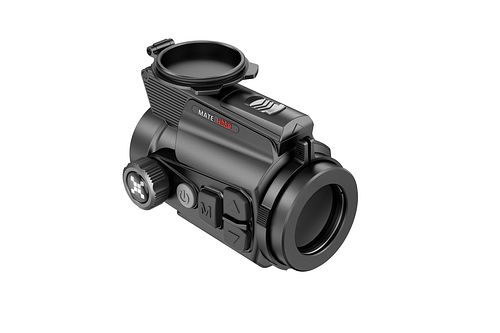

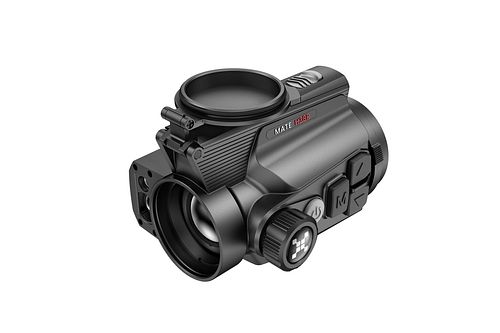

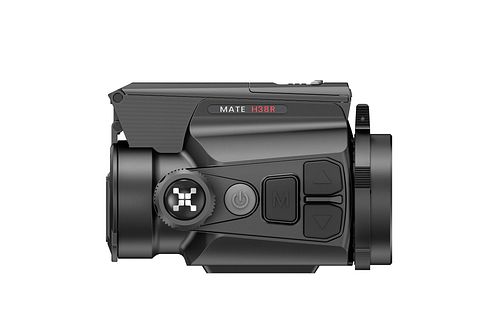

Nocpix Mate H38R

The new NOCPIX MATE H38R - a classic among thermal imaging attachments

The Nocpix Mate H38R is one of the most powerful thermal imaging attachments in the mid-range, alongside the Mate H50R. Equipped with a highly sensitive VOx sensor (640 × 512 pixels at 12 µm) and an extremely low NETD value of 15 mK, the device delivers razor-sharp thermal images – even in challenging weather conditions.

The integrated laser rangefinder with a range of up to 1200 m and ballistic calculation ensures precise target acquisition. This makes the device ideal for hunting applications where accurate distance measurements are crucial.

Another highlight is the 18650 interchangeable battery system, which allows for a runtime of approximately 4 hours and can be easily replaced in the field. Despite its performance, the device is pleasantly lightweight and compact at 457 g (including battery).

Thanks to the integrated Magic Zoom function, the user interface remains visible even at zoom levels, and the image is automatically optimized at high magnification via r+.

The AMOLED display (1920 × 1080 px), 60 Hz refresh rate, integrated WiFi, video recorder with 32 GB storage, manual focusing, USB-C connection, and IP67 certification complete the overall package.

Technical specifications of the Nocpix Mate H38R: Warranty conditions Adapter connection: M52 Connection: USB-C (data / video) Screen resolution: 1920 x 1080 pixels (AMOLED) Detector resolution: 640 x 512 pixels (VOx) Eye relief: 20 mm Frame rate: 60 Hz Remote control (30-day battery) Weight: 457 g (with battery) Laser rangefinder: 1200 m Dimensions: 115 x 85 x 76 mm Objective lens: 38 mm / F1.0 Pixel size: 12 µm (pitch) Range: 1950 m (human) Recoil force: 7000 Joules Protection class: IP67 Field of view: 11.6 x 8.7 ° Field of view at 100 m: 20.5 x 15.4 m Power supply: 18650 battery (4 h) Temperature sensitivity: 15 mk (NETD) Magnification: 1 – 4 x (digital) Magnification: 1 x (optical) Video recorder (64 GB) WiFi
