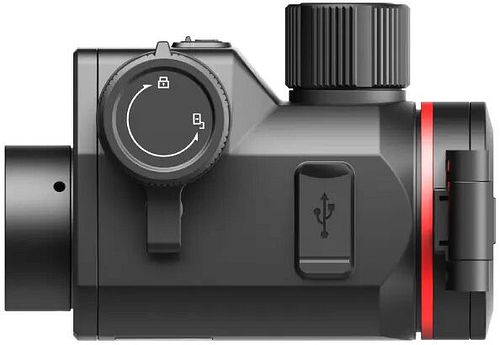

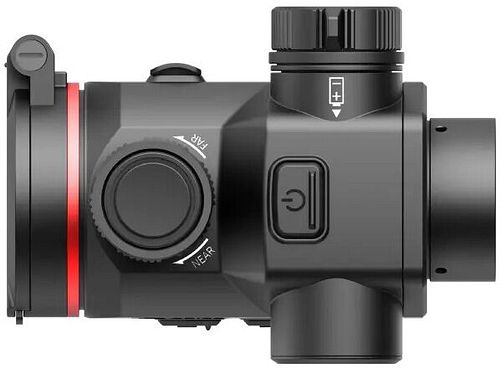

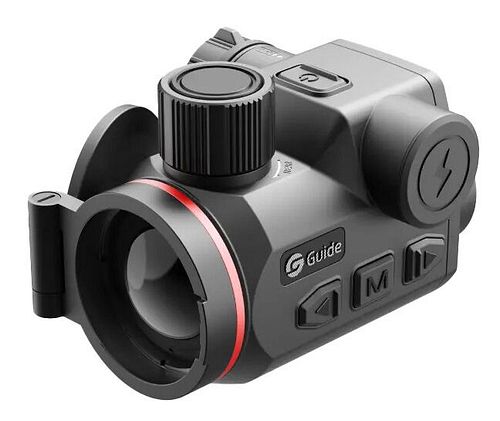

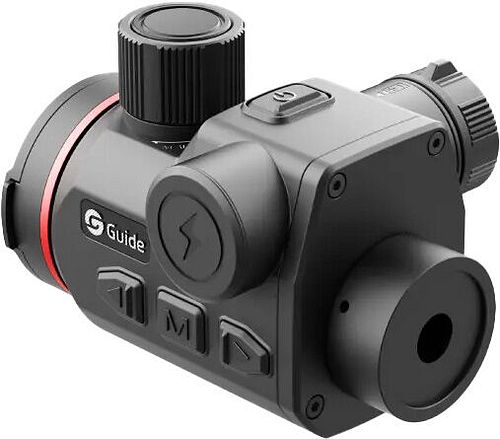

Guide Orion O435CS

Typ: Thermal Imaging Scope
Sensor: uncooled VOx infrared detector, 8 to 14 μm
Auflösung / Pixelpitch / NETD: 400×300 px @ 12 μm / ≤15 mK
Bildfrequenz: 50 Hz
Objektivlinse: 35 mm, F0,9
Sichtfeld: 13x10 m auf 100 m / 7,9x5,9°
Vergrößerung: 1x
max. Vergrößerung der Optik: ≤10x
Erfassungsbereich: 1.800 m
Display: 0,39” AMOLED, 1.024×768 px
Farbpaletten: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Austrittspupillenabstand: 20 mm
5 Korrekturprofile speicherbar
Schnittstelle: USB-C
Akku: replaceable 18500 battery
Betriebszeit: 8 h
Betriebstemperatur: -20 °C bis 50 °C
Schockfestigkeit: 6.000 J
Schutzklasse: IP67
Gewinde: M33,5x0,75
Abmessungen: 99×73×68 mm
Gewicht (Gehäuse): 285 g
Sonstiges: Compact and lightweight, the thermal imaging scope Orion O435CS from Guide impresses with its excellent thermal differentiation capability.
Guide has optimally coordinated hardware and software in its Orion C-series thermal imaging scopes. In the ApexVision-S1 system architecture, the sensor and image-generating algorithms form a powerful unit. The ApexCore-S1 detector and the Nexus-1.0 platform capture objects fluidly and without ghosting, even when the object moves quickly. The AI-supported Hyper-Light 2.0, in turn, delivers contrast-rich and detailed images from the captured data, identifying the target and enabling the optimal shot. The thermal imaging scope Orion O435CS is the affordable entry-level model.
Der Sensor
The 400×300 px sensor with a 12 μm pixel pitch and an excellent NETD value of ≤15 mK detects even the smallest temperature differences in combination with the 35 mm F0,9 lens, even when fog, rain, or snow blur the temperatures of the game and its surroundings. The detection range is 1,800 m, and the field of view is 13x10 m at 100 m.
Das Display
The Orion O435CS features a 0.39-inch display with a resolution of 1,024x768 px. The menu navigation is intuitive, and depending on the hunting situation and personal preferences, 7 color palettes are available: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, and Sepia. The object is displayed with a latency of only 26 ms, almost in real-time, significantly reducing the risk of missed shots. The Hyper-Light 2.0 AI algorithm generates AI-supported brilliant, detailed images, optimally adjusting contrast and brightness to the environment. Potential targets are highlighted and thus remain in view. The display reduces eye strain during longer operations.
Das Gerät
Weighing only 285 g, the Orion O435CS is a lightweight that hardly affects the balance of the rifle. It is suitable for almost all calibers with a shock resistance of up to 6,000 J. 5 correction profiles can be stored. It is waterproof and dustproof according to IP67 standard. After pressing the start button, the scope is ready for use in 3 seconds. With its simply and logically placed buttons and the large precise focusing wheel, operation is intuitive, even in cold weather and with gloves. The device is powered by 1 rechargeable 18500 battery. Its charge lasts for up to 8 hours, and swapping with the included spare battery can be done in no time. The Orion devices have an M33,5x0,75 thread.
Lieferumfang
Scope
Carrying case
Accessory pouch
Charger
2 x 18500 battery
USB-A to USB-C cable
Optics cleaning cloth
Quick start guide
Warranty card
