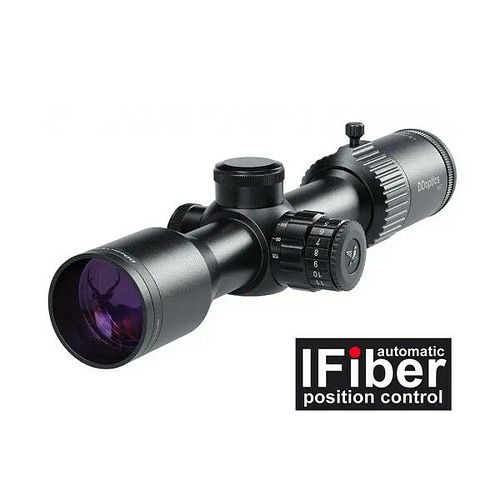

DDoptics V10 1.5-15x40 NXT MRAD A4D i-Fiber

DDoptics V10 1,5-15x40 NXT MRAD A4D i-Fiber

· V 10 Short Version with 10-fold zoom range
· more field of view & better eye relief (up to 24m)
· less edge area in the view
· reticle adjustment with larger metal turrets
· internal zero stop
· CT glass (Clear Transmission) (low dispersion)
· extremely low stray light values (few backlight problems)
· 0.1 MRAD click adjustment (1cm/click)
· adjustment range: 500 clicks = 5.0 m at 100 m = 50 Mrad
· new design of the magnification adjustment ring with quick adjustment lever
· New reticle 4 (A4D) with significantly finer bars
· Accessories: 1x flip caps, cleaning cloth, DDoptics chip, target sheets, target optics manual, ballistic set
· DDoptics ® Automatic illuminated dot I-Fiber

DDoptics riflescope NXT V10 1,5-15x40 A4D MRAD

Your versatile companion for every type of hunting Experience the highest precision and versatility with the DDoptics riflescope NXT V10 1,5-15x40 A4D MRAD.

This riflescope combines state-of-the-art technology with a thoughtful design to meet all the demands of hunting use.

Light and compact

With an extremely lightweight and a length of only about 280 mm, the NXT V10 is classified as one of the so-called "short" riflescopes. This compact design is particularly well-suited for use with attachment devices without compromising handling.

Versatile application range

The NXT V10 is the ideal companion for all types of hunting. The low magnification of 1.5x is perfect for driven hunts and allows for quick target acquisition at short distances. At the same time, the high magnification of 15x provides the necessary precision for mountain hunting and other demanding situations at long distances.

Whether stalking or night hunting with an attachment device – this riflescope will never let you down.

Precision and technology

The fine reticle 4D with fiber optic illuminated dot and Ifiber Automatic Position Control ensures unparalleled target accuracy. The DDoptics riflescope NXT V10 1,5-15x40 A4D MRAD is the ultimate all-round riflescope for any type of hunting. Lightweight, compact, and versatile, it combines state-of-the-art technology with top-notch craftsmanship and precision.

Whether on driven hunts, stalking, or night hunting – with the NXT V10, you are well equipped.

Precise, internal zero stop

After removing the turret caps of the reticle adjustment by loosening the upper screw on the turret, the turret cap can be removed upwards. Underneath is the so-called zero stop, which is recognizable as a round, black disc. The adjustment of the zero stop ideally takes place after zeroing the riflescope. For this purpose, the three set screws on the zero stop disc must be loosened (for new riflescopes, the ring is usually already loosened). In this state, the disc can be turned without influence to the upper stop. Once the disc has reached the stop position, it is fixed by tightening the set screws. The stop is clearly visible in the picture between the disc and the target optics. The turret is then reattached in the zero position, and the central turret screw is locked. The zero stop now ensures that the reticle adjustment stops exactly at the previously set zero position when turned back – that is, the distance at which the riflescope has been zeroed. A zero stop is particularly useful for quickly and precisely returning to the zero position after adjustments to the reticle adjustment, without the risk of turning too far. This is especially advantageous for hunting and sporting shots at varying distances, as one can rely on the zero position and fully concentrate on the target.

Technical data:

Weight in g: 700
Type of optics: riflescope
Magnification: 1.5-15x
Diopter adjustment: +-3
Generation: 2024
Coating: Multi
i Coated
Objective lens diameter in mm: 40
Exit pupil in mm: 2.2, 11.52
Field of view at 100 m (in m): 24-2.5
Eye relief in mm: 105-100
Reticle: German Reticle 4D ilu. IFIBER
Dot II: yes
Reticle image plane: 2 - SFP
Reticle adjustment / click: 0.1 MRAD
Reticle adjustment (scaling): double
Max. adjustment range: 50 MRAD
Parallax adjustment: 15-infinity
Surface: fine black
Main tube diameter in mm: 30
ASV Zerostop: yes
Objective diameter outside in mm: 46
Eyepiece diameter in mm: 45
Total length in mm: 285
