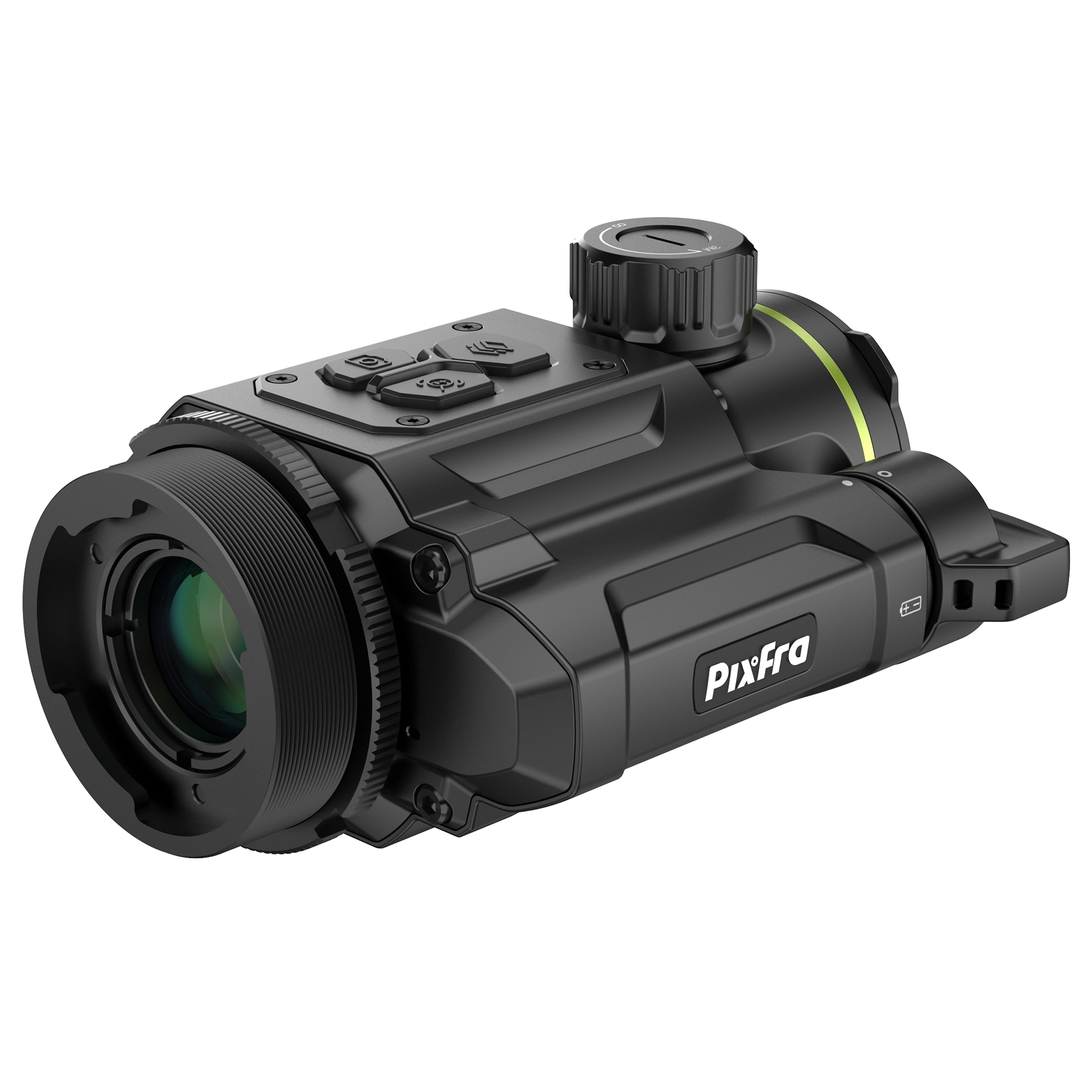

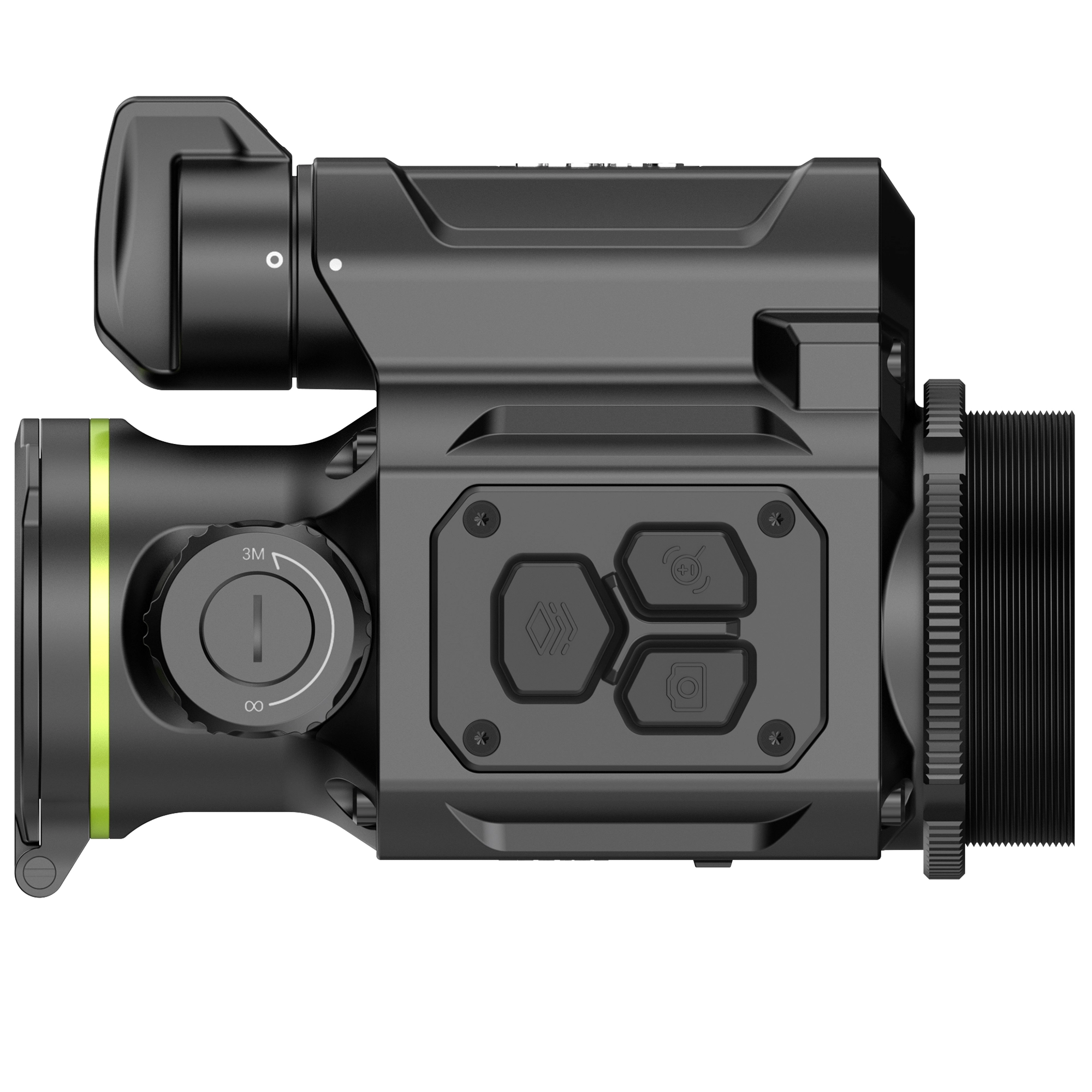

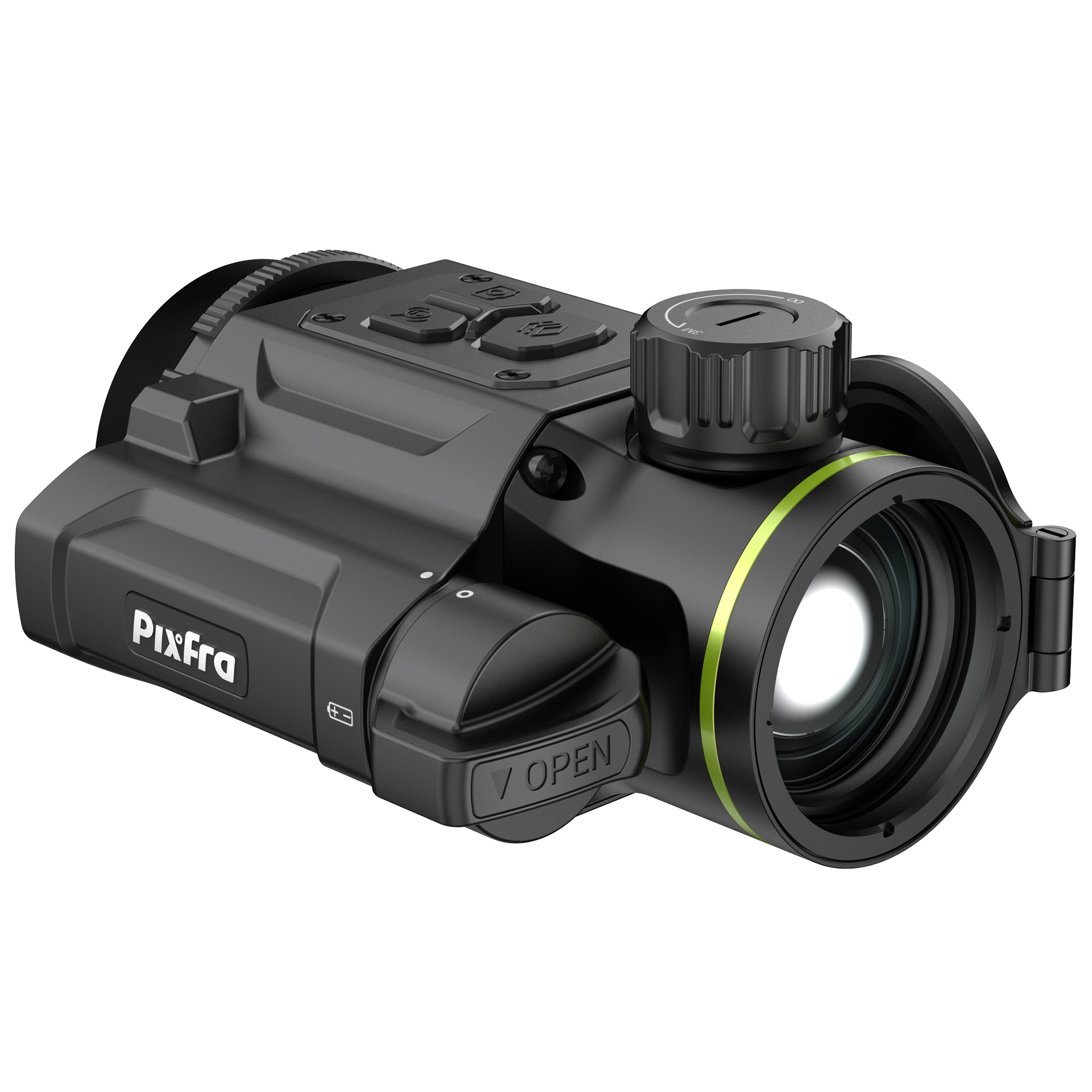

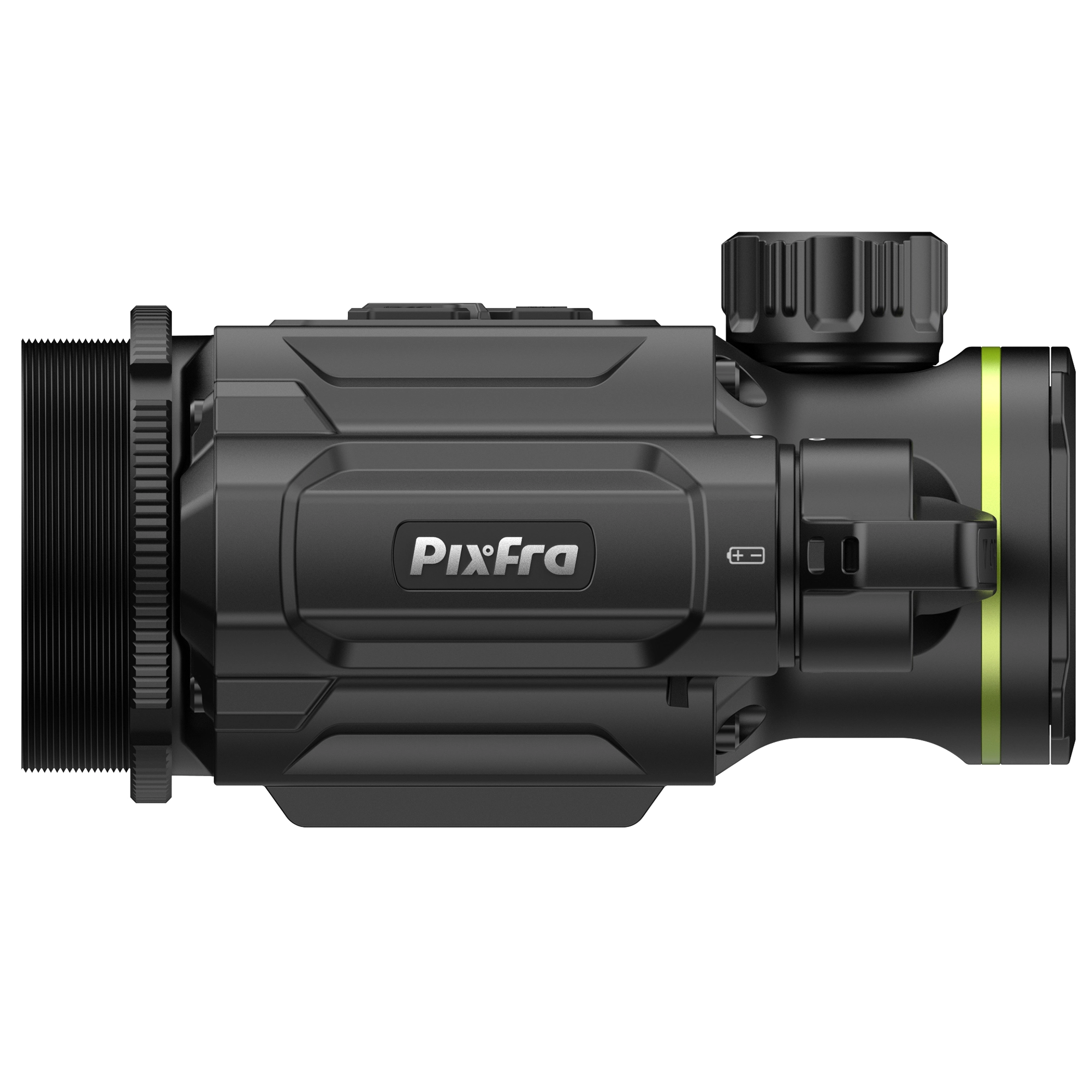

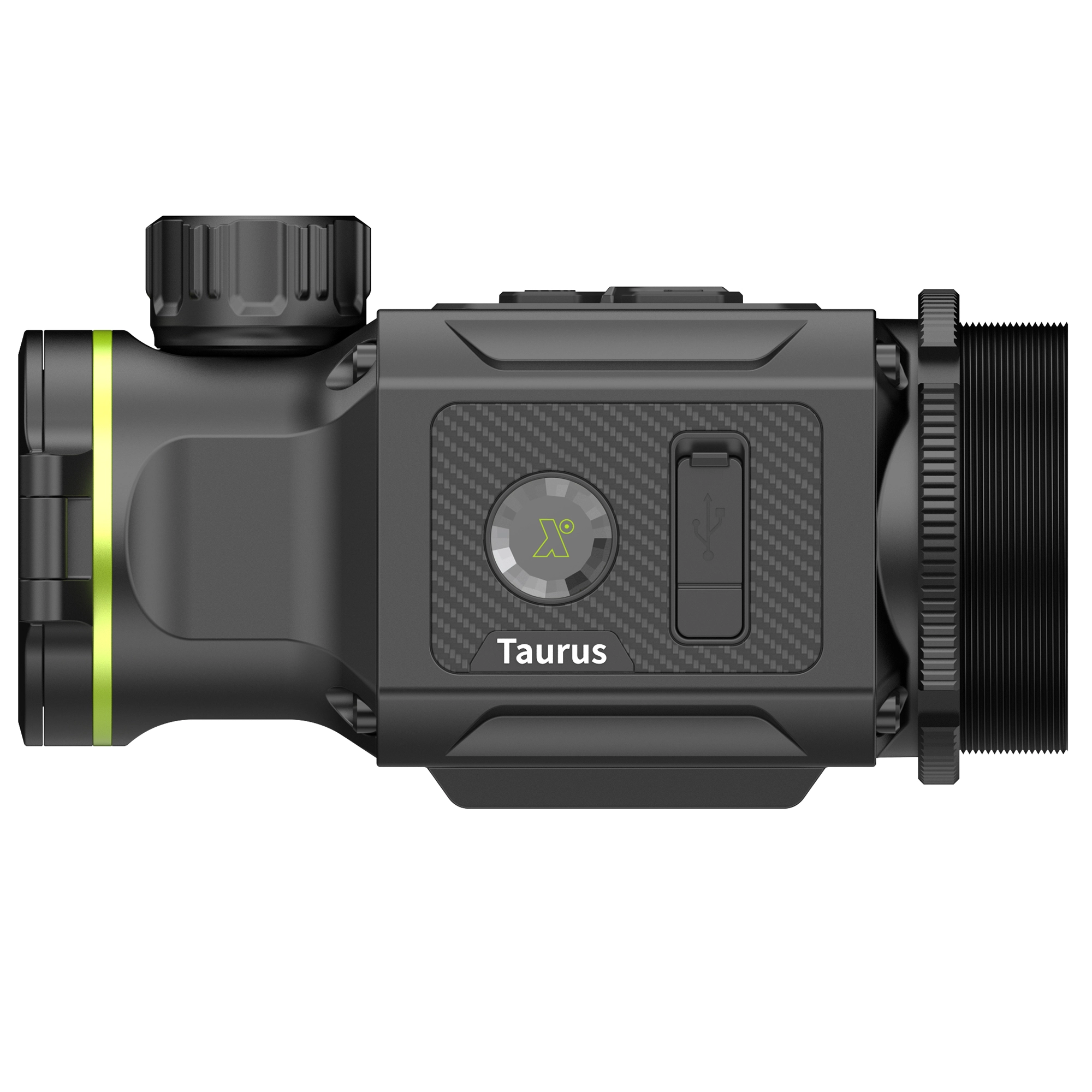

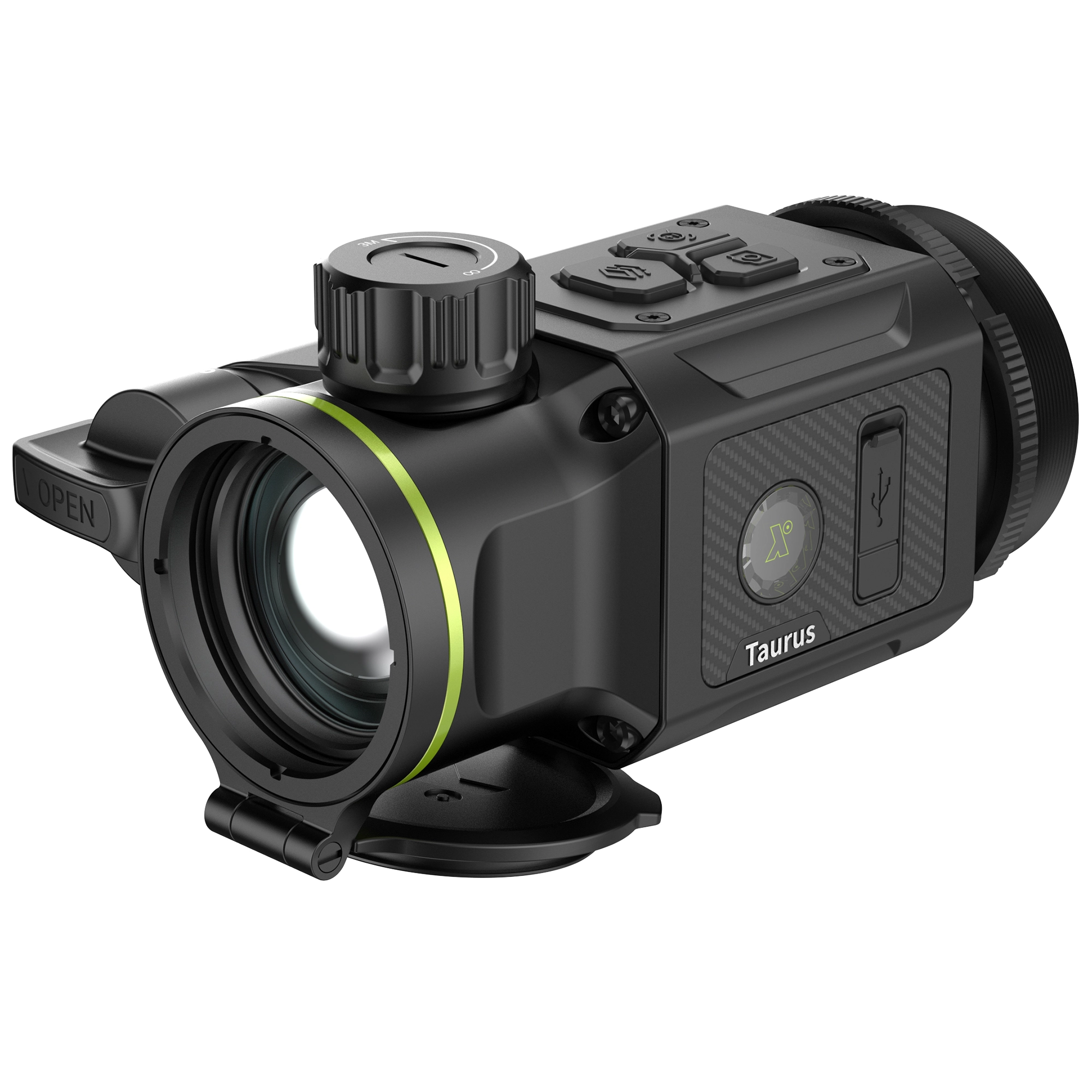

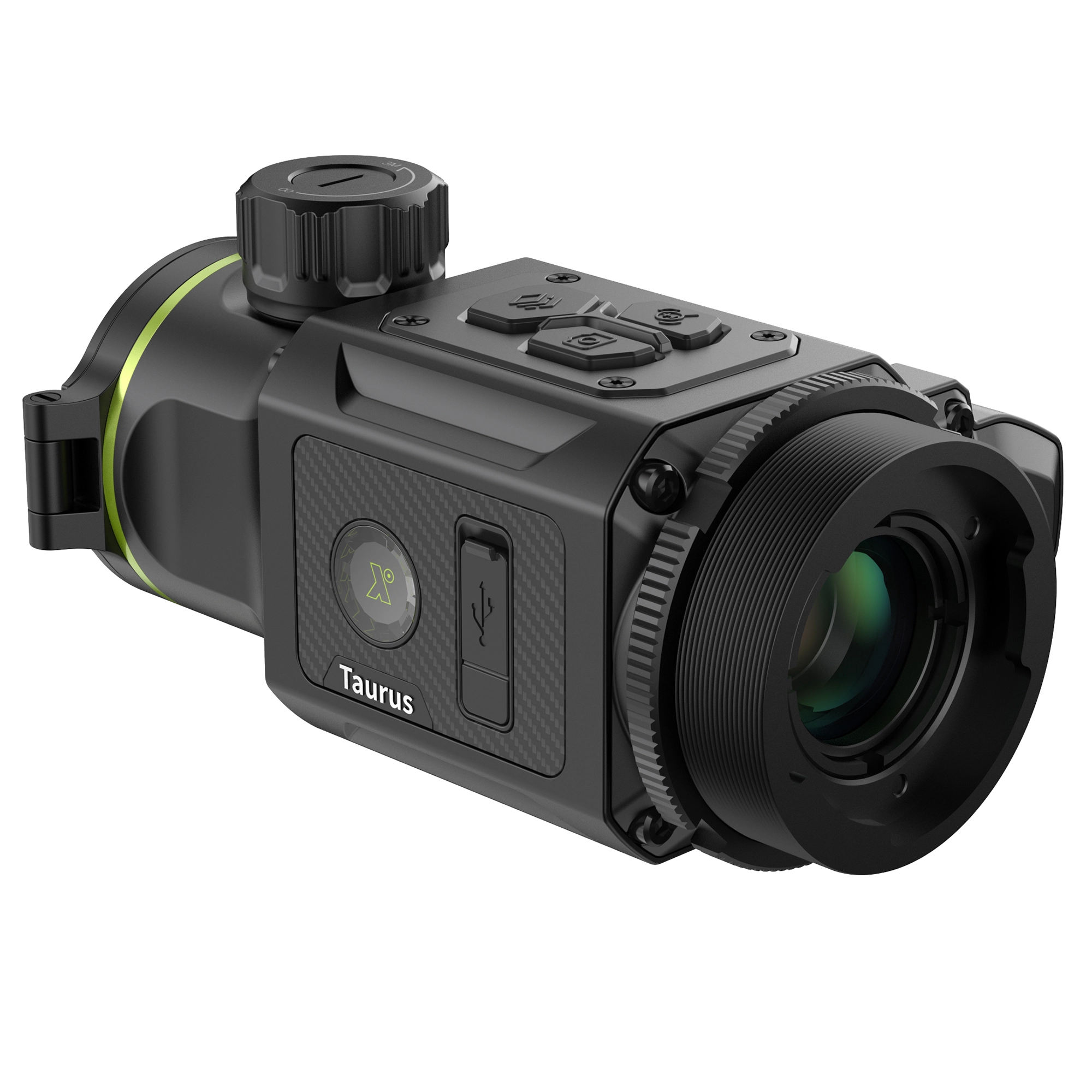

PIXFRA Taurus T650 thermal imaging attachment

High-resolution thermal imaging attachment for long distances and maximum range
The PIXFRA Taurus T650 is a powerful thermal imaging attachment specifically designed for demanding applications at medium to long distances. With its high-resolution sensor technology, large range, and compact design, it provides reliable support for observation in open terrain as well as in expansive hunting grounds.
Powerful 640 Sensor for Precise Image Representation
Equipped with a VOx sensor with 640 × 512 pixels and a pixel size of 12 µm, the device delivers a particularly detailed representation. The high thermal sensitivity of less than 18 mK allows even the smallest temperature differences to be made visible – for clear, high-contrast images even under difficult conditions.
Maximum range for long distances
The 50 mm f1.0 lens provides an exceptionally high detection distance of up to 2600 meters. At the same time, the field of view of 15.4 m × 12.3 m at 100 m allows for precise observation even at greater distances. This makes the device ideal for open areas and extensive applications.
Optimized image quality through modern technology
The PIPS 2.0 image processing improves the display through effective noise reduction, optimized zoom, and clear contours. This is complemented by the AI-based AAIC technology, which continuously analyzes and automatically adjusts the image.
Finest adjustment and constant repeatability
The ultra-fine click value of 0.9 cm at 100 m allows for precise setting. The sub-pixel technology ensures reliable and reproducible adjustment, even with intensive use.
Intuitive operation for practical use
The ergonomic 3-button layout allows for easy and silent control. The focus can be precisely adjusted, while the Bluetooth remote control with magnetic holder offers additional comfort.
Robust and reliable under all conditions
The stable housing made of magnesium alloy reliably protects the technology from external influences. Thanks to the IP67 certification, the device is dustproof and waterproof and operates reliably even at extreme temperatures from -30 °C to +55 °C.
Efficient Power Supply
The power supply is provided by replaceable 18650 batteries. With a runtime of up to 6 hours per battery, extended use is easily possible. Two batteries are included in the delivery.
Modern features for versatile applications

6 color palettes for different observation situations
Hotspot tracking for quick detection of heat sources
32 GB internal storage for image and video recordings
Wi-Fi function for live streaming to mobile devices
Stadiametric rangefinder

Technical Data at a Glance

SensorVOx 640 × 512 px / 12 µm / <18 mK
Lens50 mm f1.0
Detection Distanceup to 2600 m
DisplayOLED, 1920 × 1080 px
Frame Rate50 Hz
Field of View (100 m)15.4 m × 12.3 m
Storage32 GB internal
Protection ClassIP67
Operating Timeup to 6 hours
Weightapprox. 535 g
Dimensions140 × 102 × 73 mm

FAQ – Frequently Asked Questions about the Device
What distances is the device suitable for?

The PIXFRA Taurus T650 is specifically designed for medium to long distances and offers a particularly high range.

What advantages does the 50 mm lens provide?

It allows for a significantly greater detection distance and more precise detail recognition at greater distances.

Is the device weatherproof?

Yes, thanks to its IP67 certification, it is protected against dust and water and can be used even in adverse conditions.
