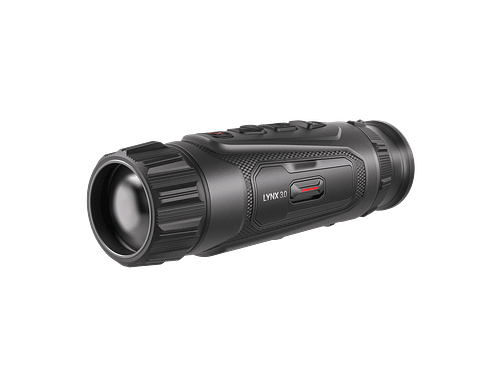

HIKMICRO LYNX 3.0 LQ35

The HIKMICRO Lynx 3.0 LQ35 is a state-of-the-art thermal imaging camera designed specifically for demanding hunters, outdoor enthusiasts, and security users. With its powerful 640×512 VOx sensor and an impressive thermal sensitivity of under 15 mK, it delivers exceptionally clear and detailed images even in challenging weather conditions.
Thanks to the 35 mm lens, the HIKMICRO Lynx 3.0 LQ35 achieves a detection range of up to 1,800 meters. Combined with the variable magnification of 1.9x to 15.2x, the device is ideal for observation at short and medium distances.
The high-resolution AMOLED display (1920×1080) provides brilliant representation with high contrast. The image quality is supported by modern technologies such as Image Pro 3.0 and Zoom Pro, which make details visible without compromising image quality. The innovative HSIS system also allows for uninterrupted use without disruptive calibration interruptions.
Features such as Hot Tracking, Picture-in-Picture (PIP), and integrated distance measurement offer a decisive advantage in the field. With integrated WLAN (2.4 & 5 GHz), 64 GB storage, as well as photo, video, and audio recording, the device is well-equipped for documenting and analyzing observations.
The compact and robust housing (IP67) makes the HIKMICRO Lynx 3.0 LQ35 a reliable companion in any weather. The replaceable 18650 battery ensures flexible power supply and enables long operations even under demanding conditions.

Technical Data – HIKMICRO Lynx 3.0 LQ35

Kategorie
Spezifikation


Sensor
VOx Uncooled Focal Plane Arrays


Auflösung
640 × 512 Pixel


Pixelgröße
12 µm


Bildfrequenz
50 Hz


Spektralbereich
8 – 14 µm


NETD
< 15 mK (@25°C, F#=1.0)


Objektiv
35 mm, f/1.0


Fokus
Manuell (Fokusring)


Detektionsreichweite
bis 1.800 m


Naheinstellgrenze
3,5 m


Sehfeld (H × V)
12,5° × 7,5°


Sehfeld auf 100 m
21,9 m × 13,2 m


Vergrößerung
1,9x – 15,2x (8x digital)

Display

Kategorie
Spezifikation


Displaytyp
AMOLED


Displaygröße
0,49 Zoll


Auflösung
1920 × 1080 Pixel


Farbpaletten
Black Hot, White Hot, Red Hot, Fusion, Red Mono, Green Mono


Austrittspupille
6 mm


Eye Relief
20 mm


Dioptrienausgleich
-5D bis +3D


Helligkeitseinstellung
Ja


Kontrasteinstellung
Ja


Tonmodi
Warm / Kalt

Functions

Kategorie
Spezifikation


Image Processing
Image Pro 3.0


Digitalzoom
Zoom Pro


Shutterless System
HSIS


Hot Tracking
Ja


PIP (Picture-in-Picture)
Ja


Entfernungsmessung
Ja


Videoaufnahme
Ja


Audioaufnahme
Ja


Fotoaufnahme
Ja


Interner Speicher
64 GB


WLAN
2.4 GHz / 5 GHz


Hotspot-Funktion
Ja


Standby-Modus
Ja


Lokales Album
Ja

Power Supply

Kategorie
Spezifikation


Akkutyp
18650 Li-Ion (wechselbar)


Laufzeit (@25°C)
ca. 5 Stunden


Laufzeit (@-20°C)
ca. 4,5 Stunden


Externe Stromversorgung
USB-C (5V DC, 2A)


Direktladen
Ja

General Data

Kategorie
Spezifikation


Schutzklasse
IP67


Gewicht
354,5 g (mit Akku)


Abmessungen
169,6 × 53,6 × 49,5 mm


Betriebstemperatur
-30°C bis +45°C


Luftfeuchtigkeit
≤ 90 %
