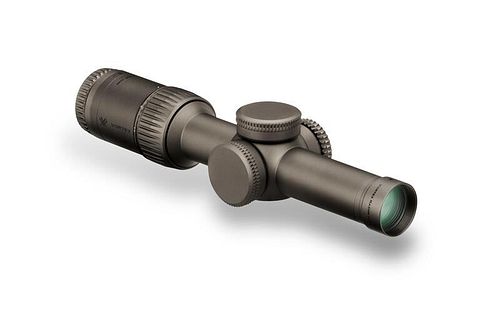

Vortex Razor HD Gen II-E 1-6x24 JM-1 MOA

The Vortex Razor HD Gen II-E 1-6x24 JM-1 MOA is a high-quality riflescope designed for short to medium distances. With its variable magnification range of 1- to 6-power and the specially designed JM-1 MOA reticle, it allows for quick and precise target acquisition. The combination of robust construction and advanced optics makes it suitable for both sporting and hunting applications.

Features

HD lenses with low dispersion for the highest resolution and color fidelity.
XR Plus multi-coating for optimal light transmission and maximum brightness.
Apochromatic lens system for color correction across the entire visible spectrum.

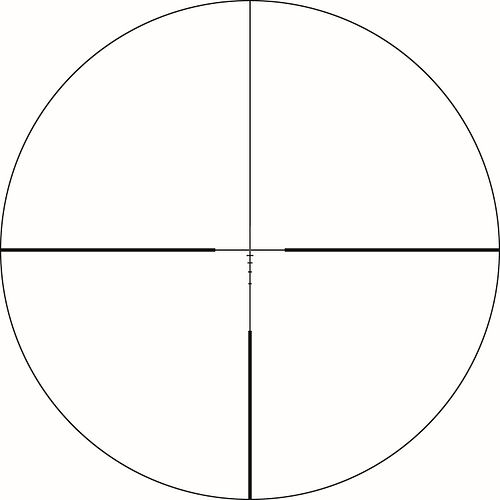

Etched, illuminated JM-1 MOA reticle in the second focal plane for precise shooting in varying light conditions.
Durable 30 mm main tube made of aircraft-grade aluminum with scratch-resistant ArmorTek coating.
Waterproof, dustproof, and fog proof due to argon gas purging and O-ring sealing.

Applications

Sport: Ideal for dynamic disciplines and competitions that require quick target acquisition.
Hunting: Suitable for driven hunts and other forms of hunting at short to medium distances.

Technical Data

Magnification 1-6x
Objective Diameter 24 mm
Reticle JM-1 MOA
Reticle Plane 2nd Focal Plane (SFP)
Eye Relief 4″ (approx. 10.2 cm)
Field of View at 100 m 38.2 - 6.8 m

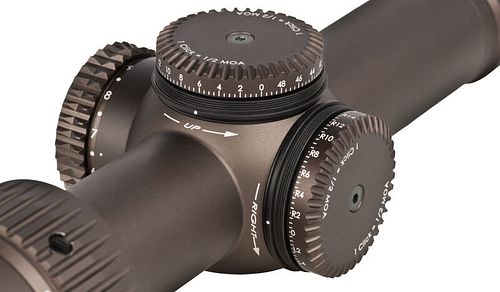

Turrets Low Capped
Adjustment Units 1/2 MOA
Elevation Adjustment 150 MOA
Windage Adjustment 150 MOA
Parallax Setting Fixed at 100 Yards (approx. 91.4 m)
Length 10.1″ (approx. 25.7 cm)
Weight 21.5 oz (approx. 609 g)
Main Tube Diameter 30 mm
Illumination Yes, 11 brightness levels
Waterproof Yes
Fog Proof Yes
Shockproof Yes

Included in Delivery

Vortex Razor HD Gen II-E 1-6x24 JM-1 MOA riflescope
CR2032 battery
Lens cleaning cloth
User manual
