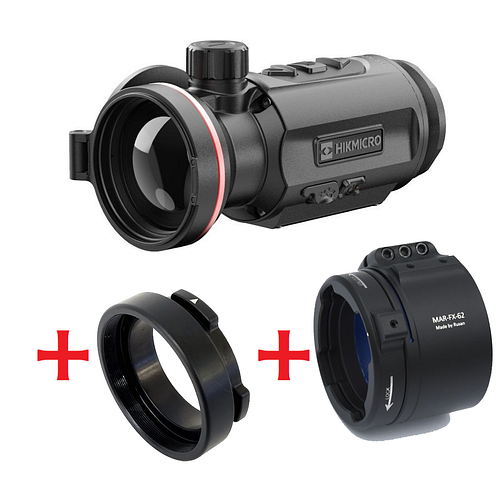

Hikmicro Thunder TQ50C 3.0 in complete set

Hikmicro Thunder TQ50C 3.0The HIKMICRO THUNDER TQ50C 3.0 thermal imaging attachment is equipped with an extremely powerful thermal sensor that has a higher sensitivity of NETD <15 mK. Additionally, it offers a new image processing algorithm to ensure that users can capture the finest details regardless of weather or lighting conditions. With a 1920 x 1080 OLED display, the THUNDER 3.0 provides a better visual experience.

The shutterless system is known from the past and has always been very popular among users. A thermal imaging attachment with shutterless operation does not require noticeable calibration, thus eliminating the annoying click-click sound with a brief freeze of the image. The image flows seamlessly and does not come to a standstill.

Features:640 x 512 - resolution at 12 m thermal imaging sensor High sensitivity thermal module with NETD <15 mK (@25C, F# = 1.0) 50mm, F1.0 lens with a detection range of up to 2600 m 1920 x 1080 - resolution 0.49-inch OLED display HIKMICRO Shutterless Image System (HSIS) rechargeable and replaceable Li-Ion battery for 6 hours of continuous operation high shock resistance of up to 1000 g/0.4 ms integrated tilt sensor

Technical Data:
Thermal Module

Image Sensor Uncooled Focal-Plane Arrays

Max. Resolution 640 x 512

Frame Rate 50 Hz

Pixel Interval 12 m

Frequency Wave Range 8 m to 14 m

Lens (Focal Length) 50 mm, F1.0

NETD Less than 15 mK (@25 C, F# = 1.0)

Detection Range 2600 m . M.

Focusing Focus Knob

Min. Focusing Distance approx. 10 m

Magnification 1x

Field of View (H V), Degrees / m @100m 8.8 x 7.0/15.4 m x 12.3 m

Recommended Magnification of Day Scope 1-15x

Image Presentation

Display 1920 x 1080, 0.49 inch, OLED

Color Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome

Exit Pupil approx. 25 mm

Eye Relief approx. 20 mm

Brightness Adjustment Yes

Hue Adjustment Cold, Warm

HSIS (HIKMICRO Shutterless Image System) Yes

Image Pro 2.0 Yes

System

Video Recording Integrated Video Recording

Photo Capture Yes

Virtual Crosshair Yes

Standby Mode Yes

Storage Built-in EMMC (64 GB)

Hotspot Yes

Hot Track Yes

Crosshair No

Audio Recording Yes

Recording via Recoil Activation Yes

Max. Recoil 1000 g/0.4 ms

Local Album Yes

Image Calibration Yes

Zeroing of Profiles 5

Power Supply

Battery Type Replaceable and rechargeable Lithium-Ion battery

Battery Life 6h (25 C, with hotspot off)

Type-C Power Supply 5 VDC, 2 A supports external power supply

General

Protection Class IP67

Dimensions 149.4 mm x 76 mm x 74.6 mm

Weight 500 g with battery

Operating Temperature -30 C to + 55 C (-22 F to 131 F)

Housing Material Housing and lens cover: Magnesium Alloy

Scope of delivery:- Thunder TQ50C 3.0

- 2x battery pack

- charging station

- cleaning cloth

- description

- hook key for counter ring

- bag

- heating pads

- adapter optional

Please remember that we need the housing outer diameter and not the lens diameter of the optics!

When mounting thermal imaging devices on riflescopes, please observe the respective legal situation of the countries!!!
